基本信息
| 型号 | G10/G20 |
| 保修 | 无/不。 |
| 售后服务 | 无/没有 |
| 起源 | 气动钻 |
| 用法 | 喷漆枪 |
| 气动扳机类型 | 脉冲气动扳手 |
| 气动钻机系列 | 隧道 |
| 自动化程度 | 半自动 |
| 颜色 | 可选 |
| 运输包 | 纸箱或其他 |
| 规格 | 无，没有 |
| 商标 | GM |
| 起源 | 中国 |
| 生产能力 | 每年5万件 |
产品详情
Product Description
Preview
Preview
Preview
Preview
Preview

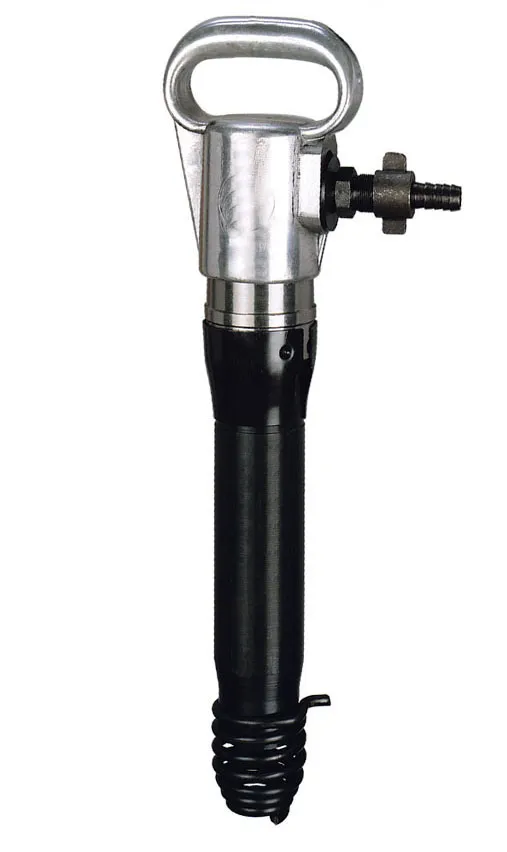

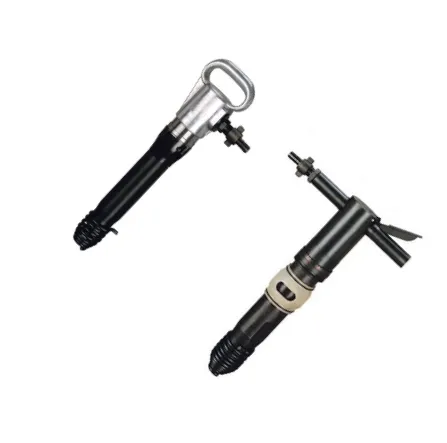

The G10 pneumatic pick is suitable for drilling in mine, crushing incompetent bed, concrete and clay, destroying hard or frozen stratum and other athletics occasion which need impact.Specification
Total Length
570mm
Weight
10kg
Rammerweight
0.9kg
Rammer dia
38mm
Rammer stroke
155mm
Air pressure
0.63Mpa
Impact energy
43J
Impact frequency
16Hz
Air consumption
26L/s
Air pipe inner dia
16mm
Drill
500mm
--------------------------------------------------------------------------------------------------------------------------

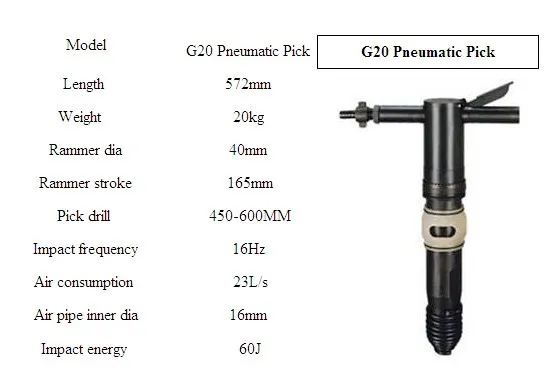

The G20 pneumatic
pick
is
suitable in the mining industry to interrupt the coal bed and to destroy the soft ore
or in civil engineering and underground construction.
Total Length
570mm
Weight
10kg
Rammerweight
0.9kg
Rammer dia
38mm
Rammer stroke
155mm
Air pressure
0.63Mpa
Impact energy
43J
Impact frequency
16Hz
Air consumption
26L/s
Air pipe inner dia
16mm
Drill
500mm
--------------------------------------------------------------------------------------------------------------------------
The G20 pneumatic
pick
is
suitable in the mining industry to interrupt the coal bed and to destroy the soft ore
or in civil engineering and underground construction.
Preview
Preview
Preview
Preview
Preview
证书
标题：SGS Certificate for Made-in-China
Preview
G10/G20 气动抓斗/气动凿岩钻机/风镐/分裂机
￥347.52 ~ ￥687.8
化工产业链 · 矿山机械 · 岩石分裂机
型号G10/G20
产地气动钻
产地中国
福州
已认证
