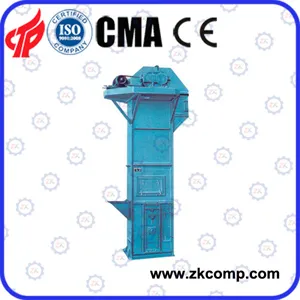

Chain Hopper Coal Bucket Elevator Transportation
1.Introduction of NE Bucket Elevator
Bucket elevator has characteristics of large transport capacity, high elevation, stable operation and long working life.The machine is applicable for conveying the powder, grain and small block materials, such as coal, cement, block, sand, clay and ore.The bucket elevator is allowed to convey materials with high temperature(250°c) when armed with special chain structure, and the elevating height can reach 40m.

Advantage of Bucket Elevator:
The bucket conveyor has the advantages of big conveying capacity, high hoisting height, stable and reliable running and long service life. The machine is applicable for the crushed materials, and block materials, such as coal, cement, block, sand, clay and ore. The bucket elevator is allowed to convey materials with high temperature when armed with special circle chain tructure.Henan Zhengzhou Mining Machinery Co., Ltd. Designs and manufactures a wide variety of bucket elevators based on the characteristics of the bulk material and the process requirements. Designed to handle a wide variety of bulk materials from average to very free-flowing. Welcome to consult and order.

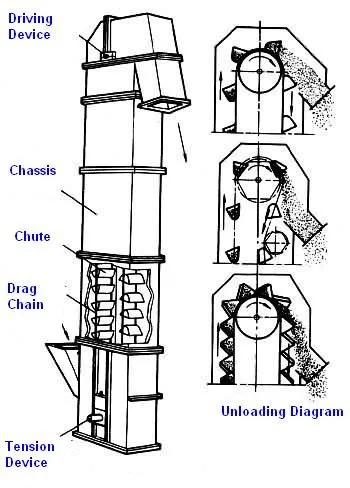

Structure of
chain bucket elevator
:1.Buckets
to
contain
the
material;2.A
belt
to
carry
the
buckets
and
transmit
the
pull;3.Means
to
drive
the
belt;4.Accessories
for
loading
the
buckets
or
picking
up
the
material,
for
receiving
the
discharged
material,
for
maintaining
the
belt
tension
and
for
enclosing
and
protecting
the
elevator.

Working principle of bucket elevator:
Vertical elevators depend entirely on the action of centrifugal force to get the material into the discharge chute and must be run at speeds relatively high. Inclined elevators with buckets spaced apart or set close together may have the discharge chute set partly under the head pulley. Since they don't depend entirely on the centrifugal force to put the material into the chute, the speed may be relatively lower.
Nearly all centrifugal discharge elevators have spaced buckets with rounded bottoms. They pick up their load from a boot, a pit, or a pile of material at the foot pulley.
The buckets can be also triangular in cross section and set close to on the belt with little or no clearance between them. This is a continuous bucket elevator. Its main use is to carry difficult materials at slow speed.Lifting bucket elevator's parameters:
