基本信息产品详情证书
基本信息
型号编号 | 两千乘以两千 |
采矿对象 | 矿物原矿 |
电机类型 | 交流电动机 |
推进器式 | 双叶轮 |
认证 | CE,ISO |
自动化 | 自动的 |
保修 | 12个月 |
定制的 | 定制的 |
条件 | 新(的) |
售后服务 | 提供 |
绘图 | 提供 |
摩托车品牌 | 中国顶级品牌 |
轴承 | 中国顶级品牌 |
运输包 | 装入集装箱 |
规格 | 2500乘以2500毫米 |
商标 | 恒兴 |
起源 | 中国 |
商品编码 | 8474390000 |
生产能力 | 每年生产100套 |
产品详情
Product Description
Preview
Mining Machine Ore Pulp Mixing Use Mixing Tank
Agitating tank
Introduction
Agitating tank
Introduction
Preview

Preview

Preview

Preview
The Agitating Tank is driven by the electric motor V-belt drive to rotate the impeller, fully mix the drug and the slurry, and increase the reaction time of the chemical to strengthen the reaction quality of the drug. The machine is suitable for mining, and can also be used as various chemical industries. Stir the ingredients.The machine is arranged to fully mix the agent and the slurry before the flotation operation, so as to exert the effect of the medicament as much as possible, and it is suitable for the stirring of the slurry and the flotation agent having a concentration of not more than 30% and an ore density of not more than 3.5.Agitating tank working principle :

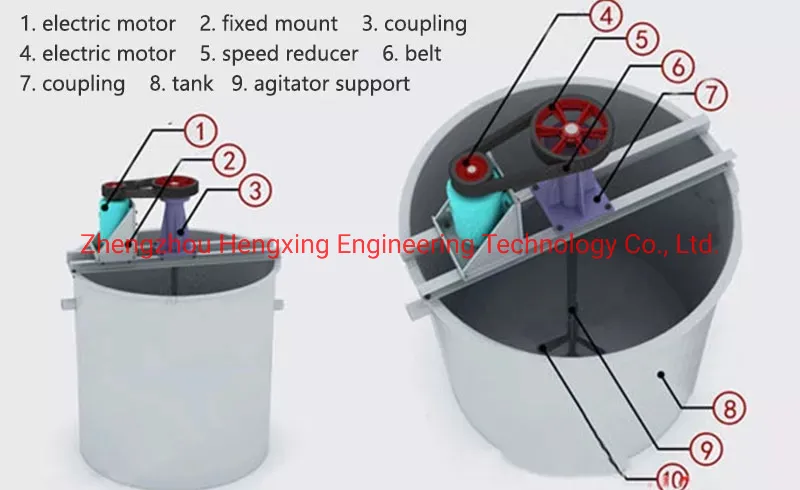

The Agitating Tank is composed of a motor, an impeller, a stator, a bearing and the like, and is stirred by a mechanical stirring method of a flat bottom barrel shaped radiation circulating spiral impeller. When the agitating tank is working, the motor traction triangle belt drive device drives the impeller to rotate, and the slurry and the medicament are fully mixed with each other under the uniform stirring of the impeller, increasing the reaction time of the medicament on the pulp, and strengthening the reaction quality of the medicine, so that the material is obtained. Adequate mixing and mixing to prepare the necessary conditions for the next stage of flotation production.Agitating Tank Features
1. The Agitating Tank is small in size, light in weight, easy to install and disassemble
2. Tt is necessary to adjust the upper, lower, left and right positions and inclination angle of the mixer within the specified range
3. High stirring efficiency, good sealing performance
4. Gear reduction Smooth operation, low noise, and long life
Agitating tank techncial specifications :
The Agitating Tank is composed of a motor, an impeller, a stator, a bearing and the like, and is stirred by a mechanical stirring method of a flat bottom barrel shaped radiation circulating spiral impeller. When the agitating tank is working, the motor traction triangle belt drive device drives the impeller to rotate, and the slurry and the medicament are fully mixed with each other under the uniform stirring of the impeller, increasing the reaction time of the medicament on the pulp, and strengthening the reaction quality of the medicine, so that the material is obtained. Adequate mixing and mixing to prepare the necessary conditions for the next stage of flotation production.Agitating Tank Features
1. The Agitating Tank is small in size, light in weight, easy to install and disassemble
2. Tt is necessary to adjust the upper, lower, left and right positions and inclination angle of the mixer within the specified range
3. High stirring efficiency, good sealing performance
4. Gear reduction Smooth operation, low noise, and long life
Agitating tank techncial specifications :
Preview

Preview

Preview

Preview
What we offer?
We are developing heavy industrial machines and allowing mining companies to implement efficient and more effective ways of mining through our goods. We have variety of products available for sale. These products include Stone Crushers, Jaw Crushers, Cone Crushers, Hammer Crushers, and Sand making Machines, Sand Washing machines, Rod Mills, ball mill, Ore Dressing Machines,rotary dryer,rotary kiln,coal briquette machine
We are developing heavy industrial machines and allowing mining companies to implement efficient and more effective ways of mining through our goods. We have variety of products available for sale. These products include Stone Crushers, Jaw Crushers, Cone Crushers, Hammer Crushers, and Sand making Machines, Sand Washing machines, Rod Mills, ball mill, Ore Dressing Machines,rotary dryer,rotary kiln,coal briquette machine
