Introduction
The XFD series single cell lab flotation machine have three types: XFDI, XFDII, XFDIII. XFDI small flotation cell: the ordinary simple type, the impeller rotary speed can not be adjustable, and without LED displayscreen,applied in laboratory flotation of a small amount of sample ore in such areas as geology,metallurgy,building material and chemical industry.

XFDII small flotation cell: it is the updated version of XFD I, the impeller rotary speed can be adjustable as your needs, butwith LED display screen, without heater device, can not control temperature of the minerals.Applied in stirring,scrubbing,separation and selection of small amounts of sample ore om labs of research institutes and mining bodies involving geology,metallurgy,building materials and chemical industries.

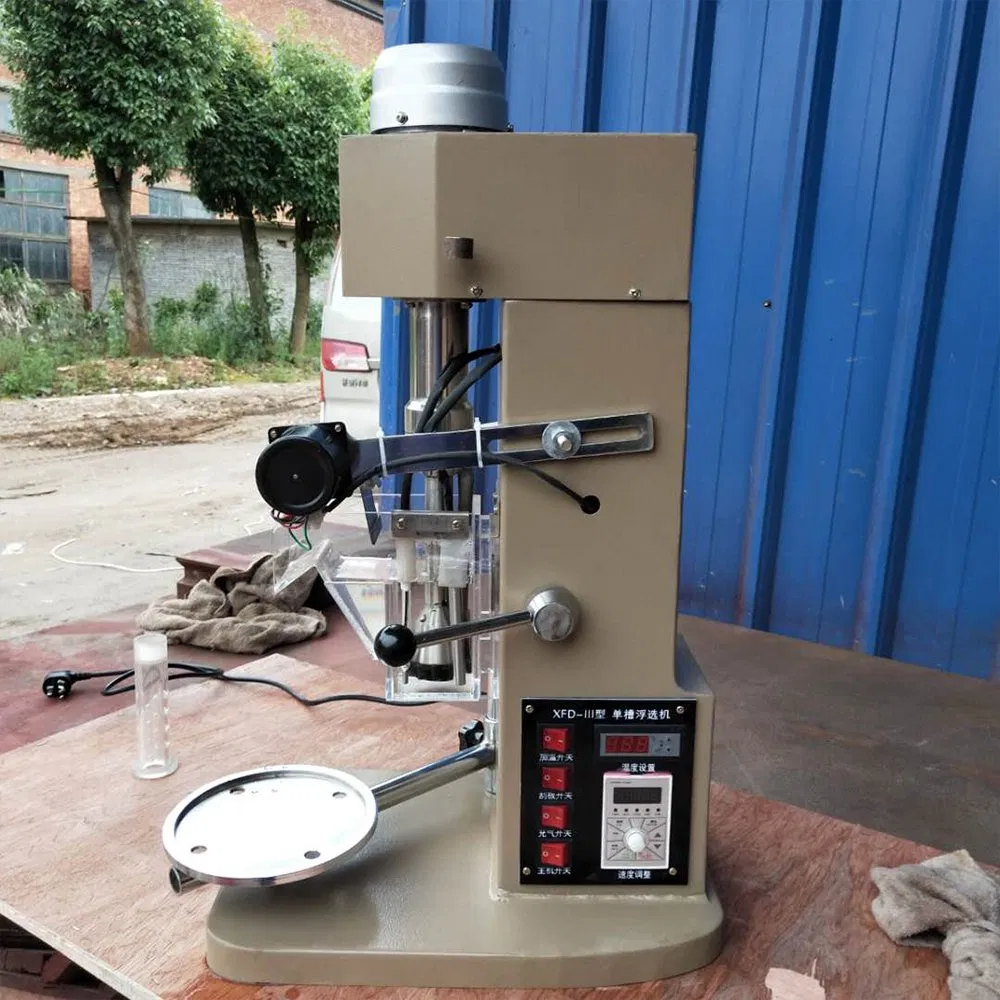

XFDIII small flotation cell: It is the highest grade type. It uses inverter technology, variable speed impeller, digital display,and also change from the outside air to intake inflated with precise adjusted, clear and stable display.According to user needs, it can be equipped with a heater, temperature control device to control, display tank mine fluidtemperature at any time.XFDIII small flotation cell can be equipped with additional water level automatically adjusts automatically administration and other devices, can achieve a higher level of automation. Gas of pump tank supply to the rotor agitation, and mix with ore fluid, the stator is cut to produce tiny bubbles mineralization Rotor speed is stepless and can be adjusted by inverter.Fixed flotation tank fasten by hand wheel drive screw clamp.Shaving foam body, its trajectory is a circular motion.Applied in geology,metallurgy,building materials,chemical and other industrial laboratory flotation ore with a small amount.

FeaturesWorking Principle

Before operation, check whether the main shaft turns clockwise. If not, then change phase sequence of the power source to make the motor turns clockwise before operation. Mix mineral samples and water and then pour them into the cell. Start up the motor to drive the main shaft for rotation. The impeller will agitate in the cell. Then open the valve for air inflation and add chemical agent to form foams. Turn on switch of the scraper motor (8) for rotation of the scraper to scrape foams out of the cell. A box is set on the working table to receive foams. Minerals needed can be obtained after processing of the foams.
Advantage
* Small size, light weight, low noise.
* Simple structure, easy maintenace.
* The motor speed can be controlled by the frequency.
* Stepless speed regulation of impeller, digital display, accurate adjustment.With Heater, can heat and control the temperature of ore liquid.

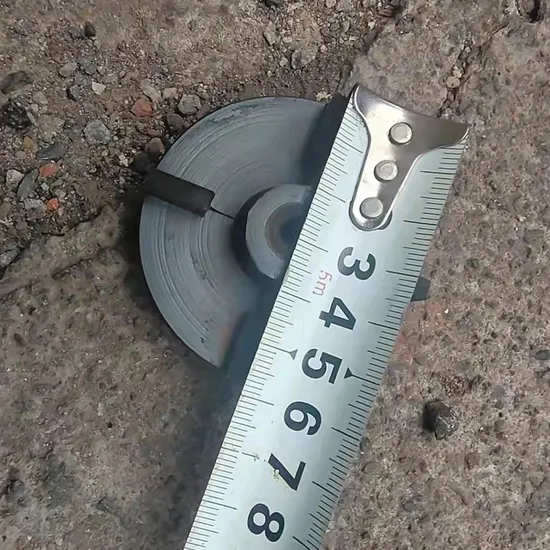

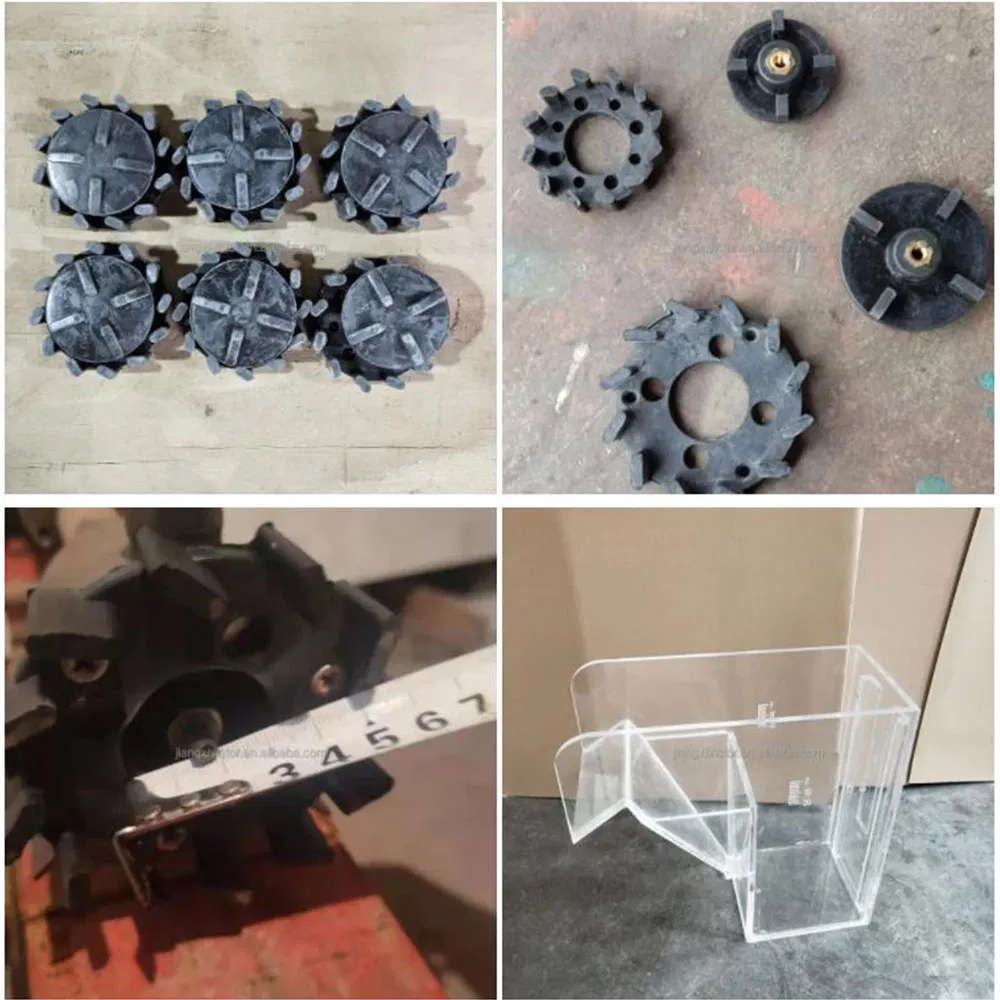

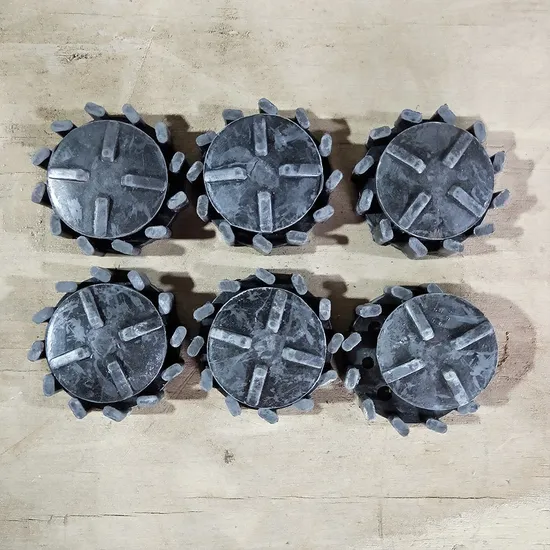

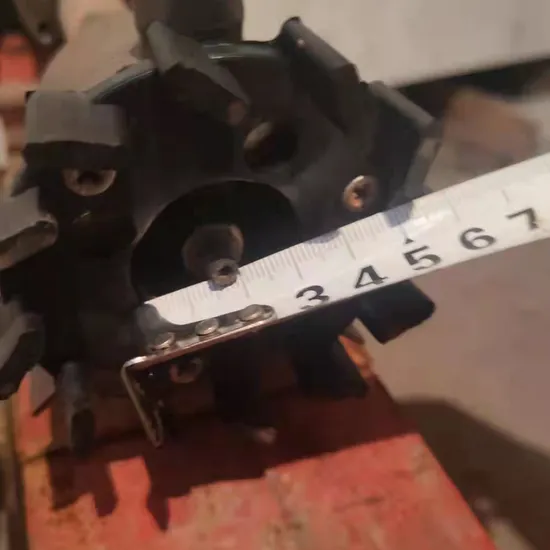

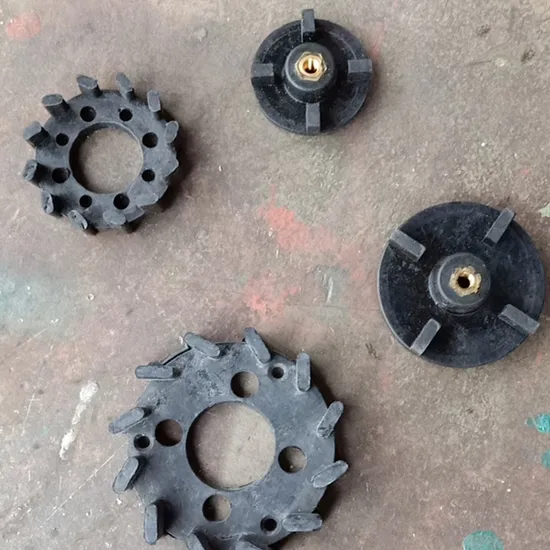

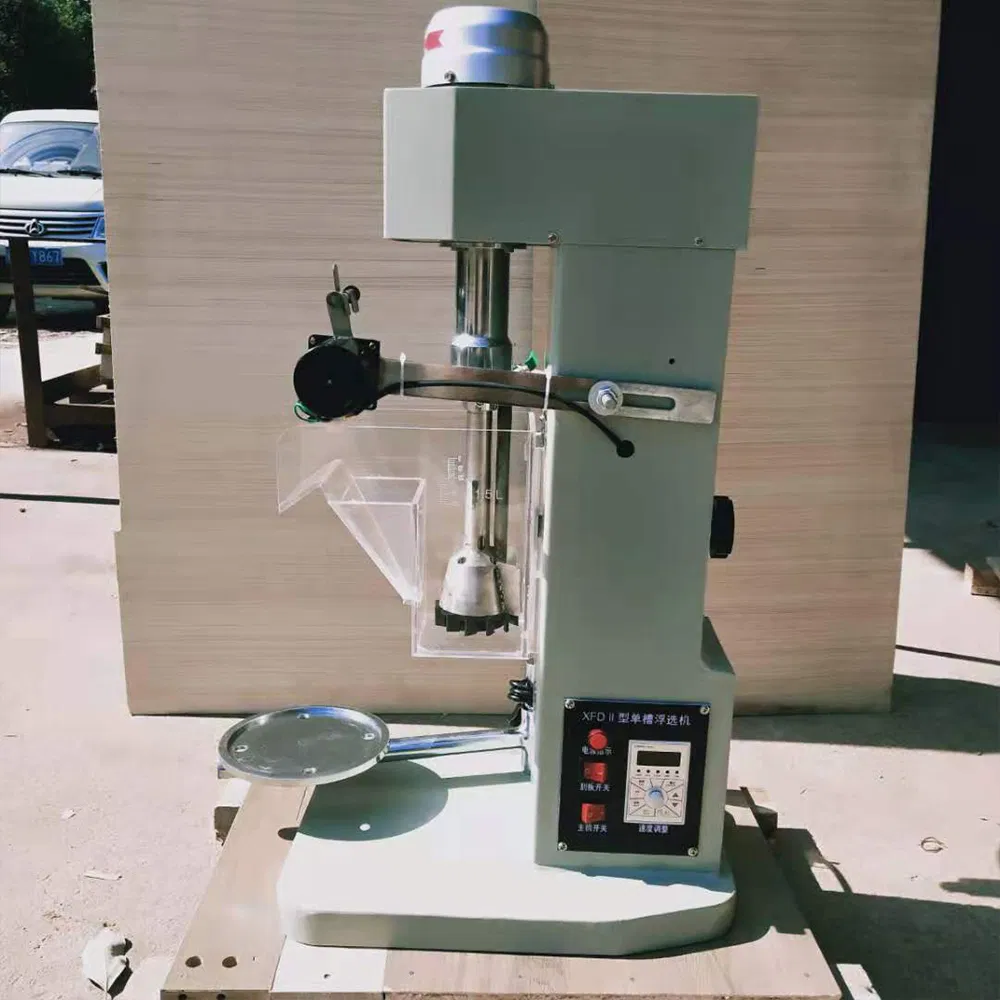

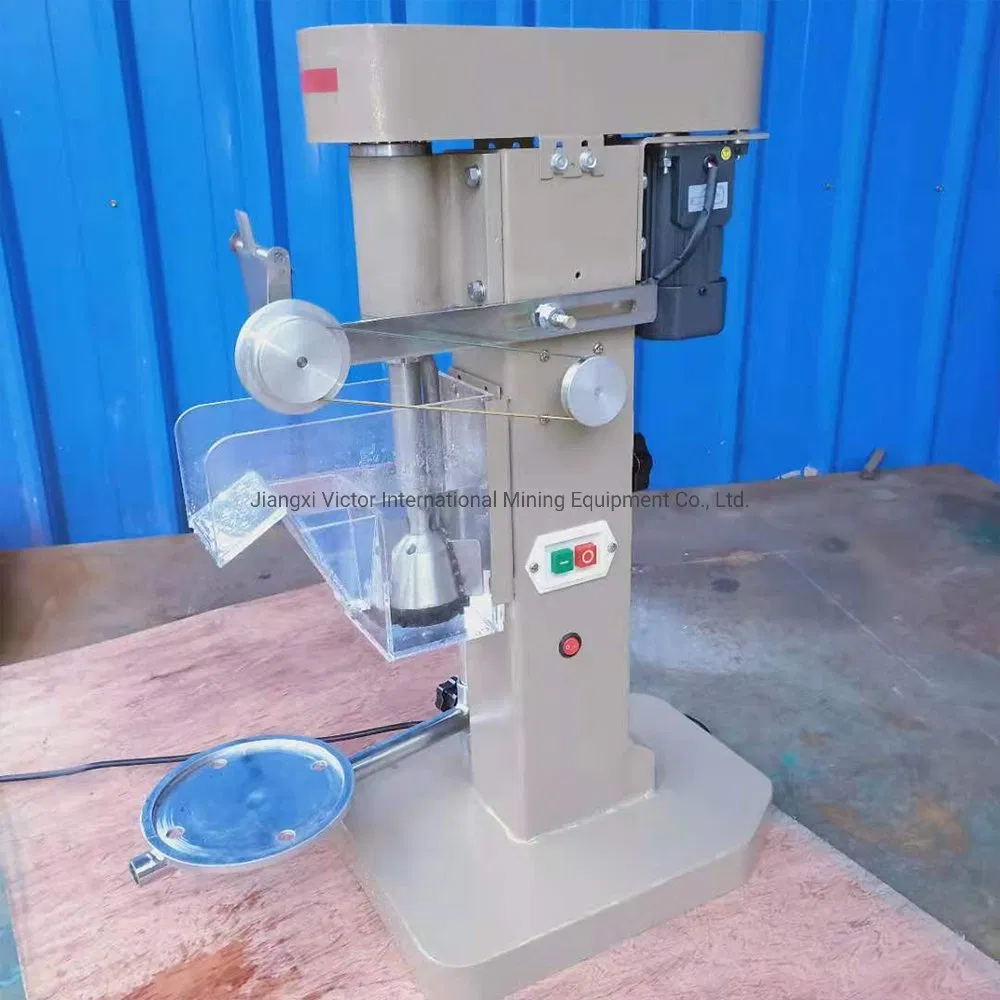

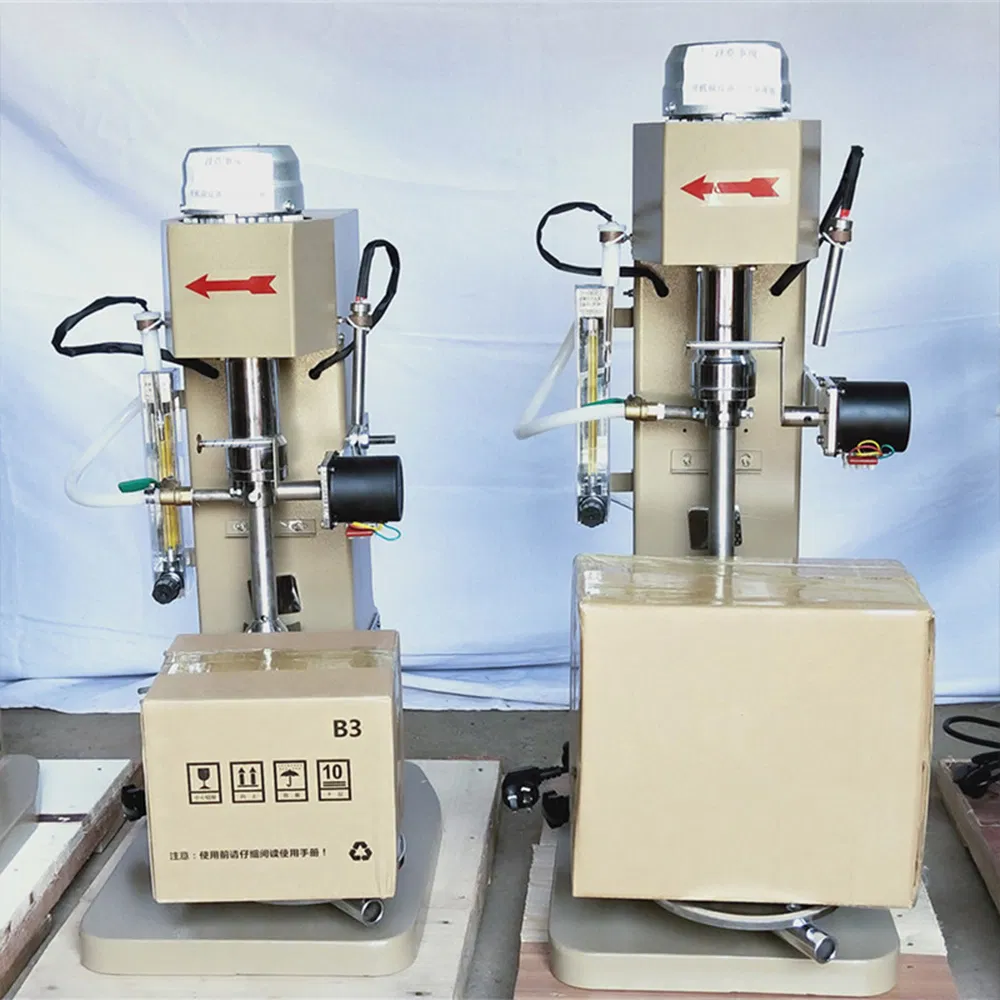

Detailed Images

Company Information

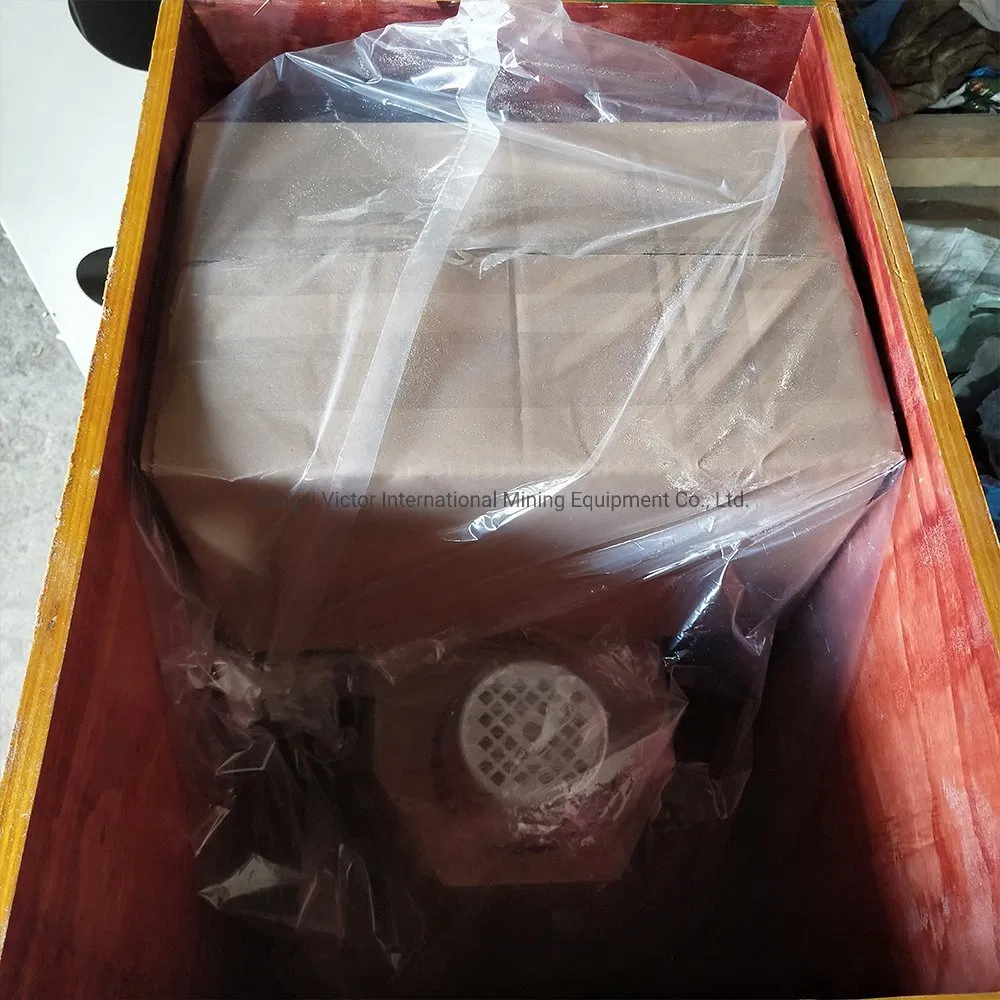

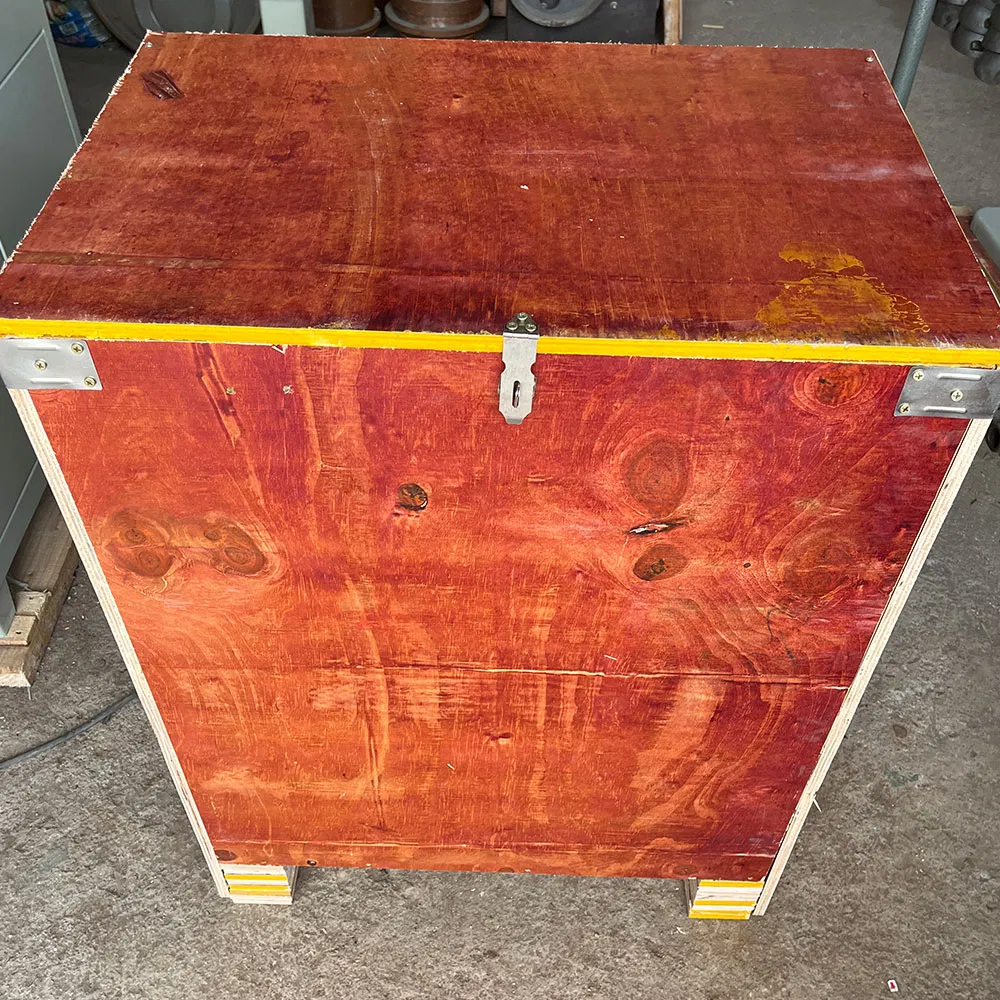

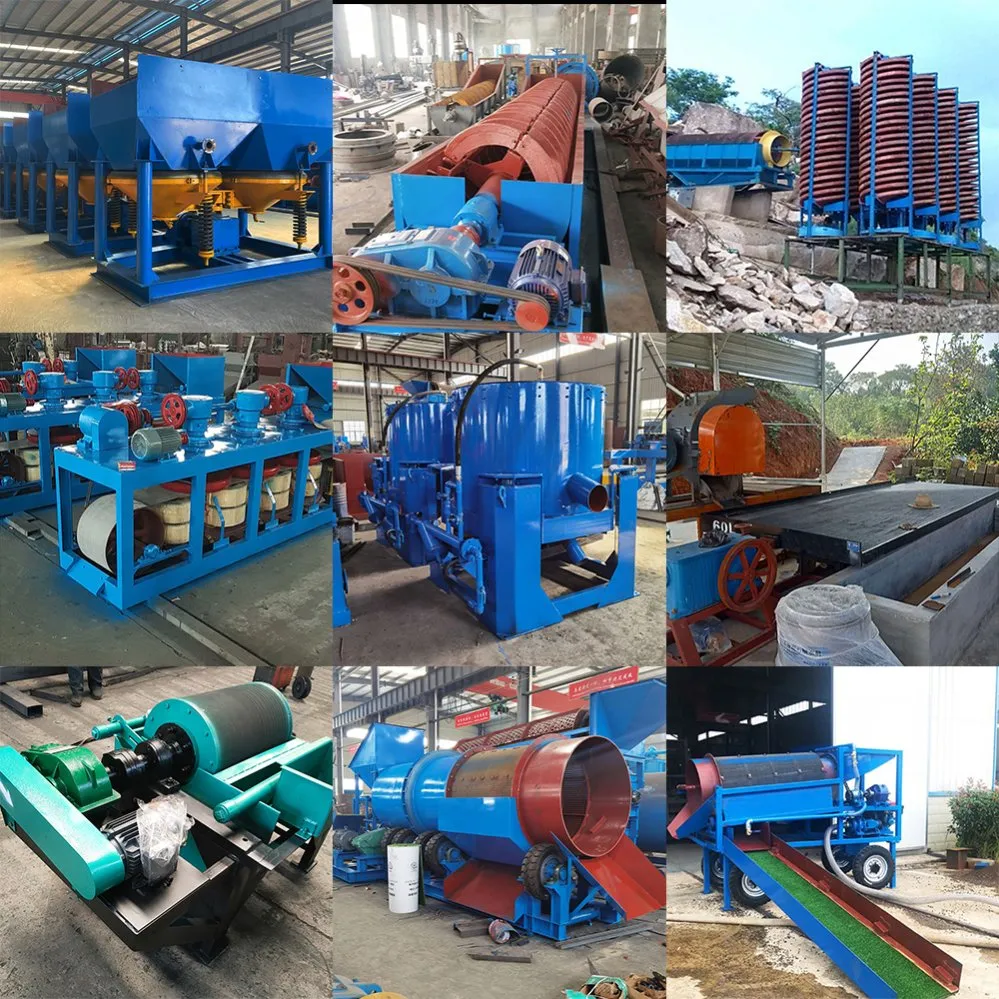

Victor is a large mineral processing manufacturer for 15 years history, with covering an area of 48,000 square meters and 20,000 square meters for workshop, with various large modernized machinery facilities, professional R&D team and installation team. With 32% market share in China and the rest to overseas, already successfully exported to over 50 countries, such as USA, England, Australia, Brazil, Turkey, Italy, Russia, South Africa, Zimbabwe, Sudan, Ghana, Congo, Morocco, India,Indonesia, Malaysia, Philippines, North Korea, Mongolia, Vietnam, Thailand etc.Our goal is to provide one-stop service for you and assist you to solve all problems from investment to his return in the field of mining, including the preliminary mineral analysis, mineral processing test, engineering design, equipment debugging and technical training etc.. We are expert especially at mining separating and lab mining plant, main products as below:Gold trommel wash plantShaking tableSpiral chute separatorCentrifugal gold concentratorJig separator machinesWaste recycling machineGrinding and mill crusherFlotation cell machineMagnetic separatorLaboratory mining plantPackage: FCL & LCL export standard container 20GP/40GP/40HQ. FCL: main machinery gold shaking table in nude package and bulk in container, spare parts in wooden box or as your special requirementLCL: machinery are packed in steel frame, base and deck are separately packed. Shipping: by sea shipment, by air shipment or by courier express, it depends on you.Payment Terms: T/T or L/C is preferable. T/T: 30% deposit and the balance before delivery We will take photos for your products when finished and show you before delivery. Also keep you informed for any updated information including shipping before you receive it, to let you rest assured.Delivery time: shipped in 15 days after paymentFAQ1.How is the quality of your products? (mining equipment/machine)Answer: Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.2.Guaranteed?Answer: All of our products are guaranteed for one year. If products quality is not consistent with the description as wedescribed or the promise before you place order, we promise 100% refund.3.How about price?Answer: For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.4.Service and Payment Terms?Answer: We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice;Finished product pictures will provide to customers before delivery.Our Service1) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.2) Medium-sales service: Accompany you to complete the acceptance of the equipment, draft the construction scheme and detailed process, and complete process of export3) After-sales service: Offer considerate technical guidance in installation, debugging and operators training. We are available at any time if you need.
