1. The scraper concentrator can be used for distillation and recovery of organic concentration medium, as well as for evaporation and concentration of high concentration feed solution, with a significant concentration ratio of more than 1.4. Due to the vacuum decompression concentration, the concentration time is short, and the effective components of the heat sensitive materials will not be damaged.
2. The contact parts of the equipment and materials are made of stainless steel, which has good corrosion resistance, durability and meets the requirements of GMP.
3. This series of products have novel design and unique structure. The scraper blade can be semicircular or conical in combination with the tank body. It can be heated by jacket and evaporated by agitation. The effect of concentration is good. It is suitable for the heat transfer, evaporation and concentration of high viscosity materials

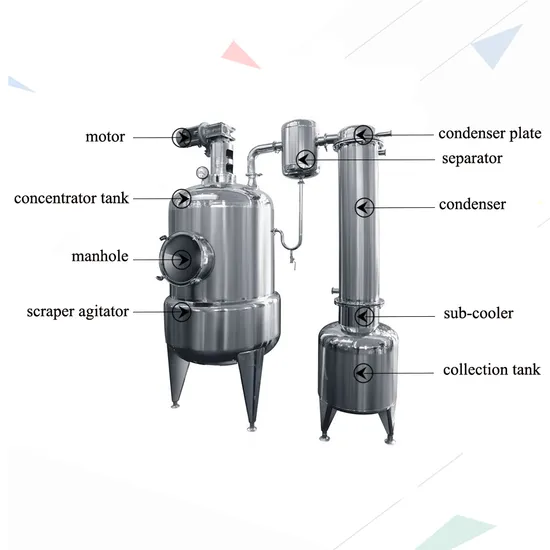

Vacuum scraper concentrator including the following unit : concentrator tank equipped with scraper agitator ,condenser ,sub-cooler ,water/gas separator ,collection tank,vacuum pump and pipeline etc.
Character:

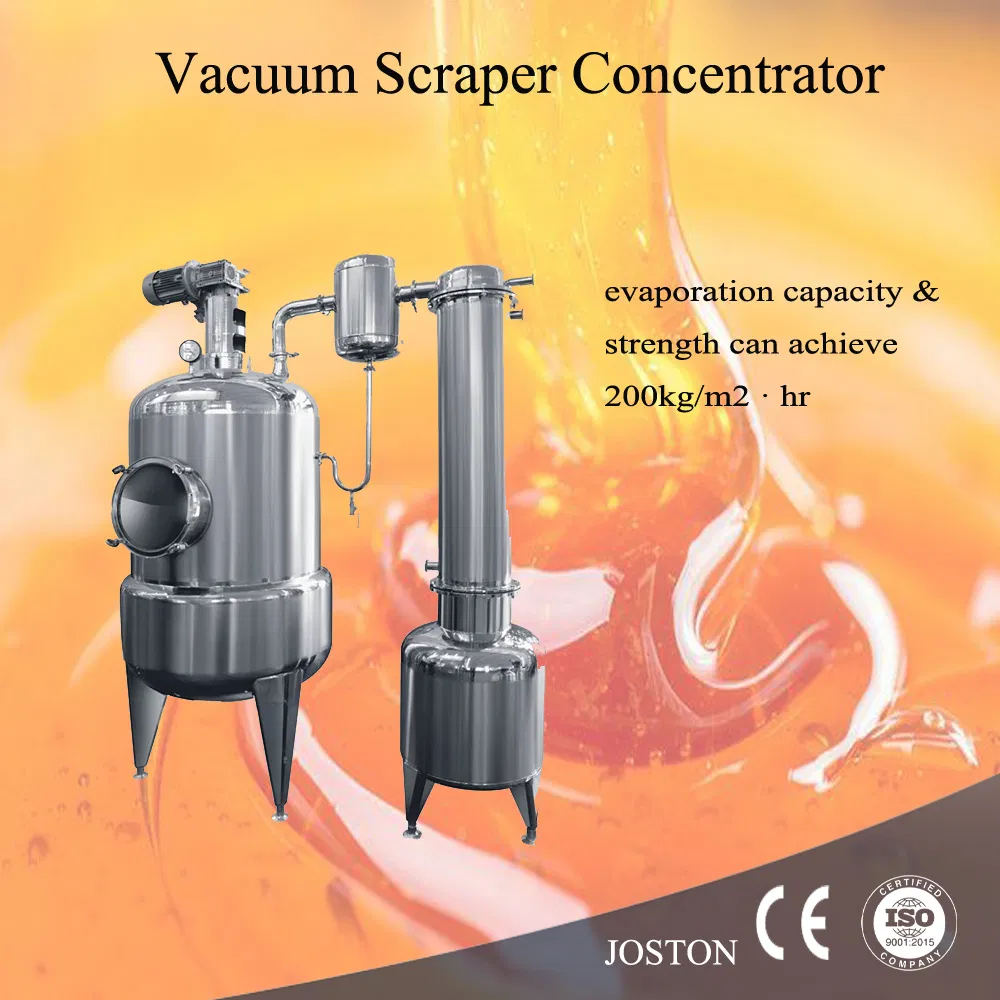

1) Its heat transfer coefficient value is high, and its evaporation capacity & strength can achieve 200kg/m2 · hr, with high thermal efficiency.
2)Material heating time is short, from 5 seconds to 10 seconds. Under vacuum conditions, the equipment can favorably retain heat-sensitive material's various ingredients, and produce non-decomposition, to ensure the quality of products.
3) This equipment is adopted to wide range of viscosity. Material of high viscosity can also be processed. Material viscosity can be as high as 10 million per cent tabor (CP).
4) Changing the rotation direction of the scraper groove, can adjust the process time of material in the evaporator.
5) The wall of evaporation cylinder body is after precision milling and polishing processing, so its surface is not easy to generate coking, fouling. 6) It is convenient to operate, and easy to regulate in product index. In airtight condition, continuity production can be auto-controlled.
7) Equipment covers a small area, with simple structure. It is easy to clean and convenient to maintenance
8)The uses of scrapping wall type rotary scarper makes the heat transfer area of the enrichment tank undate in timely to ensure the material does not adhere to the heat transfer suface for a long time, so that the equipment maintains a high heat transfer coefficiency
and highevaporation intensity.
9) The material in the scraper concentration tank keeps stirring and turning, and the material is heated evenly, which prevents the material from being burned and carbonized for a long time and ensures the high quality of medicine.
10)The srecuture of the quipment is reasonable, there is a large space for evaporation and separation, the phenomenon of vapor-liquid entrainment is reduced, the yield of the finished products is high, and the whole process of is completed at low temperature, the color and quality of the extract is good.
11) When the material is discharged scraping plate can completely clean the paste attached to the tank wall, reducing consumption and ensuring the paste yield.
Polishing:
Polishing is vital for tanks. Tanks should be polished wholly inside and outside.
Therefore it can ensure there is no place for the bacteria to hide in tanks.
Our polishing system consists of auto and semi-auto polishing machine and manual polishing.
Each tank is polished three times and more polish for the key place.
Welding:
Our argon central system for welding provides 100% pure argon to protect tanks from distorting during welding
