Working principle

HSJ 3 系列维护振荡混合器的工作原理不同于传统的旋转混合器。它使物料在三维立方体内进行“Turbula、Turbula、Turbula”的复杂运动。产生交替脉冲以持续推动物料，而该运动产生的湍流具有变化的能量梯度，从而使混合物料中的每个颗粒都处于不稳定状态，并且每个颗粒在频繁的运动和扩散中不断改变其位置，从而获得令人满意的混合效果。
The HSJ Series 3 Maintenance oscillating mixer works differently from traditional rotary mixers. It TURBULA a complex movement of material "Turbula, Turbula and Turbula" in a three-dimensional cube. An alternating pulse is generated to continuously push the material, and the turbulence generated by the movement has a changing energy gradient, so that each particle in the mixed material has an immovable state, and each particle constantly changes its position in the frequent movement and diffusion, resulting in a satisfactory mixing effect.
物料混合中最忌讳的有两点：第一，混合运动中存在离心力，这会使混合物的密度产生分离；第二，混合物成块并堆积，导致物料无法有效扩散和混合，而三维摆动混合机的运动状态克服了上述缺点。
There are two most taboo in the material mixing: first, the existence of centrifugal force in the mixing movement, which can make the density of the mixed material produce segregation; The second is that the mixed material is clumped and accumulated, so that the material can not be effectively diffused and mixed, and the motion state of the three-dimensional swing mixer overcomes the above disadvantages.
结构特点
Structural characteristics

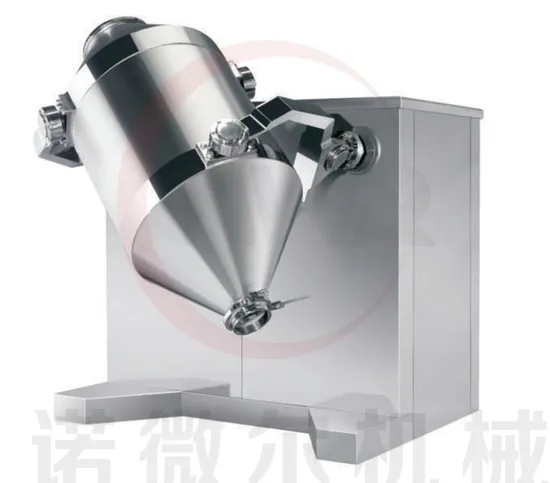

三维摆动式系列混合机由机架、驱动系统、三维运动机构混合筒和电气控制系统等组成。与物料直接接触的混合筒采用优质不锈钢材料制成，其简化内壁经过精密抛光。
1. 机座：
机器的机架采用型钢制成，外覆不锈钢。机架结构合理，能有效稳定整机，充分满足药品GMP要求
2. 驱动系统：
机器的驱动系统由电机、传动减速系统、变频器和控制系统组成。设计简洁，传动稳定可靠，变频器能有效缓冲重载启动时的惯性，并能精确选择停机时筒体的最佳位置，便于进料或出料。
3. 三维运动机构
为了使混合筒在三维空间中进行复杂的平移、旋转和摇摆运动，机器设计了独特的主动、从动和双轴三维运动摇臂结构。从动轴的灵活设计使机器更加灵活轻便；调试和维护更加便捷。
Y型三维运动摇臂机构由不锈钢材料制成，经过抛光，外形美观，可用于100,000级100级洁净区。
4. 混合筒
机器的混合筒布置在两个相互交叉且垂直的空间中，分别位于由Y型三维维护运动摇臂连接的主轴和从动轴之间。混合筒由筒体、正锥进料端、偏心锥出料端、进料口和出料装置组成。
混合筒采用优质不锈钢制成，其内壁和外壁均经过抛光。筒体具有良好的气密性，表面光滑，无死角，无残留，易于清洁。进料口采用夹式法兰密封，操作简便且气密性好。出料采用独特设计的锥形信心阀，不对称设计更有利于物料的均匀混合和出料，出料口位于混合容器的最低位置，同时物料被排空。
出料阀采用本厂特别设计的蝶阀，具有良好的密封性能，出料方便无残留。
series three-dimensional swing mixer is composed of frame, drive system, three-dimensional motion mechanism mixing cylinder and electrical control system, etc. The mixing cylinder in direct contact with the material is made of high-quality stainless steel material, and the simplified inner wall is precisely polished.1. Machine base:
The frame of the machine is made of model steel, and the exterior is covered with stainless steel. The frame structure is reasonable, can effectively stabilize the whole machine, fully meet the GMP requirements of drugs
2. Drive system:
The drive system of the machine is composed of motor, transmission deceleration system, frequency converter, and control system. The design is simple, the transmission is stable and reliable, the frequency converter can effectively buffer the inertia of heavy load starting, and can accurately choose the best position of the cylinder when stopping, so as to facilitate the feeding or discharging.3, three-dimensional motion mechanism
In order to make the mixing cylinder perform complex translational, rotational and rock movement in the three-dimensional space, the machine is designed with a unique active, driven and two-axis three-dimensional motion rocker arm structure. The flexible design of the driven shaft makes the machine more flexible and light; More convenient debugging and maintenance.Y-type three-dimensional motion rocker arm mechanism is made of stainless steel material, and polished, beautiful shape, can be used in 100,000 class 100 clean areas.4. Mixing cylinder
The mixing cylinder of the machine is arranged in two Spaces crossed and perpendicular to each other, respectively between the main shaft and the driven shaft connected by the Y-type three maintenance motion rocker arm. The mixing cylinder is composed of the cylinder body, the feeding end of the positive cone, the discharging end of the eccentric cone, the feeding port and the discharging device.The mixing cylinder is made of high quality stainless steel, and its inner wall and outer wall are polished. The cylinder body has good air tightness, smooth surface, no dead Angle, no residue, easy to clean. The feed port is sealed with clamp type flange, easy to operate and good air tightness. Discharge using a unique design of confidence cone, asymmetric design is more conducive to the uniform mixing of materials, discharge, the discharge port is in the lowest position of the mixing container, while the material is exhausted.The discharge valve adopts the butterfly valve specially designed by our factory, which has good sealing performance and convenient discharge without residue.

产品参数
Product Parameters
构造原则
Construction principle
三维混合机适用于不同比例的干湿物料均匀混合，尤其适用于鸡精、药粉、饮料粉等复杂混合材料的混合。它已被广泛应用于鸡精及其他调味品、医药和化工原料粉末的混合中。
Three-dimensional mixer
is suitable for mixing different proportions of dry and wet materials evenly, especially for mixing chicken essence, pharmaceutical powder, beverage powder and other complex mixed materials. It has been widely used in mixing chicken essence and other condiments, pharmaceutical and chemical raw materials powder.
