可视化瓶装和安瓿瓶检测机
YJ-90A型号用于小瓶、安瓿瓶、注射器和预充式注射器

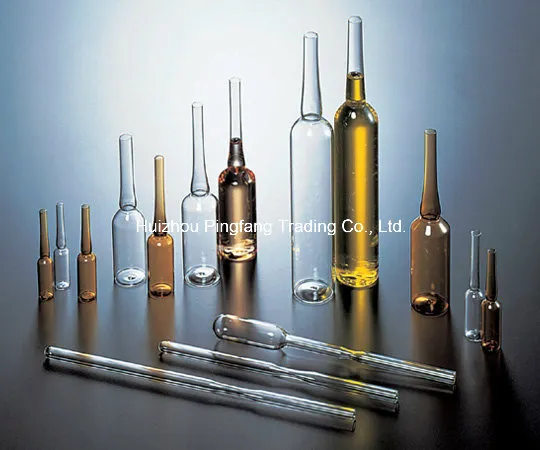

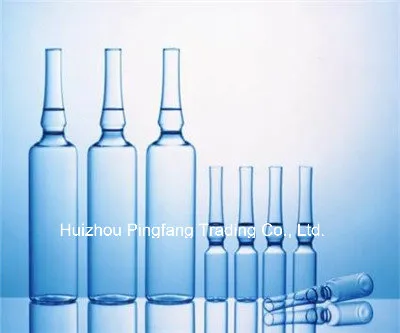

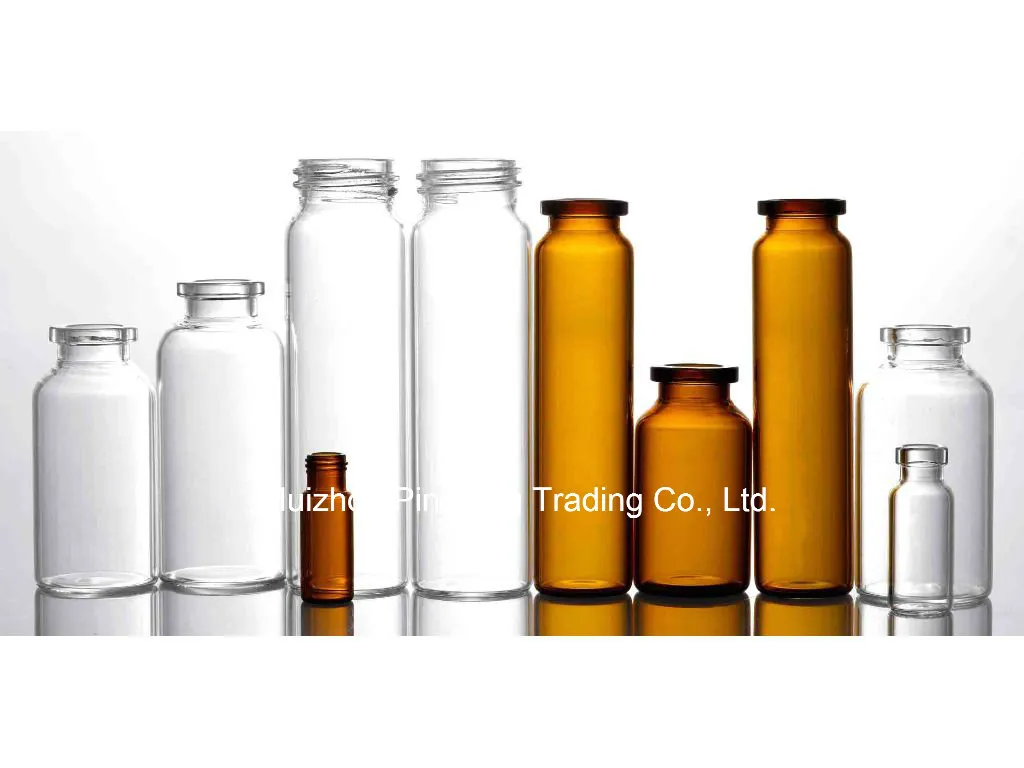

适用对象：安瓿瓶、小瓶、牙科注射器及注射器。
安瓿瓶和小瓶视觉检测模型YJ-90A用于制药行业的视觉检测等。

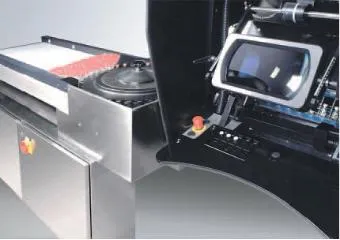

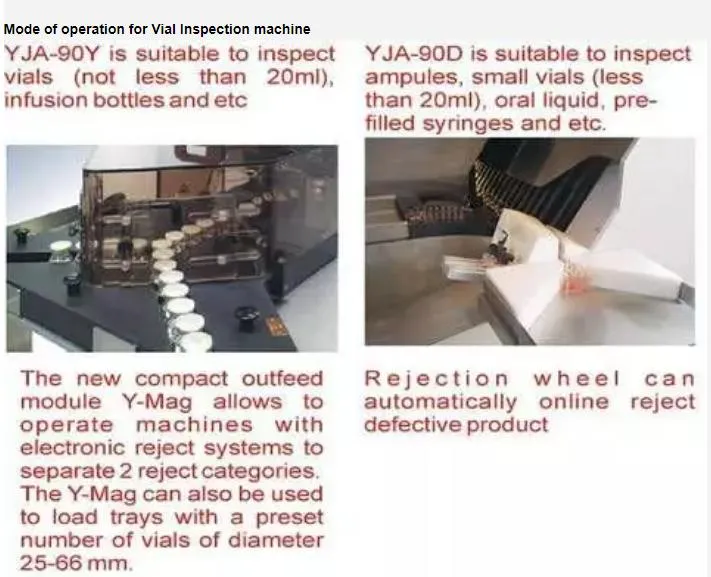

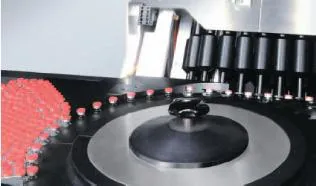

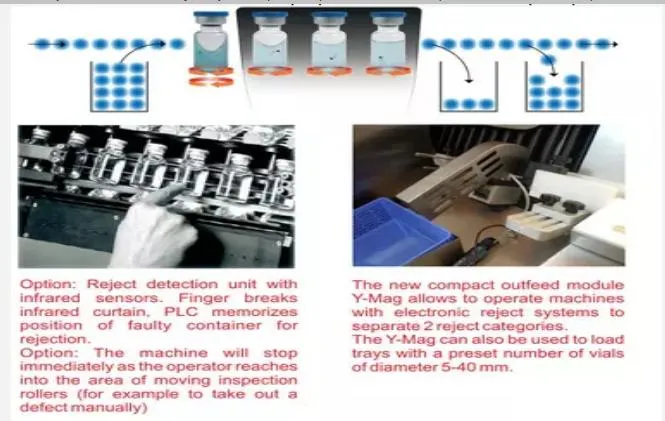

工作原理：产品瓶子由供料系统提供，并按顺序排列在检测滚筒上。本检测机有两个独立的驱动系统，即输送系统和旋转系统。输送系统使滚筒承载瓶子并向前移动。同时，旋转系统使滚筒自身旋转，同时瓶子也会在滚筒上相应自转，高速自转会使液体中的颗粒被搅动起来。当瓶子经过操作者面前的暗检室时，来自卤素照明系统的集中光束会折射掉颗粒，使其像灯泡一样发光，达到丁达尔效应，这使得任何颗粒都更容易看见。此外，检测机还配备了镜子和放大镜，这些设施支持操作人员检测产品的整个外部表面，因此可以检测出瓶底、瓶肩和瓶盖区域的微小裂缝和外观缺陷。缺陷产品可以通过在线自动剔除系统剔除，合格产品和缺陷产品将进入不同的通道。
Working principle:Product bottles are supplied from feeding system and aligned in order on the inspection rollers. The inspection machine has two independent driving system, they are conveying system and rotating system. The conveying system makes the rollers carry bottles and move forward. Meanwhile, the rotating system make the rollers self-rotating along with itself, and simultaneously the bottles on the rollers will be self-rotating accordingly, the high-speed self-rotation will whirl up the particulate in liquid. When the bottles pass the dark inspection cabin in front of operator, concentrated light beam from halogen lighting system refracts off the particulate and make it glow like a small light bulb to reach Tyndall effect, which makes any particulate more easily visible. Furthermore, the inspection machine is completed with mirrors and magnifying lens, these facility support the operator and permits the inspection of the entire outer surface of the product, so that micro-fissures and cosmetic defects can be detected in the bottom, shoulder and cap area. Defect products could be removed by online automatic reject system, qualified product and defect product will enter into separate channels.

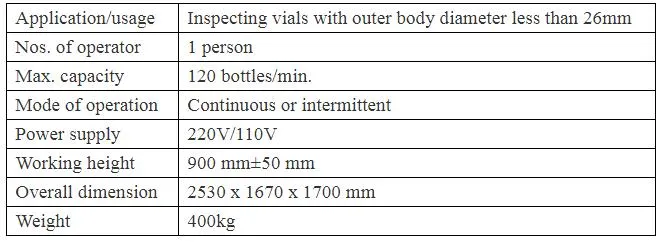

主要技术参数：
优势：
1.提高生产能力，减轻操作人员疲劳。
2.可用于检查安瓿瓶等。10毫升至40毫升之间的所有尺寸。
3.可检查各种产品，如溶液、抗生素、悬浮液、眼药水、冻干产品等。
4.可以同时检查多种标准，如颗粒、玻璃缺陷、底部、肩部和帽盖区域、微裂缝等。
5.采用丁达尔原理，杂质颗粒在集中光束下对比度强烈增强，杂质可轻松快速检测。
6.可调节的冷光源系统结合镜子和放大镜使检测更加高效。
7.输送速度和转速可单独控制并可调节。
8.色温、照明强度和照明角度可调整以优化视觉效果。
9.先进的控制系统和触摸屏提供友好的人机界面。
10.提供各种计数功能，如进料计数、出料计数、拒收计数。
11.更换简单快捷，无需使用工具，机器清洁维护方便。可与其他设备连接，组成生产线。
Main
Technical
Parameters:
Adcantages:
1.It increases the production capacity and reduces operator's fatigue.2.It can be used to inspect vials and etc..All sizes between
10 and
40 ml
3.Various kinds of products like solutions, antibiotics, suspensions, eye drops, freeze dried products can be inspected.4.Several criteria can be inspected simultaneously, such as particulate matter, glassware defects, bottom, shoulder and cap area, micro-fissures.5.By adopting Tyndall principle, the contrast of impurity particle is intensively enhanced under the concentrated light beam and the impurity can be detected very easily and quickly.6.Adjustable cold lighting system combined working with mirrors and magnifying lens make the inspection more efficient.7.Conveying speed and rotating speed are separately controlled and both speed could be variably adjusted
8.Color temperature, intensity of illumination and angle of illumination can be adjusted to optimize visual effect.9.Advanced control system and touch screen provide friendly human-machine interface.10.Various counting functions are available, i.e. count of Infeed, count of outfeed, count of rejects.11.Change-over is simple & quick without using tools, machine cleaning & maintenance is easy.It can be connected with other equipments to make up a production line.
