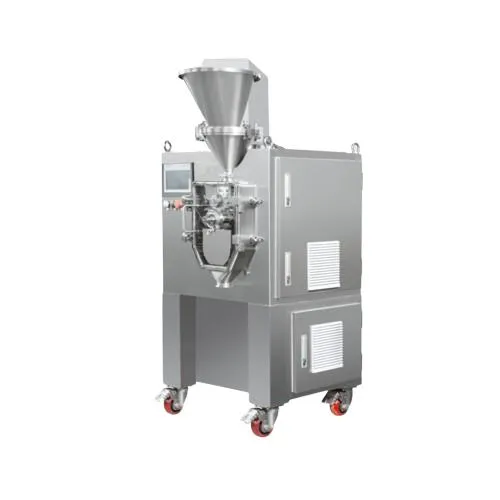

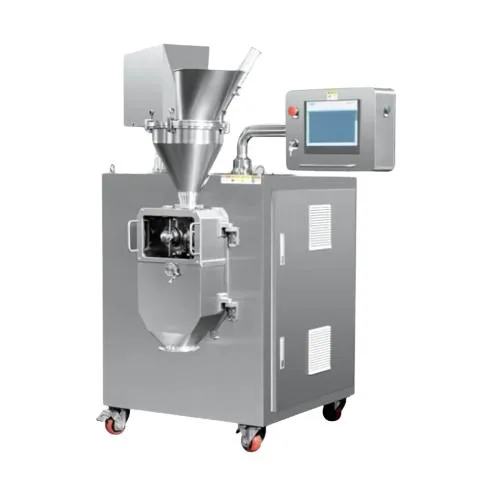

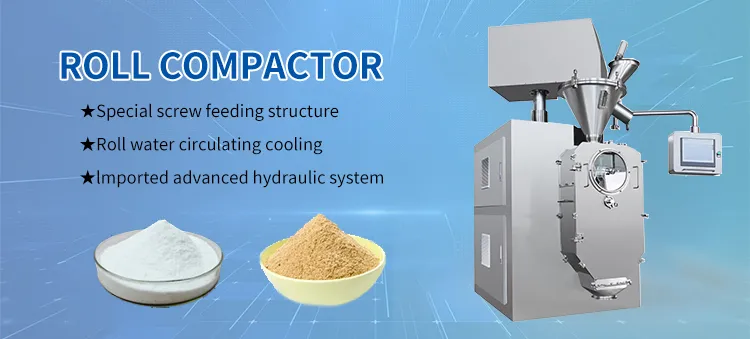

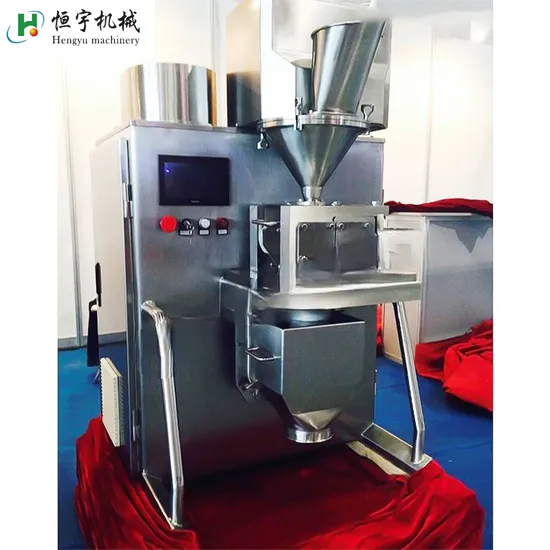

垂直加料工艺 密闭生产 可编程逻辑控制器 电脑控制 滚筒式干法制粒机

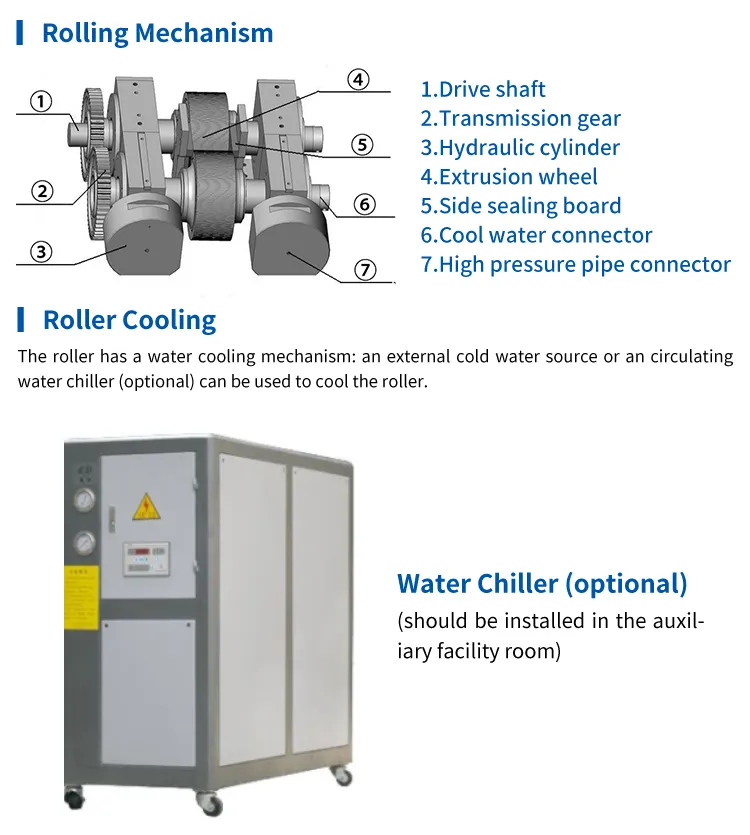

干法制粒机主要由送料系统、反向送料系统、挤压系统、粉碎系统、前盖系统、水冷系统、制粒系统、液压系统和旋转筛控制系统组成。整机包括内部和外部部件。所有传动部件和辅助设施均设计在机身内部。与物料接触的工作部分设置在操作面板外部，并通过中间的多个密封件进行隔离。工作部件将在完全密封的状态下工作，与物料接触的部分可以轻松拆卸和清洁，从而有效防止粉尘泄漏并避免污染的可能性，从而满足生产GMP的要求。
The dry granulator is mainly composed of a feeding system, a reverse feeding system, an extrusion system, a crushing system, a front cover system, a water cooling system, a granulation system, a hydraulic system and a rotary screen control system. The whole body includes internal and external parts. All transmission parts and ancillary facilities are designed inside the body. The working part in contact with the substance is set outside the operation panel and is isolated by multiple seals in the middle. The working parts will work in a completely sealed state, and the parts in contact with the material can be easily disassembled and cleaned, which can effectively prevent dust leakage and avoid the possibility of contamination, thus meeting the requirements of production GMP.
产品优势
Product Advantage

滚压式造粒机的技术优势1.干粉直接造粒，无需任何粘合剂；
Technical advantages of roll compactor1.Dry powder is directly granulated without any binder;
2.
材料通过机械挤压成型，不破坏材料的化学性质，也不降低产品的有效成分；
The material is formed by mechanical extrusion, which does not damage the chemical properties of the material and does not reduce the effective content of the product;
3. 压轮上下布置，以消除重力对物料的影响，并确保物料在压片前的均匀性；
3. The pressure wheel is arranged up and down to eliminate the influence of gravity on the material and ensure the uniformity of the material before tableting;
4. 压轮之间的间隙可调，使压片密度一致，颗粒均匀；
4. The gap between the pressing wheels can be adjusted, so that the tableting density is consistent and the granulation is uniform;
5. 低能耗且占地面积小；
5. Low energy consumption and small footprint;
6. 高造粒率和高生产效率；
6. High granulation rate and high production efficiency;
7. 配备液压系统，可调节颗粒的硬度和密度；
7. Equipped with hydraulic system, the hardness and density of particles can be adjusted;
8. 设备结构简单，易于拆卸和清洁；
8. The structure of the equipment is simple, easy to disassemble and clean;
9. 配备真空装置使片剂更紧密，制粒率高；
9. Equipped with a vacuum device to make the tablet more dense and the granulation rate is high;
配备网状、直纹和光滑的三种谷粒辊，以匹配不同特性的材料；
10. Equipped with mesh, straight, and smooth three-grain rollers to match materials with different characteristics;
11. 控制系统配备有存储器，可存储数千万套生产数据；
11. The control system is equipped with a memory, which can store tens of millions of sets of production data;
12. 该设备采用PLC控制，人机界面美观简洁，易于操作，易于学习。
12. The equipment adopts PLC control, the man-machine interface is beautiful and simple, easy to operate and easy to learn.

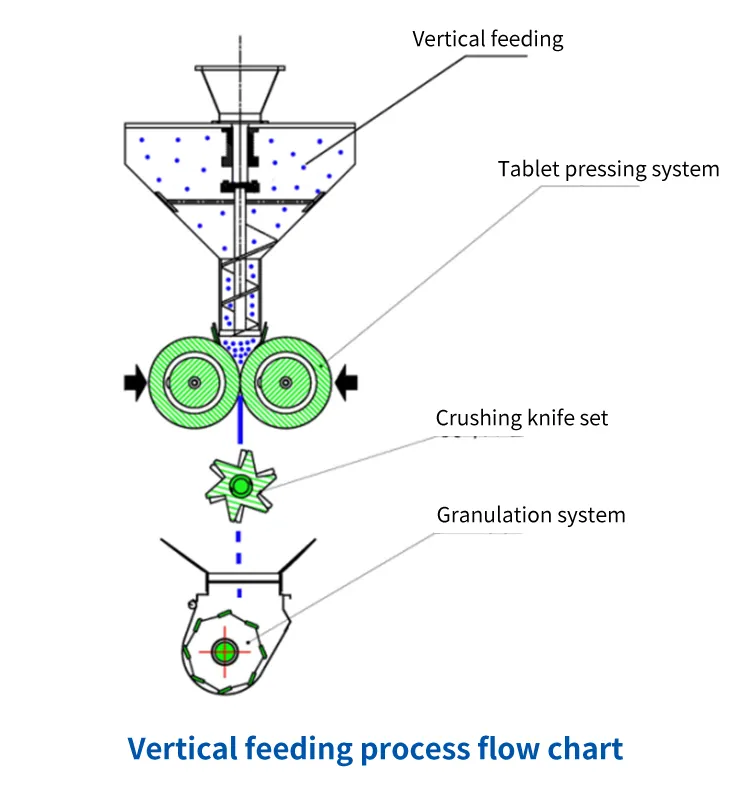

Working Principle

生产过程是通过配料混合干粉材料，并通过特殊给料装置（气动或电动）将其加入上料斗，然后通过螺旋输送机将其送入压力室。两个高压压轮将材料压制成高密度片材。密度片材通过两级造粒系统造粒至所需尺寸。

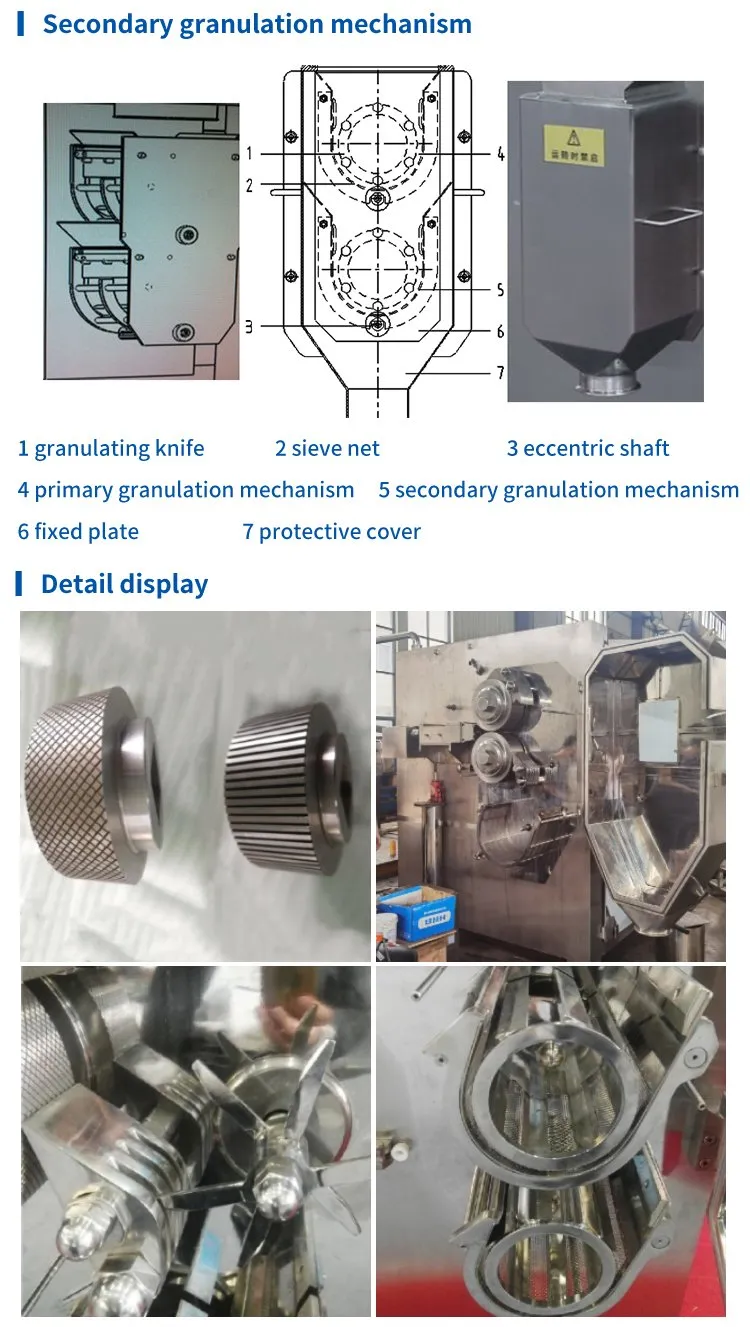

The production process is to mix the dry powder materials by the ingredients, And add them to the upper hopper by a special feeding device (Pneumatic or Motorized), And send them to the pressure chamber through the screw conveyor. The two high pressure pressing wheels press the material into high density slices. The density slices are granulated to the demanded size by a two-stage granulation system.
技术参数
Technical Parameter

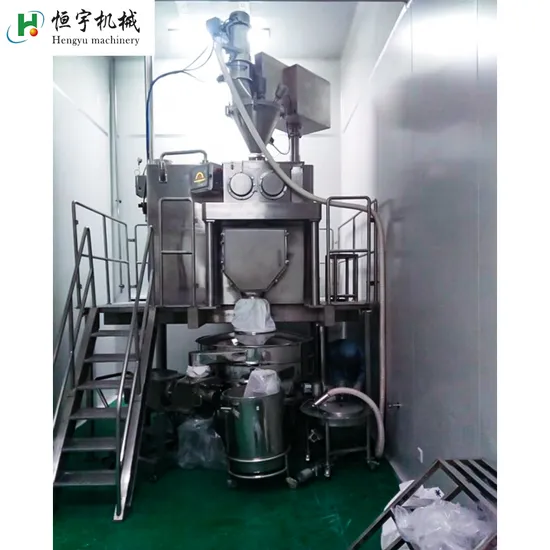

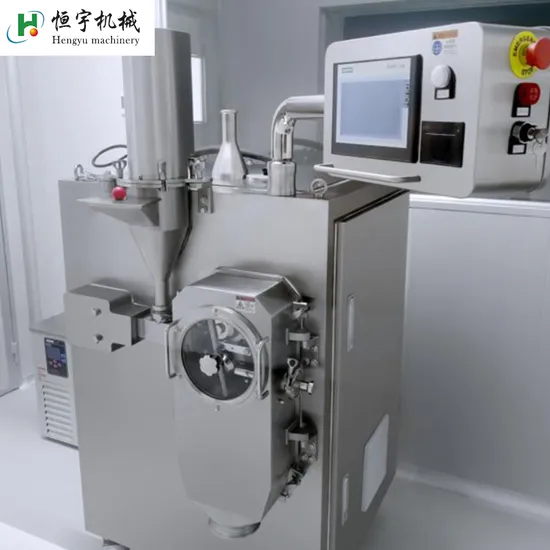

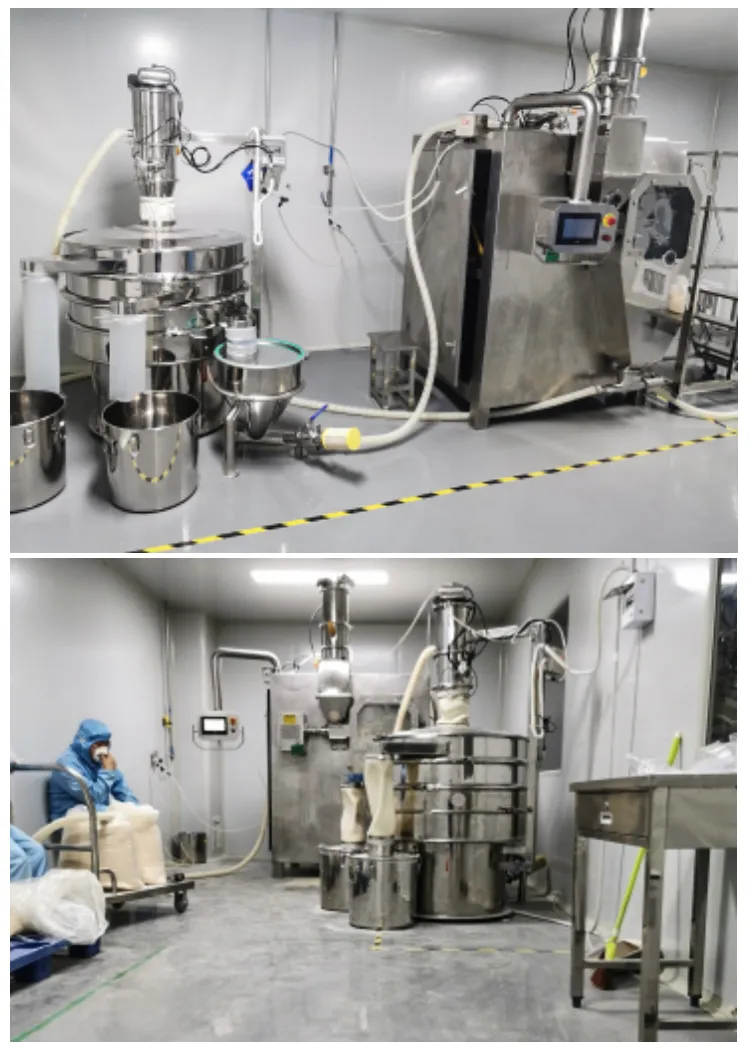

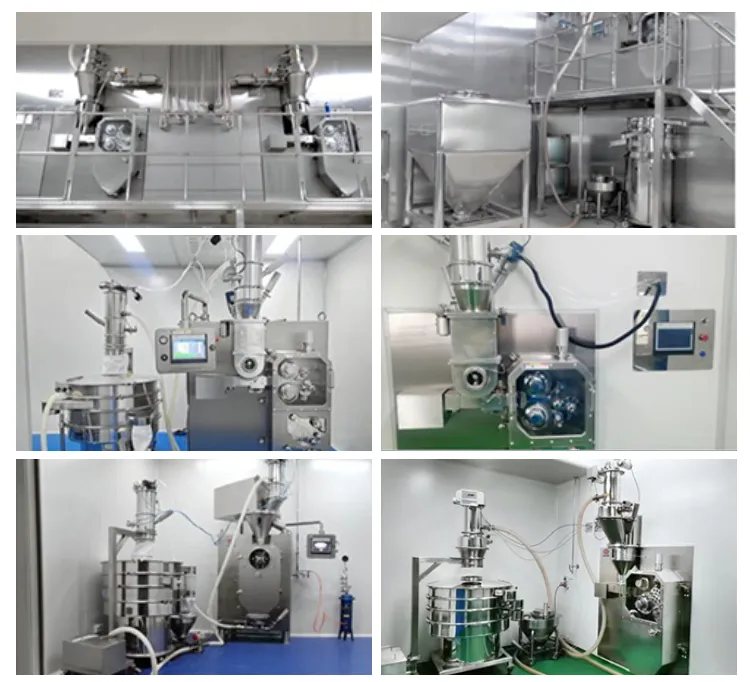

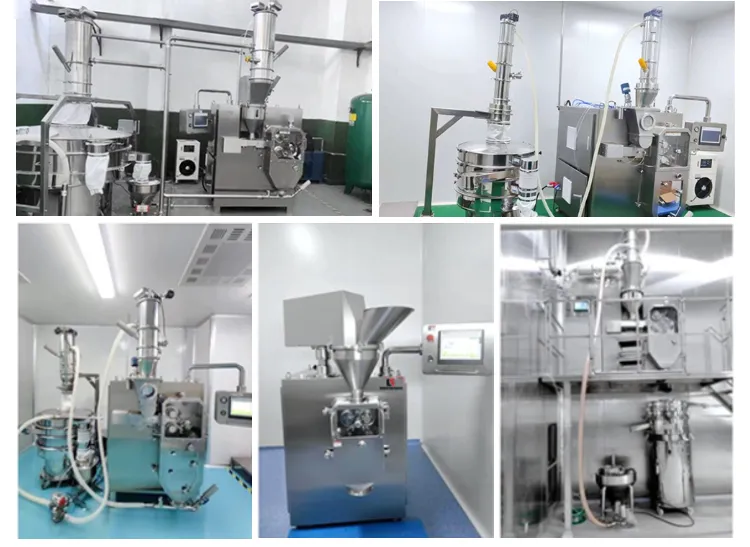

客户案例
Customer Case

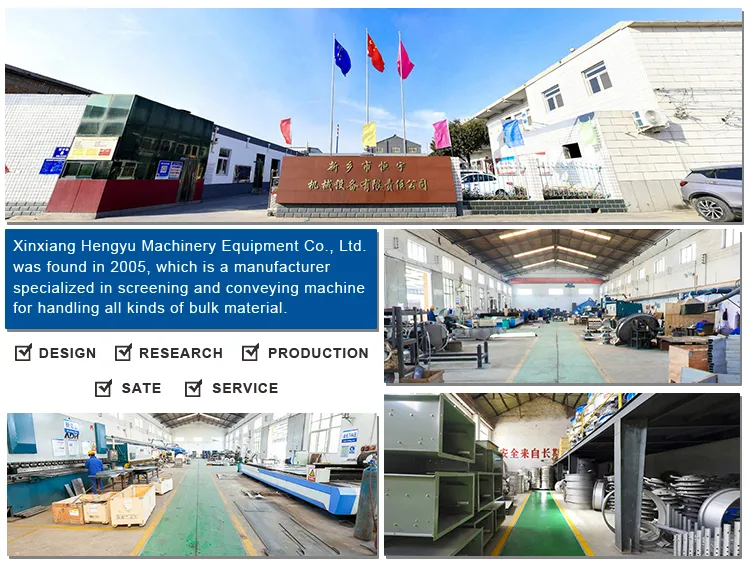

关于我们
About Us

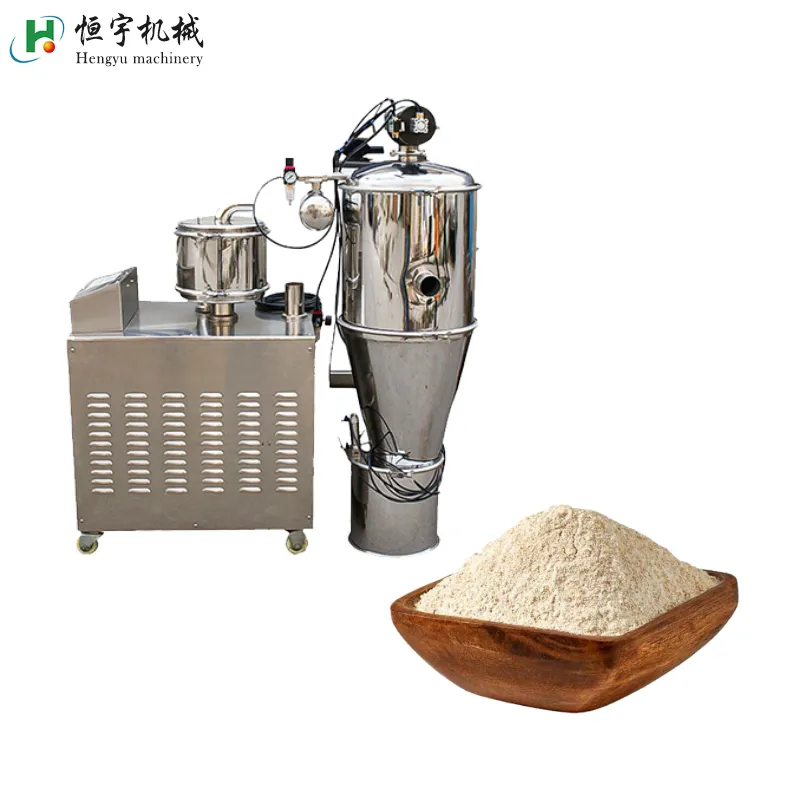

相关产品
Related Products

常见问题
FAQ:
Q1. 你们是贸易公司还是工厂？
A：我们是工厂，拥有经验丰富的技术人员（在筛分和输送领域拥有20多年的经验）。
Q2：如果产品损坏，你们的售后服务是如何运作的？
A：在12个月的保修期内，我们的常规售后服务会为客户更换损坏的部件，但如果损坏可以通过低成本修复，我们会等待客户提供维修费用的账单，并退还这部分费用。（注：易损件不包括在内。）
Q3：你们如何确保我们的业务长期且关系良好？
A：我们保持高质量和具有竞争力的价格，以确保我们的客户受益。
我们是工厂，能够以优质产品为您提供最优惠的价格，并且我们有一项规定：“为了节省时间并保持绝对的诚信商业态度，我们对任何客户都尽可能报出最低价，并且可以根据数量给予折扣。”
Q4：HENGYU有海外销售公司或分支机构吗？
A：到目前为止，我们只有一些海外商业合作伙伴。如果您想以自己的品牌转售我们的产品，我们愿意为您提供最佳支持，以开拓当地市场。请随时与我们联系。
Q1. Are you a trading company or factory?
A: We are factory and we have experienced technicians(more than 20 years experience in screening and conveying flied).Q2: How does your after-sale service work if the product got damaged?
A: In the guarantee time of 12 months, our general after-sale service will change the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refund this part of cost.(note: Vulnerable parts do not include.)
Q3: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit .We are factory and be able to give you the best price with good quality, and we have a policy that " for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity"
Q4: Does HENGYU has oversea selling company or branch office?
A:So far, we only have some oversea business partners. If you would like to resell our products with your own brand, we'd like to provide our best support for you to do local market. Do contact us without hesitate.
对我们机器有任何其他疑问，请随时与我们联系。
Any Other Doubts About Our Machine, Please Feel Easy To Contact With Us.
