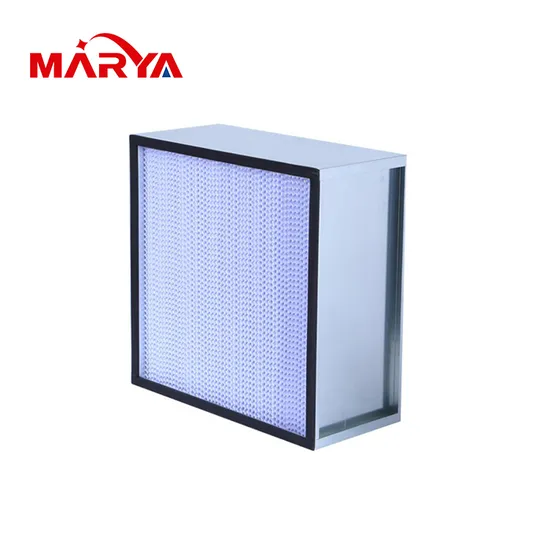

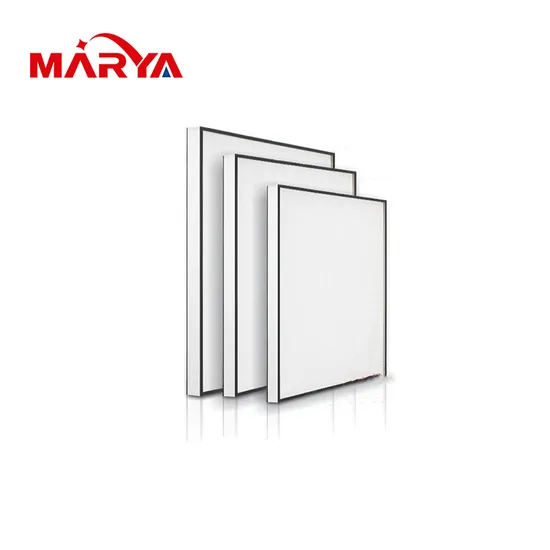

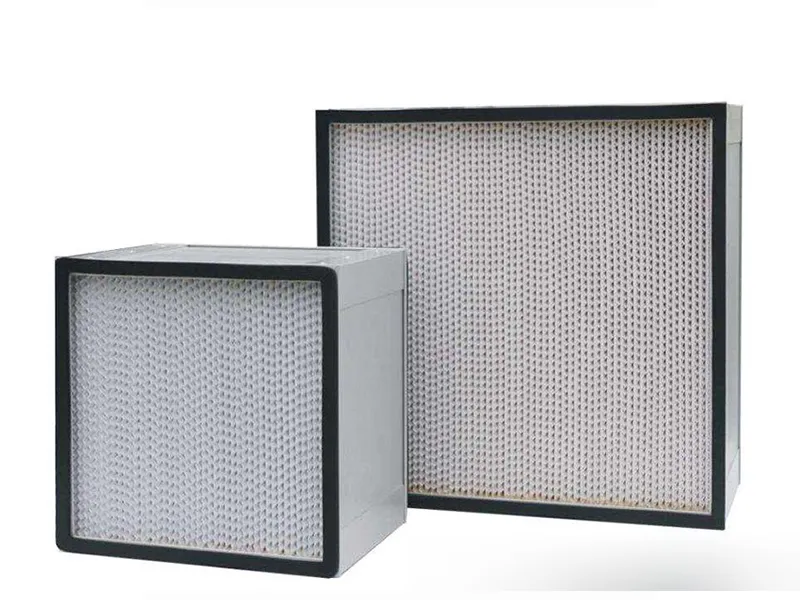

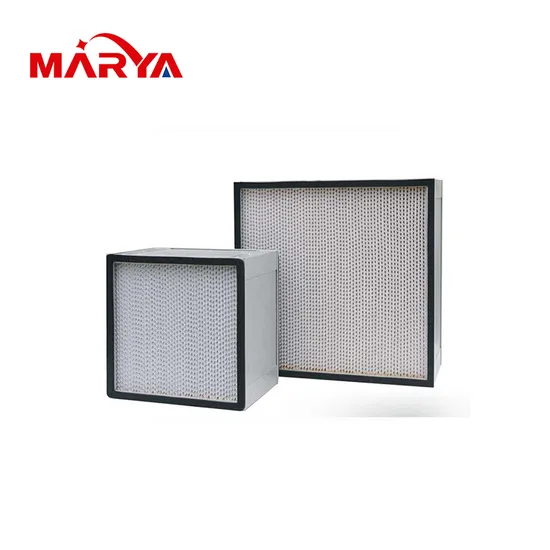

Marya Pharmaceutical ISO 5/6/7/8 Clean Room Panel Type Moisture Proof HEPA Air Filter

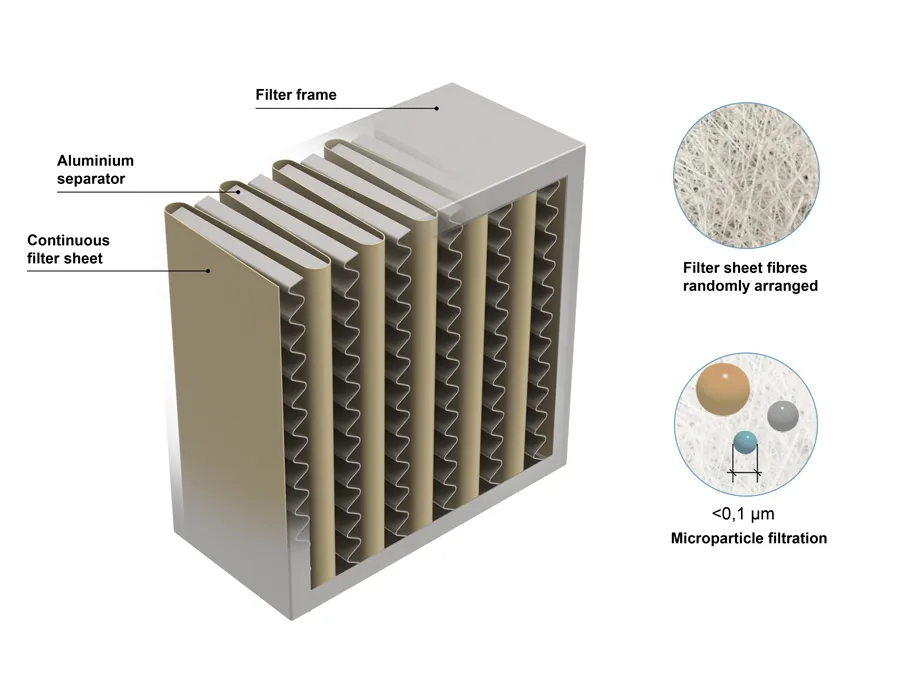

The high-efficiency/ultra-high-efficiency separator filter adopts a separator-type design, and the corrugated separator can accurately maintain the distance between the pleats, and maximize the use of the filter material with the least resistance. 180 pleats on both sides of the filter material are folded into a wedge-shaped pleat layer. When the filter material is bent, there are two indentations to make it form a wedge-shaped box pleated layer at the end of the partition. The wedge-shaped box pleated layer can be Prevent damage to the filter material.

Characteristics

1) Frame: aluminum alloy or galvanized iron and stainless steel frame;
2) Filter material: ultra-fine glass fiber paper;
3) Separation material: rubber paper or aluminum foil;
4) EN779 level: H10, H11, H12, H13, H14;
5) DIN 53438 flame retardant standard: F1;
6) Final resistance: (recommended) 450Pa;
7) Maximum air volume: 125% of the rated air volume;
8) Temperature resistance: 80ºC;
9) Filter size: According to the actual requirements of the customer, the reference thickness of the aluminum profile; 120mm, 150mm, 220mm, 295mm;

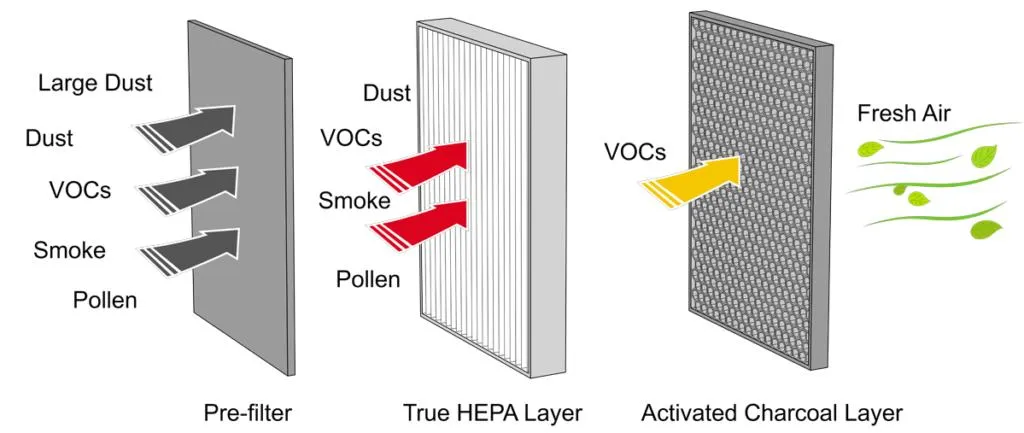

HEPA Filter Working Principle
Parameters
