小型自动软胶囊生产线 软胶囊设备 封装填充机 机械设备价格 制胶囊填充机

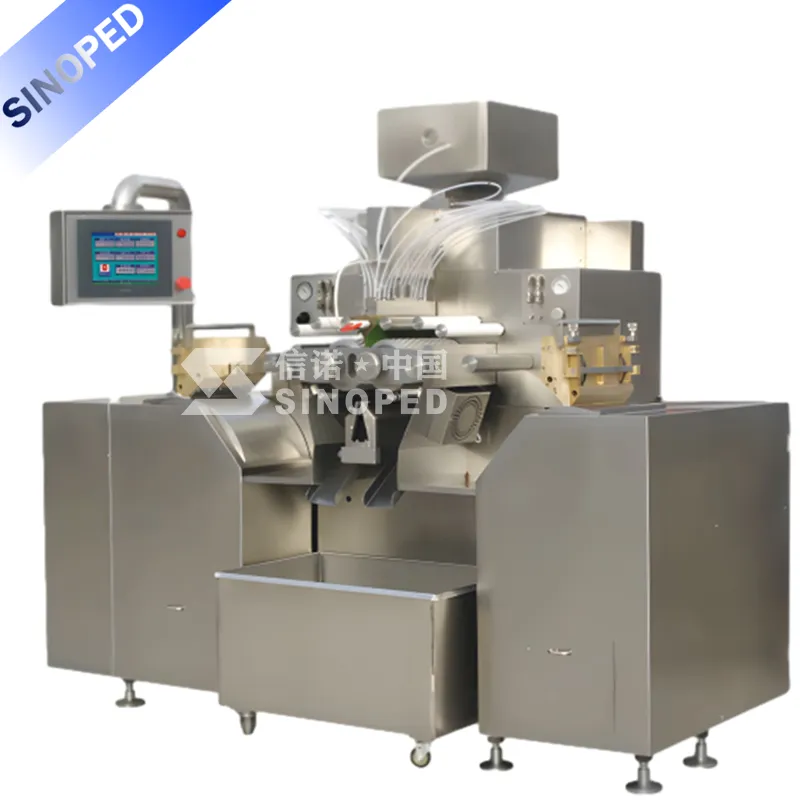

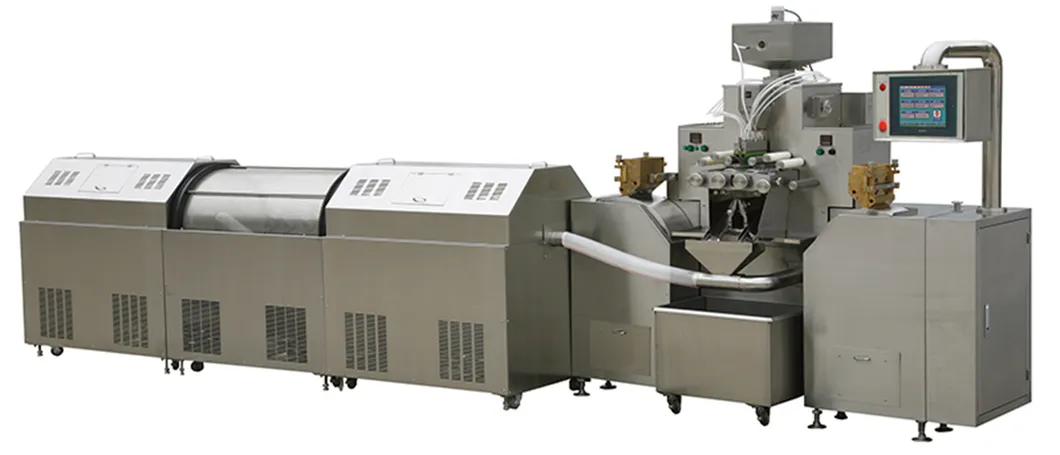

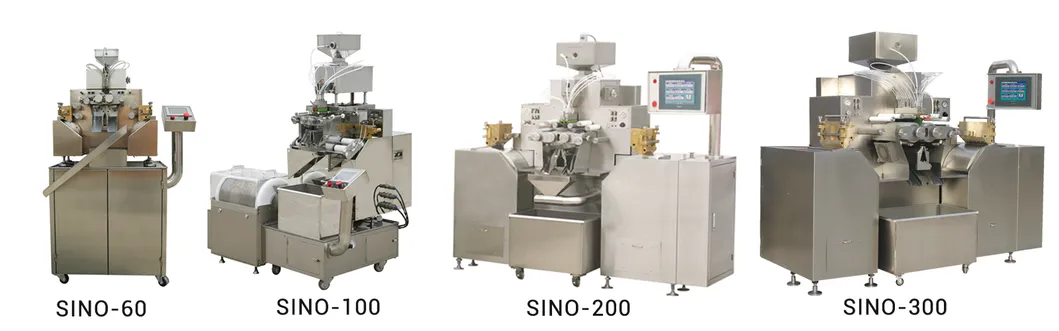

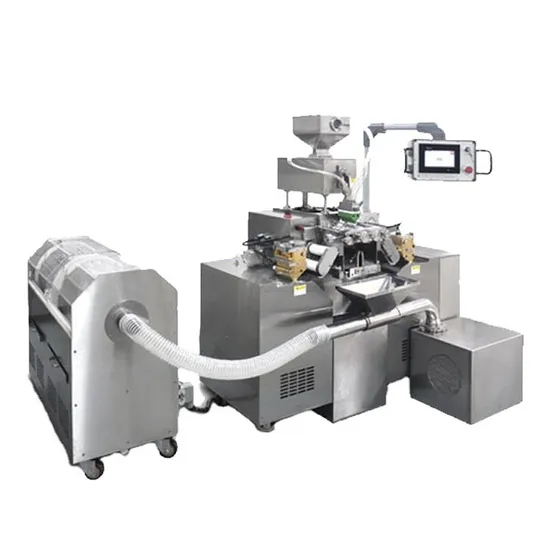

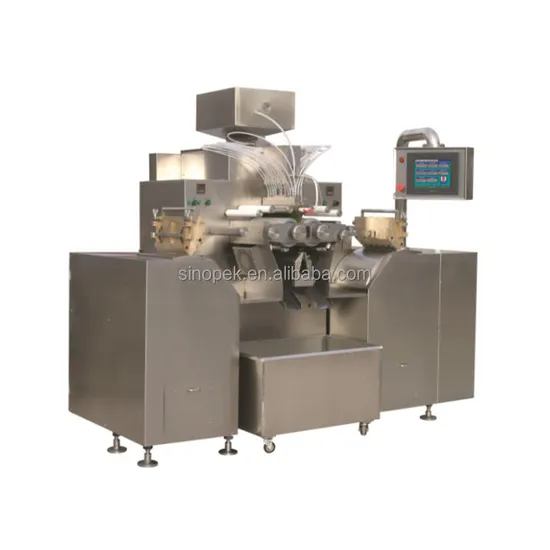

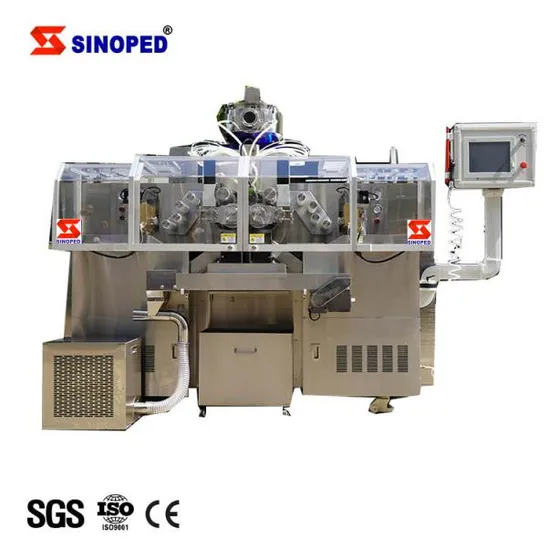

这是软胶囊几十年专业经验的精华凝聚。在开发过程中，设计者亲自在软胶囊生产基地进行长期生产调查与研究，结合各种类型的软胶囊机的特点，吸收操作人员的合理化建议，通过改进的实验进行验证，采用国际先进的控制技术，精心设计和精确制造，以人为本。这是一条生产高质量软胶囊的稳定可靠的生产线。同时，在开发过程中建立了第三代软胶囊封装机开发平台。
is the essence condensing of decades professional experience on softgel. During the development process, the designer personallly conducted long-term production investigation and research in the softgel production base, combined the characteristics of various types of softgel machines, absorbed rationalization suggestions from operators and verifying by improved experiments, adopted international advanced control technology, elaborate designed and precisely manufactured in the spirit of people-oriented. It is a stable and reliable production line for producing high quality softgel. At the same time, the 3rd generation softgel encapsulation machine development platform was established during the process of development.

软胶囊生产线辅助机器系统
Auxiliary machine system of soft capsule production line
全自动明胶融化及物料供应系统
1.FULL-AUTOMATIC GELATIN MELTING AND MATERIAL SUPPLY SYSTEM
全自动明胶熔化和材料供应系统是根据软胶囊生产的实际情况设计的。它能严格按照规定的生产工艺进行生产，减少人为干预生产工艺，确保每批明胶和材料的稳定性。
Full-automatic gelatin melting and material supply system is designed according to the actual situation of softgel production.It can realize to produce strictly according to the specified production process and reduce human intervention in production process to ensure consistency of gelatin and material in each batch.
该系统由计算机管理。它根据整个工艺过程中的技术要求控制罐内的温度、压力、投料顺序、投料时间、混合时间及溶解时间。
The system is managed by computer.It controls the temperature in the tank, pressure, feeding sequence, feeding time, mixing time and dissolving time according to the technological requirements in the whole process.
系统自动称取主料（如明胶）的重量，并自动计算辅料（如水、甘油等）的添加量，以完成整个工艺过程。
The system automatic weighing of main material (e.g.gelatin)weight and automatic calculation of auxiliary material(e.g.water and glycerin, etc. )dosage into the tank to finish the whole process.
该系统可根据不同的软胶囊生产工艺进行数据采集，并备份和存档所有工艺参数。使用更方便，简单高效。
The system can form data formulation according to different softgel production process and backup and archive all process parameters.It will be convenient to use again, simple and efficient.
该系统包括真空搅拌系统（真空搅拌罐、缓冲罐和冷凝罐）、热水罐、热水循环泵、水环真空泵、循环水系统、称重系统以及控制单元。
The system includes vacuum stirring system(Vacuum stirring tank,buffer tank and condensing tank),hot water tank,hot water circulating pump,water ring vacuum pump,circulating water system,weighing system and control unit.
SINO
2.SINO
系列真空搅拌系统
SERIES VACUUM STIRRING SYSTEM
SINO系列真空搅拌系统是一种均质设备，由水（蒸汽）浴型加热真空搅拌罐、缓冲罐和冷凝罐组成。它广泛应用于制药、食品和精密化学工业。在软胶囊生产中，SINO系列真空搅拌系统用于明胶溶解和材料加热制备工艺。
SINO series vacuum stirring system is a kind of homogenizing equipment which consists of water (steam) bath type heating vacuum stirring tank, buffer tank and condensing tank. It is widely used in pharmaceutical, food and precise chemical industries. In softgel production, SINO series vacuum stirring system used for gelatin melting and materials heating preparation process.
SINO系列真空搅拌罐能承受一定的正负压，罐体为三层结构。内层与中层之间是加热介质层，可通入热水或蒸汽对罐内物料进行加热。中层与外层之间填充了高效的保温材料，不影响室温。罐体由不锈钢制成，完全符合GMP要求。其结构紧凑，搅拌稳定，均匀，低噪音。
SINO Series Vacuum Stirring Tank can bear a certain positive and negative pressure and the tank body is three layers structure. Between the inner layer and middle layer is the heating medium layer,it can be filled with hot water or steam to heat the material inside the tank.Between the middle and outside layer is high efficacy insulation material,which doesn't influence the room temperature.The tank body is made of stainless steel and completely meets the GMP requirement. It is the tight structure,stable stirring,uniformity and low noise.
罐体上有温度计，显示罐内温度。罐盖上有真空出口、进气（排气）口、材料进料口、视孔灯、安全阀和压力表。操作安全可靠。
There is thermometer on the tank body to indicates the temperature inside the tank. There is vacuumizing outlet, add (exhaust) air outlet,materials feeding outlet,sight lamp, safety valve and pressure gauge on the tank lid. The operation is safe and reliable.
缓冲罐的作用是在真空化过程中保证物料不流入管道或真空泵，从而防止真空系统失效。
The Buffer Tank to guarantee the material not flow into the pipe or vacuum pump when vacuumizing to prevent the vacuum system failure.
冷凝罐内有冷却管，用于在抽真空时存储热气（蒸汽），以防止真空泵损坏。
There are cooling pipe inside the Condensing Tank, which is used for storing the hot air (steam) when vacuumizing to prevent damage of the vacuum pump.
Model SINO-3滚筒干燥机是通过调查和分析国内外众多软胶囊生产商的现代干燥技术而设计的，它结合了软胶囊干燥的大规模生产特点。它完全符合GMP的要求，整个设备简单实用，造型艺术典雅。
3.Model SINO-3 Tumble dryer is designed by investigation and analysis of modern drying technology from numerous soft capsule manufacturers home and abroad,combining the large scale production characteristics of soft capsule drying. It is fully complicated with GMP requirements and the entire equipment is simple and practicable, artistic and elegant.
水冷却器
4.WATER CHILLER
水冷器通过自动调节温度来控制压缩机的启动和关闭，冷却剂的温度也可以得到控制。它是软胶囊封装机、泡罩包装机等设备的辅助设备。
The water chiller controls compressor start-up and shutdown through automatic temperature regulation and the temperature of coolant can be controlled.It is the auxiliary equipment for the softgel encapsulation machine and blister packing machine etc.
软胶囊制丸滚筒
5.SOFTGEL DIE ROLLER
冲模辊的形状和大小决定了软胶囊的外观和填充量。由于不同明胶液体的性质和不同的干燥工艺会导致干燥收缩率不一致，因此成品软胶囊的整体尺寸与冲模辊腔的几何尺寸存在差异，这是正常现象。我们可以根据用户提供的软胶囊样品和基本工艺参数来设计冲模辊，以获得软胶囊成品的实际效果。SINOPED是中国医药和化工机械与设备的专业制造商和供应商，隶属于SINOPED国际集团。
The shape and sizes of the die roller decides the appearance and filling quantity of the soft capsules.Because of different gelatin liquid properties and different drying process will causes the drying shrinkage ratio to be inconsistent, the overall dimension of the finished soft capsules is different from the die roller cavities geometric dimensions will be the normal phenomenon.We can design the die roller according to the soft capsule samples and basic process parameters provided by users. It can get the realistic effect of the finished products of the soft capsules.SINOPED is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPED International Group.
我们拥有一支经验丰富的制药机械和设备制造团队以及一个专业的设计机构。凭借在制药机械和设备领域的丰富经验以及众多专业工程师的支持，我们已经设计和开发了许多种类和多种机械和设备。我们的主要产品有：洁净室项目、软胶囊生产线、玻璃反应釜、发酵罐、离心机、制粒机、混合机、干燥机、粉碎机、制片机、软硬泡包装机、胶囊充填机、装箱机和滚筒。
We have a well-experienced team to manufacture pharmaceutical machinery and equipment and a professional design institute. With rich experience in pharmaceutical machinery and equipment field and numbers of professional engineers, we have desined and developed many types of machinery and equipment in many varieties. Our main products are clean room project,softgel production line, glass-lined reactors, fermentors, centrifuges, granulators, mixers, dryers, pulverizers, tablet presses, soft and hard blister packing machines, capsule filling machines, cartoners and rollers.
过去几年，由于我们良好的信誉和服务，我们取得了巨大的成就。我们已经与许多客户建立了长期的业务关系，一些海外客户已任命我们为他们在中国的采购机构。我们的产品已出口到许多国家和地区，如韩国、印度、印度尼西亚、巴基斯坦、泰国、越南、伊朗、日本、丹麦、罗马尼亚、保加利亚、俄罗斯、南非、尼日利亚、美国、澳大利亚、加拿大、阿根廷和智利。除了机器和设备，我们还提供生产线、交钥匙工程和专业技术。
In the past years, we have made great achievements due to our good credit and service. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines, turn key projects and know-how.
在SINOPED，你可以以最好的价格获得心仪的商品，其品质上乘。我们欢迎国内外客户的咨询。
In SINOPED you can get your desired goods with the best prices and good quality. We welcome your enquiries from at home and abroad
