What does Careddi Supercritical CO2 Extraction System consist of

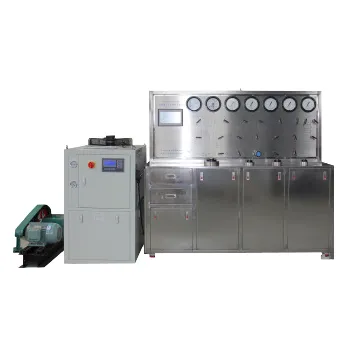

Careddi Supercritical CO2 Extraction System (Careddi SCFE) is well designed for effective oil extraction and easily operation. It is a completely configured system consists of extraction vessels (extractors), separation vessels (separators), Operation front panel, High pressure CO2 Pump, Chilling system, heating system, Pressure regulator valve, Co-solvent pump, CO2 Storage tank, CO2 Recovery pump etc. The users can run the machine to produce essential oils only need to provide with electricity and CO2.

SN
Part Name
Qty
Specification
1
Chiller
1
Temp 4ºC-7ºC,total power 23KW
2
Main pump
1
Max flow 1200L/H,pressure 40mpa,power 16KW
3
Recovery pump
1
CW-15/6-65,power 5.5KW
4
Extraction vessels
2
Volume 150L,pressure 40MPA
5
Separation vessels
3
Volume 25L/15L/15L,pressure 20MPA
6
PLC display operation screen
1
Adjustable pressure, temperature, frequency
7
Operation panel
1
Including 18 needle valves
8
Pressure flow indicator
8
Monitor and display the flow of each vessel and pump
9
Automatic pressure regulating valve
2
Brand tescom
10
Lifting Device
1
Used to raise and lower the material basket
11
Trolley
1
Used to lift and open the plug of the extraction vessels
12
Storage tank
1
Volume 100L,max pressure 16MPA
13
Air compressor
1
Provide compressed air to the automatic pressure regulator
14
Platform
1
Material: Stainless steel
15
Cooling water tank
1
Material stainless steel, including cooling coil
16
Co-slovent pump
1
Power 0.75KW, max flow 4L/h
17
All connecting pipes
all
Contains all co2 and water pipes and safety valves

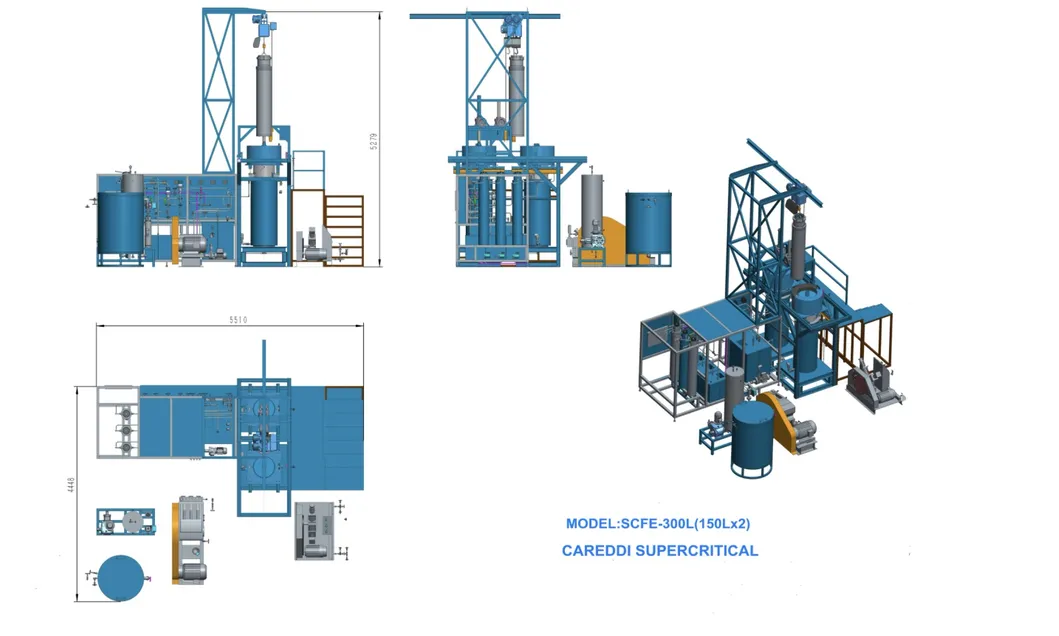

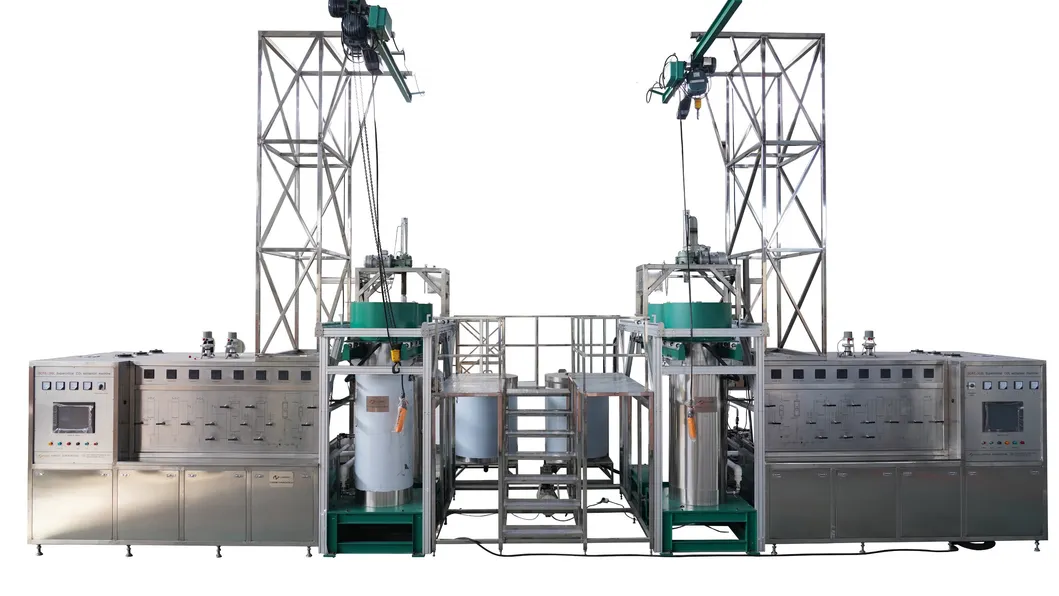

Three-dimensional layout

Standard models
SN
Model
Specification
Maximum working pressure
capacity
1
1L
1 extractors 2 separators
480bar
3lbs-10lbs
2
2L
1 extractors 2 separators
480bar
6lbs-13lbs
3
5L
1 extractors 2 separators
480bar
18lbs-30lbs
4
5Lx2
2 extractors 2 separators
480bar
33lbs-55lbs
5
10Lx2
2 extractors 2 separators
380bar
66lbs-110lbs
6
15Lx2
2 extractors 2 separators
380bar
90lbs-160lbs
7
24Lx2
2 extractors 2 separators
380bar
120lbs-220lbs
8
25Lx2
2 extractors 2 separators
380bar
125lbs-230lbs
9
24Lx4
4 extractors 2 separators
380bar
240lbs-440lbs
10
50Lx2
2 extractors 2 separators
380bar
400lbs-500lbs
11
50Lx4
4 extractors 2 separators
380bar
800lbs-1000lbs
12
50Lx6
6 extractors 2 separators
380bar
1200lbs-1600lbs
13
150Lx2
2 extractors 2 separators
380bar
1200lbs-1700lbs
14
150Lx4
4 extractors 2 separators
380bar
2000lbs-3200lbs
15
200Lx2
2 extractors 2 separators
380bar
1800lbs-2400lbs
16
200Lx4
4 extractors 2 separators
380bar
3600lbs-4800lbs
17
700Lx3
3 extractors 2 separators
380bar
8800lbs-12000lbs
18
1000Lx3
3 extractors 2 separators
380bar
10000lbs-18000lbs

https://www.made-in-china.com/sendInquiry/prod_wOAJrgDbEIVd_yehQgvsKMTHF.html?from=shrom&type=cs&style=2&page=p_detail
Other Optional Models

https://careddi-scf.en.made-in-china.com/product-group/XqnmoMKrguWt/supercritical-co2-extraction-machine-catalog-1.html
Applications
What materials can be extracted by supercritical co2 extraction machine?

Supercritical co2 extraction machine can be used for all water-insoluble substances.like hemp, pepper, sea buckthorn seeds, ganoderma lucidum spore, arteannuin, bergamot, ageratum, common andrographis herb, houttuynia cordata, tobaco, eaglewood, etc.

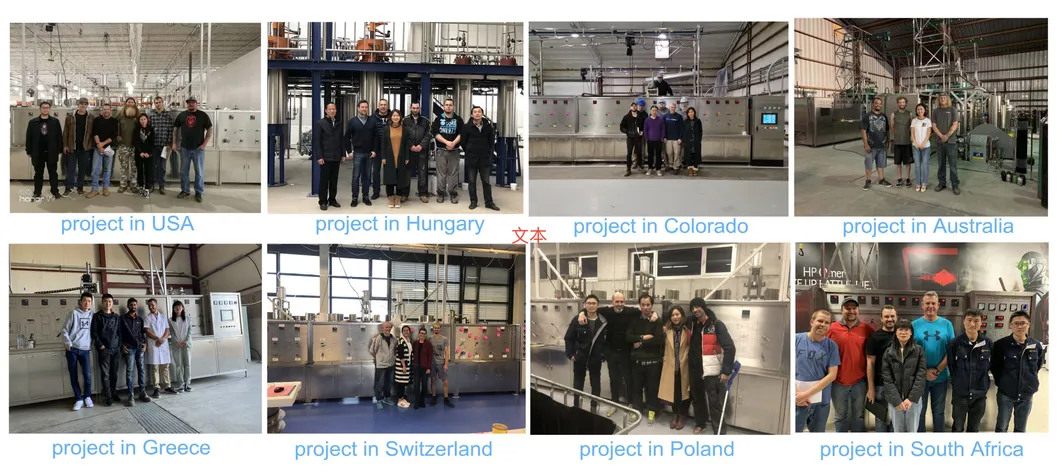

Successful Project

Q:Is caffeine soluble in liquid co2?
A:Supercritical CO2 helps act as a solvent to give the coffee bean solvent-like properties to dissolve the caffeine and extract it out of the coffee bean. Because it has a lower viscosity than liquid CO2, allowing it to move through and around the coffee bean more efficiently without too much pressure.
Q:Is co2 extraction organic?
A:CO2 Botanical Extracts are completely natural and exceptionally pure. These highly concentrated plant extracts are free of solvent residues and impurities such as heavy metals. All CO2 Extracts are oil soluble.
Q:Why is co2 better than ethanol?
A:CO2 is highly tunable. With CO2 you can vary factors such as time, temperature, and pressure to create different products. Ethanol products need to go into more stages of refinement to be turned into various products such as distillate.
Q:Does co2 extraction remove terpenes?
A:CO2 extraction is good for preserving terpenes because it is a cold separation process that can protect delicate plant compounds.Some methods may also use ethanol to help remove terpenes before fully extracting
buds.
Q:Is co2 extraction better?
A:CO2 extraction is also much better for the environment. CO2 gas is natural, so if it escapes into the air during extraction it won't do any harm. It can also be recycled, making this method much more sustainable. Since the solvent isn't toxic, people working with this extraction method don't face any health risks.
Q:Does supercritical co2 extraction kill mold?
A:A major benefit of supercritical co2 extraction is that the process kills any microbial bacteria, mold or mildew on the plant which guarantees the extract will be healthier for consumption. Supercritical co2 extraction is a gold standard when it comes to concentrating cannabinoids and terpenes.
Q:How does supercritical co2 extraction work?
A:To perform an extraction, the plant material must be ground and placed into an extraction vessel. CO2 gas undergoes high temperature and pressure. A pump then forces supercritical co2 into the extraction vessel where it meets the plant and breaks the trichomes allowing it to dissolve part of the plant material.
Q:How will you pack my order, can you provide installation services?
A:The package is Plywood box. We will assemble and test the machine before packaging.Installation: We will send the English manual after you purchase. If the customer needs, we will send an engineer to assemble and train the workers. For $80 per person per day, food, accommodation.
Q:Can we conduct an extraction test before buying?
A:Yes, sure, we can do extraction test with your raw material and send you videos and pictures for your reference.
Q:Can the CO2 be reused?
A:YES. CO2 can be used in circulation.
Q:Can your machine meet our exactly need?
We have over30 years manufacturing experience in this line.Our strong technical support can generally operate stably for more than twenty years.Stable performance of our machine, used customers with a renewal rate of 95% or more.High cost performance of the machine, lower price for the same configuration, same performance.After-sales service can be done 7*24 hours, customer service +technical service, timely service in place, users will be assured.
Q:What's the Shipping Time if I place an order?
A:Generally it's 20-25 working days for order reaches 1 x 20' Container.
Q:How can I control the Quality of the goods?
A:Our QC term is professional to ensure our quality product and continuous marketing, your satisfaction is our power for
development. You can arrange the 3rd party inspection company for inspection, after production finished.
Q:Warranty of supercritical co2 extraction machine?
A:3 year warranty period for whole machine except of tubes and human factors etc, and 36-month of after-sale service from the date when you receive machine or 36 months when installation finished.
