基本信息
型号编号 | WFJ |
条件 | 新(的) |
破碎能力 | 每小时50至100公斤 |
破碎细度 | 法恩 |
定制的 | 定制的 |
机器类型 | 辊式破碎机 |
材料兼容性 | 胶囊、晶体、颗粒、草药、药片 |
安全功能 | 紧急停止按钮,过载保护 |
电压 | 380伏 |
交通政策包 | 木箱 |
规格 | 定制的 |
商标 | 圆锥形 |
起源 | 中国 |
商品编码 | 8422303090 |
生产能力 | 60-150公斤 |
产品详情
Product Description
Pin Mill Pulverizer Machine

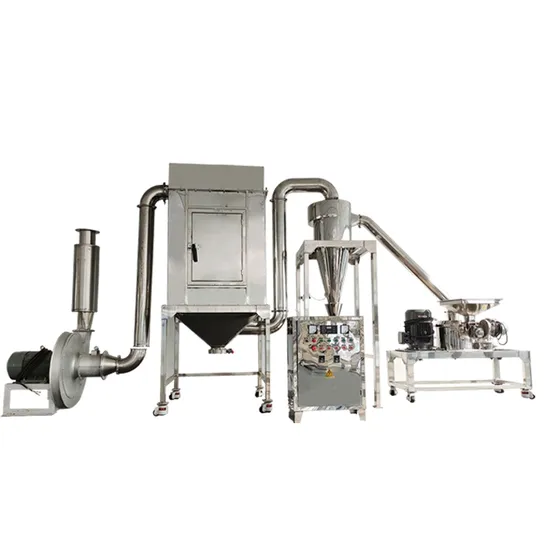

is used to pulverize granules or particles with moderate hardness, less viscosity, less fiber into fine powder.Pin Mill Pulverizer Machine has becomes the universal equipment especially used in sugar, salt, beans, dehydrated fruits and vegetables pulverizing and some spice and seasonings production.PME Series Pin Mill Pulverizer with Cyclone Separator and Dust Collector
Model
Capacity
Inlet size
Output size
Total
Motor
Power
Dimension(L×W×H)
Weight
20B
60~150kg/h
«6mm
20~120mesh
4+1.5+0.75kw
3000×850×2300mm
200kg
30B
100~300kg/h
«6mm
20~120mesh
5.5+2.2+0.75kw
3500×850×2400mm
300kg
40B
300~1000kg/h
«10mm
20~120mesh
11+3+0.75kw
4500×900×2400mm
500kg
60B
500~2000kg/h
«12mm
20~120mesh
18.5+5.5+1.1kw
6600×1000×2400mm
700kg
80B
800~3000kg/h
«12mm
20~120mesh
30+11+1.5kw
7800×1100×2500mm
1000kg
100B
1000~4000kg/h
«15mm
20~120mesh
45+15+1.5kw
8200×1200×2650mm
1800kg
120B
1500~5000kg/h
«15mm
20~120mesh
55+18.5+1.5kw
9500×1300×2800mm
3000kg
Working principle:

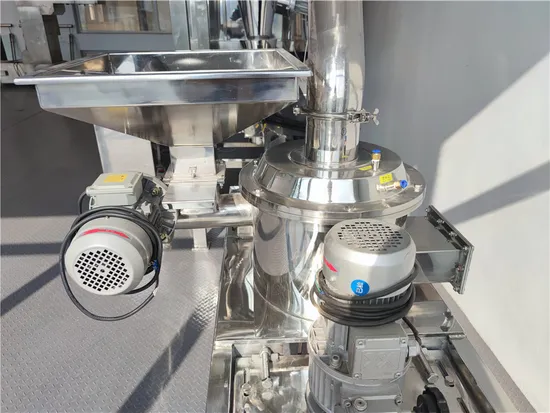

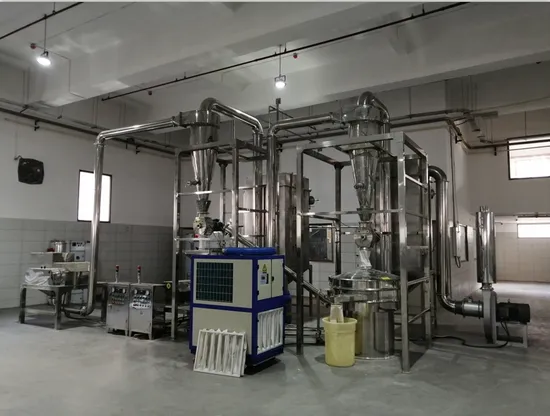

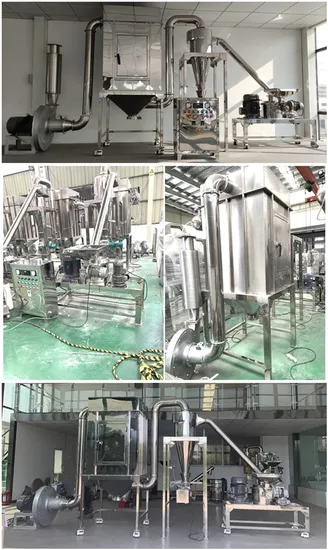

The material is crushed by impact and friction of the teeth or pin between movable and fixed disks under the relative motion. Use a cloth bag to collect the final product at the discharging port.The material is fed into the crushing chamber by a screw conveyor, cut and crushed by high speed rotating blade and conveyed to the cyclone separator by means of negative pressure air conveyance before being discharged by bag type collector, and the dust is filtered and recovered by dust collector through filter barrel Having no dust flying during production, it can improve utilization rate of the material and reduce the cost of enterprise.Detailed Photos
Features:
Wholly made of stainless steel.Designed according to GMP standard.Crushing chamber can be equipped with water cooling jacket.Output size can be adjustable by changing different size of sieves.Can be equipped with a dust collecting device to remove the dust.Can be equipped with a cyclone separating device for a continuous production.Company Profile
Pin Mill Pulverizer Machine
is used to pulverize granules or particles with moderate hardness, less viscosity, less fiber into fine powder.Pin Mill Pulverizer Machine has becomes the universal equipment especially used in sugar, salt, beans, dehydrated fruits and vegetables pulverizing and some spice and seasonings production.PME Series Pin Mill Pulverizer with Cyclone Separator and Dust Collector
Model
Capacity
Inlet size
Output size
Total
Motor
Power
Dimension(L×W×H)
Weight
20B
60~150kg/h
«6mm
20~120mesh
4+1.5+0.75kw
3000×850×2300mm
200kg
30B
100~300kg/h
«6mm
20~120mesh
5.5+2.2+0.75kw
3500×850×2400mm
300kg
40B
300~1000kg/h
«10mm
20~120mesh
11+3+0.75kw
4500×900×2400mm
500kg
60B
500~2000kg/h
«12mm
20~120mesh
18.5+5.5+1.1kw
6600×1000×2400mm
700kg
80B
800~3000kg/h
«12mm
20~120mesh
30+11+1.5kw
7800×1100×2500mm
1000kg
100B
1000~4000kg/h
«15mm
20~120mesh
45+15+1.5kw
8200×1200×2650mm
1800kg
120B
1500~5000kg/h
«15mm
20~120mesh
55+18.5+1.5kw
9500×1300×2800mm
3000kg
Working principle:
The material is crushed by impact and friction of the teeth or pin between movable and fixed disks under the relative motion. Use a cloth bag to collect the final product at the discharging port.The material is fed into the crushing chamber by a screw conveyor, cut and crushed by high speed rotating blade and conveyed to the cyclone separator by means of negative pressure air conveyance before being discharged by bag type collector, and the dust is filtered and recovered by dust collector through filter barrel Having no dust flying during production, it can improve utilization rate of the material and reduce the cost of enterprise.Detailed Photos
Features:
Wholly made of stainless steel.Designed according to GMP standard.Crushing chamber can be equipped with water cooling jacket.Output size can be adjustable by changing different size of sieves.Can be equipped with a dust collecting device to remove the dust.Can be equipped with a cyclone separating device for a continuous production.Company Profile
