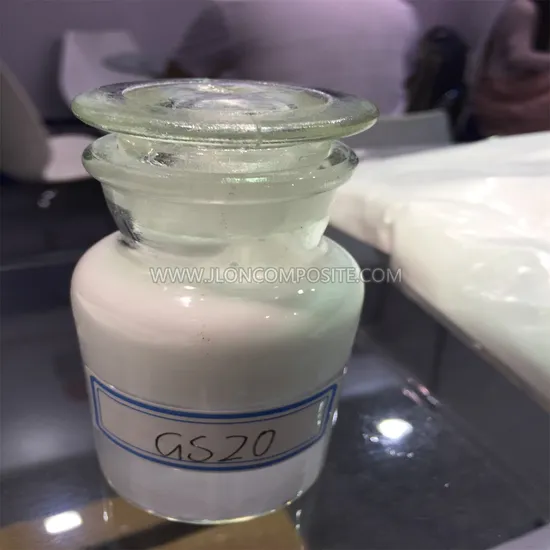

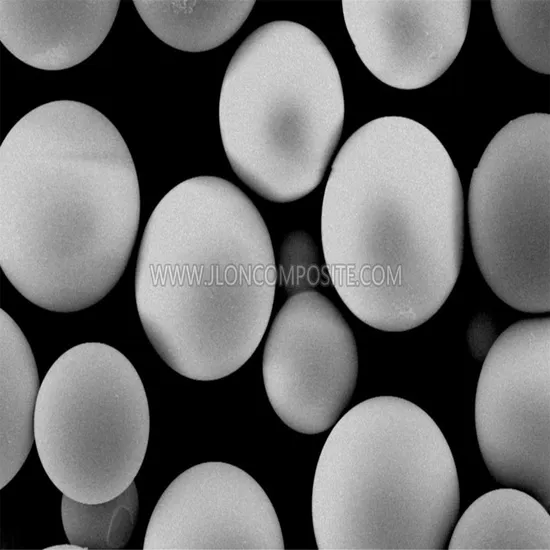

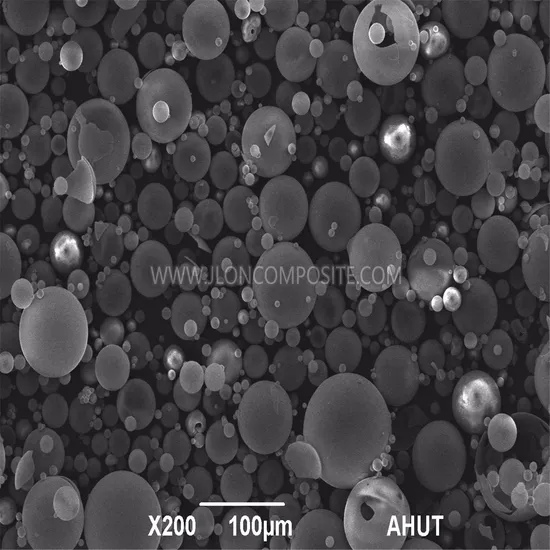

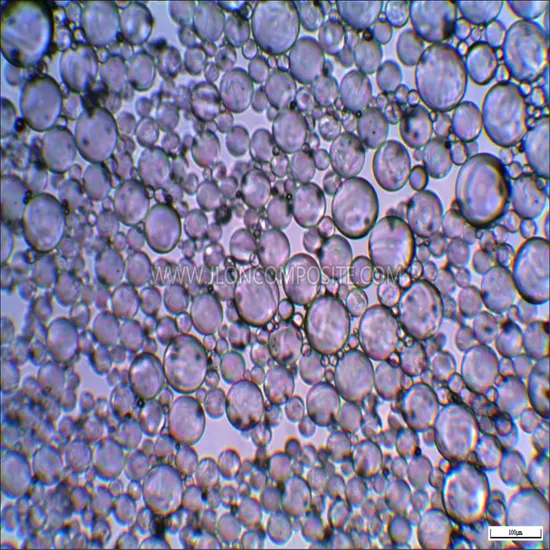

Hollow glass microsphere Product Description:
Hollow glass microsphere is a kind of ultra-lightweight inorganic non-metallic material with hollow structure,and it is a versatile and high-performance new lightweight material developed in recent years. It will be the new composite materials at twenty-first century. Its true density is 0.20-0.60g/cm3
with 2-150μm in diameter. It owns features with light weight,large bulky, low thermal conductivity,high compressive strength,smoothly mobility etc.
Application Fields of Hollow Glass Microspheres
Hollow
Glass
Microspheres
is
a
kind
of ultra-lightweight
inorganic
non-metallic
material
with
hollow
structure,and it is
a versatile
and high-performance new lightweight
material
developed
in
recent years.

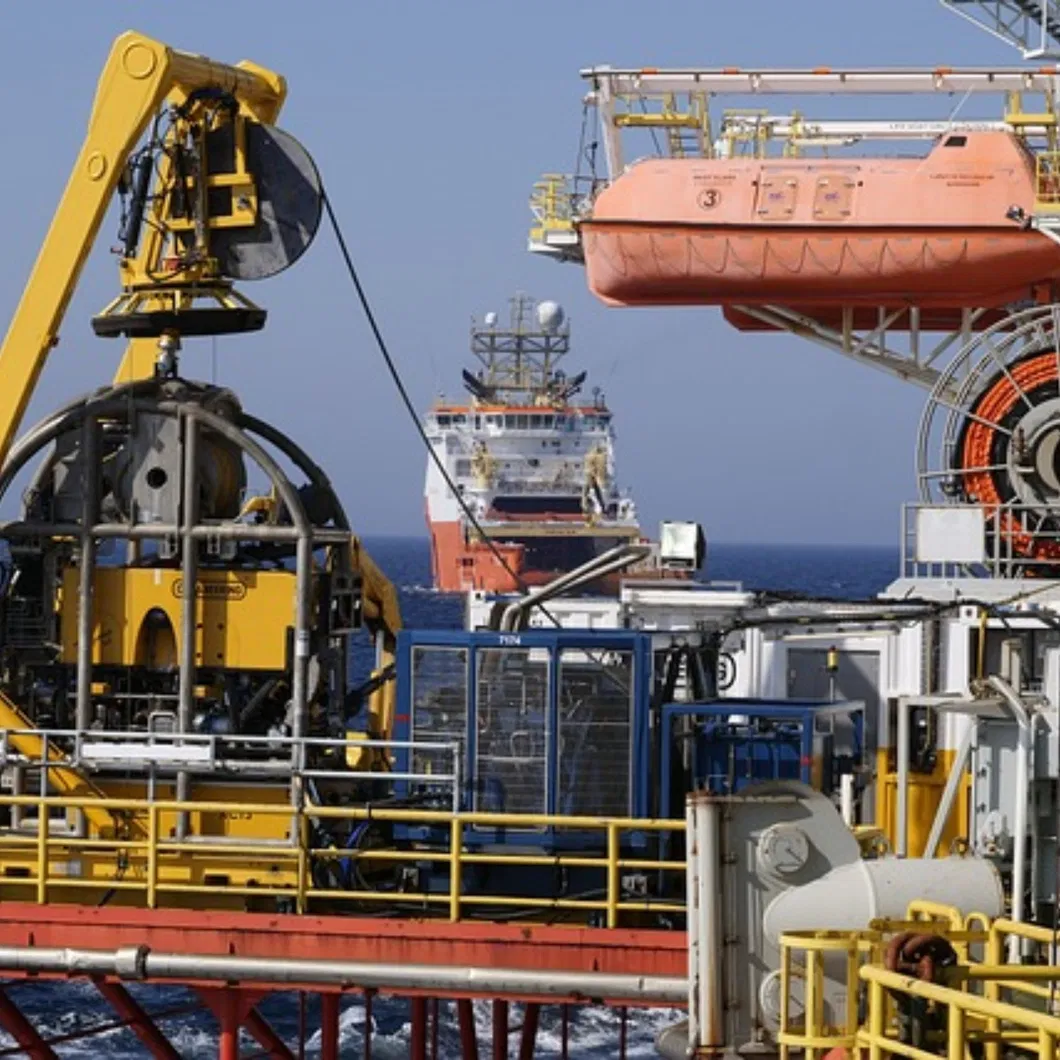

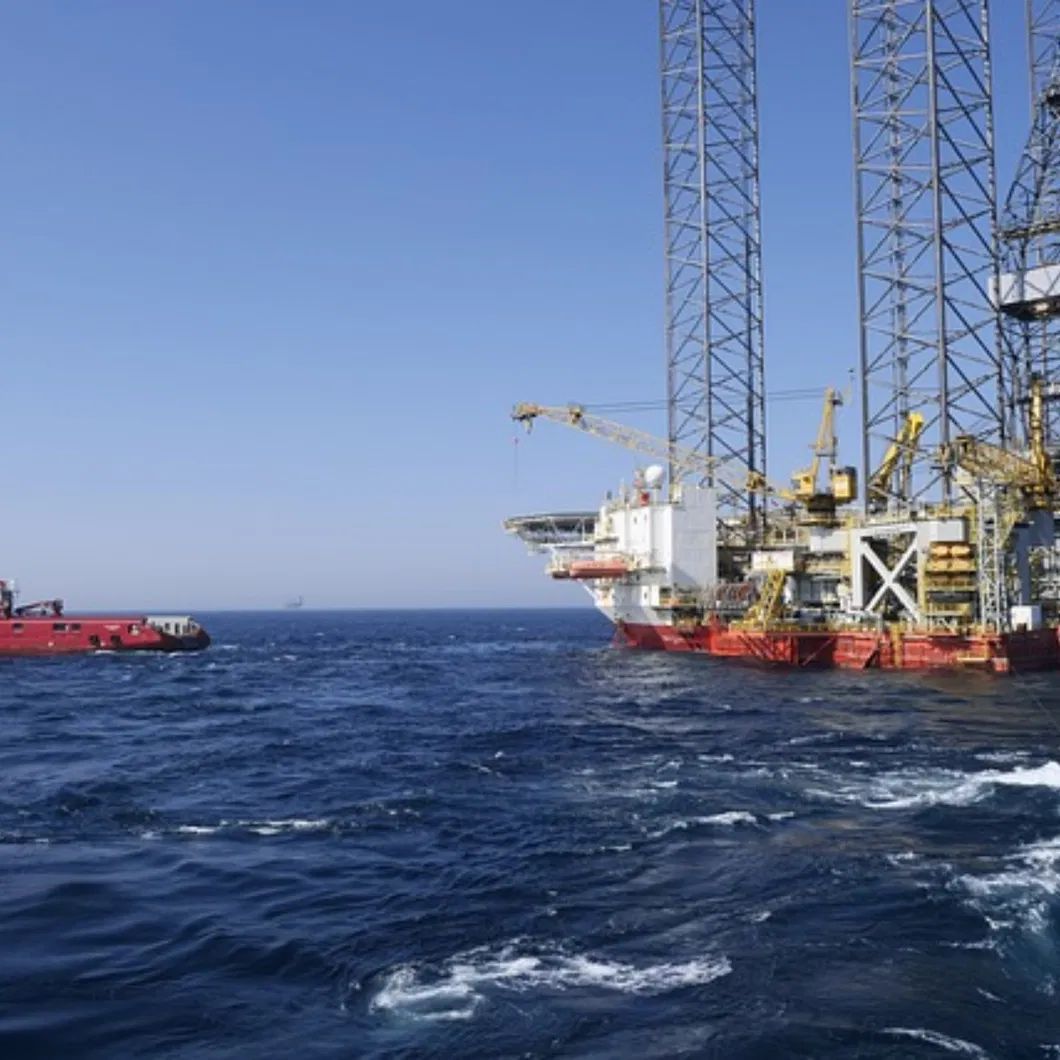

1. Oil and gas field
In oil extraction, hollow glass microspheres can effectively reduce the density of drilling fluid and cementing cement slurry. During drilling, drilling fluid containing hollow glass microspheres not only has the characteristic of low density, but also the spherical physical structure of the microspheres has a high lubricity effect on the drill bit, reducing the wear of the drill bit.
2. The field of thermal insulation coatings
Hollow glass microspheres not only have high solar reflectance, but also have extremely low thermal conductivity. Applying hollow glass microspheres as functional fillers to thermal insulation coatings can not only improve the insulation and insulation properties of the coating, but also improve the hardness, covering, scratch resistance, aging resistance, and flame retardancy of the coating film. It can also reduce the amount of film forming agent, increase the volume concentration of PVC pigments in the coating, and reduce the VOC volatile organic compound content in the coating factory.
It can also be added to putty to reduce putty polishing time and dust.
3. Rubber and plastic industry
It can be filled into most thermosetting and thermoplastic resins, such as epoxy resin, phenolic resin, acrylic resin, unsaturated polyester, nylon, rubber, etc. It can not only increase resin fluidity, reduce product density, but also improve the impact strength, tensile strength, and wear resistance of the product. At present, hollow glass microspheres have been widely used in fields such as fiberglass, handicrafts, household appliances, insulation equipment, ships, automobiles, deep-sea floating bodies, and aerospace.

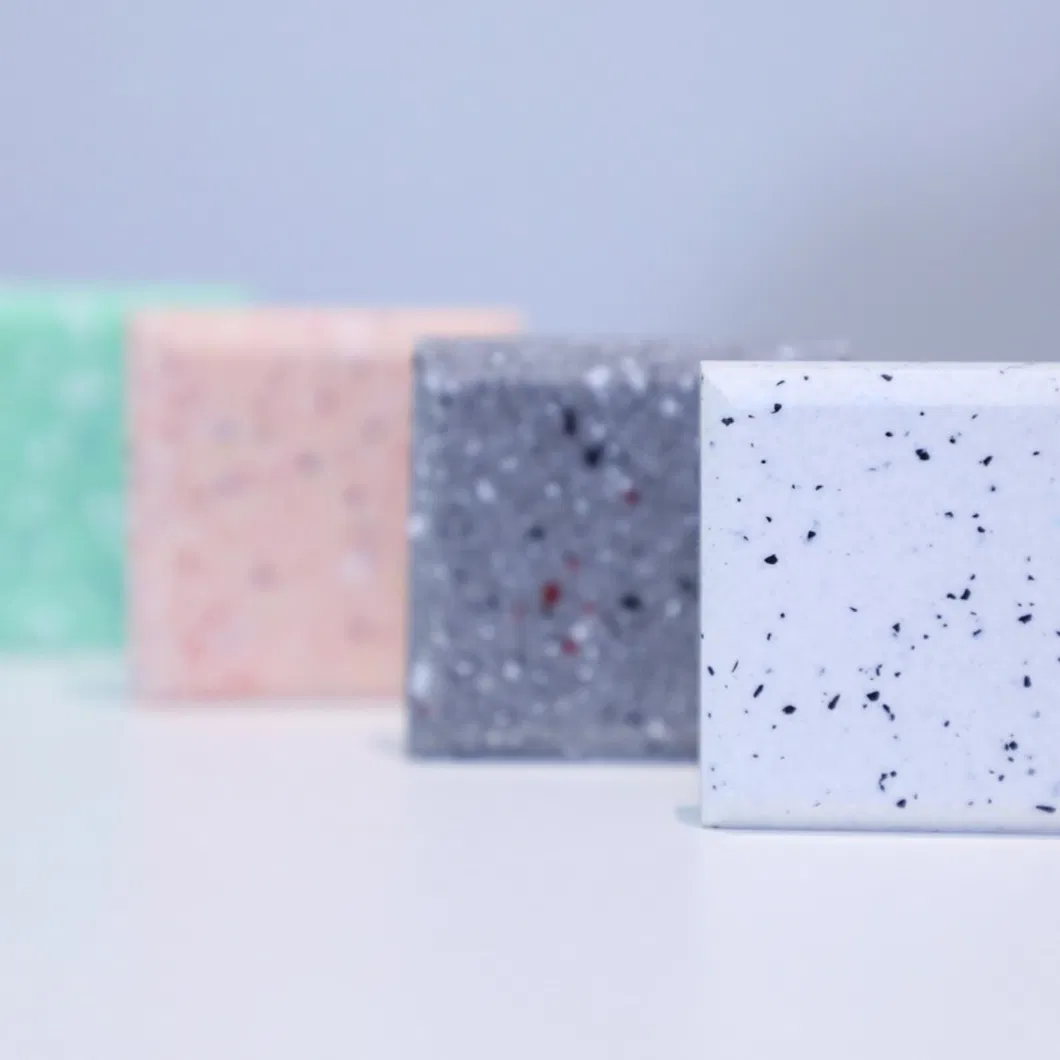

4. The field of artificial marble and artificial wood.
Improve the mechanical processing, impact resistance, cracking resistance, coloring, natural texture, and color continuity of products. It can also effectively reduce the weight of products and reduce transportation and installation costs.
Application Fields of Hollow Glass MicrospheresHollow
Glass
Microspheres
is
a
kind
of ultra-lightweight
inorganic
non-metallic
material
with
hollow
structure,and it is
a versatile
and high-performance new lightweight
material
developed
in
recent years.1. Oil and gas field
In oil extraction, hollow glass microspheres can effectively reduce the density of drilling fluid and cementing cement slurry. During drilling, drilling fluid containing hollow glass microspheres not only has the characteristic of low density, but also the spherical physical structure of the microspheres has a high lubricity effect on the drill bit, reducing the wear of the drill bit.2. The field of thermal insulation coatingsHollow glass microspheres not only have high solar reflectance, but also have extremely low thermal conductivity. Applying hollow glass microspheres as functional fillers to thermal insulation coatings can not only improve the insulation and insulation properties of the coating, but also improve the hardness, covering, scratch resistance, aging resistance, and flame retardancy of the coating film. It can also reduce the amount of film forming agent, increase the volume concentration of PVC pigments in the coating, and reduce the VOC volatile organic compound content in the coating factory.It can also be added to putty to reduce putty polishing time and dust.3. Rubber and plastic industryIt can be filled into most thermosetting and thermoplastic resins, such as epoxy resin, phenolic resin, acrylic resin, unsaturated polyester, nylon, rubber, etc. It can not only increase resin fluidity, reduce product density, but also improve the impact strength, tensile strength, and wear resistance of the product. At present, hollow glass microspheres have been widely used in fields such as fiberglass, handicrafts, household appliances, insulation equipment, ships, automobiles, deep-sea floating bodies, and aerospace.4. The field of artificial marble and artificial wood.Improve the mechanical processing, impact resistance, cracking resistance, coloring, natural texture, and color continuity of products. It can also effectively reduce the weight of products and reduce transportation and installation costs.

Typical Properties:
1)Nitrogen Isotactic Cushion Strength(3M QCM 14.1.5)
2)True Density(3M QCM 14.24.6)
3)Volatile Content(3M QCM 1.5.7)
4)Chemical Resistance
5)Surface Treatment
6)Packing Factor(Ratio of bulk density to true particle density)
7)Oil Absorption
8)Thermal Properties: Conductivity, Stability
9)Flotation(3M QCM 37.2)
10)Alkalinity(3M QCM 55.19)11)Dielectric Constant12)Size
Product
Particle Size(micron, by volume) (3M QCM 193.2)
Distribution
Effective Top Size
10th%
50th%
90th%
95th%
A16/500
30
60
95
115
A20/1000
25
60
90
105
H20/1000
25
60
90
105
D32/4500
20
40
65
80
H50/10000EPX
15
35
60
70
13)Hard Particles(3 M QCM 93.4.3)14)Sieve Analysis(3M QCM 93.4.4)15)Appearance(3M QCM 22.85)16)Flowability(3M QCM 22.83)17)Labeling
Product Parameters
Certificate of Analysis:
Number :UT-WIZL-007
UTQR(8.2.4)03
Product
Hollow Glass Microspheres
Total Weight
300kg
Specification
HGM60
Test Item
Unit
Standard
Test Result
Result
Appearance
--
White and good fluidity
White and good fluidity
Qualified
Moisture Content
%
≤0.50
0.40
Qualified
Flotation
%
≥92
98
Qualified
Tap Density
g/cm3
0.58~0.62
0.60
Qualified
particular Size Range
um
D90
≤95
90
Qualified
True Density
g/cm3
0.57~0.63
0.60
Qualified
Crush Strength
*
Mpa
80
80
Qualified
pH
--
7.0-9.0
7.4
Qualified
According to Criterion
Q/MZG 001-2016
Result
Qualified
Re: *Under this crush strength, the integrity rate of hollow glass microspheres is more than 80%
Test condition
Ambient temperature
20ºC
Relative humidity
65%
The result
PASS
Hollow glass microsphere Applications:
Its applications are in the fields of thermal insulation coating,putty,plastic casting polyester,FRP,SMC(BMC),radome,synthetic foam, adhesives, printed circuit board substrate, RTM, bowling, fan blades, & caulking materials, emulsion explosives,sealant,pipeline insulation materials, artificial marble, PVC, low density oil drilling, light cement, and other deep-sea buoy etc.
Package:

FAQQ1.Can your company customize products?A: Yes, We usually discuss with customers and help them find solutions.Q2. How can I get a sample from you to check quality?A: Usually a sample will be prepared within one week after specification
agreed.Q3. What about your delivery time? Can we receive our goods on time?A: Usually around 2-3 weeks after order confirmed. Exact delivery time
depends on order quantity and Off-season/ busy season.Q4. What is the Guarantee to buy your products? How to resolve quality
complaints?A: Offer TDS of each lot of production for confirmation before delivery.Once you have any quality problem, you can provide samples /pictures /test data. With our quality tracking system, we will give you feedback
in short time. If the quality problem confirmed,we will send you
replacement or make refund as you like.Q5. What are your terms of payment?A: Usually we do EXW, FOB, CIF, and DDU.
