基本信息产品详情证书
基本信息
| 型号/编号 | BS-CPR |
| 二氧化硅 | 大于70% |
| 颜色 | 浅灰色 |
| 比重 | 2.3 减去 2.35 |
| 吸水性 | 小于百分之零点五 |
| 显露的孔隙 | 少于百分之一 |
| 氧化铁 | 少于百分之一点零 |
| 曹 | 少于百分之一点五 |
| 氧化镁 | 低于百分之零点五 |
| 氧化钾和氧化钠 | 小于3.5% |
| 操作温度 | 1000摄氏度 |
| 摩氏硬度 | >7 Scale |
| 耐酸性 | 大于99.6% |
| 运输包 | 塑料编织袋 |
| 规格 | 16、25、38、50、76毫米 |
| 商标 | 最佳选择 |
| 起源 | 中国萍乡 |
| 商品编码 | 6909110000 |
| 生产能力 | 每月500立方米 |
| 包装尺寸 | 50.00cm * 50.00cm * 50.00cm |
| 包装总重量 | 5千克 |
| 包装大小 | 50.00cm * 50.00cm * 50.00cm |
| 包装总重量 | 5.000公斤 |
产品详情
Product Description

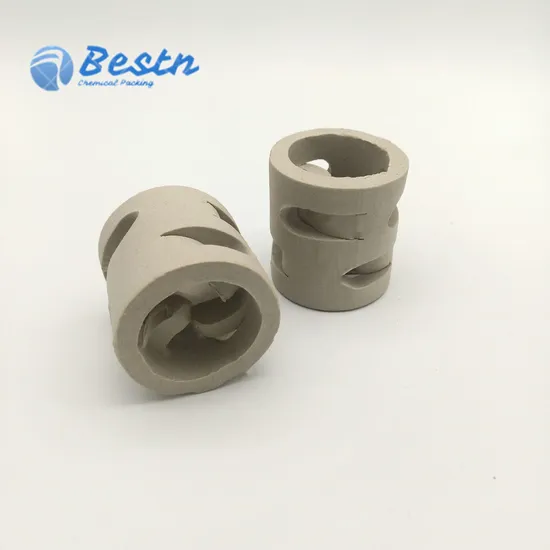

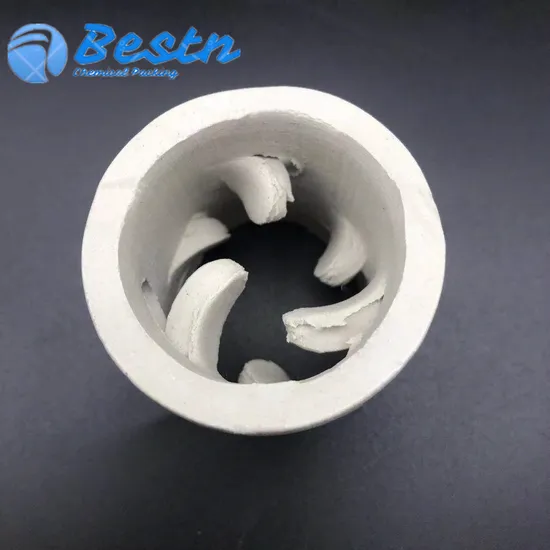

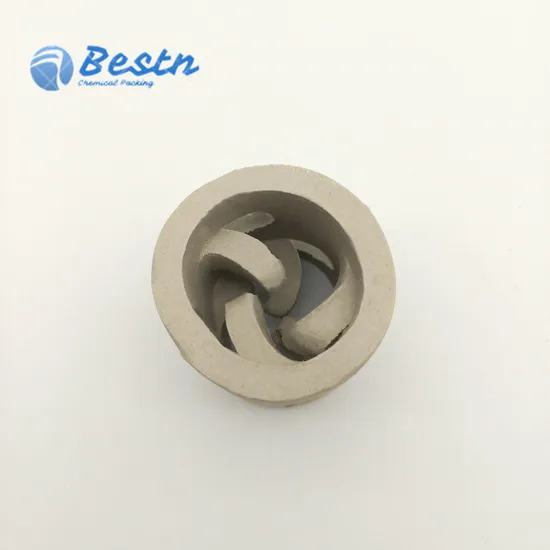

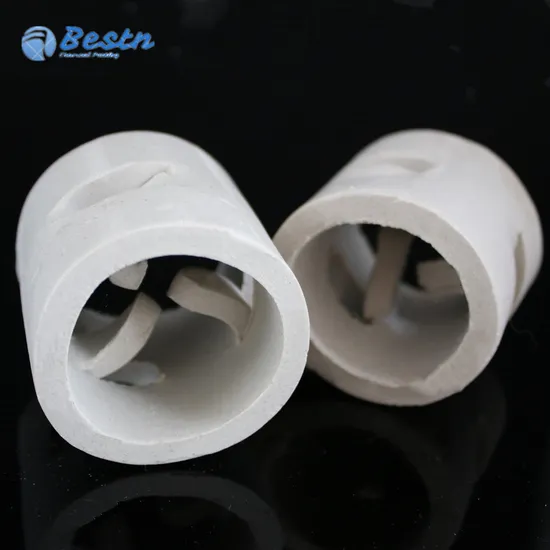

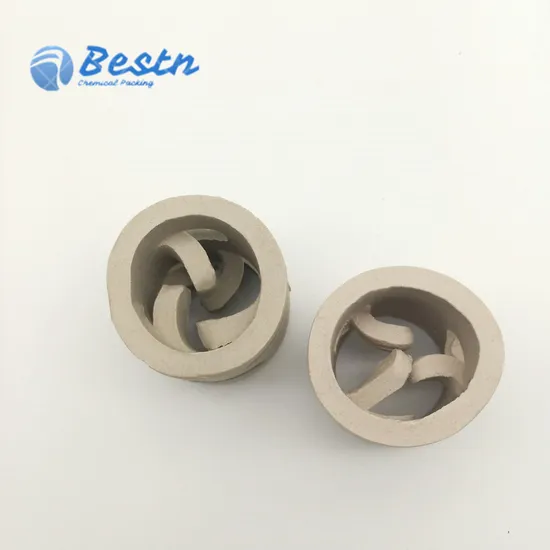

Ceramic pall ring is an open-hole ring packing, which height and diameter is same and with 5 ligules toward inside at every floor. Usually, the open surface is 30% of the whole wall surface; this character helps the liquid & gas pass in packing tower pass freely from the windows of the pall rings.Technical Specification
Chemical Analysis
Al2O3
17-23%
SiO2
>70%
Fe2O3
<1.0%
CaO
<1.5%
MgO
<0.5%
K2O + Na2O
<3.5%
Other
<1%
Physical Properties
Item
Value
Water absorption
<0.5%
Apparent porosity (%)
<1
Specific gravity
2.3-2.35
Operation temp.(max)
1000ºC
Moh's hardness
>7 scale
Acid resistance
>99.6%
Geometric Characteristic Data
Sizes
(mm)
Thickness
(mm)
Surface area
(m2/m3)
Free volume
(%)
Number
per m3
Bulk density
(kg/m3)
25
3
210
73
53000
580
38
4
180
75
13000
570
50
5
130
78
6300
540
80
8
110
81
1900
530
Our Advantages
Applications:
Hot Product
Company Profile
Packaging & Shipping
Packaging & Shipping
Ceramic pall ring is an open-hole ring packing, which height and diameter is same and with 5 ligules toward inside at every floor. Usually, the open surface is 30% of the whole wall surface; this character helps the liquid & gas pass in packing tower pass freely from the windows of the pall rings.Technical Specification
Chemical Analysis
Al2O3
17-23%
SiO2
>70%
Fe2O3
<1.0%
CaO
<1.5%
MgO
<0.5%
K2O + Na2O
<3.5%
Other
<1%
Physical Properties
Item
Value
Water absorption
<0.5%
Apparent porosity (%)
<1
Specific gravity
2.3-2.35
Operation temp.(max)
1000ºC
Moh's hardness
>7 scale
Acid resistance
>99.6%
Geometric Characteristic Data
Sizes
(mm)
Thickness
(mm)
Surface area
(m2/m3)
Free volume
(%)
Number
per m3
Bulk density
(kg/m3)
25
3
210
73
53000
580
38
4
180
75
13000
570
50
5
130
78
6300
540
80
8
110
81
1900
530
Our Advantages
Applications:
Hot Product
Company Profile
Packaging & Shipping
Packaging & Shipping
Preview
FAQ
Preview
Preview
1.Q:Are you trade company or manufacture?A:We are manufacture with more than 14 years experience,and the price is the factory price.
2.Q:How to control the quality?A:We have strict quality by QC team.
3.Q:How long is the delivery time?
A:It is about 5 days after payment for stoct goods,10-15 days for new producing goods.
4.Q: How to get the sample ?
A:
Please contact us for send your samples.
5.Q:What is the payment terms?
A:Flexible and diverse payment ways can be chosen, make you more convenient .
Generally,30% in advance,70% before shipment
6.Q:Can you do OES service?
A:Yes,size & shape could be made as customer requirment
2.Q:How to control the quality?A:We have strict quality by QC team.
3.Q:How long is the delivery time?
A:It is about 5 days after payment for stoct goods,10-15 days for new producing goods.
4.Q: How to get the sample ?
A:
Please contact us for send your samples.
5.Q:What is the payment terms?
A:Flexible and diverse payment ways can be chosen, make you more convenient .
Generally,30% in advance,70% before shipment
6.Q:Can you do OES service?
A:Yes,size & shape could be made as customer requirment
