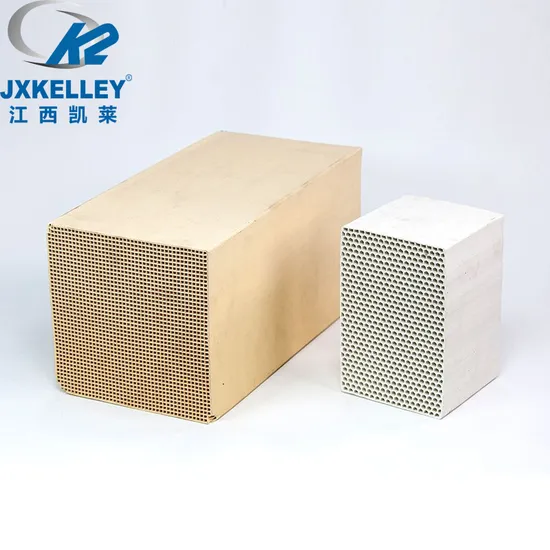

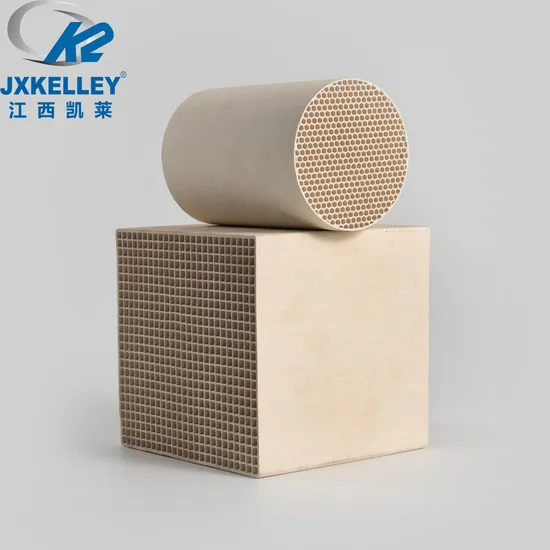

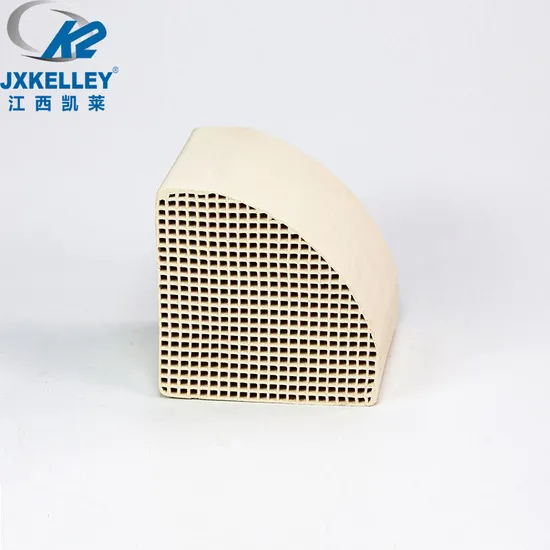

Products Introduction of RTO Heat Exchange Honeycomb Ceramic
Honeycomb ceramic regenerators enhance efficiency, save energy, increase output and improve quality, an important and effective measure when dealing with energy and the environment. They're applied on thermal equipment for energy saving within industry. The pores of the Honeycomb ceramic regenerators are square and hexagonal, and the channels of pores are straight and parallel to each other.
This structure reduces the resistance of passing air and enhances the heat exchange efficiency of every channel.
1. Reduce the thermal loss of exhaust gas, and improve the efficiency of fuel to save energy as.
2. Enhance the burning temperature based on theory, improve the atmospheric burning, meet the high temperature of thermal equipment enlarge low calorific value fuel, especially the application range of blast furnaces, improve the efficiency of calorific value fuel and reduce the emissions from low calorific value coal gas.
3. Improve the terms of heat exchange in hearths, increase the output of equipment, enhance the quality of products and cut down on reinvesting in equipment.
4. Reduce the exhaust emission of thermal equipment, alleviate the air pollution and improve the environment.
Characteristics of RTO Heat Exchange Honeycomb Ceramic
The characteristics of the honeycomb ceramic regenerator are as follow: they have low heat expansion, high specific heat capacity, high specific surface area, low pressure drop, low thermal resistance, good thermal conductivity, thermal shock resistant and much more. So, in metallurgy and chemical industries, it's used as HTAC, while we combine recycling the heat of the emissions, high efficient combustion with reducing NOx. It becomes a true energy saver and decreases Nox.
Materials: Alumina, Dense Alumina, Cordierite, Dense Cordierite, Mullite, Corundum Mullite and others.
Specifications: 100x100x100, 100x150x150, 150x150x150, 150x150x300mm and others.
Hole count: 25x25, 40x40, 43x43, 50x50, 60x60 and others.

Product Parameters
Chemical analysis of RTO Heat Exchange Honeycomb Ceramic
Comosition
Value(%)
Al2O3
55~65
SiO2
25~35
MgO
1~5
Fe2O3+TiO2
3~5
Others
<5
Technical Specification of RTO Heat Exchange Honeycomb Ceramic
Index
Unit
Value
Density
g/cm3
1.7~2.0
Coefficient of heat expansion
(X10-6K-1)(20-800ºC)
≤3.0
Specific heat
(J/Kg.k)(20~1000ºC)
900~1150
Thermal conductivity
(20~1000ºC)
1.2~1.8
Impact thermal resistance
(ºC/min)
≥350
Max.working temp.ºC
1320
Water absorption
%
15~25
Dimension and Other Physical Properties
Dimension
Quantity of channels
Wall thickness
Outside wall thickness
Channel width
Void section
Weight piece
150 × 150 × 300
25 × 25
1.0mm ± 0.1
1.2mm ± 0.15
4.8-5.0mm
67%
4.0-5.0kg
150 × 150 × 300
32 × 32
0.9mm ± 0.1
1.2mm ± 0.15
3.8-3.9mm
61.6%
4.6-5.6kg
150 × 150 × 300
40 × 40
0.7mm ± 0.1
1.1mm ± 0.15
2.9-3.1mm
64%
4.7-5.7kg
150 × 150 × 300
43 × 43
0.65mm ± 0.1
1.1mm ± 0.15
2.7-2.9mm
62%
4.8-5.8kg
150 × 150 × 300
50 × 50
0.6mm ± 0.1
0.8mm ± 0.15
2.3-2.5mm
61%
4.8-5.8kg
150 × 150 × 300
60 × 60
0.45mm ± 0.1
0.8mm ± 0.15
1.9-2.1mm
63.4%
4.7-5.7kg
