基本信息产品详情证书
基本信息
型号编号 | CAOG-60 |
条件 | 新 |
噪音水平 | 极低 |
零件 | 吸附塔 |
目的 | 气体分离 |
流量 | 从每小时3立方米到每小时500立方米 |
纯洁性 | 90%至99% |
类型 | 滑道装载 |
技术 | 变压吸附(PSA) |
使用寿命 | 十年多来 |
保修 | 12-18个月 |
用法 | 氧气 |
机器尺寸 | 中等 |
交通总包 | 木制箱 |
规格 | CAOG-60 |
商标 | 金凯普 |
起源 | 中国 |
商品编码 | 8419601900 |
生产能力 | 一百 |
产品详情
Product Description
Preview

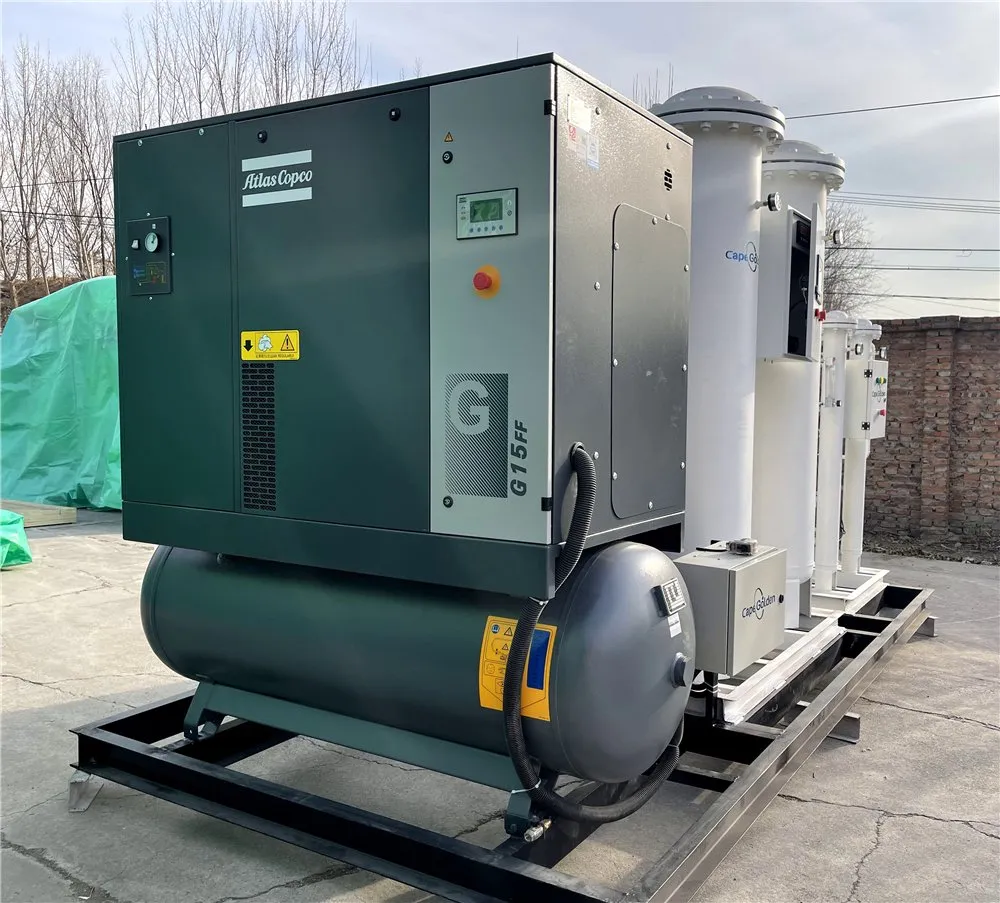

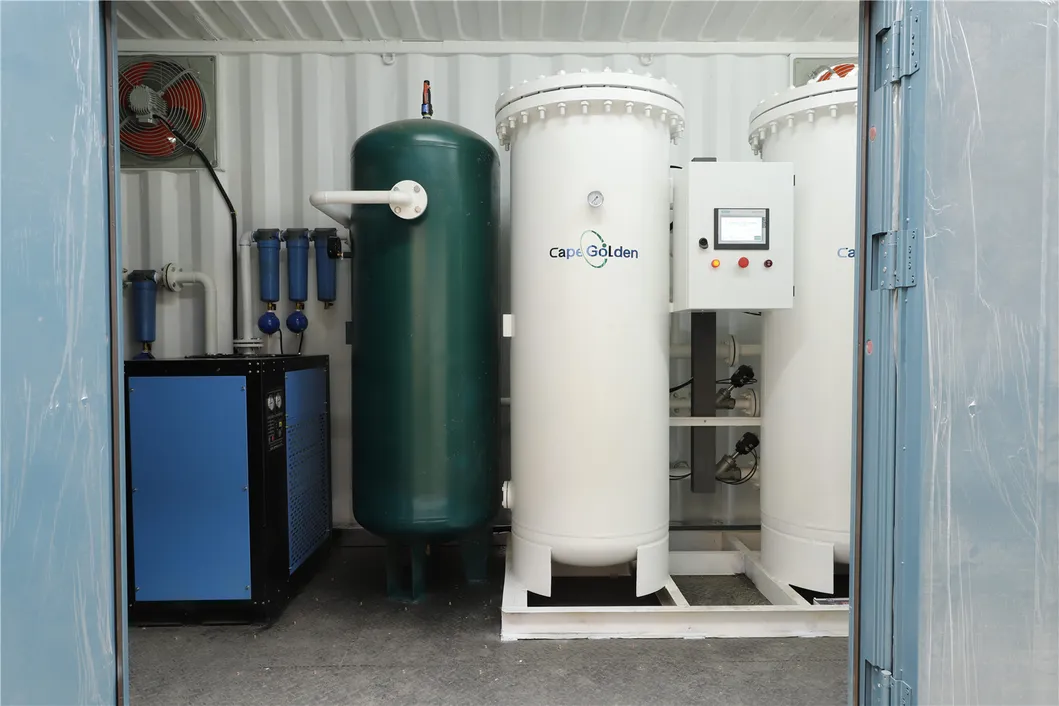

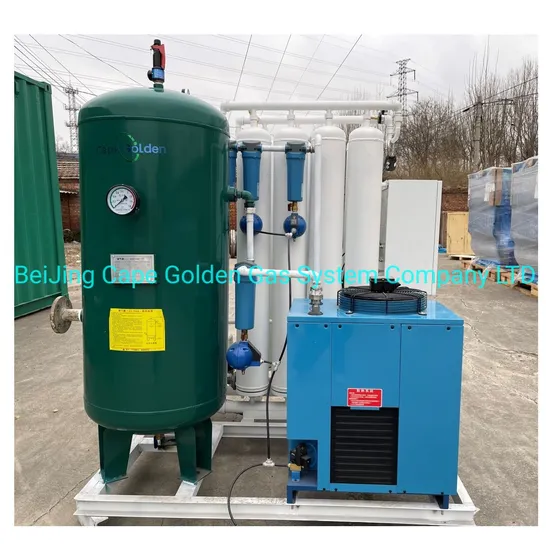

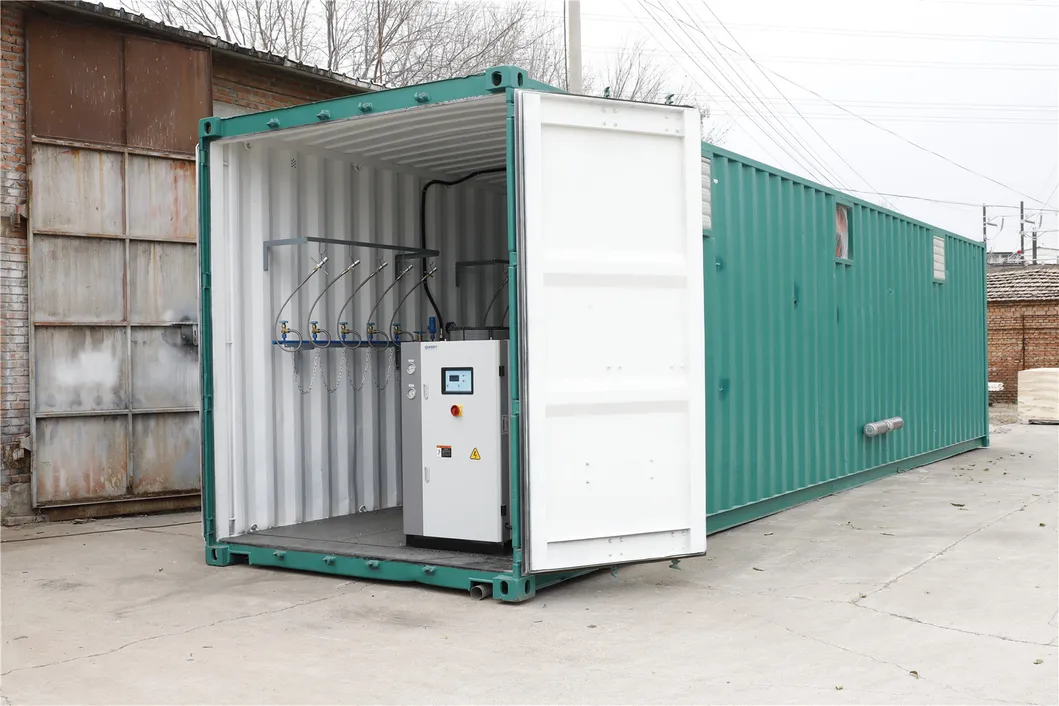

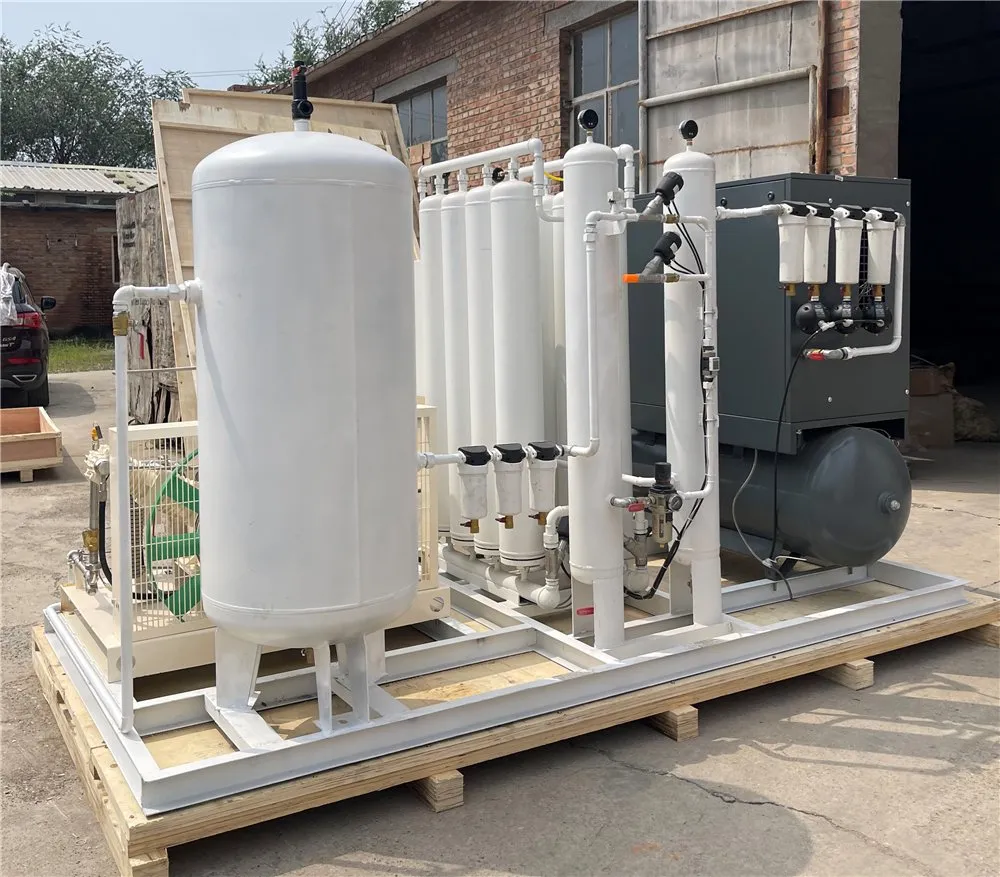

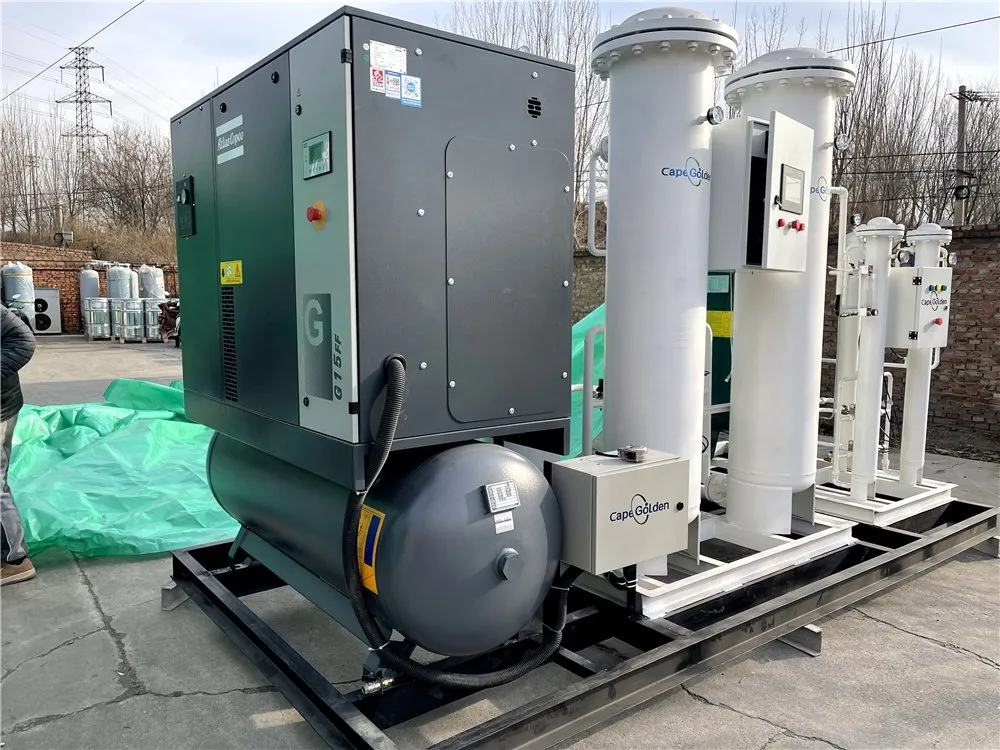

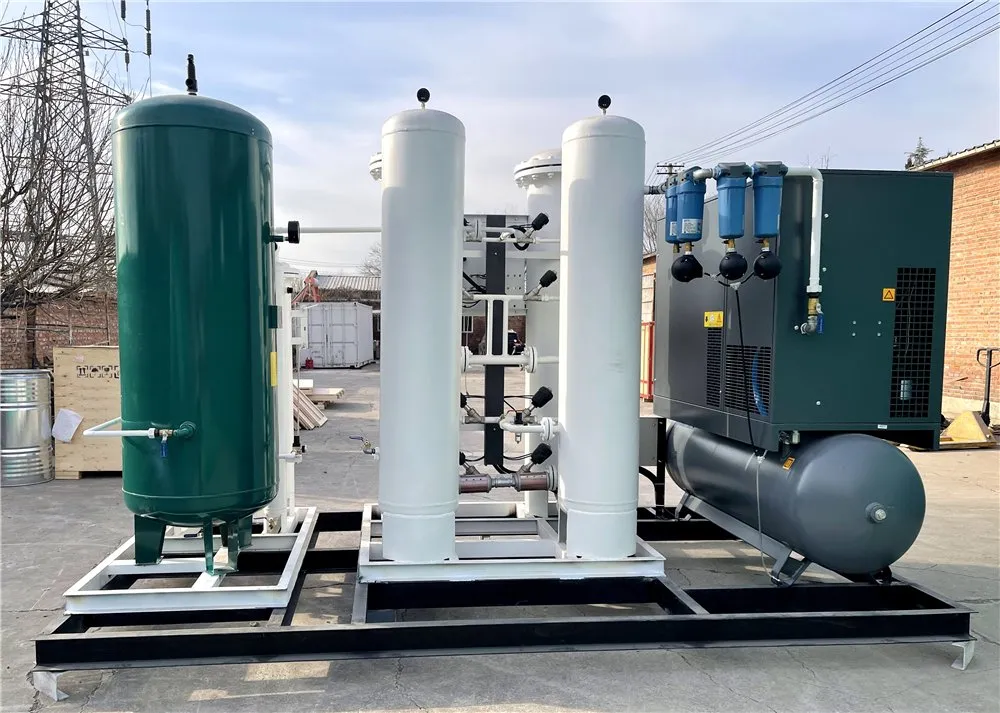

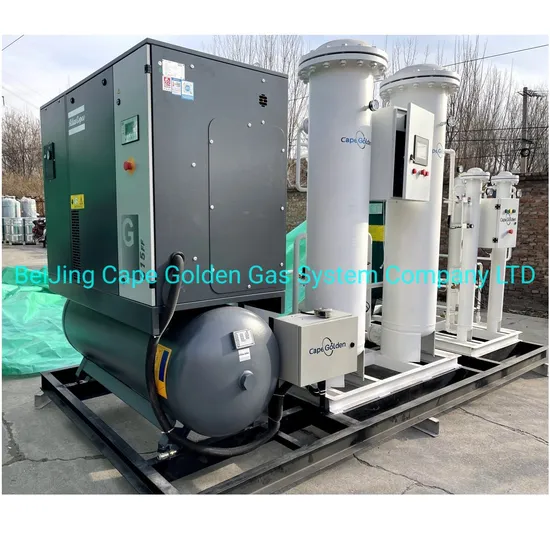

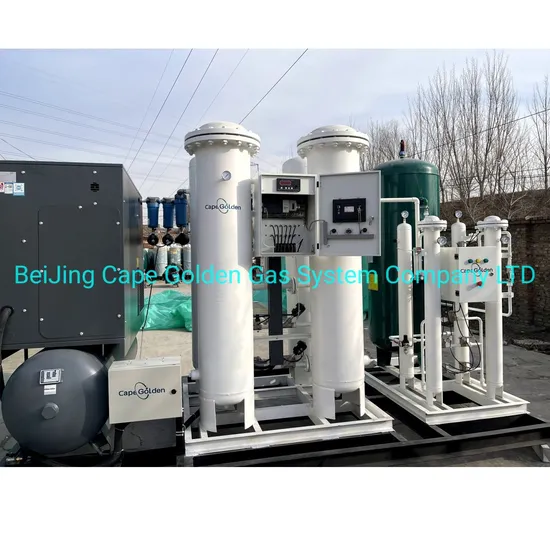

Oxygen Oxigen Making Filling Machine Generator
No need to Breathe 100% Oxygen for Diving and Mountaineering
There is one percent (1%) argon and twenty one (21%) percent oxygen in the air. It is hard to remove argon from argon/oxygen mixture with nowadays PSA technology. In theory, the upper limit of oxygen purity is 95.45%. Due to PSA technology and ZMS performance, it is stable and economical to run at purity of 93% with fluctuations. So in PSA Oxygen Generator industry, the 93±3% is a worldwide acknowledged standard. Actually it can reach 95% or can be a little higher but is not stable. And it is absolutely not economical to run the system at 95%. So
Oxygen Generator claim 93±3% purity in general, which means lower limit is 90%. For medical use, the
Oxygen Generator lower limit 90% is a compulsory and makes sense. It is not a compulsory for 95% or 96% purity. On the contrary, 96% is an upper limit that means the oxygen purity should not be higher.There are standards mentioning 99.5% purity oxygen for medical use, which is based on cryogenic technology but not PSA. Cryogenic oxygen contains certain quantity of halogen which is harmful to humans. But there is no such contaminant in PSA oxygen. So the 99.5% is a minimum requirement for cryogenic oxygen purity but not PSA. United States Pharmacopoeia (USP) Oxygen 93% Monograph has specifications as "not less than 90.0% and not more than 96.0%" for PSA oxygen.
No need to Breathe 100% Oxygen for Diving and Mountaineering
There is one percent (1%) argon and twenty one (21%) percent oxygen in the air. It is hard to remove argon from argon/oxygen mixture with nowadays PSA technology. In theory, the upper limit of oxygen purity is 95.45%. Due to PSA technology and ZMS performance, it is stable and economical to run at purity of 93% with fluctuations. So in PSA Oxygen Generator industry, the 93±3% is a worldwide acknowledged standard. Actually it can reach 95% or can be a little higher but is not stable. And it is absolutely not economical to run the system at 95%. So
Oxygen Generator claim 93±3% purity in general, which means lower limit is 90%. For medical use, the
Oxygen Generator lower limit 90% is a compulsory and makes sense. It is not a compulsory for 95% or 96% purity. On the contrary, 96% is an upper limit that means the oxygen purity should not be higher.There are standards mentioning 99.5% purity oxygen for medical use, which is based on cryogenic technology but not PSA. Cryogenic oxygen contains certain quantity of halogen which is harmful to humans. But there is no such contaminant in PSA oxygen. So the 99.5% is a minimum requirement for cryogenic oxygen purity but not PSA. United States Pharmacopoeia (USP) Oxygen 93% Monograph has specifications as "not less than 90.0% and not more than 96.0%" for PSA oxygen.
Preview

Preview

Preview
It is not necessary for humans to breathe 100% oxygen. For metabolism, oxygen is a must. It is harmful and even fatal to live in hypoxia condition. However, it is also dangerous for human to breathe pure oxygen for long period for it will cause oxygen poisoning. Possible symptoms of the illness are as follows: 1 Irritability, confusion or anxiety
2 Tingling or numbness of the mouth
3 Coughing
4 Nausea, vomiting
5 Tinnitus
6 Dizziness
7 Blurred vision and/or tunnel vision
8 Muscle twitches, especially the face
8 Pneumonia
10 Scarring and bleeding of the lungs
11 Seizures So it is apparent that higher oxygen purity does not always mean better.
2 Tingling or numbness of the mouth
3 Coughing
4 Nausea, vomiting
5 Tinnitus
6 Dizziness
7 Blurred vision and/or tunnel vision
8 Muscle twitches, especially the face
8 Pneumonia
10 Scarring and bleeding of the lungs
11 Seizures So it is apparent that higher oxygen purity does not always mean better.
Preview

Preview

Preview

Preview

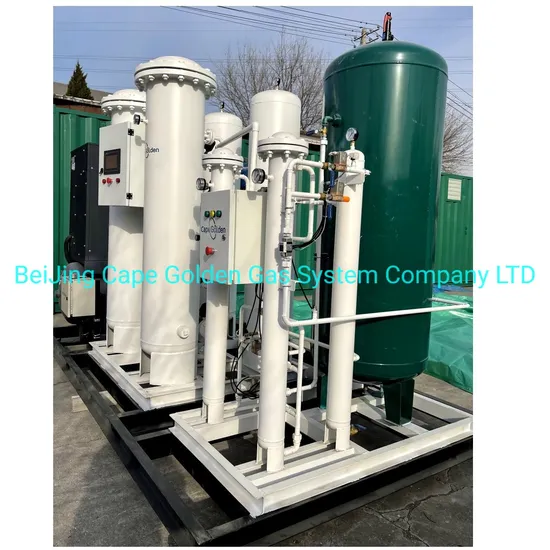

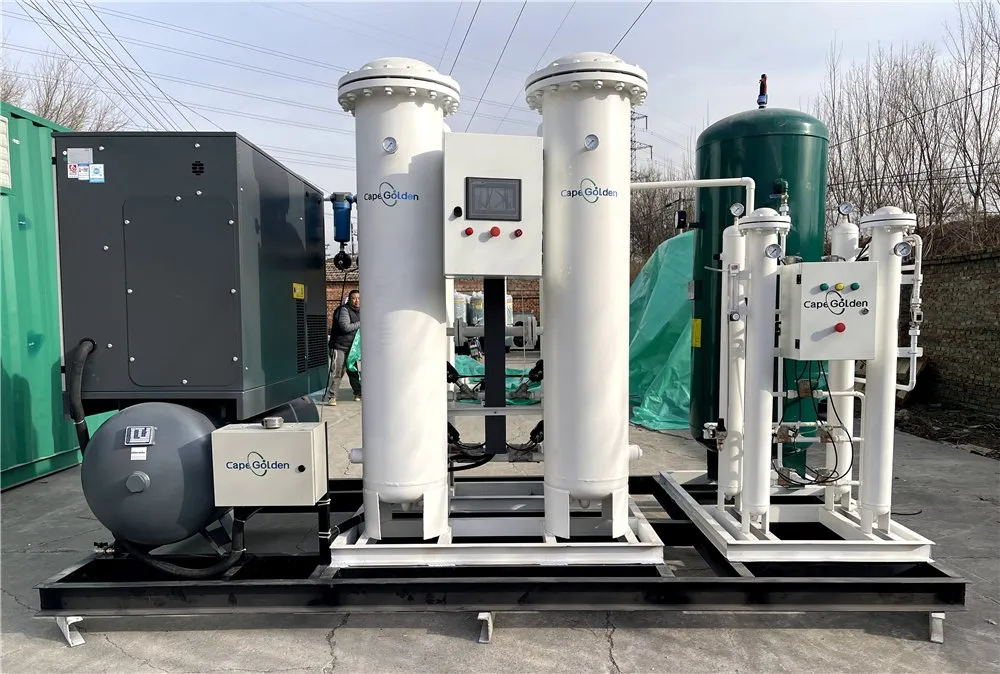

Features of Cape-Golden Oxygen Generator
in Diving and Mountaineering for Breathing
in Diving and Mountaineering for Breathing
Preview

Preview

Preview

Preview

Preview

Preview

Preview
证书
标题:ISO 9001
