Liquid Oxygen Nitrogen Argon CO2 LNG Gas vaporizer
Applicable Medium
LO2, LN2, LAr, LNG, LCO2, LC2H4, LPG
Application
The vaporization of the liquids above

Model List and Technical Parameters
Featuring

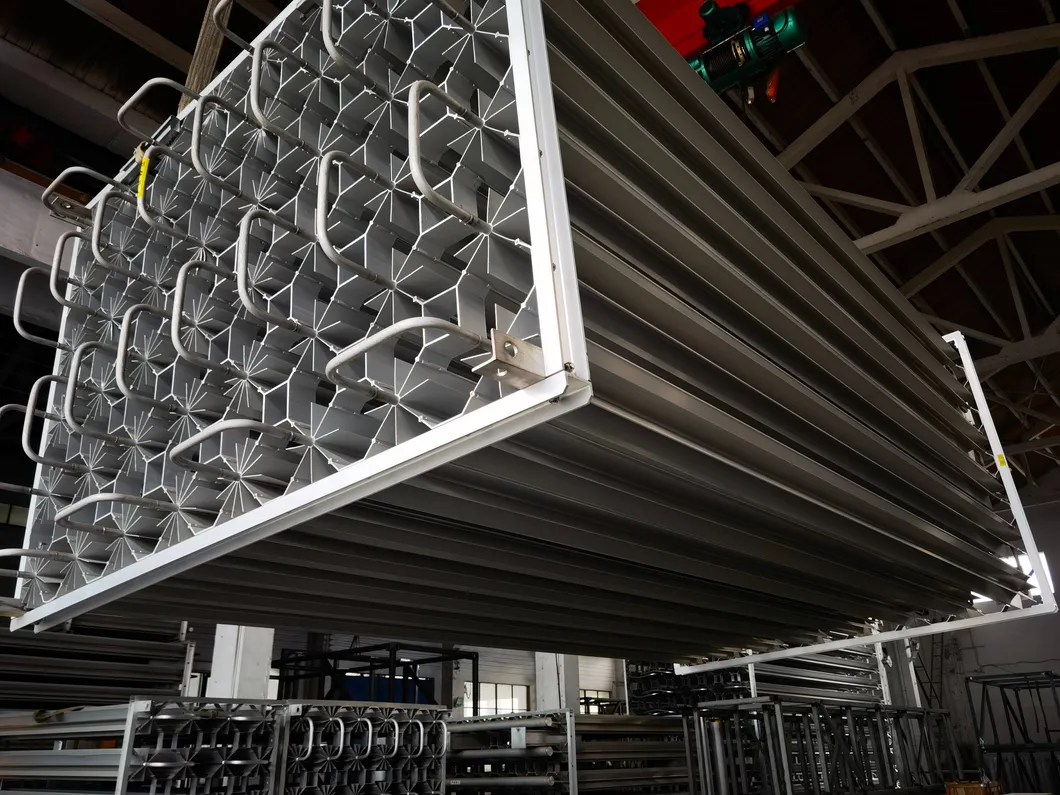

1. Bridge connection of star-shaped fin pipe with big diameter, stable structure
2. No energy consumption and environment friendly
3. Made from anti-rust aluminum with good effect of heat exchange and a
service life of over 20 years.
4. Sufficient design allowance
5. Low pressure, no deflection and flow speed is controlled within the safety range
6. Clean and manufacture according to standard of oxygen
7. Temperature of outlet air is within 10ºC lower than the ambient temperature(after used continuously for 8
hours)
Introduction
When falling from 3-meter-high spot, hot water will be cooled down. This is because heat exchange occurs between the water and the air. Similarly, ambient air vaporizer makes use of the large temperature differences between the cryogenic liquid and the ambient air. The transfer efficiency is improved by increased fin numbers and expanded contact area with the air. So this cryogenic vaporizer achieves a
rapid and complete vaporization.
Advantages
The ambient air vaporizer asks for no assistance from other electric heating equipment. The air heated vaporizer is highly efficient, eco-friendly and energy saving. It enjoys wide applicability and high vaporization rate.
The fin is made of high quality aluminum materials, there will be no ice bending problem. It has large heat transfer area and high efficiency.
The stainless steel pipe is thick and solid. The welding workmanship goes through nondestructive testing. All the finished evaporators pass nitrogen leakage test and their strength is proved by water pressure test.
Purchasing Guide
We can offer vaporizers in customized sizes. Please advise the following when sending an enquiry:
1. Capacity
2. Medium gas (LO2, LN2, LAR or LCO2? )
3. Working pressure
WHAT WE CAN SUPPLY
Hangzhou Chuankong General Equipment Co., Ltd. is a
wholly owned subsidiary of Sichuan Air Separation Plant Group Company-the second largest gas equipment producer in China.
We specialize in producing air separation plants, CO2 recovery plants, cryogenic liquid storage tanks, ISO tanks, semi-trailer tankers, vaporizers, gas filling stations, cylinders and dewars, dry ice machines, compressors and cryogenic pumps etc.
OEM Service
We can paint customers' logos on air separation plants, PSA gas plants, CO2 recovery plants, storage tanks, and semi-trailers.
