Nitrogen Generator Information

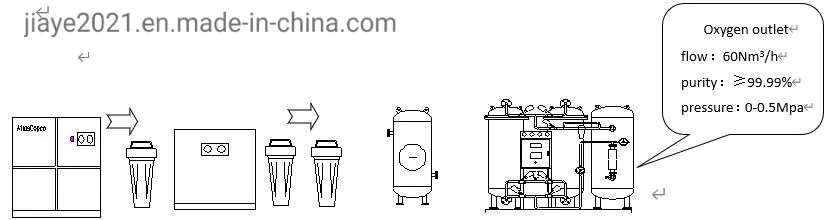

1 ,Introduction to the system processAccording to your company's requirements and combined with your company's on-site usage, Jiaye company specially designs the following technical solutions for your company for referenceJiaye's nitrogen system equipment is composed of air compressors, cold dryersFilter, air storage tank, nitrogen generator composition

2,Brief introduction of process principle:
Pressure swing adsorption nitrogen production is based on clean, dry compressed air as raw material, and uses a high-efficiency and highly selective solid adsorbent (carbon molecular sieve) to selectively adsorb nitrogen and oxygen to reduce the nitrogen and oxygen in the air. separate from. Carbon molecular sieves are non-polar molecules and preferentially adsorb oxygen. The separation effect of carbon molecular sieve on oxygen and nitrogen is mainly based on the different diffusion rates of these two gases on the surface of carbon molecular sieve. Gas with a smaller diameter (oxygen) diffuses faster, and more enters the solid phase of the molecular sieve. Gas with a larger diameter ( Nitrogen) diffuses slowly and less enters the solid phase of molecular sieve. In this way, nitrogen-rich components can be obtained in the gas phase. After a period of time, the adsorption of oxygen by molecular sieve reaches equilibrium. According to the different characteristics of carbon molecular sieve for adsorbing gas under different pressures, the pressure is reduced to release carbon molecular sieve from adsorbing oxygen. This process is called regeneration. The pressure swing adsorption method usually uses two towers in parallel, alternately performing pressure adsorption and decompression regeneration, so as to obtain a continuous nitrogen stream.

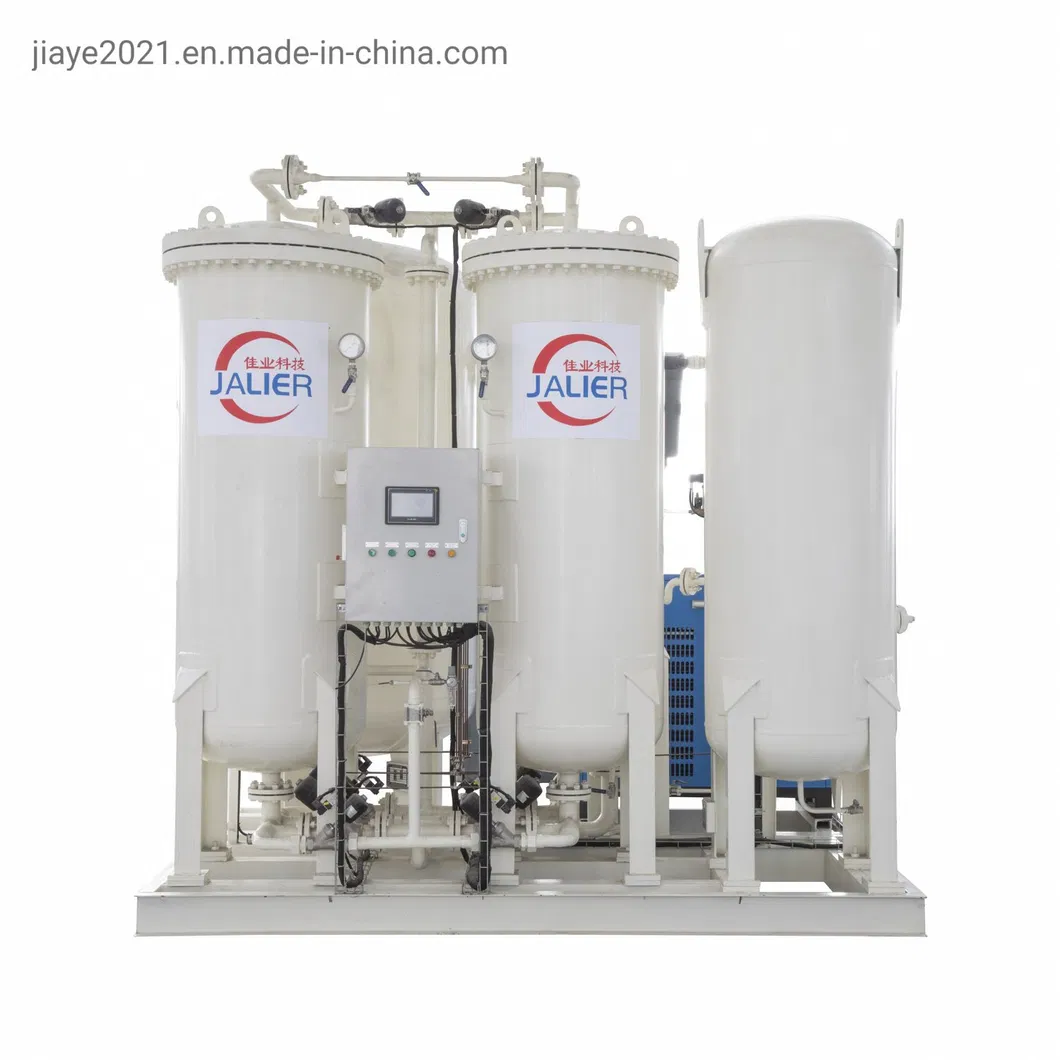

3,Main features of "Jiaye" brand PSA nitrogen generator

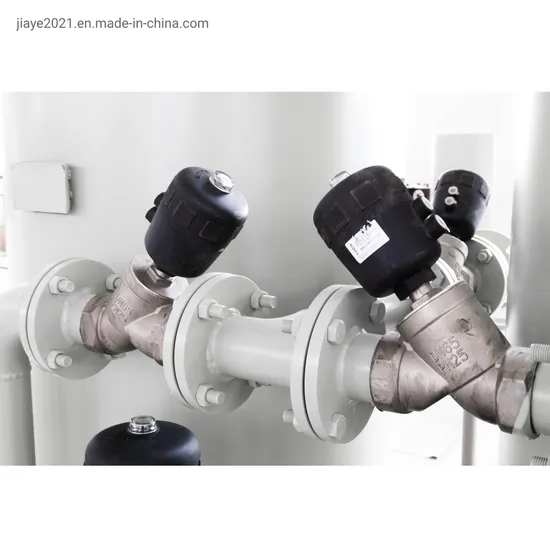

·Provide maximum commercial value1. The filling and compaction of molecular sieve is done in a professional environment in a professional way.The density is greater and the efficiency is higher.2. The design of process and structure is optimized, and the system can exert its maximum potential.·Higher reliability1. Adopt a special valve that is frequently switched over 1 million times without failure to ensure the system'sStable operation.2. The system design is more reasonable, and the equipment is safer and more reliable.More convenient to use1. Nitrogen can be automatically recorded, which is convenient to find the working status at any working time.2. The system runs fully automatically, and the whole process can be unattended.

4,Parameters of high purity nitrogen produced by pressure swing adsorption nitrogen system
Flow quantity: 400 nm3/hPure c: 99.99%Oxygen content: ≤1.0%The dew point: to 40 ºC or lessNitrogen pressure: 0.6MPa (adjustable from 0.1-0.6)

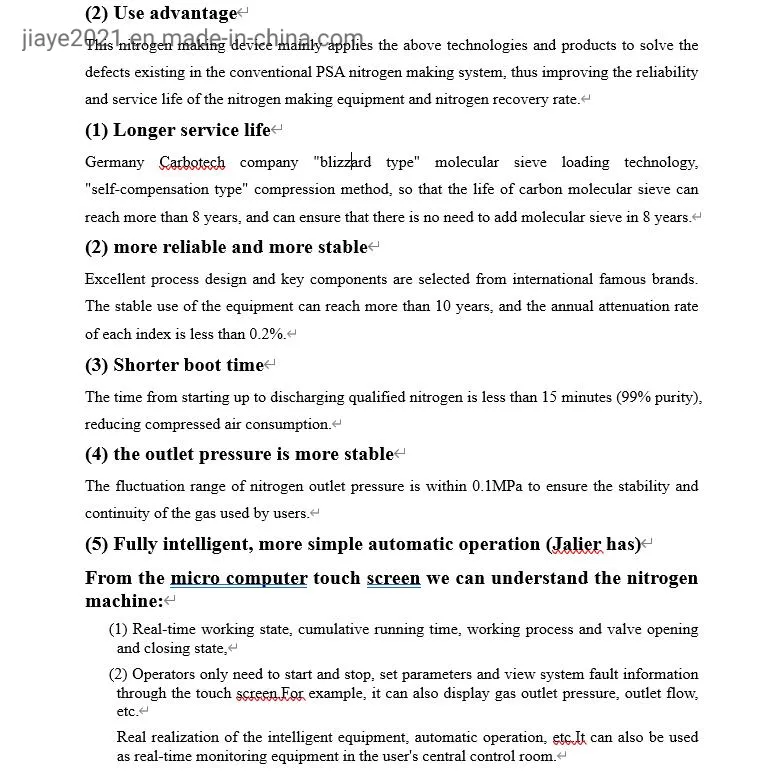

5,Jalier PSA nitrogen production system has the following advantages
Key technologies and products
EES Energy Efficient System
Advanced adsorber structure and PSA process design
Perfect PSA process design
Cyclone honeycomb gas distribution structure
Blizzard type molecular sieve loading technology and reliable automatic compaction
All the key components are made of international famous brands

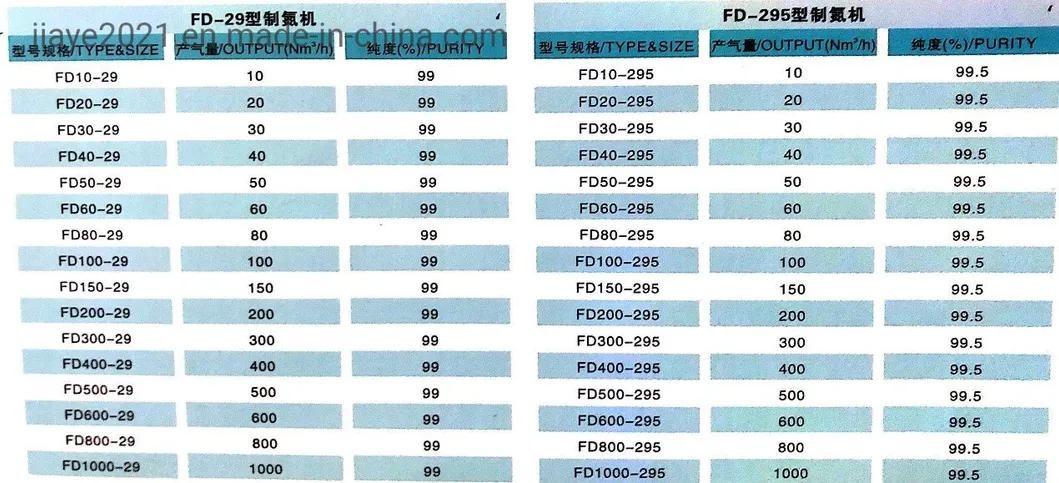

6,Model specification table of PSA nitrogen generator

7,Technical parameters and supply scope of PSA nitrogen making device
1. 400Nm3/h - 99.99% PSA nitrogen production system main technical parameters:

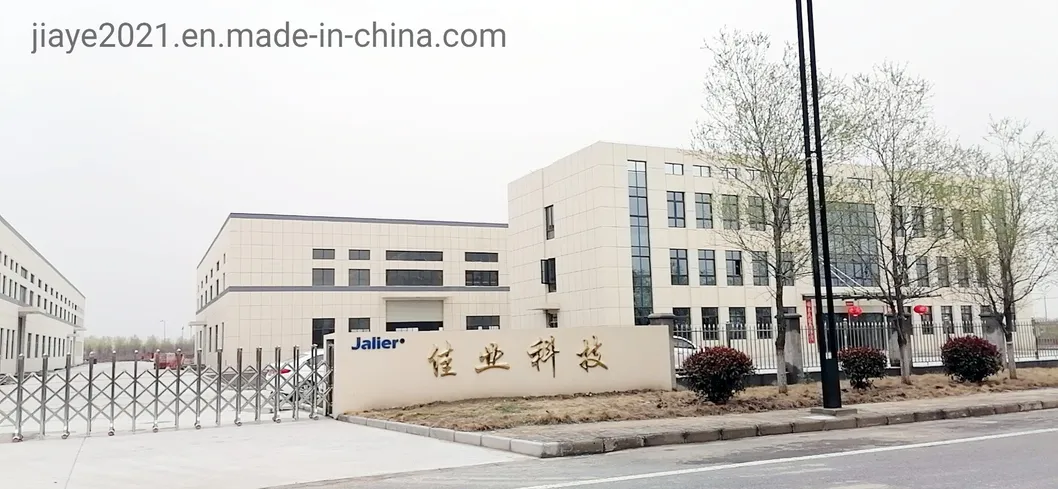

8,Company Profile
Since the establishment of Jiaye in 2006, Jiaye Company has been helping our customers to provide solutions to achieve the lowest cost on-site nitrogen production and the highest productivity of related equipment. The sustainable development of Jiaye will continue to become a reality in the future. Will actively promote changes in the entire industry. To

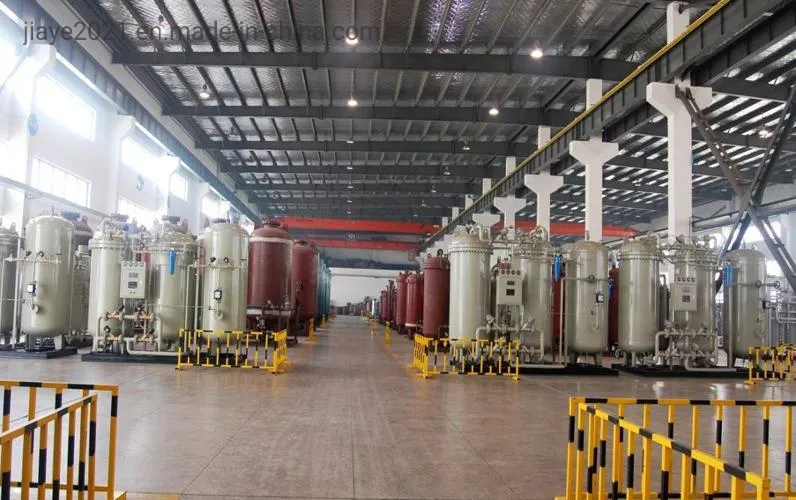

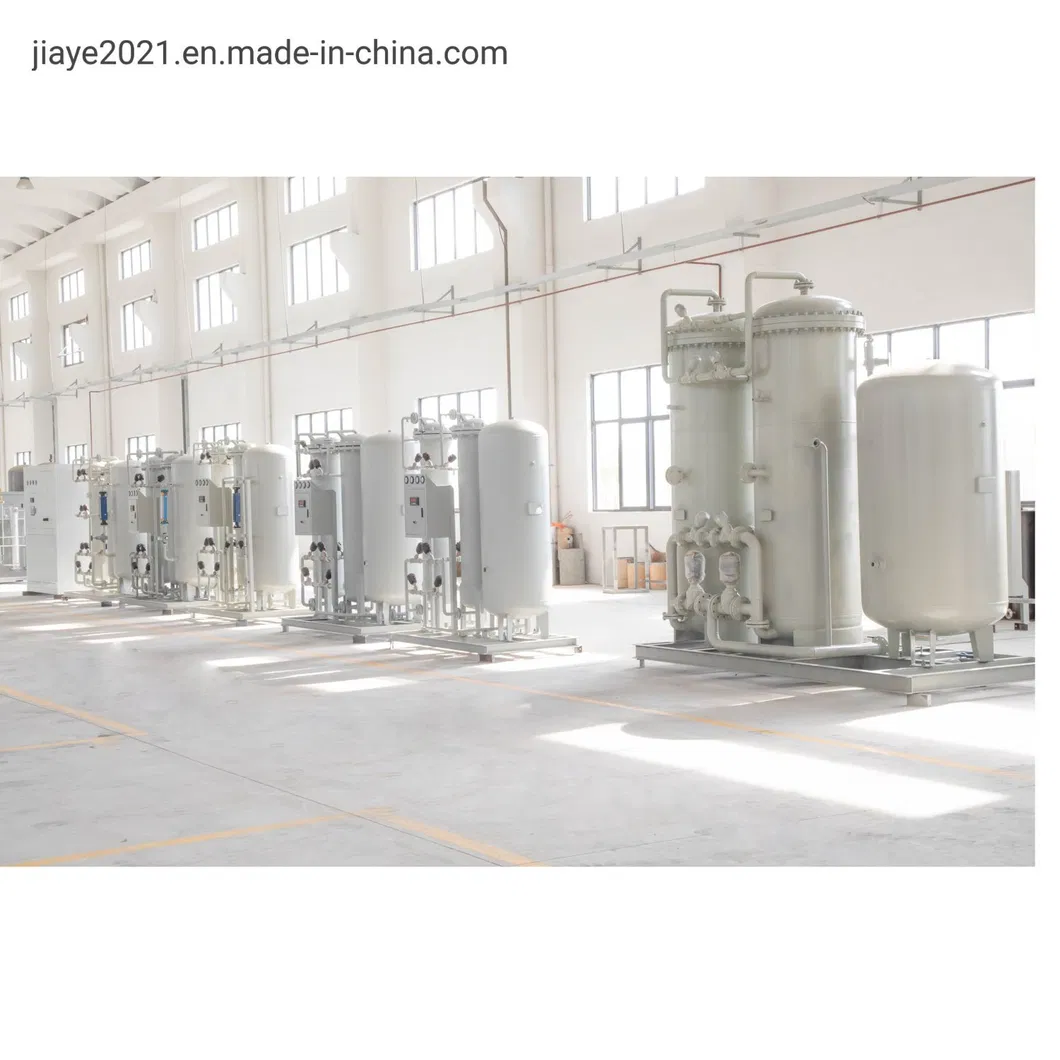

In 2019, the production plant of Jiaye Technology (Dongtai) Co., Ltd. was established in order to serve customers well. At present, the jailer production plant has a manufacturing plant of approximately 28,500m² in Jiangsu, a R&D center, a modern office space, and an area of 2,000m². ²Parts Center, about 100 employees.

In 2020, Jiaye's sales revenue will reach 4.5 million U.S. dollars. Jiaye Company is a leading manufacturer and provider of on-site nitrogen production, oxygen production equipment, ammonia decomposition hydrogen production and nitrogen repurification equipment, compressed air purification equipment, and system equipment. Jiaye company provides services throughout the product life cycle, and has leading technology and decades of product manufacturing experience expertise. Therefore, Jiaye Company stands out, provides extraordinary value and helps customers to achieve cost-competitive success in production.
