The overall advantage of the industrial robot:
1)Control advantages: The control system adopts Japan Mitsubishi special PLC controller, linkage control with Mitsubishi servo motor, without delay, no interference; control program independent programming, studious, easy to understand.
2)Remote advantage: This model is specially equipped with a special remote control module, the module can be connected through the network cable, wireless, hot spots, mobile phone traffic card and other modes, which can provide remote assistance, remote modification, remote service according to the customer needs, anytime and anywhere.
3)Electric box advantage: The electric control box is designed in Germany, large space, regenerative resistance heat dissipation, multiple fan ventilation, heat dissipation effect, effectively guarantee the service life and stability of the original low voltage appliances; all signal transmission wire, drag chain wire, shield wire, weak wire using Japanese and Alpha lead-free silver welding wire welding, better signal transmission effect, stronger conductivity, and effectively guarantee the overall stability of the robot.

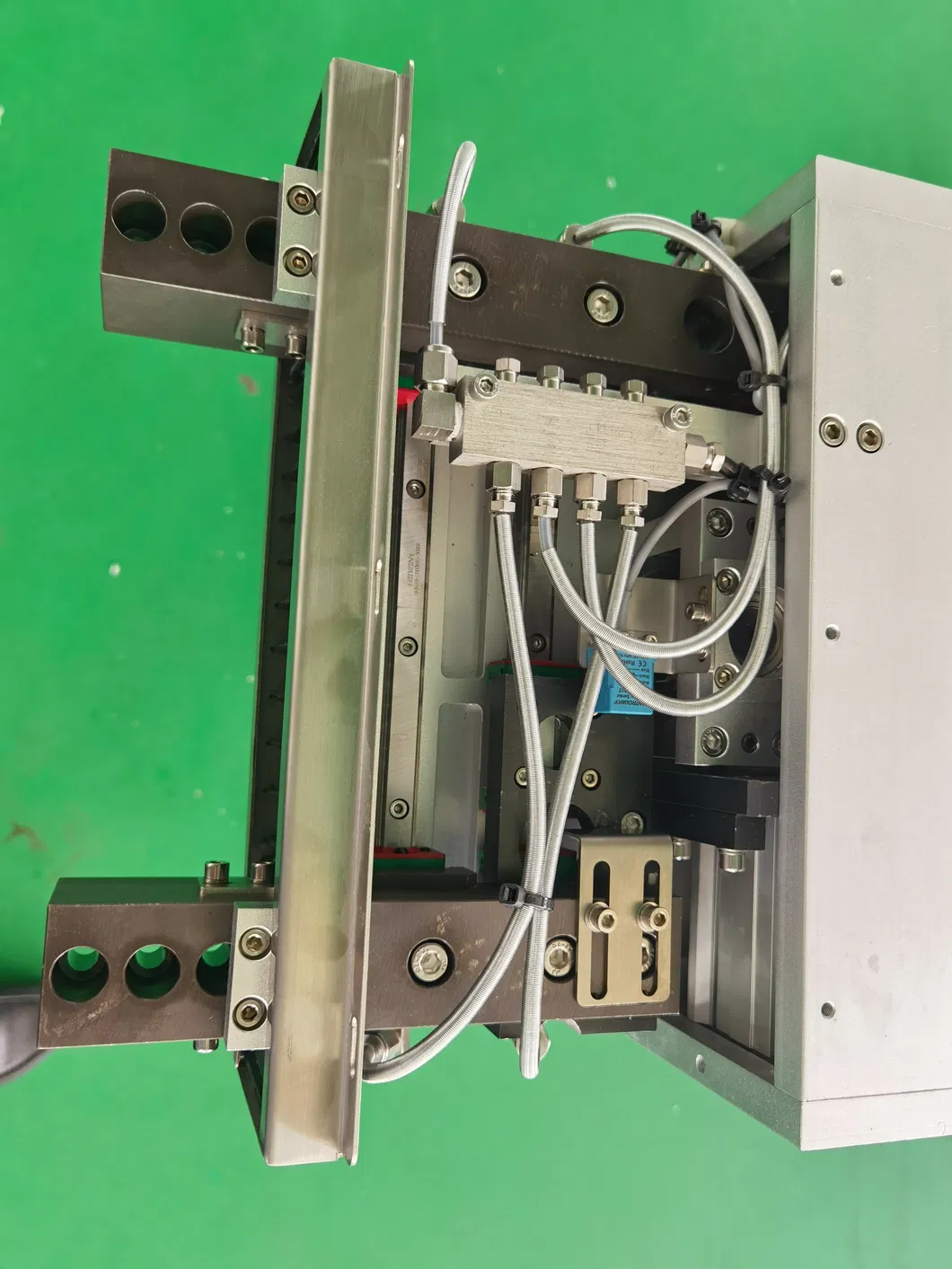

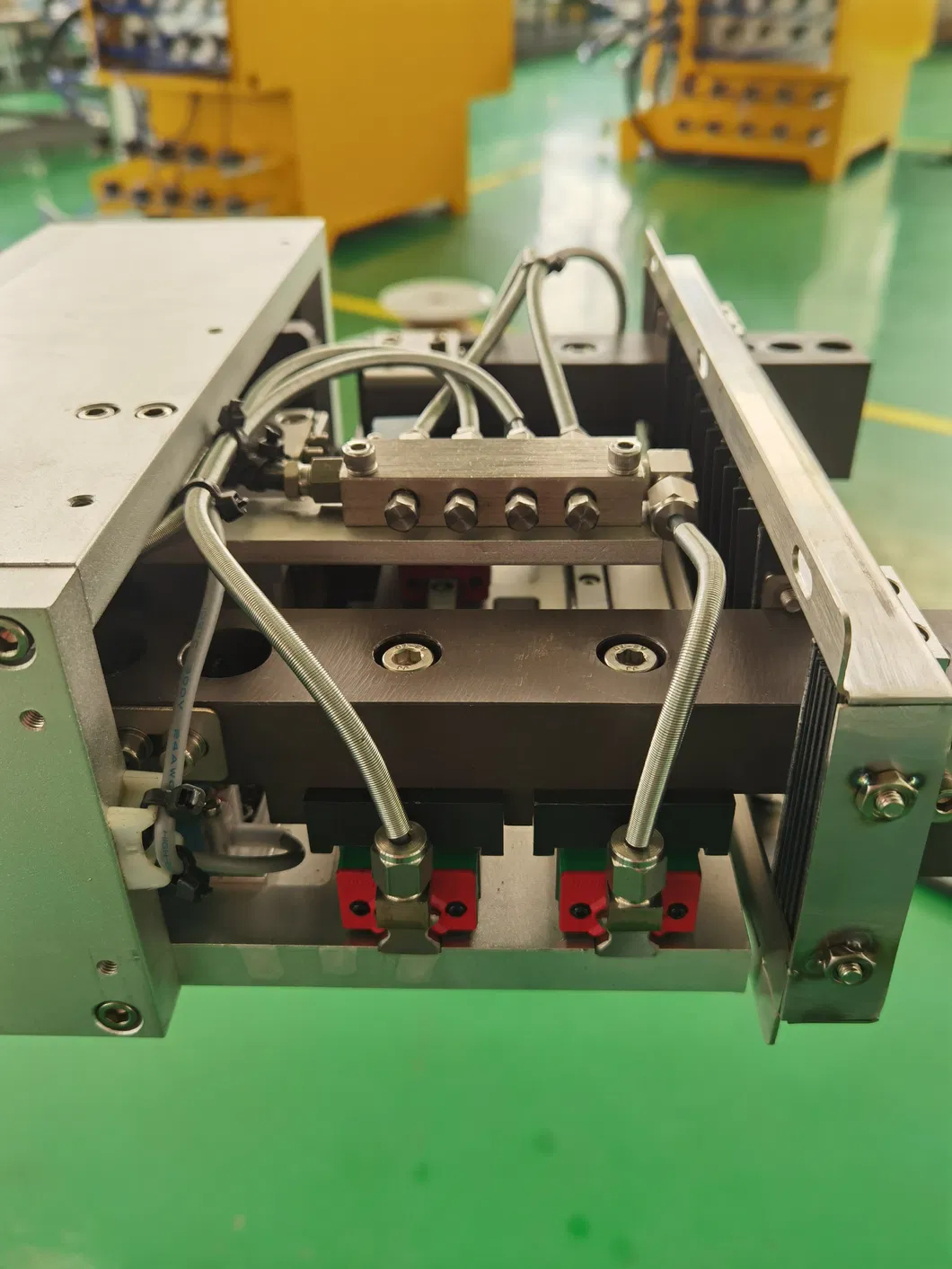

4)Lubrication advantage: The lubrication system adopts differentiation treatment, and all the wire rod guide rails are independently supplied with independent oil supply, avoiding the uneven oil supply problems caused by different pipe lengths and different oil nozzle points.
5)Design advantages: The axial direction of this model is all driven by motor direct drive, Connect the custom 304 stainless steel large torque coupling direct drive wire rod; This design effectively avoids the belt lateral drive (the belt side drive will increase the motor resistance and partial load force), While the resulting radial force loss (the long-term radial force loss of the wire rod will lead to a shorter service life, Once an external force, it will break instantly, The external force mainly comes from the card mold / stick touch / top rod not down / super load / etc.); The design of the direct drive mode greatly improves the torque output of the servo motor and avoids the radial force loss, Improve the stability and service life of the servo motor / reducer / wire rod and other components; The main function of the application of custom model coupling is force unloading, When the arm bears the external force to attack, it can be effectively diluted through the coupling diaphragm, To ensure that the wire rod is not damaged by external forces.
6)Universal adjustment base advantage: The collocation of universal adjustment base can make the robot quickly locate the positioning point, easily adjust the Angle and lintness, designed for multisite mode forging.

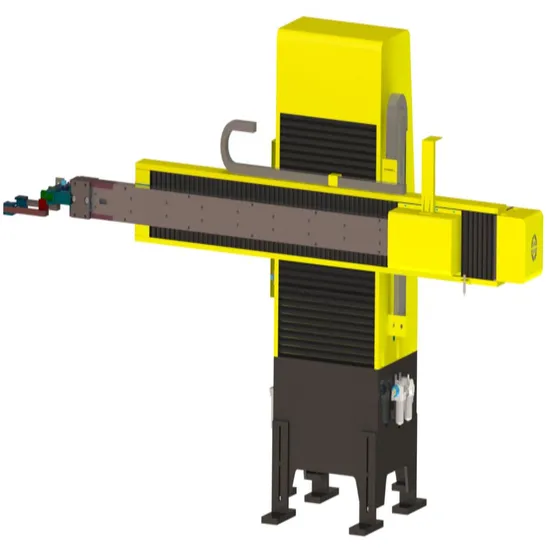

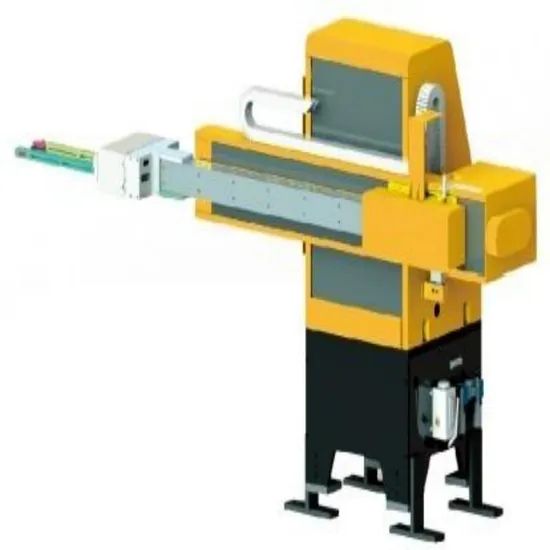

Technical parameters of two-axis right-angle industrial robot:

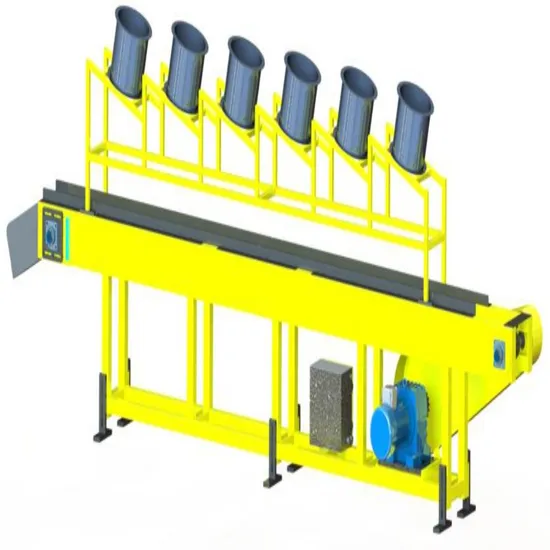

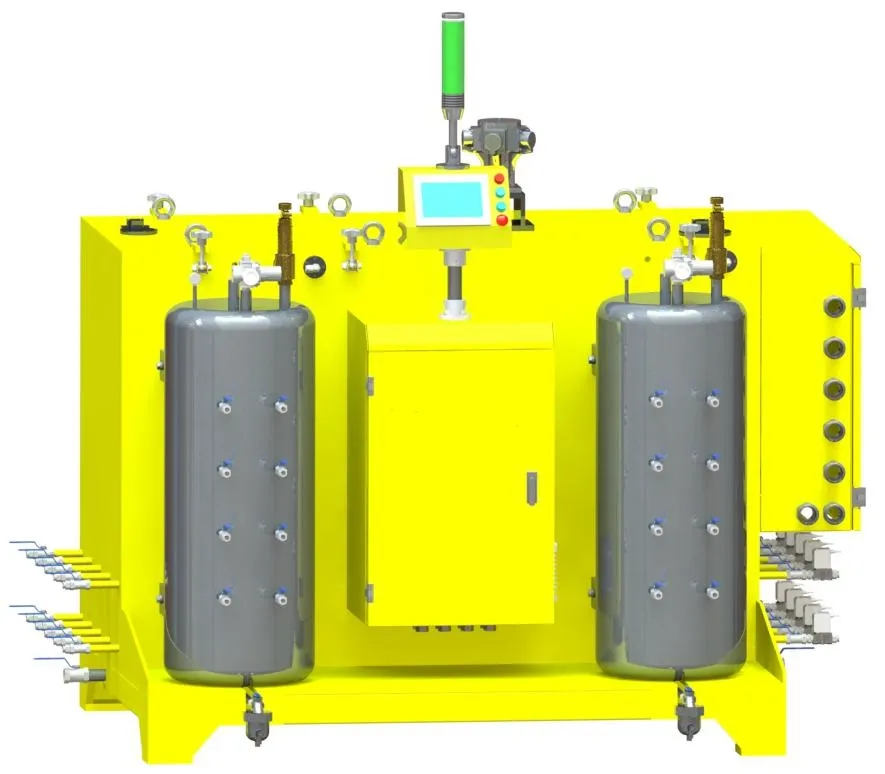

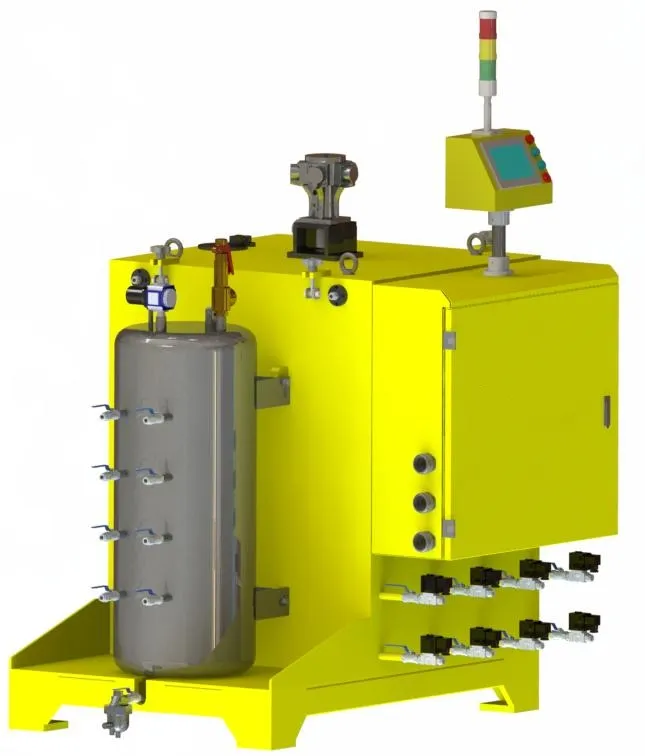

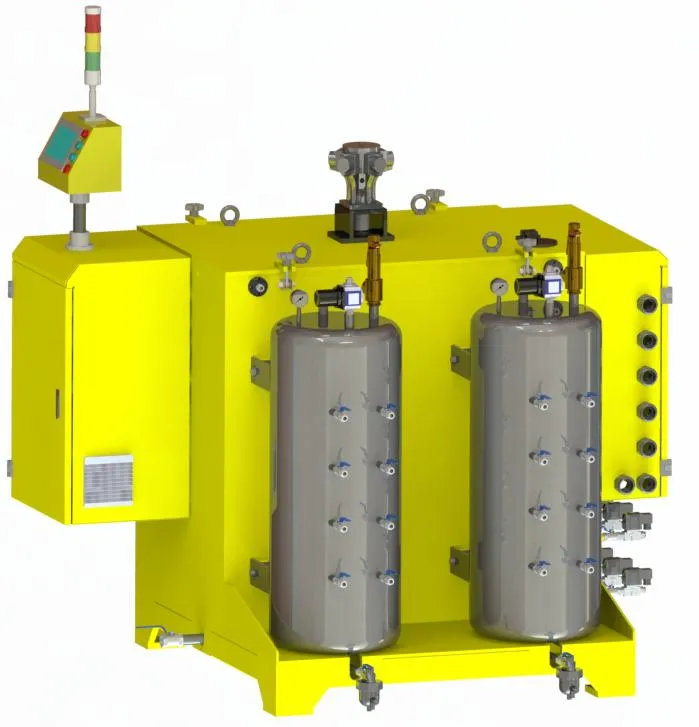

Technical parameters of automatic feeder:
