基本信息产品详情证书
基本信息
应用 | 奶制品、油 |
驱控一体型 | 液压的 |
功能 | 制作钢鼓或水桶 |
传输类型 | 灵活的 |
自动化生产线 | 全面的 |
认证 | ISO,CE |
柔性生产 | 精益生产 |
节奏 | 流水生产线 |
保修 | 一年 |
运输包 | 纸箱 |
规格 | 220升 |
起源 | 中国 |
生产能力 | 每年100件 |
产品详情
Product Description
Preview

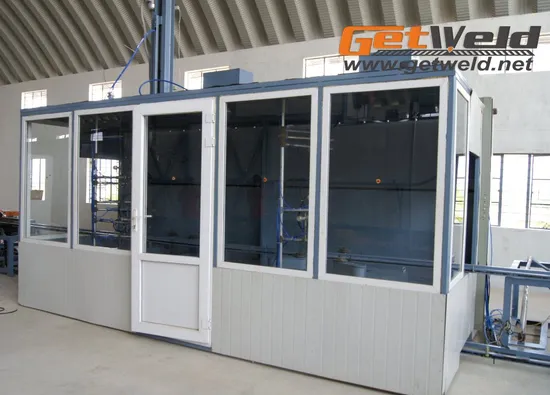

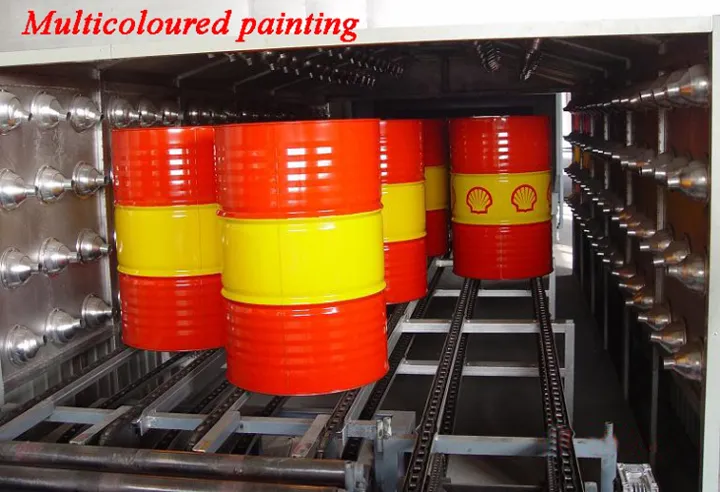

Painting Booth/Spraying Chamber

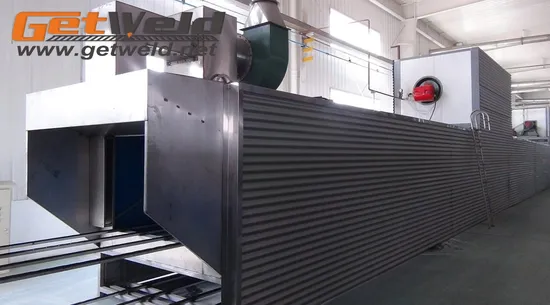

1. Drying channel:
Size: L24M; W2.2M; H2.1M;Heat method:burning oil to heat;Heat machine unit:2 sets (main part is made in Italy);Oil consume:80L/h (2 sets)Max;Work temperature:room temperature to 200ºC, and can be continue to be adjustable;Temperature control precision: ±5 ºC (action precision);Rising temperature time:≤20min.(When room 20 ºC)Heat preservation property:when 200ºC in the channel, the surface rising temperature less than 10ºC (local part less than 15ºC);
2.Drying transport:

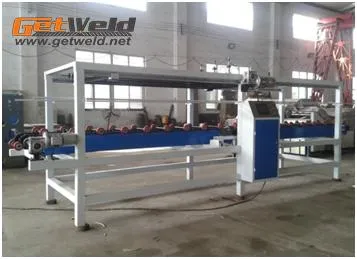

Chain: 216A double pitch roller chain;Transport row: 3 rowsTransport chain length: 34mTransport speed: 0.4-2.5m/min.Drying distributor in line: 1 set;Drying distributor out line: 1 set;Steel drums out line transport: 1 set(20m);Drying type: Vertical;
3.Control box:
Use purpose: To control; the temperature of drying channel and transport speed.Quantity: 1 set;

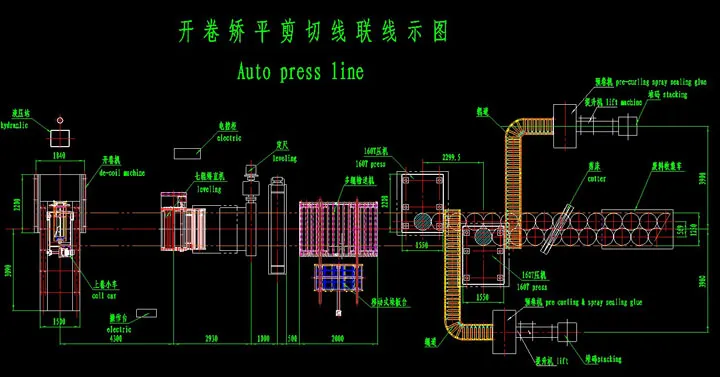

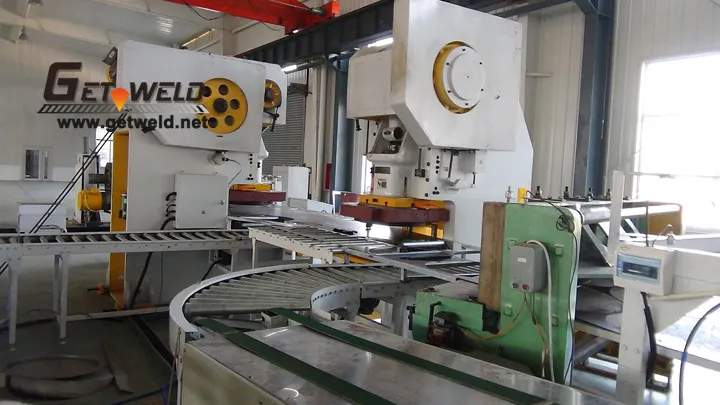

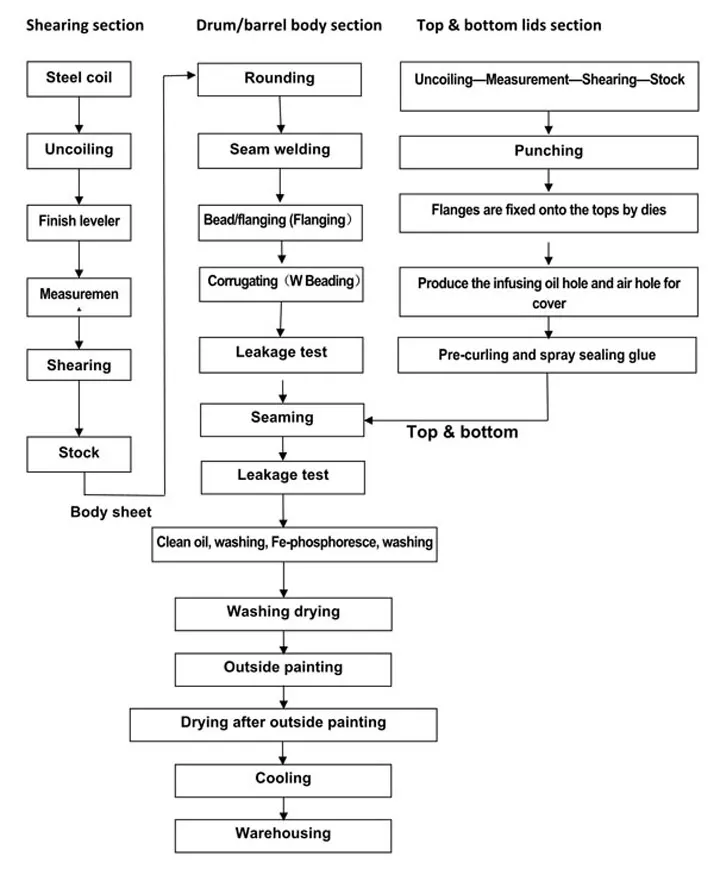

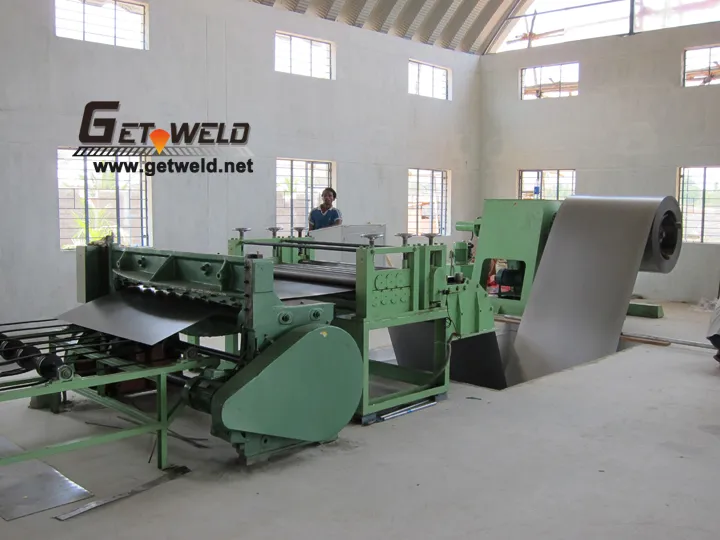

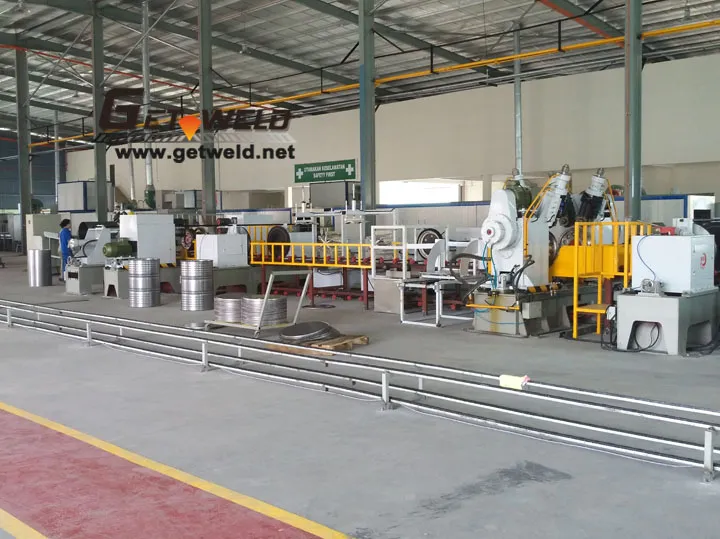

Production Process
1. Drying channel:
Size: L24M; W2.2M; H2.1M;Heat method:burning oil to heat;Heat machine unit:2 sets (main part is made in Italy);Oil consume:80L/h (2 sets)Max;Work temperature:room temperature to 200ºC, and can be continue to be adjustable;Temperature control precision: ±5 ºC (action precision);Rising temperature time:≤20min.(When room 20 ºC)Heat preservation property:when 200ºC in the channel, the surface rising temperature less than 10ºC (local part less than 15ºC);
2.Drying transport:
Chain: 216A double pitch roller chain;Transport row: 3 rowsTransport chain length: 34mTransport speed: 0.4-2.5m/min.Drying distributor in line: 1 set;Drying distributor out line: 1 set;Steel drums out line transport: 1 set(20m);Drying type: Vertical;
3.Control box:
Use purpose: To control; the temperature of drying channel and transport speed.Quantity: 1 set;
Production Process
Preview

Preview

Preview

Preview

Preview

Preview

Preview
FAQ
Q: How do you ensure quality?
A: we have a strong design & technical team, Our team ensures the production process at every stage and our QC will inspect each procedure as well.we can design and manufacture as your requirements.Q: How to get an accurate quotation ?
A: Please provide us the detail of the workpiece such as drawings or daily out put
Q: What's the shipping cost from China to your country ?
A: We can send machine to your port by sea . Customers specify freight forwarders or negotiable shipping methods.Q: Payment terms, MOQ, warranty, FOB...A: Payment terms: 30% down payment against order
Delivery time: 3 months after receipt of formal order
Warranty: 12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc. You can contact us any time.
Q: How do you ensure quality?
A: we have a strong design & technical team, Our team ensures the production process at every stage and our QC will inspect each procedure as well.we can design and manufacture as your requirements.Q: How to get an accurate quotation ?
A: Please provide us the detail of the workpiece such as drawings or daily out put
Q: What's the shipping cost from China to your country ?
A: We can send machine to your port by sea . Customers specify freight forwarders or negotiable shipping methods.Q: Payment terms, MOQ, warranty, FOB...A: Payment terms: 30% down payment against order
Delivery time: 3 months after receipt of formal order
Warranty: 12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc. You can contact us any time.
