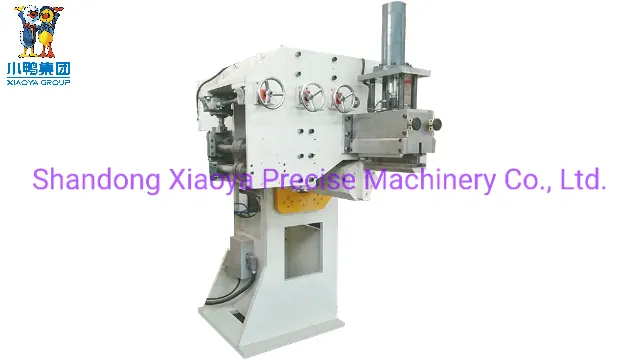

Coiler Machine

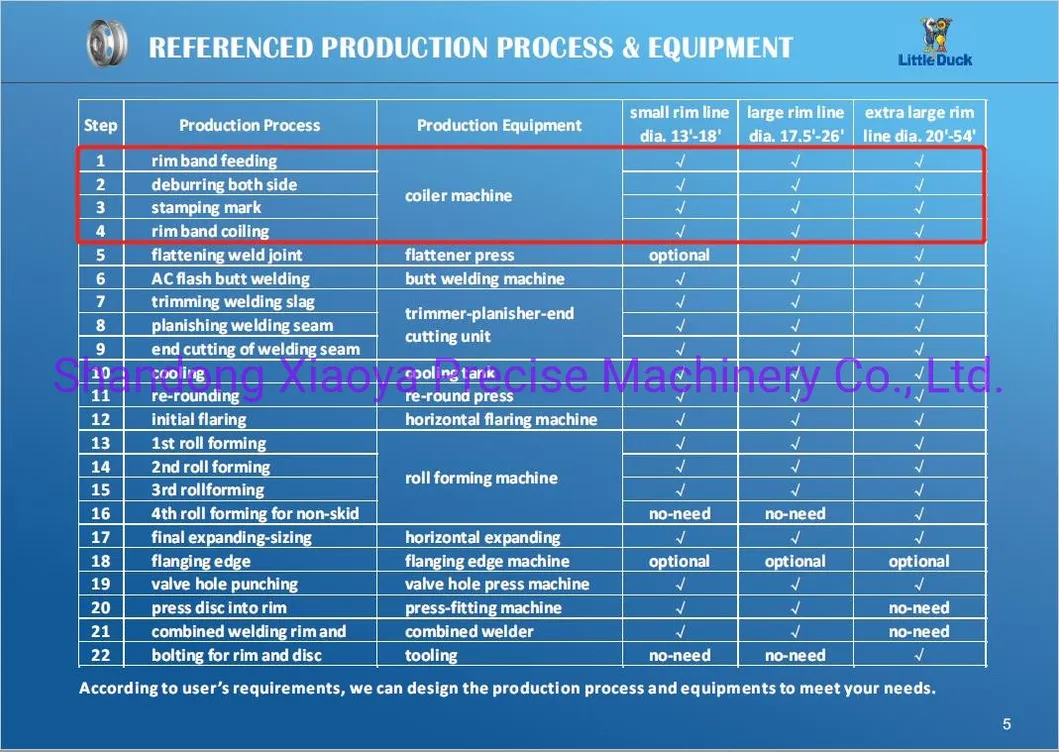

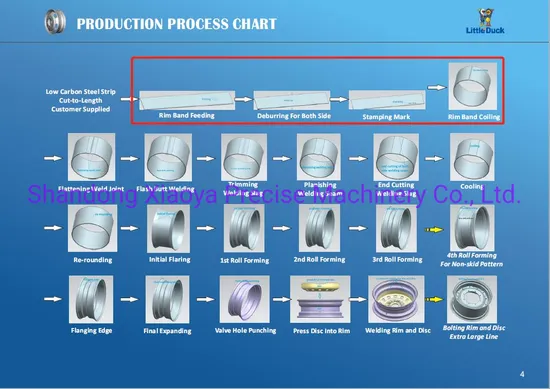

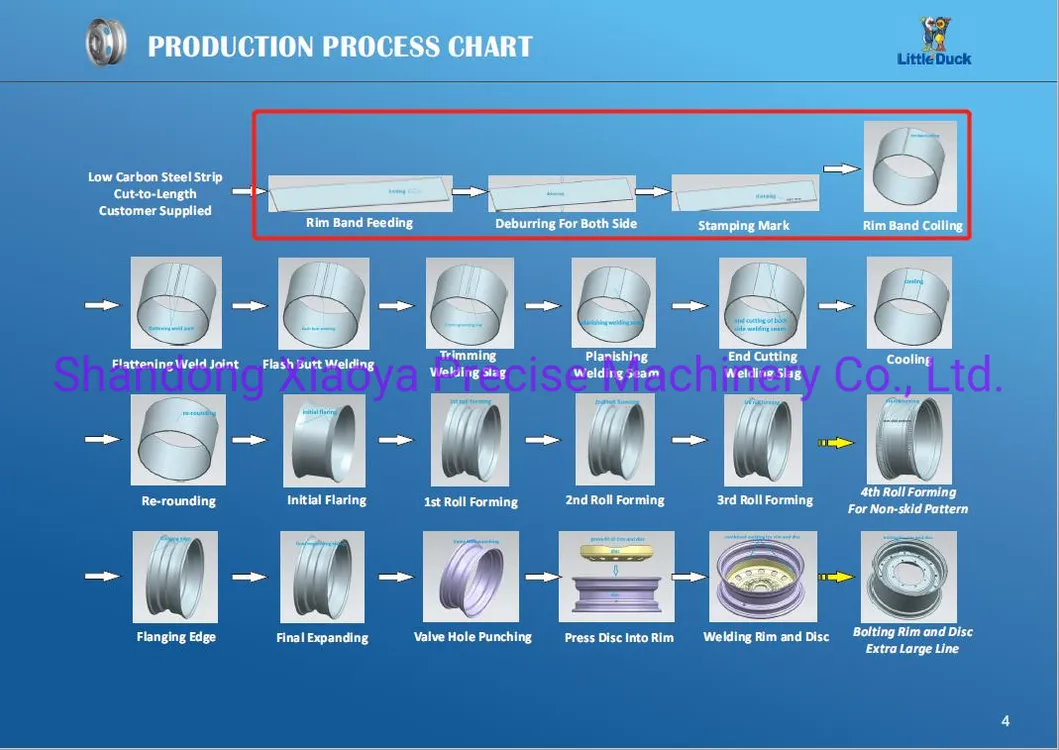

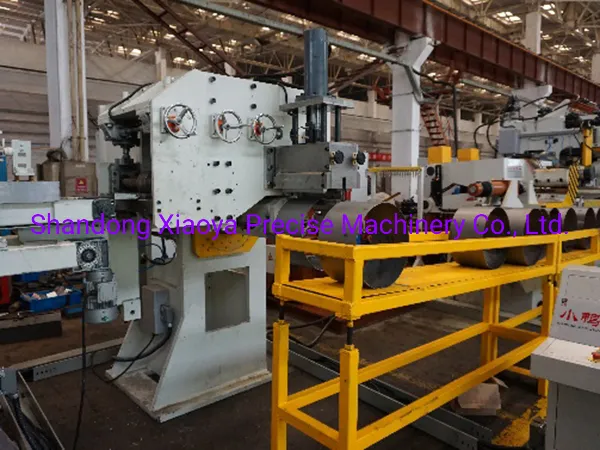

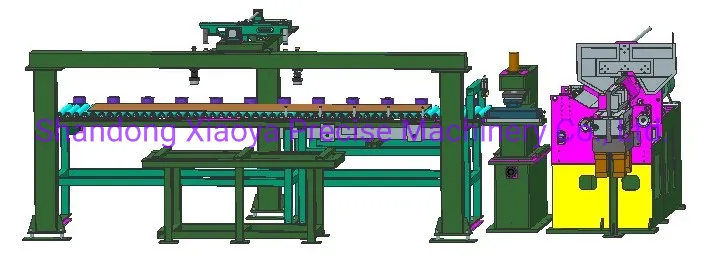

As a major wheel rim machinery manufacturer, we supply a variety of equipment, including the coiler machine for the wheel rim production line. This rim machine set consists of the feeder, deburrer, stamper and coiler.1. The feeder is used to manually feed a single piece of a rim band.2. The deburrer is equipped to remove burrs at both edges of the rim band, protecting molds and operators from scratches during the next processing steps.3. The stamper presses the needed marks on the rim band, including specification, model, manufacturer production date and other information.4. The coiler is a wheel rim forming machine used to automatically coil the cut to length rim bands.5. Flattening weld joint of both edges, it is conducive to weld clamping on next step.

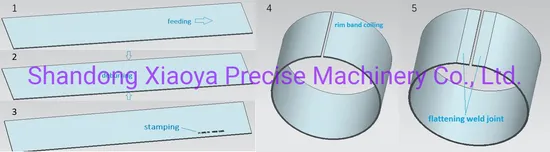

Process Pictures for Reference

Main Features
1. The rim equipment has a horizontal structure, chain transmission, and hand wheel for adjustment. This ensures the easy operation and maintenance.2. The stamping head on the stamper can be quickly changed according to different needs.3. The discharge end can be designed with an automatic discharging platform that is conducive to the automatic transportation of the work piece.4. The wheel rim coiler machine features an integrated design, that melds deburring, stamping and coiling into one machine, saving labor and floor space.5. The main shaft is engineered from the NSK brand high performance bearing, ensuring the long service life.6. The horizontal coiler machine uses an electrical control system from famous brand, making it safe and reliable.7. The coiler used in the small wheel rim line is able to flatten the welding joint. After it has been formed into a coil, the work piece can be directly conveyed to the butt welding process.8. The coiler can provide automatically and manually feeding function based on customer demand.Main Parameters of
Examples

TRADE TERMS
Delivery Time
The delivery time will be around 1-4 months from the date of receipted down payment.Loading sea port: Qingdao, China
Payment Terms
The payment terms will be T/T based on FOB Qingdao, China trade terms.
Factory Testing
The Buyer can send engineers to Manufacturer's factory for testing those machines before delivery if it is necessary, and the cost of Buyer's engineers including flight, train, hotel and meals shall be at Buyer's own cost.
Warranty
The manufacturer shall guarantee the machines are brand new and correspond in all respects with the quality, specifications and performance as stipulated in this agreement, and also guarantee that the machines when correctly mounted and properly operated and maintained, will give satisfactory performance for a period of
12 months
since the date of arrived in Buyer's port.
Our Company
Shandong Xiaoya
Precise
Machinery Co., Ltd. was established in August 2005,
is the core enterprise of the automotive equipment industry of Xiaoya Group. The company is specialized in R & D and manufacture of high-end equipment (mould & automation equipment), high-grade auto parts and engineering machinery parts in the automotive industry.The company has
400 employees, including nearly 100 engineers in R&D and technology process which have rich experience in process analysis and structural design. It has highly skilled and experienced technicians on CNC programming & machining, fitters for assembly and debugging, and with professional project management team, with timely and efficient project support capabilities.
Our company is located in Jinan, the central part of Shandong Province, with convenient transportation. The international airport and high-speed railway extend in all directions. It is 320 kilometers away from Qingdao Port and can directly connect to the China-Europe block train ferry.Xiaoya has an excellent capacity in manufacturing wheel production machine.We currently employ more than 50 professional technicians, and are well-versed in both domestic and international material standards, such as the Chinese GB, American AISI, German SIN, Japanese JIS and others.In addition, we also have a qualified purchasing system that is ISO 9001 certified, which ensure that the raw materials can meet design and manufacturing requirements.
