Air Leak Tester
Machine

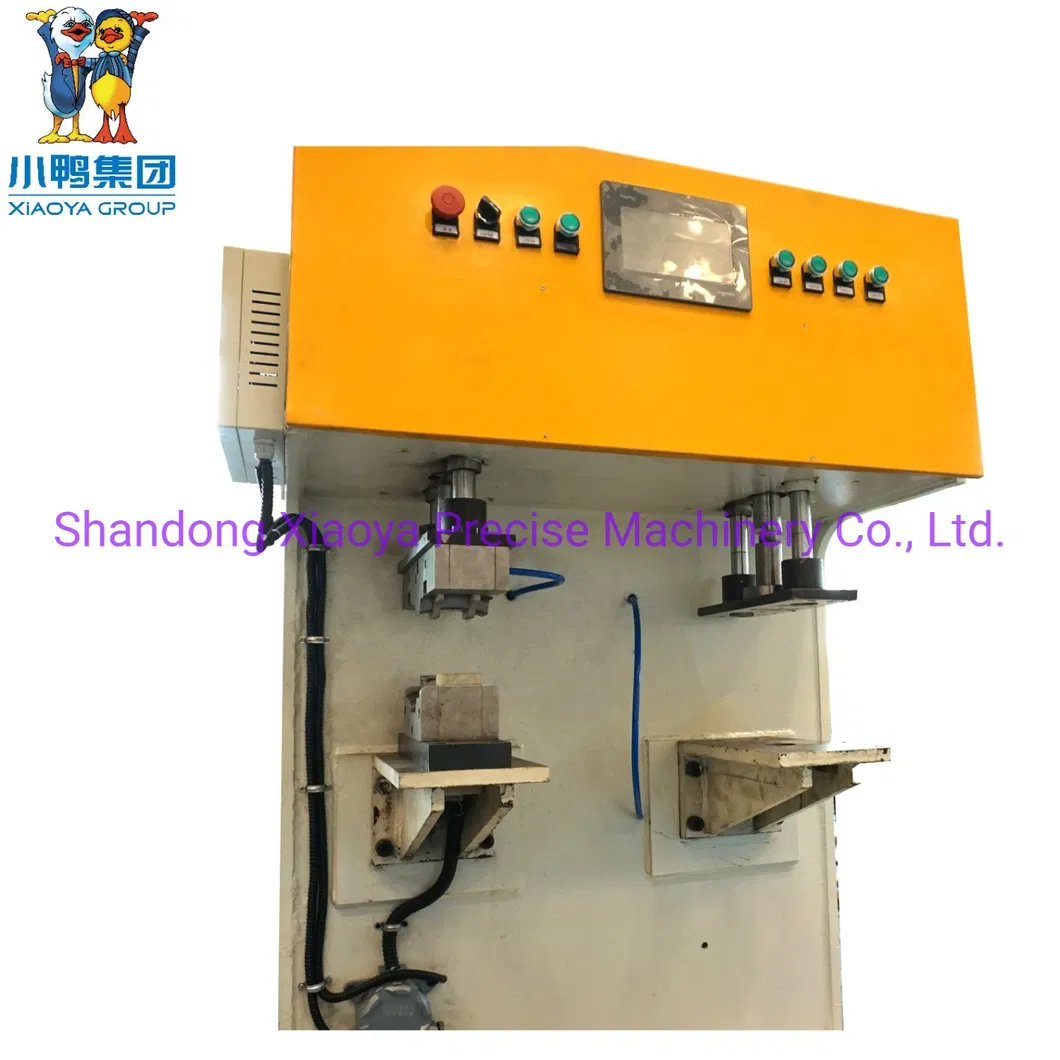

The leak testing machine is flled with tracer gas inside the workpiece, and the gas leaked from the workpiece isdetected by the gas sensor buil in the detector, then operator can find the product defects of the fracture and leakage.Use this principle to detect the welding quality of the rim, by detecting the amount of gas leakage to determine whetherthe product is qualified.
Main Features

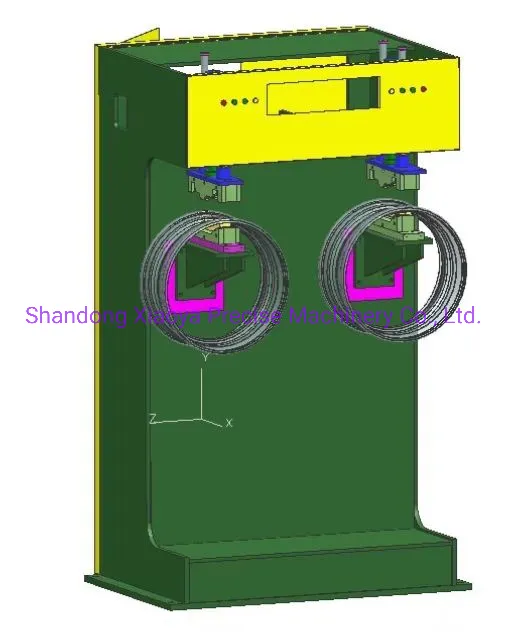

1. This type of leak testing machine with double testingposition, which allows to two rims of the samespecification or different specifications. The machineis equipped with all kinds of rim testing tools. it isconvenient and quickly to instai and change.2. Carbon dioxide gas is used as test medium, which issafe and environment protecting. Carbon dioxide testsensor can response quickly and test the change in value in very short time.3. It has excellent antiinterference performance. Canwork continuously in completed environment andwill not be disturbed by atmospheric compositionchanges. it has long service life, safe and environmentprotecting.4. At manual mode it requires one worker to operatemachine. The test efficiency is 5 pcs. /min.Structure1. Our leak testing machine consists of three parts: main machine, hydraulic transmission device and electrical control device.The main machine includes: machine body, lower mold, upper mold, work platform, oil cylinder.2. The hydraulic transmission device includes an oil tank, oil pump-motor unit, building block valve, etc. The electrical device includes electrical control box and electrical operation box.3. The main machine and hydraulic transmission device are installed on concrete foundation, which is shown on attached drawing. The electrical box is fixed on the side of body.Main Parameters of an Example

TRADE TERMS
Delivery Time
The delivery time will be around 1-4 months from the date of receipted down payment.Loading sea port: Qingdao, China
Payment Terms
The payment terms will be T/T based on FOB Qingdao, China trade terms.
Factory Testing
The Buyer can send engineers to Manufacturer's factory for testing those machines before delivery if it is necessary, and the cost of Buyer's engineers including flight, train, hotel and meals shall be at Buyer's own cost.
Warranty
The manufacturer shall guarantee the machines are brand new and correspond in all respects with the quality, specifications and performance as stipulated in this agreement, and also guarantee that the machines when correctly mounted and properly operated and maintained, will give satisfactory performance for a period of
12 months
since the date of arrived in Buyer's port.
Our Company
Shandong Xiaoya
Precise
Machinery Co., Ltd. was established in August 2005,
is the core enterprise of the automotive equipment industry of Xiaoya Group. The company is specialized in R & D and manufacture of high-end equipment (mould & automation equipment), high-grade auto parts and engineering machinery parts in the automotive industry.The company has
400 employees, including nearly 100 engineers in R&D and technology process which have rich experience in process analysis and structural design. It has highly skilled and experienced technicians on CNC programming & machining, fitters for assembly and debugging, and with professional project management team, with timely and efficient project support capabilities.
Our company is located in Jinan, the central part of Shandong Province, with convenient transportation. The international airport and high-speed railway extend in all directions. It is 320 kilometers away from Qingdao Port and can directly connect to the China-Europe block train ferry.Xiaoya has an excellent capacity in manufacturing wheel production machine.We currently employ more than 50 professional technicians, and are well-versed in both domestic and international material standards, such as the Chinese GB, American AISI, German SIN, Japanese JIS and others.In addition, we also have a qualified purchasing system that is ISO 9001 certified, which ensure that the raw materials can meet design and manufacturing requirements.
