基本信息产品详情证书
基本信息
型号编号 | GH40-24/32/40 |
生产范围 | 产品线 |
颜色 | 定制颜色 |
相关行业 | 铅酸蓄电池 |
售后服务 | 可用 |
交货期 | 90天 |
保修 | 一年 |
认证 | 国际标准化组织 |
交通包 | 标准出口包装 |
商标 | 金凡 |
起源 | 中国江苏 |
生产能力 | 每年一万五千套 |
产品详情
Product Description
Preview
Application:
For automatically curing and drying green plate of lead acid battery.
Functions & Features:
This machine can realize multi-program multi-stage control of plates' whole curing and drying process with PLC &touch-screen as controlling center;
The main chamber and sub-chamber is made of high quality thermal insulation material, having features of high density, high combination rate and high thermal insulation;
All the parts contact to the air of chamber is made of stainless steel, no iron element exist;
The inside of chamber is controlled by famous brand detection instrument, heat-resistant and anti-corrosion humidity sensor, which has features of high precision and long lifetime service;
The steam controlled by stainless valve,
PID temperature
control
method. High control accuracy, reliable operation and low maintenance cost;
Stereo airflow dispersion mode(patent),no dead angle, insure the consistency of temperature and humidity;
It adopts
a special method
to
eliminate humidity, and have the advantage of short
drying
time;
It can be chosen to connect with computer, to monitor the running conditions of each curing chamber.

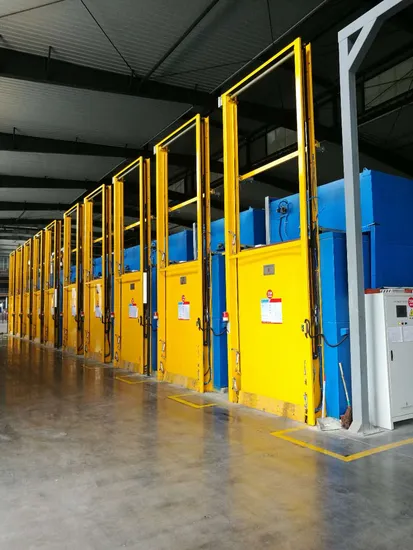

The opening mode is electric lifting door, and can be made into lifting folding door in the workshop with height limit;
Outdoor shelf, reduce the forklift to the wallboard collision.
Technical Parameters:
Temperature-control Precision: temperature: ≤±1ºC(below 55ºC), temperature: ≤±2ºC(above 55ºC)
Humidity-control Precision: ≤±2%RH
Controlling Range:
Curing
Temperature: normal temperature ~85ºC, Humidity:
above
95%RH
Drying temperature: normal temperature ~85ºC, Humidity: below 10%RH
Specifications:
For automatically curing and drying green plate of lead acid battery.
Functions & Features:
This machine can realize multi-program multi-stage control of plates' whole curing and drying process with PLC &touch-screen as controlling center;
The main chamber and sub-chamber is made of high quality thermal insulation material, having features of high density, high combination rate and high thermal insulation;
All the parts contact to the air of chamber is made of stainless steel, no iron element exist;
The inside of chamber is controlled by famous brand detection instrument, heat-resistant and anti-corrosion humidity sensor, which has features of high precision and long lifetime service;
The steam controlled by stainless valve,
PID temperature
control
method. High control accuracy, reliable operation and low maintenance cost;
Stereo airflow dispersion mode(patent),no dead angle, insure the consistency of temperature and humidity;
It adopts
a special method
to
eliminate humidity, and have the advantage of short
drying
time;
It can be chosen to connect with computer, to monitor the running conditions of each curing chamber.
The opening mode is electric lifting door, and can be made into lifting folding door in the workshop with height limit;
Outdoor shelf, reduce the forklift to the wallboard collision.
Technical Parameters:
Temperature-control Precision: temperature: ≤±1ºC(below 55ºC), temperature: ≤±2ºC(above 55ºC)
Humidity-control Precision: ≤±2%RH
Controlling Range:
Curing
Temperature: normal temperature ~85ºC, Humidity:
above
95%RH
Drying temperature: normal temperature ~85ºC, Humidity: below 10%RH
Specifications:
