基本信息
条件 | 新 |
生产连续性 | 连续的 |
生产范围 | 产品线 |
材料 | PPGI Steel |
Profile Size 剖面尺寸 | 230×29毫米(可定制) |
轮廓精度 | 正负0.2毫米 |
材料厚度 | 0.4毫米 |
成型滚筒 | 40号 |
跑速 | 每分钟4-6米 |
控制系统 | PLC控制 |
可调宽度 | 不 |
可调节长度 | 是的 |
可调高度 | 编号 |
运输包 | 用拉伸膜、木箱等包装 |
商标 | 戴利 |
起源 | 中国佛山 |
商品编码 | 8455221000 |
生产能力 | 每月十套 |
包装尺寸 | 900.00厘米 * 300.00厘米 * 400.00厘米 |
包装总重量 | 一万公斤 |
包装尺寸 | 900.00厘米×300.00厘米×400.00厘米 |
包装总重量 | 一万公斤 |
产品详情

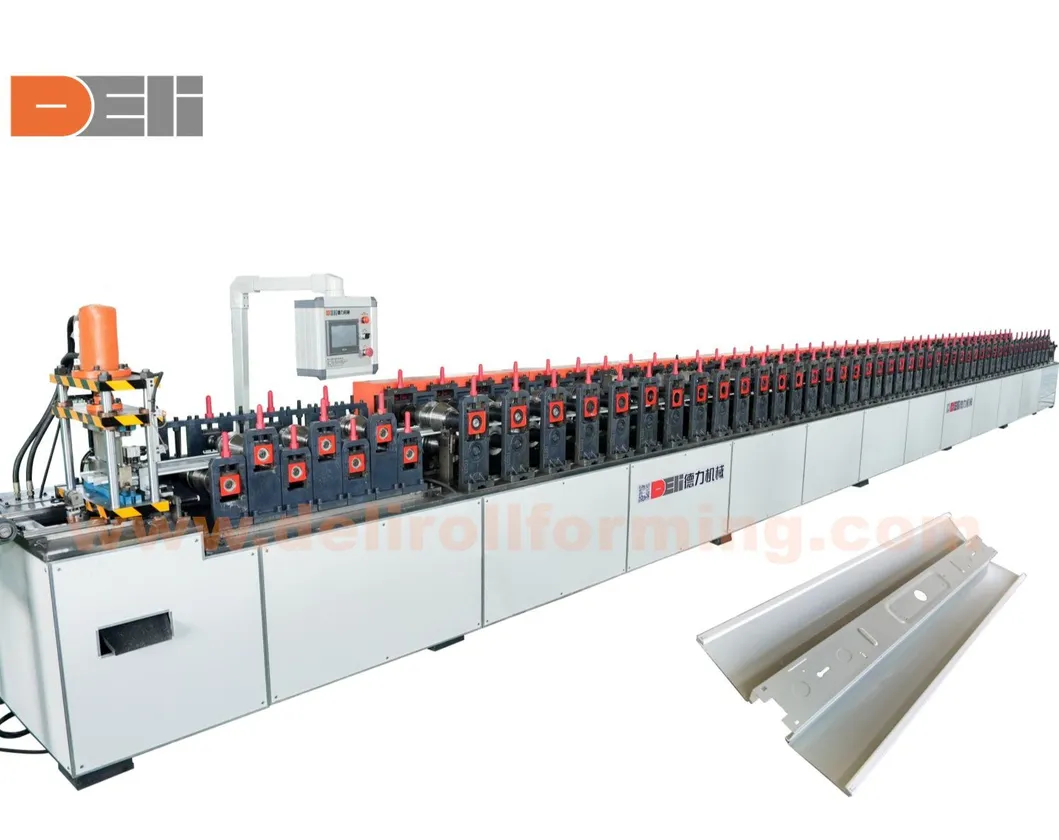

Discover the LED Troffer Light Fixture Forming Machine by Foshan Deli Machinery.This automated production line is ideal for ceiling light cover roll forming with high precision and efficiency.
Preview

Preview
Production Process

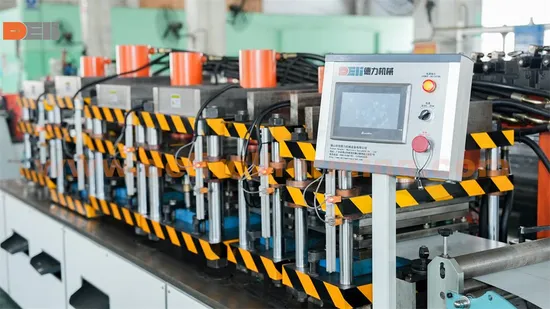

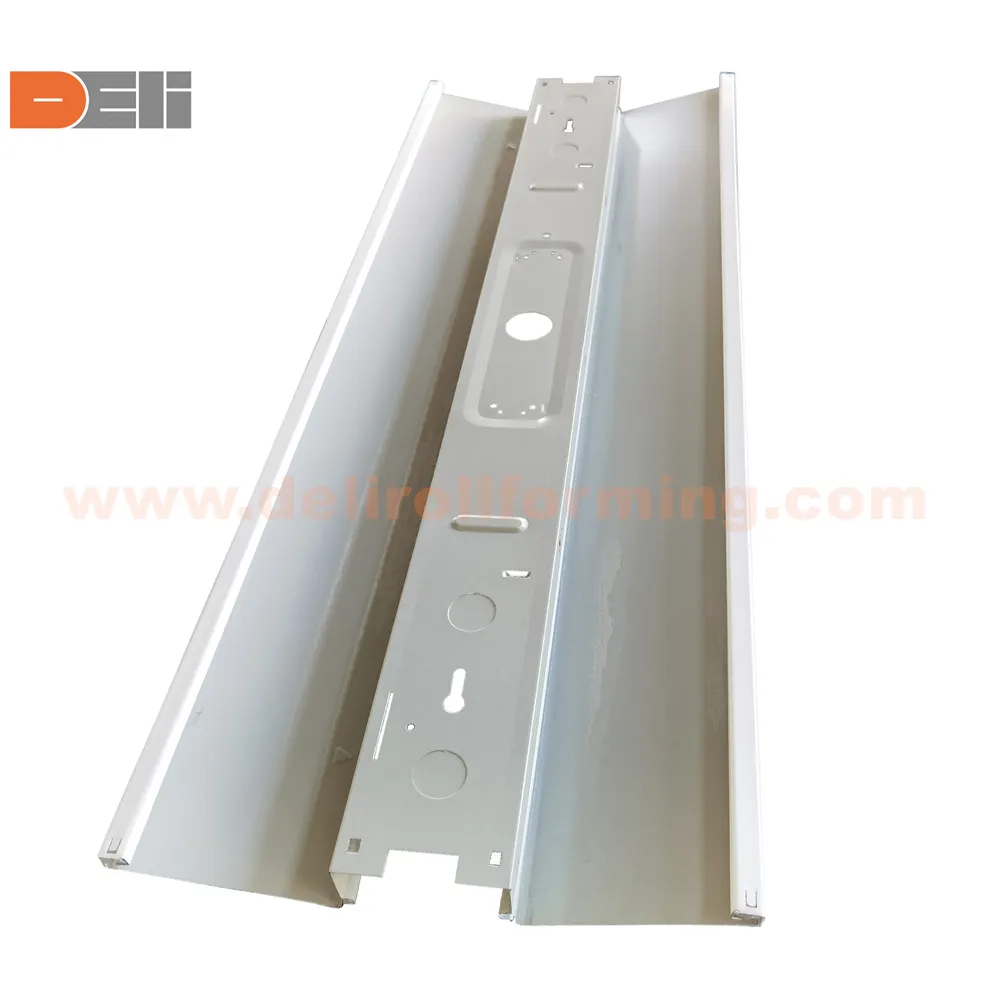

LED Troffer Light Fixture Forming Machine
by Foshan Deli Machinery:
Decoiling, Leveling, Pre-Punching, Roll Forming, Hydraulic Cutting, Discharge.Ideal for LED troffer production.
Machine Detail

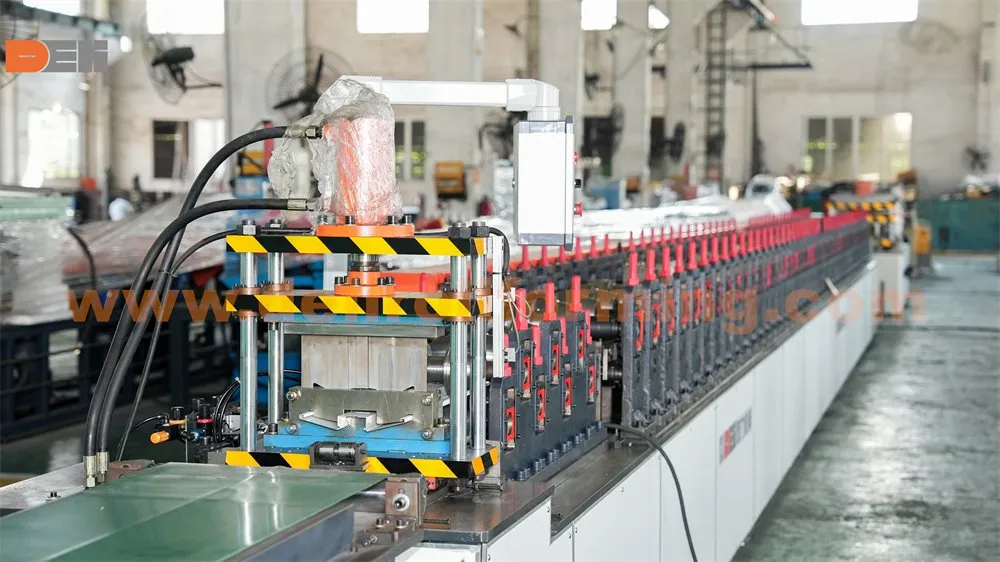

LED Troffer Light Fixture Forming Machine
by Foshan Deli Machinery:
Decoiling, Leveling, Pre-Punching, Roll Forming, Hydraulic Cutting, Discharge.Ideal for LED troffer production.
Machine Detail
Preview

Preview
Mahchine Features
1. Applicable to 0.4mm PPGI.
2. With 40 stations of forming rollers, product accuracy up to ±0.2mm.
3. No scratch on the surface and no crack on the folded edge coating after roll forming.
4. Widely used in ceiling system, building materials and other decorative processing industries.
1. Applicable to 0.4mm PPGI.
2. With 40 stations of forming rollers, product accuracy up to ±0.2mm.
3. No scratch on the surface and no crack on the folded edge coating after roll forming.
4. Widely used in ceiling system, building materials and other decorative processing industries.
Preview

Preview

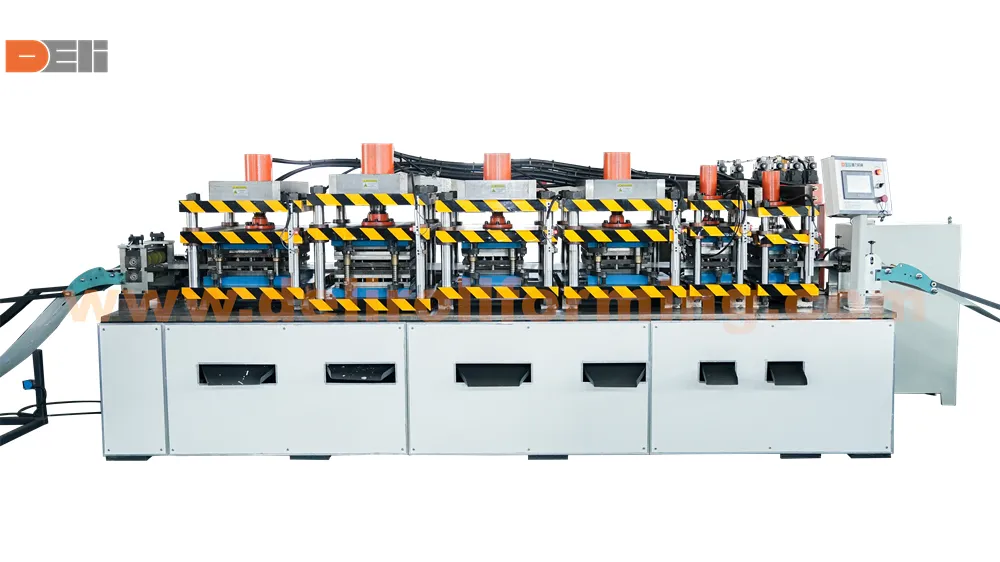

Pre-Punching UnitPunching Station:
1 Unit
Punching Tools:
6 Sets
Material of Punching Mold:
Cr12MoV
Hardness Processing:
HRC 60-62°
1 Unit
Punching Tools:
6 Sets
Material of Punching Mold:
Cr12MoV
Hardness Processing:
HRC 60-62°
Preview

Preview

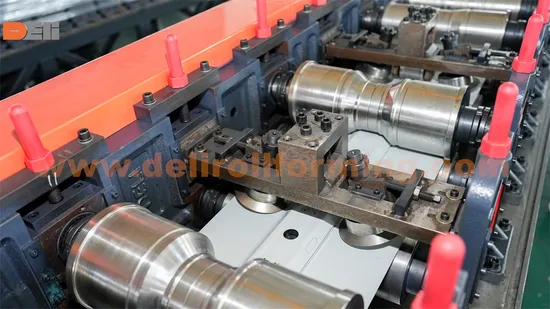

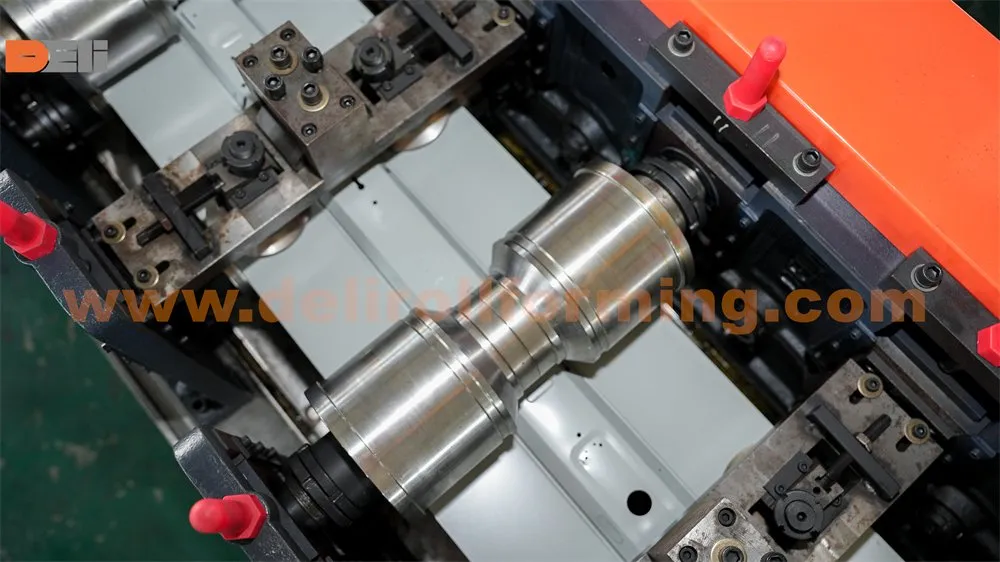

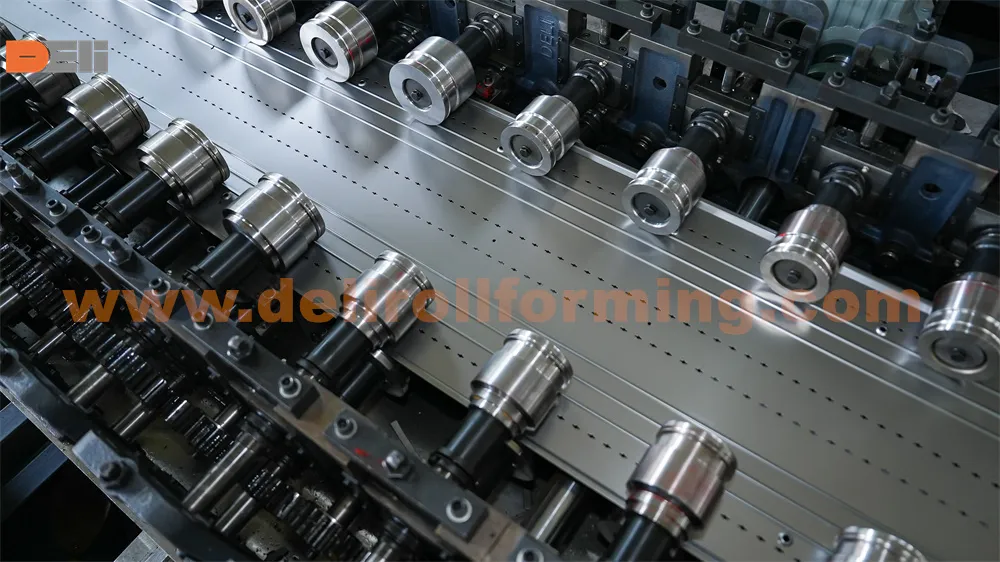

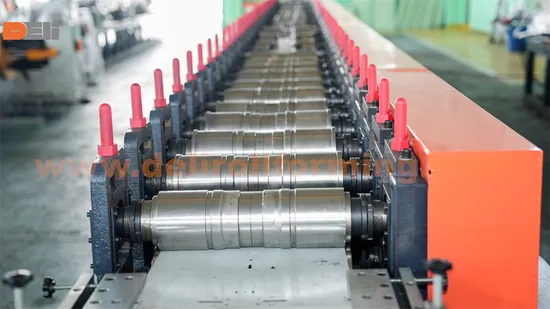

Roll Forming
Roller Material:
Cr12Mov
(=SKD11, Japan Standard)Roller Treatment:
Vacuum heat treatment,
Twice temperingRoller Hardness:
HRC 58-62°Rollers' Runout (Mounted):
± 0.03mm (Overall tolerance)Roller Installation:
FARO Technique (CMM)
Roller Material:
Cr12Mov
(=SKD11, Japan Standard)Roller Treatment:
Vacuum heat treatment,
Twice temperingRoller Hardness:
HRC 58-62°Rollers' Runout (Mounted):
± 0.03mm (Overall tolerance)Roller Installation:
FARO Technique (CMM)
Preview

Preview

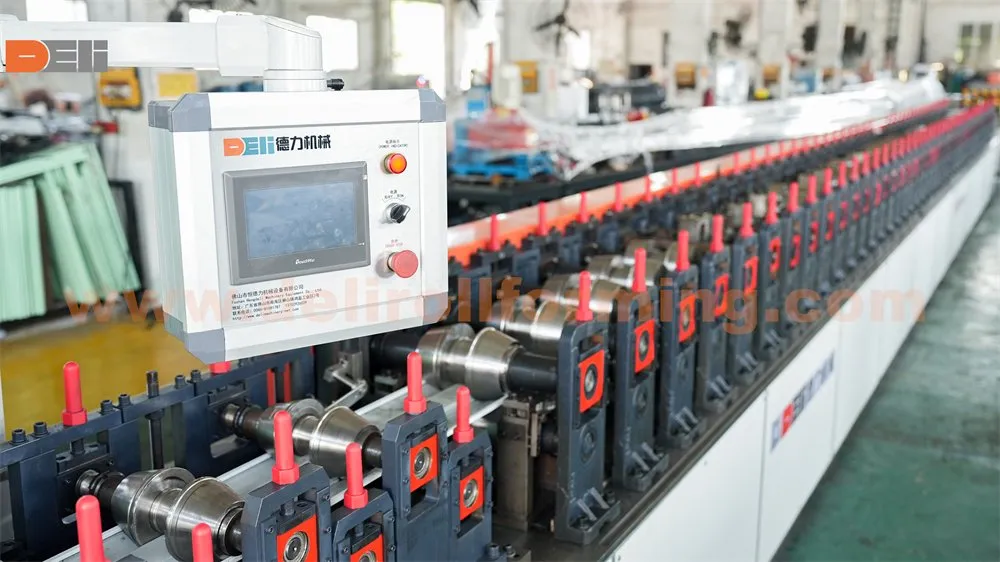

Electric Control System
PLC
MITSUBISHITouch Screen
TOUCHWINProgram Language
English + ChineseServo Motor
INOVANCE
Relay
SIEMENS
Power Supply
380V, 50Hz, 3Phs.
(Customization Available)

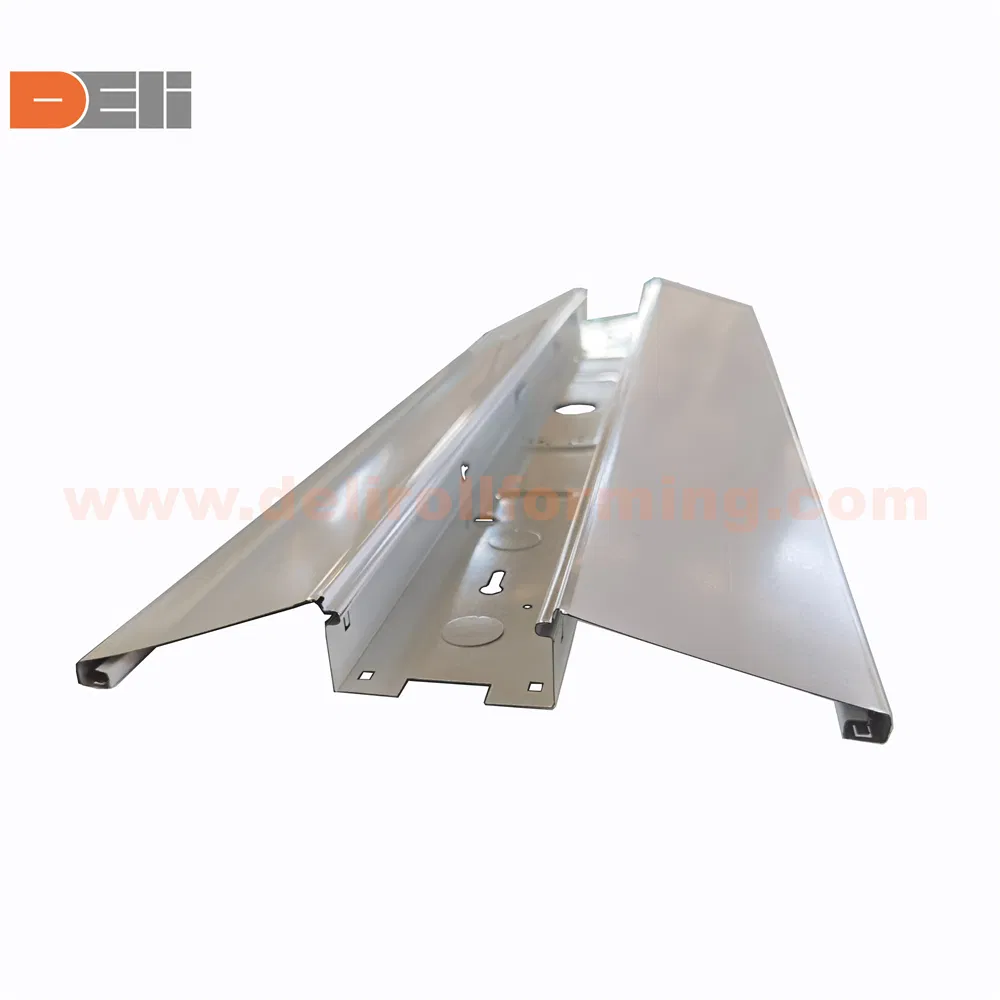

Finished Product
PLC
MITSUBISHITouch Screen
TOUCHWINProgram Language
English + ChineseServo Motor
INOVANCE
Relay
SIEMENS
Power Supply
380V, 50Hz, 3Phs.
(Customization Available)
Finished Product
Preview

Preview

Preview
Installation, Maintenance, and Operator Training
1. The Equipment warranty period is 12 months from commissioning, not exceeding 15 months from shipping.
2. No warranty for parts prone to wear and tear (e.g., die parts, punches, pins, cutters).
3. Installation, commissioning, and training completion time may be extended due to force majeure.
4. Buyer covers expenses for Seller's technician visits, including insurance, airfare, transport, lodging, and interpreter.
5. Buyer's operator training at Seller's workshop is complimentary.
1. The Equipment warranty period is 12 months from commissioning, not exceeding 15 months from shipping.
2. No warranty for parts prone to wear and tear (e.g., die parts, punches, pins, cutters).
3. Installation, commissioning, and training completion time may be extended due to force majeure.
4. Buyer covers expenses for Seller's technician visits, including insurance, airfare, transport, lodging, and interpreter.
5. Buyer's operator training at Seller's workshop is complimentary.
Preview

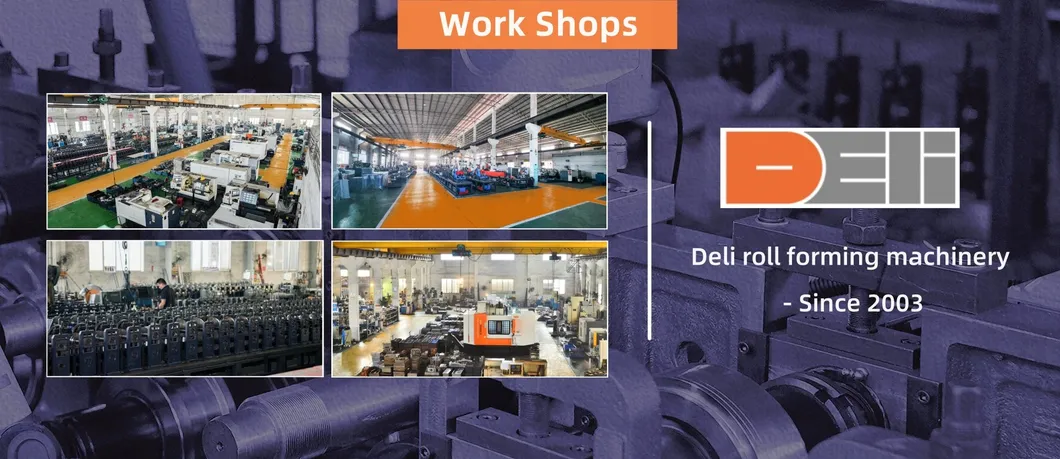

Company Profile
Preview

Preview

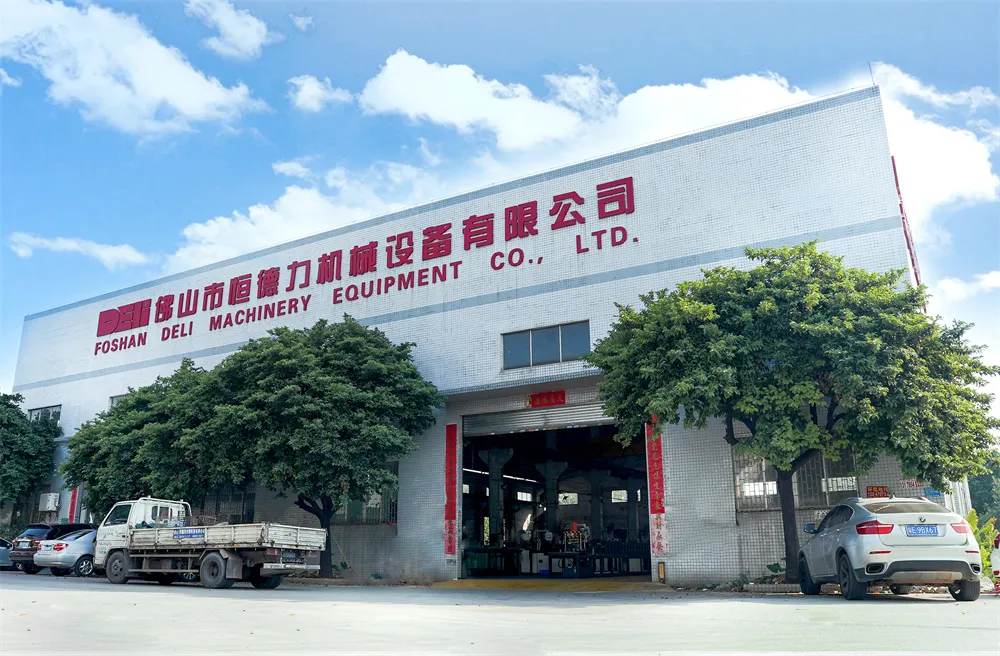

Professional Roll Forming Machine Supplier
Foshan Deli Machinery Equipment Co., Ltd., established in 2003, is a leading manufacturer of cold roll forming machines. With numerous inventions and patents, we are recognized as a National High-Tech Enterprise.
Our machines are utilized in various industries such as building materials, steel furniture, pallet racking systems, and automobile profiles. We offer a range of production lines including the patent honeycomb ceiling production line, server cabinet beam & upright production line, and profile production lines for compact shelf, file cabinet, and shelving systems to meet diverse customization needs.
Foshan Deli Machinery Equipment Co., Ltd., established in 2003, is a leading manufacturer of cold roll forming machines. With numerous inventions and patents, we are recognized as a National High-Tech Enterprise.
Our machines are utilized in various industries such as building materials, steel furniture, pallet racking systems, and automobile profiles. We offer a range of production lines including the patent honeycomb ceiling production line, server cabinet beam & upright production line, and profile production lines for compact shelf, file cabinet, and shelving systems to meet diverse customization needs.
Preview

Preview

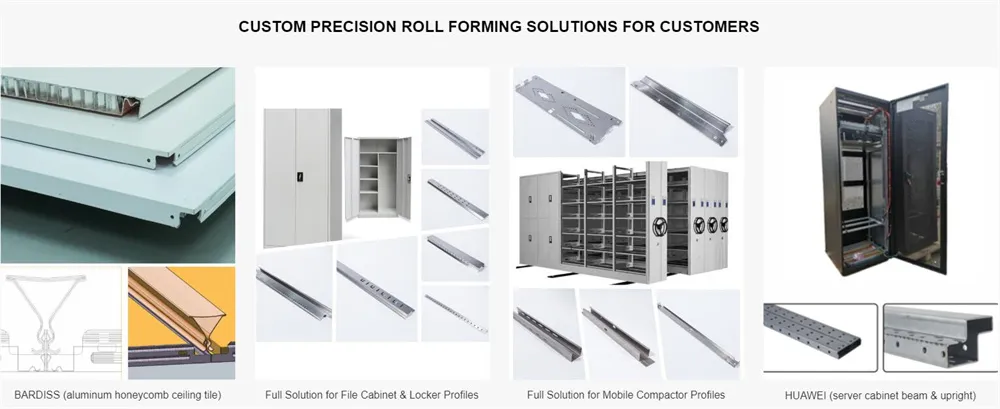

Customized
Roll Forming Machine Solutions
Custom roll forming machine to meet your unique manufacturing requirements, and tailored to specific applications, accommodating unique profile shapes, materials, and sizes. This customization enables optimal efficiency, accuracy, and precision in the production process.
Deli Machinery provide full custom roll forming machine manufacturing services, and developed a range of sheet roll forming solutions for a variety of industries including construction, energy, steel furniture, logistics and storage racking, etc.
Roll Forming Machine Solutions
Custom roll forming machine to meet your unique manufacturing requirements, and tailored to specific applications, accommodating unique profile shapes, materials, and sizes. This customization enables optimal efficiency, accuracy, and precision in the production process.
Deli Machinery provide full custom roll forming machine manufacturing services, and developed a range of sheet roll forming solutions for a variety of industries including construction, energy, steel furniture, logistics and storage racking, etc.
Preview

Preview

Preview

Preview

Preview
证书
标题:中国发明专利
