基本信息
型号编号 | 01R3 |
售后服务 | 工程师可提供海外机械设备服务 |
设备材料 | SS304 不锈钢 |
性能 | 将二氧化硫气体转化为三氧化硫气体 |
工作温度 | 400-600摄氏度 |
交通包 | 裸装海运 |
规格 | 每小时0.5吨至10吨 |
商标 | 魏先 |
起源 | 中国 |
商品编码 | 8479820000 |
产品详情
Product Description
Preview
The conversion tower adopts a vertical SS304 stainless steel packed structure with a temperature resistance of 700°C.It features in stable conversion rate, flexible operation and temperature control, and maintenance-free. Four-layer packed tower, each layer is filled with V2O5 catalyst, which is a combination of low-temperature and medium-temperature catalysts, that can not only maintain the advantage of low light-off temperature but also ensure a conversion rate greater than 98%. This feature greatly improves the start-up preheating efficiency and shortens the preheating time.There are corresponding thermometer interfaces on the top and bottom of each bed to precisely control the temperature and ensure conversion efficiency. Each bed has a manhole for on-site catalyst loading.
Preview
Detailed Photos
Preview

Preview

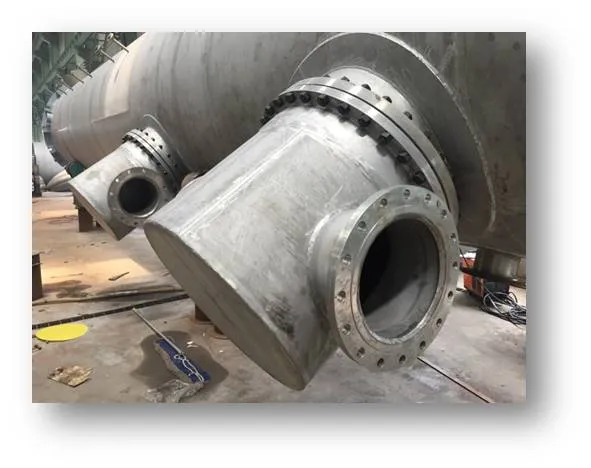

CONVERTER under construction 1
Preview

Preview

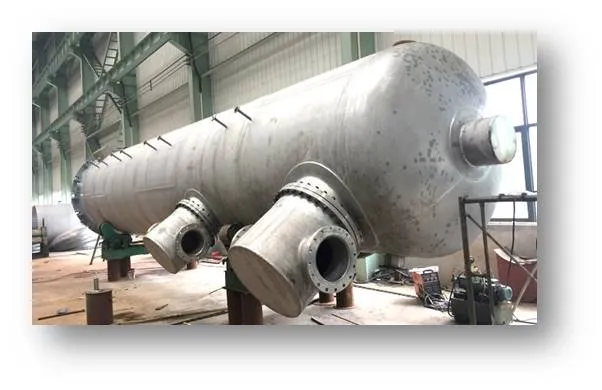

CONVERTER under construction 2
Preview

Preview

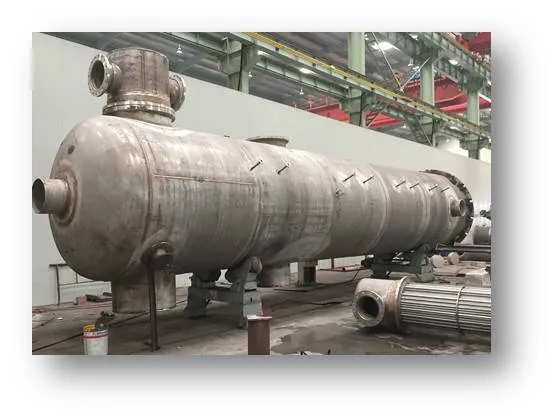

CONVERTER under construction 3
Product Parameters
It features in stable conversion rate, flexible operation and temperature control, and maintenance-free.
Four-layer packed tower, each layer is filled with V2O5
catalyst, which is a combination of low-temperature and medium-temperature catalysts, that can not only maintain the advantage of low light-off temperature but also ensure a conversion rate greater than 98%. This feature greatly improves the start-up preheating efficiency and shortens the preheating time.There are corresponding thermometer interfaces on the top and bottom of each bed to precisely control the temperature and ensure conversion efficiency. Each bed has a manhole for on-site catalyst loading.
Product Parameters
It features in stable conversion rate, flexible operation and temperature control, and maintenance-free.
Four-layer packed tower, each layer is filled with V2O5
catalyst, which is a combination of low-temperature and medium-temperature catalysts, that can not only maintain the advantage of low light-off temperature but also ensure a conversion rate greater than 98%. This feature greatly improves the start-up preheating efficiency and shortens the preheating time.There are corresponding thermometer interfaces on the top and bottom of each bed to precisely control the temperature and ensure conversion efficiency. Each bed has a manhole for on-site catalyst loading.
Preview

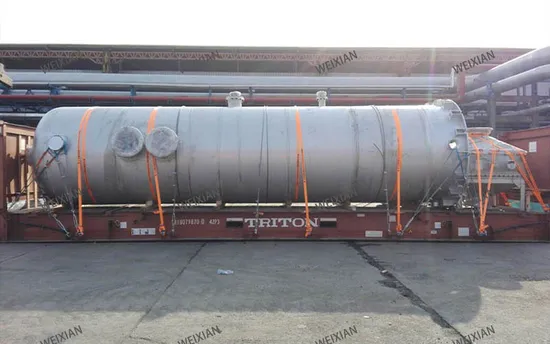

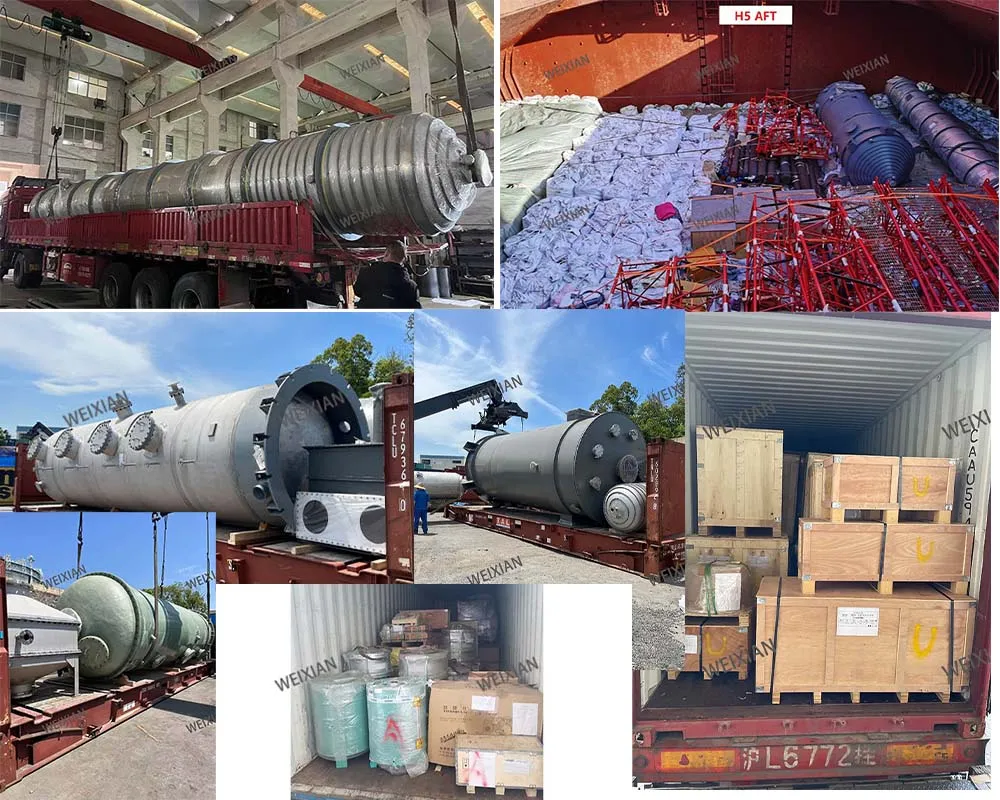

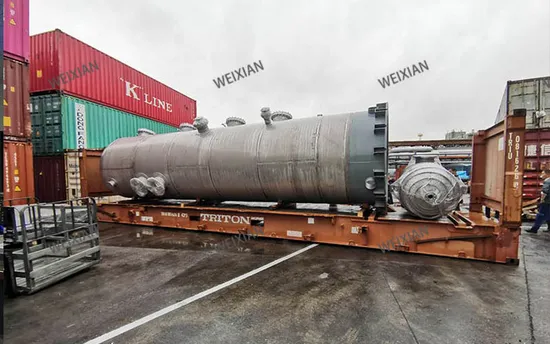

Packaging & Shipping
Preview

Preview
Company Profile
Preview
WEIXIAN is a sulphonation/sulphation technology specialized engineering company, that owns a professional engineers and technicians team dedicate for
feasibility research, design and engineering, turnkey plant and key equipment supply, installation, commissioning, and other technical services. In the last 30 years, WEIXAIN has completed over 200 LABSA, SLES, SLS, AOS, HABSA, and MES manufacturing plant projects worldwide, including two world's largest 7.5tph LAS
plants.Since 21st
century, WEIXIAN is leading the innovation and progress of sulphonation/sulphation technology. WEIXIAN is the pioneer who introduced these technologies into the industry, such as Unit 79, Unit 69, Unit 38, Exhaust Gas Circulation Process, etc. Moreover, WEIXIAN keeps improving and perfecting the details of each key piece of equipment, such as converters, scrubbers, heat exchangers, pumps, blowers, mixers, etc. Focus comes from the love of what we are doing, as a sulphonation/sulphation technology specialized engineering company, we are confident about our technology leadership in the world market, and we are aiming to serve investors not only from Asia but also from all over the world. Choosing WEIXIAN is your most efficient solution for investing in state-of-the-art sulphonation plants.
Our Advantages
Continuous SO3 Multitube Film Sulphonation Reactor: conducts homogeneous and complete reactions, minimizing by-product generation and raw materials consumption. Designed for 15 years + serving life.Unit 79 Neutralization and Dioxane Stripping: invented in 2010, featured in producing undetectable level dioxane content 70% SLES, and up to 40% overproduction ability
Unit68 Three Stage Waste Heat Recovery: realizes plant steam and hot water self-sufficiency.Unit 69 Reaction Heat Recovery: reduces power consumption by 15% compared to standard process.Unit 38 Waste Water Crystallization: realizes waste water ZERO discharge.Exhaust Gas Circulation Process: reduces exhaust gas discharge by 96%.Sulphonation reactor, Vertical Static Aging Vessel, Plate-type ESP, Floating-type SO2Cooler, Tubular SO3Cooler and more.
After Sales Service
WEIXIAN guarantees our customers that we
can respond to your
needs and problems within 10 hours. Thanks to the reliability of the plant, WEIXIAN sulphonation plants can achieve an operation rate of 330 days/year. All plants have a one-year guarantee period. Meanwhile, we will advise customers to purchase our standard spare parts kit to facilitate the timely replacement of vulnerable parts; the spare parts kit shall be provided at the cost price.
WEIXIAN's technical services include:
1. Free technical consultation.
2. Feasibility study in the early stage of the project.
3. Quotation and proposal of turnkey sulphonation plant and equipment.
4. Renovation and revamp of the old sulphonation plant.
5. Design and engineering of customized turnkey sulphonation plant and equipment.
6. Installation of the plant.
7. Remote or on-site technical support and commissioning.
8. Training of the buyer's technical personnel.
9. Other technical services related to sulphonation.
Installation Instructions
feasibility research, design and engineering, turnkey plant and key equipment supply, installation, commissioning, and other technical services. In the last 30 years, WEIXAIN has completed over 200 LABSA, SLES, SLS, AOS, HABSA, and MES manufacturing plant projects worldwide, including two world's largest 7.5tph LAS
plants.Since 21st
century, WEIXIAN is leading the innovation and progress of sulphonation/sulphation technology. WEIXIAN is the pioneer who introduced these technologies into the industry, such as Unit 79, Unit 69, Unit 38, Exhaust Gas Circulation Process, etc. Moreover, WEIXIAN keeps improving and perfecting the details of each key piece of equipment, such as converters, scrubbers, heat exchangers, pumps, blowers, mixers, etc. Focus comes from the love of what we are doing, as a sulphonation/sulphation technology specialized engineering company, we are confident about our technology leadership in the world market, and we are aiming to serve investors not only from Asia but also from all over the world. Choosing WEIXIAN is your most efficient solution for investing in state-of-the-art sulphonation plants.
Our Advantages
Continuous SO3 Multitube Film Sulphonation Reactor: conducts homogeneous and complete reactions, minimizing by-product generation and raw materials consumption. Designed for 15 years + serving life.Unit 79 Neutralization and Dioxane Stripping: invented in 2010, featured in producing undetectable level dioxane content 70% SLES, and up to 40% overproduction ability
Unit68 Three Stage Waste Heat Recovery: realizes plant steam and hot water self-sufficiency.Unit 69 Reaction Heat Recovery: reduces power consumption by 15% compared to standard process.Unit 38 Waste Water Crystallization: realizes waste water ZERO discharge.Exhaust Gas Circulation Process: reduces exhaust gas discharge by 96%.Sulphonation reactor, Vertical Static Aging Vessel, Plate-type ESP, Floating-type SO2Cooler, Tubular SO3Cooler and more.
After Sales Service
WEIXIAN guarantees our customers that we
can respond to your
needs and problems within 10 hours. Thanks to the reliability of the plant, WEIXIAN sulphonation plants can achieve an operation rate of 330 days/year. All plants have a one-year guarantee period. Meanwhile, we will advise customers to purchase our standard spare parts kit to facilitate the timely replacement of vulnerable parts; the spare parts kit shall be provided at the cost price.
WEIXIAN's technical services include:
1. Free technical consultation.
2. Feasibility study in the early stage of the project.
3. Quotation and proposal of turnkey sulphonation plant and equipment.
4. Renovation and revamp of the old sulphonation plant.
5. Design and engineering of customized turnkey sulphonation plant and equipment.
6. Installation of the plant.
7. Remote or on-site technical support and commissioning.
8. Training of the buyer's technical personnel.
9. Other technical services related to sulphonation.
Installation Instructions
Preview

Preview

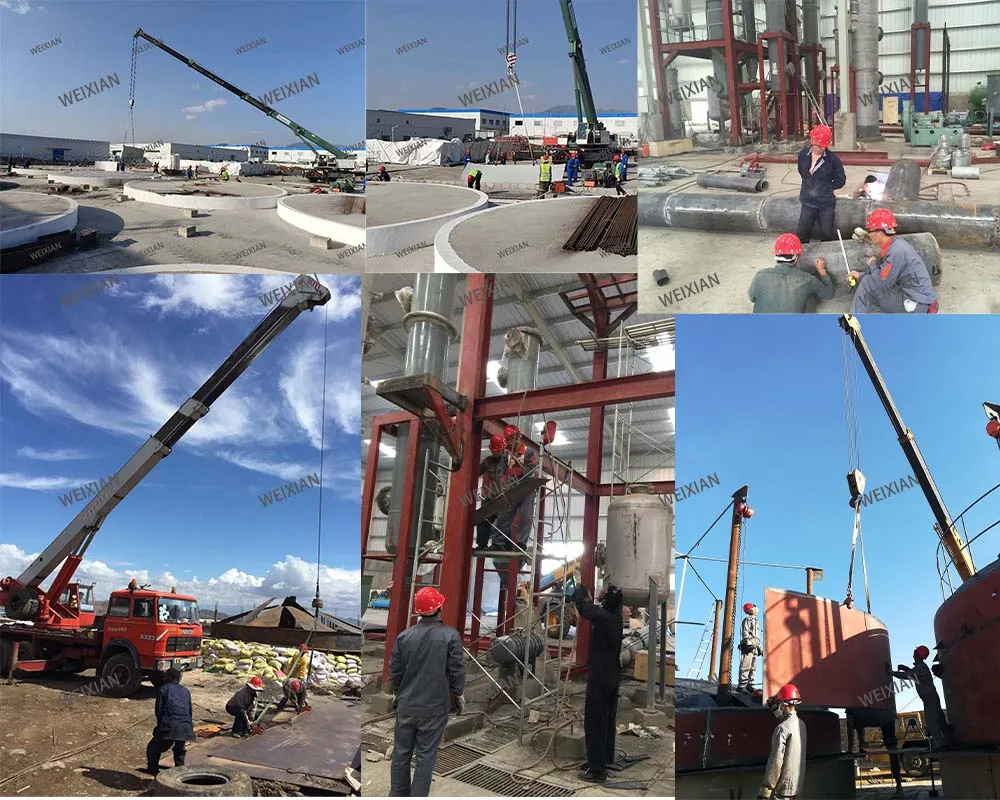

WEIXIAN owns a
professional installation team that has assisted
plant owners in carrying out the installation of their plants, tank farms, etc,
professionalism, efficiency, and
quality are the purposes of our service!
professional installation team that has assisted
plant owners in carrying out the installation of their plants, tank farms, etc,
professionalism, efficiency, and
quality are the purposes of our service!
