基本信息产品详情
基本信息
自动化 | 自动的 |
应用 | 木托盘,整板托盘钉钉 |
控制模式 | PLC触摸屏 |
钉枪 | 美国斯坦利 |
钉钉速度 | 每次7秒 |
气压 | 0.8MPa |
收集托盘 | 自动码垛 |
电压 | 默认380伏,可定制 |
处理范围 | 800-1300毫米可调 |
可选项流程 | 搁板腿的钉合、旋转、印字、倒角 |
证书 | CE表示: 认证的欧洲合格声明(Certificate Europe Conformity)等。 |
交通总包 | 标准出口木箱,拼箱装运,整箱装运。 |
规格说明 | 2500毫米乘以2200毫米乘以2400毫米 |
商标 | 农牧快长 |
起源 | 中国江苏省 |
商品编码 | 847930000 |
产品详情

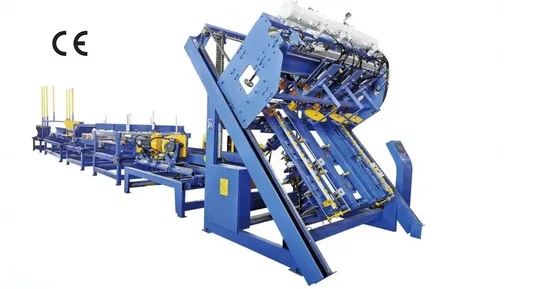

Automatic Wood Pallet Nailing Machine
Working mode
:Automatic feeding and stacking
Operation mode:PLC Touch screen
Air pressure: 0.8MPA
Nail gun speed:7 times /second
Apply a nail:65,70,75,80,85,90mm
Working voltage
: 220V,380V,415V,customized/ 2kw Servo motor
Application : Automatic wood pallet nailing machine
is mainly used in the production of American and European pallets.
Working mode
:Automatic feeding and stacking
Operation mode:PLC Touch screen
Air pressure: 0.8MPA
Nail gun speed:7 times /second
Apply a nail:65,70,75,80,85,90mm
Working voltage
: 220V,380V,415V,customized/ 2kw Servo motor
Application : Automatic wood pallet nailing machine
is mainly used in the production of American and European pallets.
Preview
Product Description
Preview

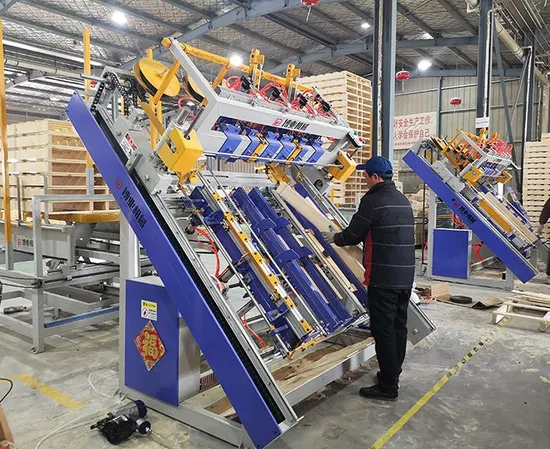

Automatic wooden pallet nailling machine
mainly can apply for produce American stringer pallets and European block pallet.The automatic wood pallet nail machine equipment auto stacking platform , wood pallet lifting device and flip picking device .High Degree automation , smooth closely process , complete nailing and stacking in one time .
The whole machine adopts fully automatic program, the operating system adopts imported PLC control, the touch screen is simple to operate, the control is convenient, and the nailing position is standard; compared to the domestic conventional production technology, multiple processes are completed at one time, which greatly improves the work efficiency.
Product Line
mainly can apply for produce American stringer pallets and European block pallet.The automatic wood pallet nail machine equipment auto stacking platform , wood pallet lifting device and flip picking device .High Degree automation , smooth closely process , complete nailing and stacking in one time .
The whole machine adopts fully automatic program, the operating system adopts imported PLC control, the touch screen is simple to operate, the control is convenient, and the nailing position is standard; compared to the domestic conventional production technology, multiple processes are completed at one time, which greatly improves the work efficiency.
Product Line
Preview

Preview
The complete European wood pallet production line contains

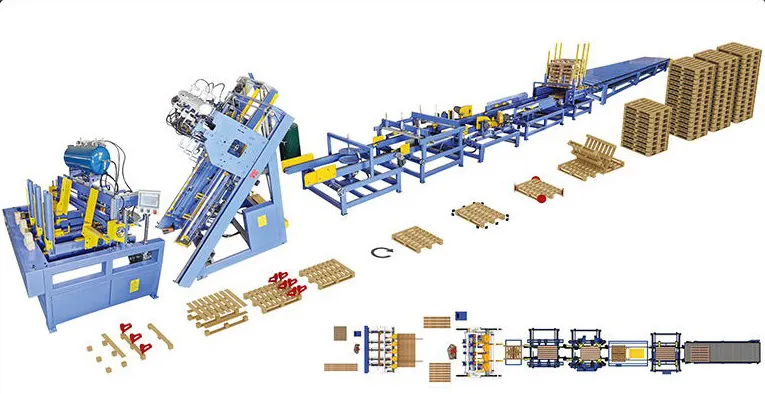

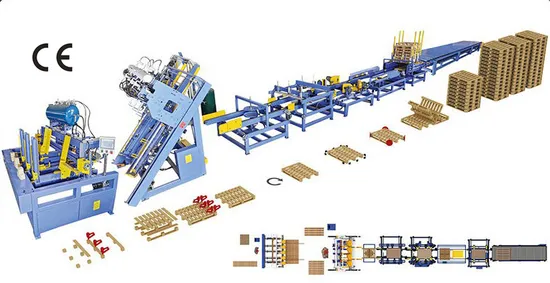

Wood Pallet Production Line
Pallet block nailing machine + Automatic pallet nailing machine + Rotating machine + Branding machine +Corners cutting machine + Turnover machine + Stacking machine + Conveyor are connected into a production line.
First of all, block connecting machine aims to assemble pallet blocks and bottom deckboard. Secondly, pallet nailing machine will assemble the pallets. Once upon the nailing process is done, the half-finished pallet will be taken to the rotation part.
Afterwards, the stamp will be imprinted on both sides of the pallet by the branding machine which is usually equipped with four soldering irons.
In the following step, the four corners of the pallet will be chamfered. By stacking pallets with obverse and reverse stacking method, the turnover machine is helpful for storing more pallets on the stacking machine. In the next place, the final pallet will be carried to the stacking machine. Then all the pallets will be stored on the conveyor.
The Final Product

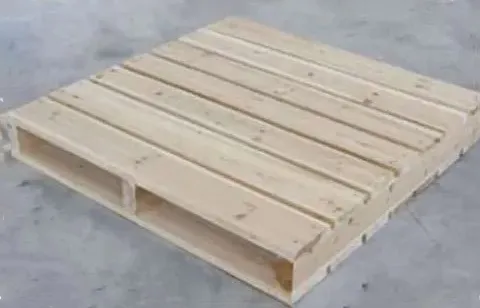

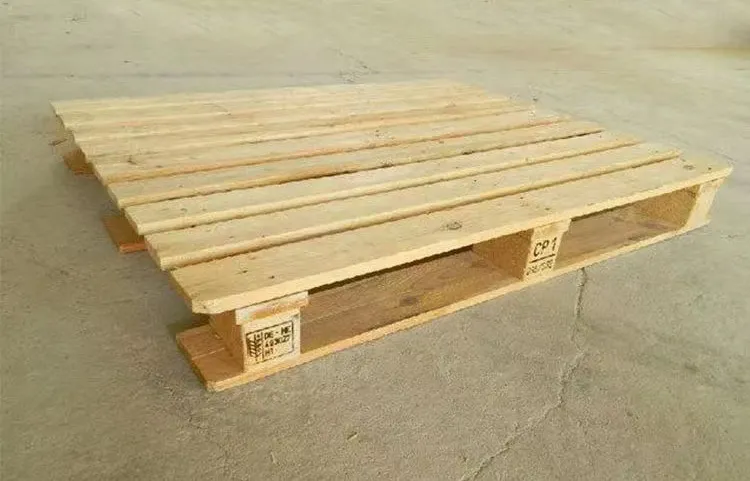

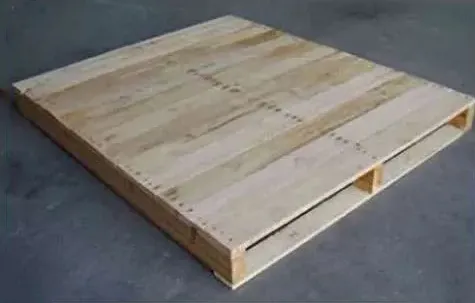

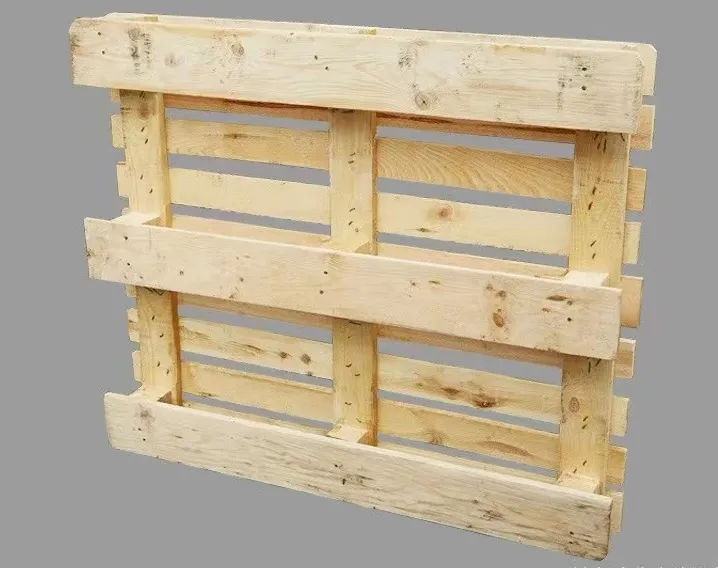

USA Stinger wood pallets, Euro block type pallets.
Wood Pallet Production Line
Pallet block nailing machine + Automatic pallet nailing machine + Rotating machine + Branding machine +Corners cutting machine + Turnover machine + Stacking machine + Conveyor are connected into a production line.
First of all, block connecting machine aims to assemble pallet blocks and bottom deckboard. Secondly, pallet nailing machine will assemble the pallets. Once upon the nailing process is done, the half-finished pallet will be taken to the rotation part.
Afterwards, the stamp will be imprinted on both sides of the pallet by the branding machine which is usually equipped with four soldering irons.
In the following step, the four corners of the pallet will be chamfered. By stacking pallets with obverse and reverse stacking method, the turnover machine is helpful for storing more pallets on the stacking machine. In the next place, the final pallet will be carried to the stacking machine. Then all the pallets will be stored on the conveyor.
The Final Product
USA Stinger wood pallets, Euro block type pallets.
Preview

Preview

Preview

Preview

Preview
Our Advantages
1. Automatic nailing: CNC machine operation to ensure the standard position of each nail and consistent nail depth
2. Easy to adjust: the size of the tray can be adjusted
3. High work efficiency: one pallet per minute
4. Machine power: 4.5KW, low energy consumption, high output
5. The finished product palletizer can be added, the machine can count automatically, and dozens of pallets can be stacked
Product Parameters
Features of

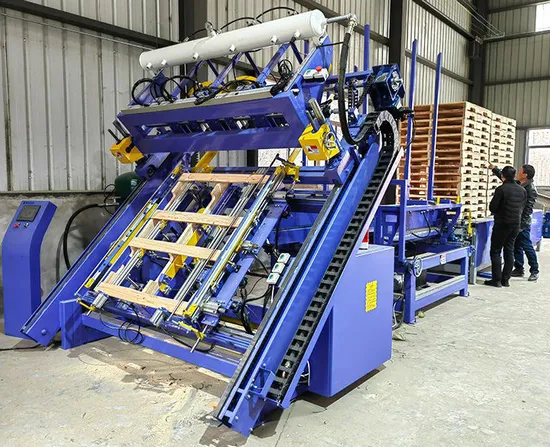

Automatic Pallet Nailing Machine

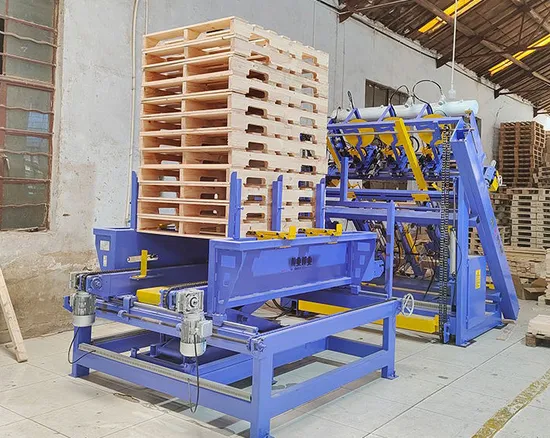

Operation: The machine will auto clamping after the worker put the wood pallet bottom bean in machine, then put wood pallet plate, after automatic nailing.When complete it ,the work need flip the other side, put the plate in, then nailing it .Operation program:Touch screen control , advanced programming, Feeding mechanism and nailing machine multi-axis linkage at the same time when working.it achieve fast and efficient nailing work.One more thing, it could switch different program basis on different material plate to produce non-standard pallet .Automatic stacking: It will form aline with nailing machine,after nailing ,flip the wood pallet to stacking plat form .It will be
achieve the effect of automatic collect wood pallet and easy to transport. It save labor and operation time.Option: basis on stacking platform,it could increase transport platform,achieve stacking 4-5stack.*The equipments main parts all use international well-known brand , for example:BOSTITCH/ Max nail gun, Delta control, Airtac electrical appliances and so on,to ensure the stability of the machine operation.
Related machines
1. Automatic nailing: CNC machine operation to ensure the standard position of each nail and consistent nail depth
2. Easy to adjust: the size of the tray can be adjusted
3. High work efficiency: one pallet per minute
4. Machine power: 4.5KW, low energy consumption, high output
5. The finished product palletizer can be added, the machine can count automatically, and dozens of pallets can be stacked
Product Parameters
Features of
Automatic Pallet Nailing Machine
Operation: The machine will auto clamping after the worker put the wood pallet bottom bean in machine, then put wood pallet plate, after automatic nailing.When complete it ,the work need flip the other side, put the plate in, then nailing it .Operation program:Touch screen control , advanced programming, Feeding mechanism and nailing machine multi-axis linkage at the same time when working.it achieve fast and efficient nailing work.One more thing, it could switch different program basis on different material plate to produce non-standard pallet .Automatic stacking: It will form aline with nailing machine,after nailing ,flip the wood pallet to stacking plat form .It will be
achieve the effect of automatic collect wood pallet and easy to transport. It save labor and operation time.Option: basis on stacking platform,it could increase transport platform,achieve stacking 4-5stack.*The equipments main parts all use international well-known brand , for example:BOSTITCH/ Max nail gun, Delta control, Airtac electrical appliances and so on,to ensure the stability of the machine operation.
Related machines
Preview

Preview
Pallet conveyor: Transfer and load 4-5 stacks of pallets on conveyor. Length of conveyor can be customized
for your request.
for your request.
Preview
FAQ
Preview
Question 1, can it make Euro/block or US/stringer pallets?
Reply, yes, this automatic pallet nailing production line can make most pallets in market, just with customized molding system, time to adjust machine when change pallet need about 4-8 hours.
Question 2, this is our first to use this machine, is it easy to operate?
Reply,yes. our English manual and operation video will guide you how to operate. If still any question, we can teach you on online at any time.
Question 3, Is it difficult to maintenance the machine?
Reply, the guiding video will be provided, our other customers can handle it by themselves, we think you also can.
Question 4, How to install?
Reply: All new machines are adjusted well before delivery. When customers receive them, can work it directly.
Question 5, What to do if the machine occurs problem?
Reply: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Reply, yes, this automatic pallet nailing production line can make most pallets in market, just with customized molding system, time to adjust machine when change pallet need about 4-8 hours.
Question 2, this is our first to use this machine, is it easy to operate?
Reply,yes. our English manual and operation video will guide you how to operate. If still any question, we can teach you on online at any time.
Question 3, Is it difficult to maintenance the machine?
Reply, the guiding video will be provided, our other customers can handle it by themselves, we think you also can.
Question 4, How to install?
Reply: All new machines are adjusted well before delivery. When customers receive them, can work it directly.
Question 5, What to do if the machine occurs problem?
Reply: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
