product高速铝箔午餐盒生产线 80 吨全自动铝箔制盒机
Image 2Image 3Image 4Image 5Image 6
Image 1
Preview
基本信息产品详情证书

基本信息

型号(NO.)SEAS-80T
认证总工程师
售后服务工程师可提供海外机械服务
自动评分自动的
容器类型桶,盒子,杯子,碗,托盘
应用程序商品,用餐,食物
驱动类型气动的
可调速35-80倍/分钟
中风范围150-260毫米
标称力800千牛
原材料铝箔
重量15000千克
箔片通道的最大宽度1220毫米
模具型腔最大数量3-6个洞
最大模具尺寸长为1450毫米,宽为850毫米,高为500毫米
主马达15千瓦
运输包8000乘以2500乘以3650毫米
规格8000乘以2500乘以3650毫米
商标银级工程师
起源中国
商品编码8441100000
生产能力每月一集

产品详情

Product Description
detail
Preview
detail
Preview
detail
Preview

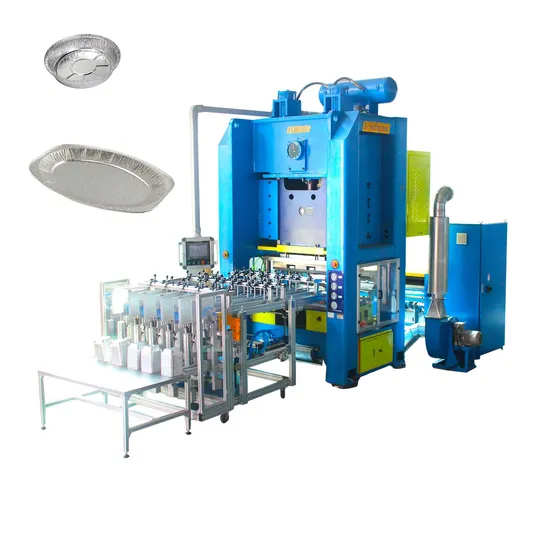

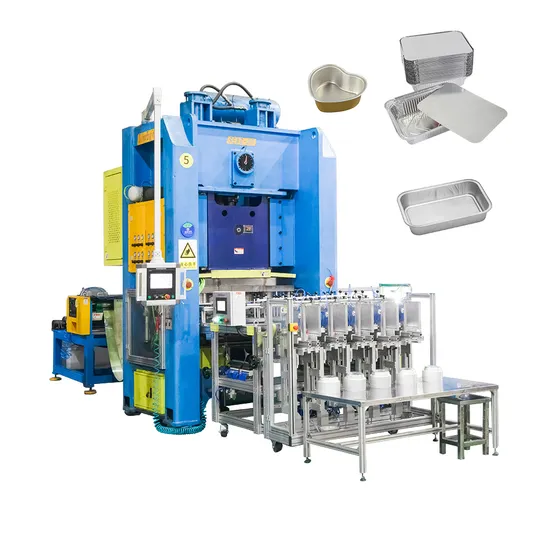

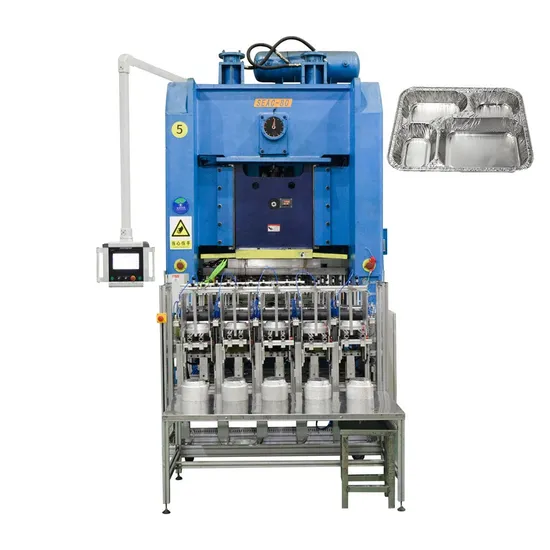

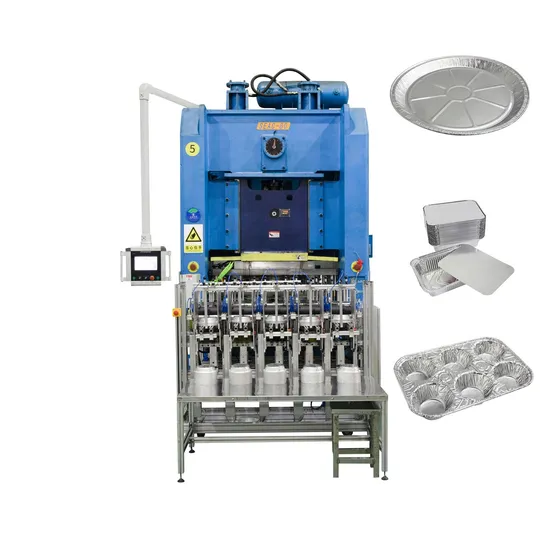

SEAS-80T
adopts higher precision customized
H-Type
Eight-Face Guide Rail Mechanical Press. Mainly use for
Wrinkle Wall Container
production. The software and hardware of the whole production line adopt Mechatronics design, which is beautiful and generous. The whole automatic production line is mainly composed of
Feeder, Press, Stacker and Scrap System unites.
The electrical control system of the whole production line is divided into two parts: the integrated electrical control cabinet of three units of Feeder, Press and Scrap System adopts independent system design,
which is safe and anti-interference.
The
touch screen
is hung on the left side of the Press, which is convenient for operation and does not occupy space; The electrical cabinet of the Stacker is installed on one side of the Stacker to independently control all parameter settings and operation. The
PLC
program logic of the whole production line is perfectly matched, which greatly improves the Production Efficiency of the whole machine and the Rationality of Program Control logic, and is more smart
humanized
.
Feeding control system
Aluminum Foil Feeding adopts Servo System: Perfect performance for aluminum foil materials with different thickness and big width to complete feeding quickly and higher accurately. The curve output torque makes the aluminum foil stable without shaking.

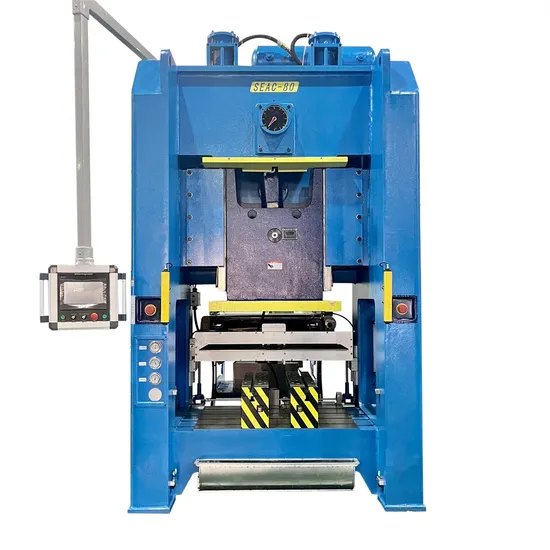

Press lubricating oil control system
Press Adopted Automatic Circulation Lubrication System: the progressive lubricating oil distributor is equipped with Lubrication Fault Detection Switch to ensure sufficient and uniform lubrication , avoid damage the guide rail during oil-free operation.Inlet solenoid valve
The Highly Sensitive and Reliable Italian OMPI Dry Clutch and Japanese TACO Double Solenoid Valve are adopted to ensure the accuracy and safety of timely stop of the sliding block of the Press.
detail
Preview
detail
Preview

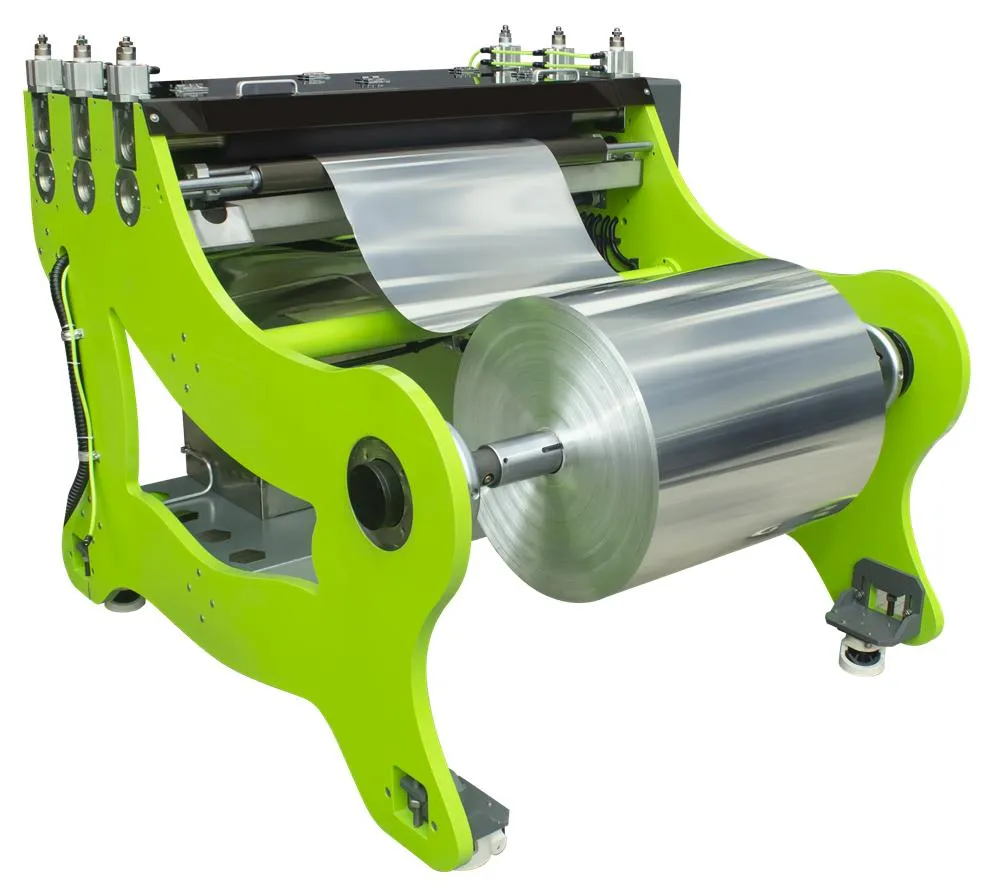

Aluminum Foil Feeder
There are four models of Aluminum Foil Feeder: Common Version C, Common Embossing Version E, Smooth Wall Version S and Flexo Flagship Version P. SEAC production line is equipped with Common Version Feeder, SEAE production line is equipped with Common Embossing Version Feeder, SEAS production line is equipped with Smooth Wall Version Feeder, and SEAP production line is equipped with Flexo Flagship Version Feeder.
detail
Preview
detail
Preview
detail
Preview

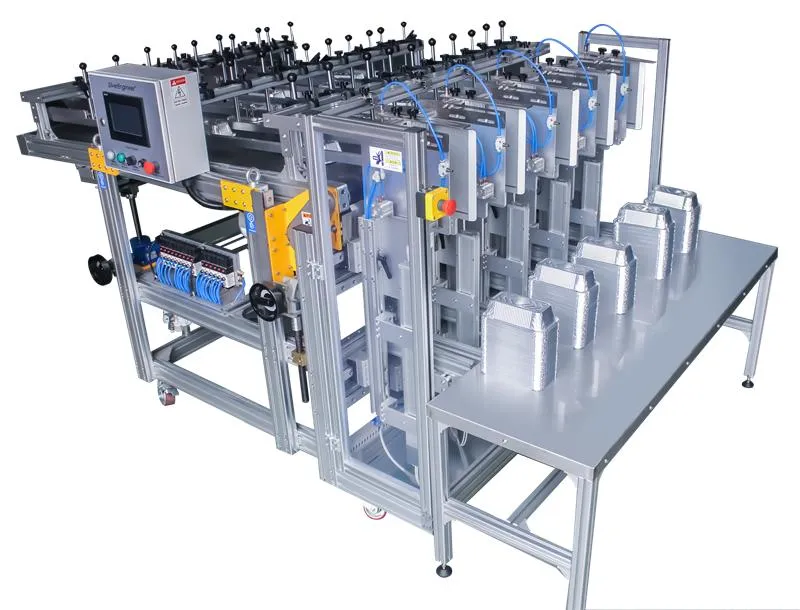

Aluminum Foil Container Stacker
Auto Stacker is a necessary part for the production of aluminum foil containers to achieve full automation. As aluminum foil
containers are widely used in the field of wash free food packaging, manual collection of each product is bound to pollute the product twice, which can not ensure food safety. In addition, the aluminum foil container is very easy to deform in the process of manual collection, counting and packaging, resulting in many deformation traces on the product surface and unsightly. Auto Stacker can be customized according to different product
shapes. The switching and adjustment between different molds is simple and fast, which can greatly reduce the Labor Intensity and Labor Cost of workers, improve efficiency and improve the profit space of products.
detail
Preview
detail
Preview
detail
Preview

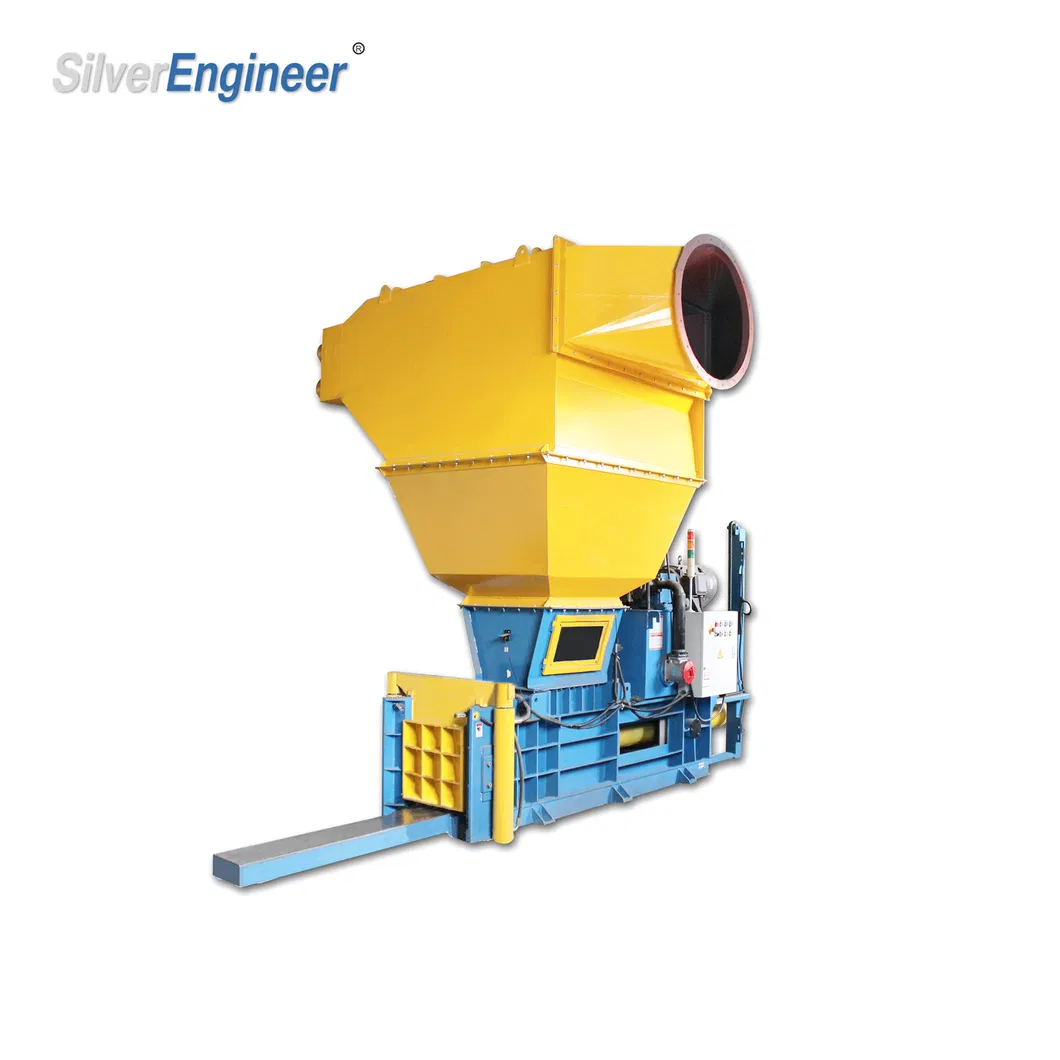

Automatic Foil Scrap Hydraulic Baler
The Automatic Aluminum Foil Scrap Hydraulic Baler System is an indispensable part of the Automatic Aluminum Foil Container
Production Line. Without the Scrap system, the production line will not be able to produce fully automatically, the speed of feeding
production will be greatly reduced, and there will be messy scrap foil garbage around the equipment, which will seriously affect the safety and environment of production management. At the same time, the purchase price of uncompacted scrap foil is far lower than that of neatly compacted scrap foil.
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
1: Warranty for machines and moulds?
A: We gurantee a period of 24 months from the date of machine & mould installation and setting to work.2.Q: What about leadtime ?
A: Normally the leadtime is 60days after we receive the deposit and confirm the details. All the press machines we use is the best quality in China Yangli brand. The press machine leadtime from Yangli is 50days, the best leadtime we can give is 60days.3.Q: What's the lead time for moulds?
A: Normally the mould leadtime is 45 days after we confirm all the details with customer. Our professional mechanical enginners from Austria will design the mould according to the samples from customer, or by the specifications offered by customers.4.Q:What kinds of mould you can make? and what is your strong point for the moulds?
A: we can make wrinkle wall mould and smooth wall mould both. For wrinkle wall mould we can make, 7-9" pan, fish pan, bbq pan. For smooth wall mould we can make muffin cup, and cake cup, tar cup,etc. We can also make 2 or 3 and 4 compartment conatiner moulds as long as you offer us sample or specifications.5: How to purchase raw material or lubricating oil?
A: SE can support every purchase work for all our customers, to help you set up a matured factory at the fast step.6:How to install machine and train our staff on our factory?
A: Yes, we do. We'll send our engineers to your factory to install, test machines and give your workers training guidance.
detail
Preview

证书

标题:ISO 9001 & FDA
prev
1/10
next
Preview
联系我们
发送邮件到:support@bincial.com
高速铝箔午餐盒生产线 80 吨全自动铝箔制盒机
¥325800 ~ ¥543000
