Automatic Disposable Takeaway Aluminum Foil Packaging Lunch Box Production Line Food Container Power Press Punching Making Machine BESCO 220V 380V Optional

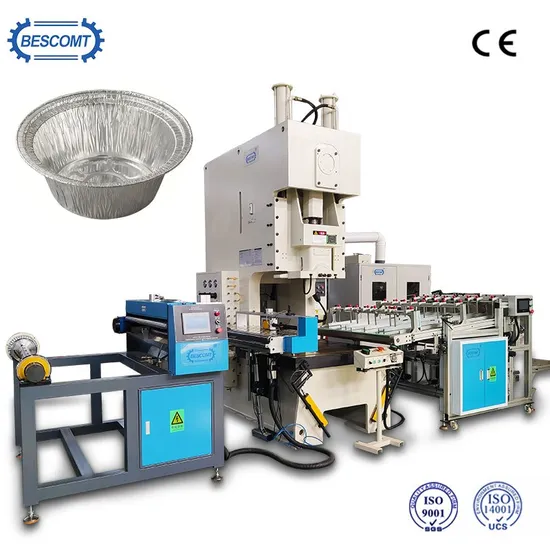

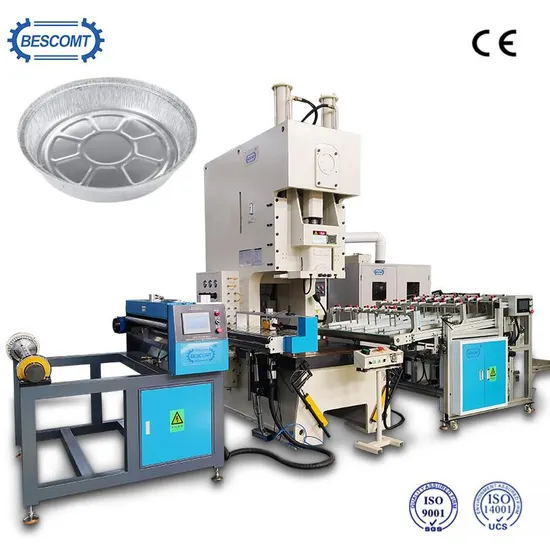

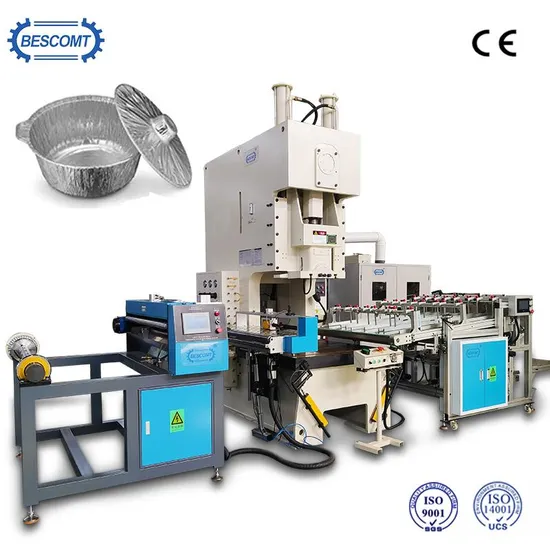

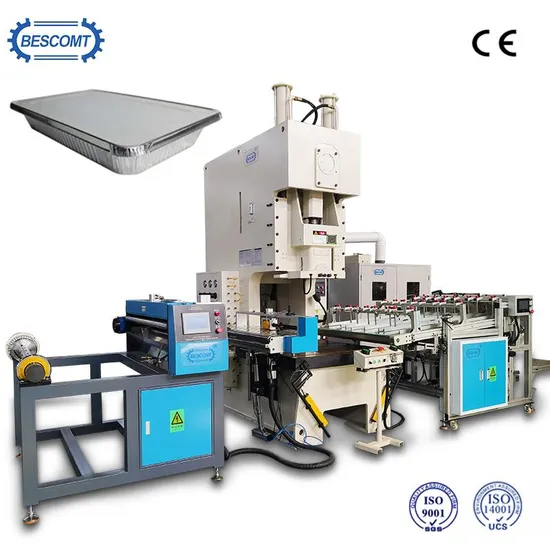

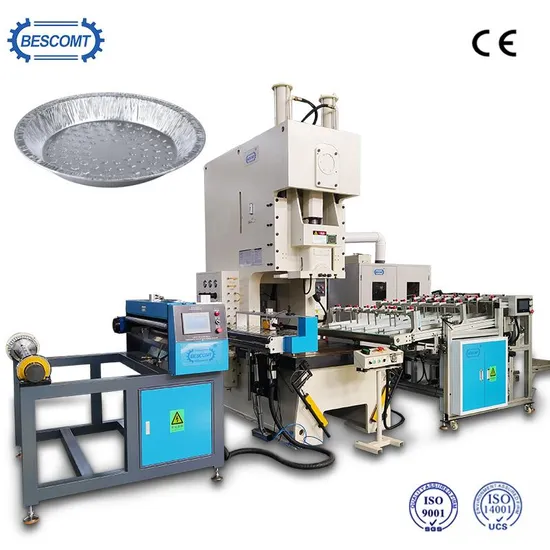

Aluminum foil container production line is the aluminum foil lunch box processing independently developed by Dongying Beite Machine Tool Equipment Co., LTD
Equipment.This production line by automatically tape feeder + + punch mould, automatic stacker and waste recycling system composition, the price is reasonable, suitable for aluminum foil boxes, egg tarts box, barbecue plate, thin sand smoke/smoke, corrugated pipe, household, food and beverage, food packaging and other commodity products, production of aluminum foil container processing, can be made of different types of aluminum foil boxes, large number of lunch box production.Auto-feeder with lubrication system
One machine can realize automatic oiling, automatic feeding, the length of an arbitrary set, it provide accurate positioning and widely adjusting range.Punching machine
High performance presses are widely used in the fields of aeronautics,auto,agriculture machines,electric machines,apparatuses and meters,medical equipment,electrical home appliance and hardware.Auto-stacker
It is a assist system to collect containers.Waste metal collector
Scrap collector play an important role in it. Its primary role is to collect the Excess aluminum foil .The vacuum adsorb collect system system collects the scrap in a bin and then will compact the aluminium scrap into bales.Stamping mold
The mold consists of a mold base, a mold core, an air path and a blowing device
The upper and lower die base steel plates are made of No. 45 steel. The upper die is cut with SKD11 and the lower die is cut with P20 die steel. The concave and convex die is made of 45# steel.Disposable Take Away Aluminium Foil Food Container Making Machines
1. PLC as the controlling system.2. Feeding, punching, scrap collecting is running automatically.3. High accuracy and reliability press,
It is reliabale.4. Feeding length is accurate
5. Parameter are easily be setted.6. It is integration of Gas & Electrical, centralized control
7.The raw material is 8011 aluminum foil
Punching Machine
Aluminum Foil Container Making Machine--BLA
Specification
BLA25
BLA45
BLA60
BLA80
BLA110
BLA160
BLA400
Model
V/H/S
V/H
V/H
V/H
V/H
V/H
V/H
Capacity
Ton
25
45
60
80
110
160
400
Rate tonnage point
mm
3.2/1.6/3.2
3.2/1.6
4/2
4/2
6/3
6/3
8/4
Stable speed
s.p.m
110
75
65
65
50
35
30
Stroke
mm
70/30/80
80/50
120/60
150/70
180/80
200/90
250/150
Die height
mm
195/215/190
250/265
310/340
340/380
360/410
460/510
250/150
Slider adjustment
mm
50
60
75
80
80
100
120
Slider area
mm
470*230*50
560*340*60
700*410*70
770*420*70
910*470*80
990*550*90
150*800*100
Bolster area
mm
680*300*70
850*440*80
900*500*80
1000*550*90
1150*600*110
1250*800*140
1650*900*200
Shan hole
mm
Φ38.1
Φ38.1
Φ50
Φ50
Φ50
Φ65
Φ65
Main motor
kw.p
3.7*4
5.5*4
5.5*4
7.5*4
11*4
15*4
37*4
Slide adjust device
HP
manual opreation
electrial driving
Air pressure
kg/cm²
6
Presses precison
GB/JIS 1class
Presses dimension
mm
1280*850*2200
1600*950*2500
1600*1000*2800
1800*1180*2800
1900*1300*3200
2300*1400*3800
3180*2150*5025
Presses weight
Ton
2.1
3.8
5.6
6.5
9.6
16
40
Die cushion capacity
Ton
-
2.3
3.6
3.6
6.3
10
14
Stroke
mm
-
50
70
70
80
80
100
Die cushion effective area
mm²
-
300*230
350*300
450*310
500*350
650*420
710*480
BLA Product Feature:
1.The machine body is welded of quality steel sheet and treated by tension elimination, improve stability and reliability of precision of the machine.2.In order to guarantee the machine running in stable and smooth,adopts the design of symmetrical two slid borards with balancer.3.The precision of mold adjusting up to 0.1mm,safety,reliable and convenient.4.Crank,gear. connect bar are oxidized hardening and milled, having super comprehensive mechanical performance and durable function.5.Reasonable structural design,is convenient for automatic production and line production.6.Used reliable high intensity clutch/brake and twin electromagnetic vale, overloading protector can guarantee safe production all-around.7.The advance technical opimized structure design of machine.8.The machine body is welded high quality steel and treated by tension elimination.9.Key parts are treated by hard chrome plated/nitrogen/rubbing technology.10.Adopted well known controller/driving equipment,hydraulic equipments/gas driving parts etc.11.International technology class for press machine,measures machine specification.Auto Lubricate Feeder:
Name
Parameter
Max coil diameter
¢1000mm
Min coil internal diameter
75-¢80mm
Max coil width
1100mm
Max coil weight
500kg
Feeding speed
10-30m/min
Feeding length
20-9999mm
Feeding precision
+/-0.2mm
Motor power
2Kw
Voltage
380V/220V
Weight
800kg
Dimension
1200x1200x1100mm
(L*W*H)
Auto lubricate feeder Product Feature:
1.The machine body is welded of quality steel sheet and treated by tension elimination, improve stability and reliability of precision of the machine.2.In order to guarantee the machine running in stable and smooth,adopts the design of symmetrical two slid borards with balancer.Auto Stocker:
Name
Parameter
Conveyor width
550mm
Collector belt height
920 +/-25mm (Height can be
customizable)
Min size of container
100*100mm(size can be adjusted)
Max size of container
500*300mm (one way) 215*300mm(two way)
Max stacking height
420mm (depends on container's
size)
Air consume (one way)
0.2m3/min
Machine power
3 KW
Net weight
1000kg
Size
2800*780*1500mm(L* W*H)
Auto Stacker Product Feature:
1. Frequency Control Speed Adjustment of Conveyor.2. Auto-Counting Function.3.Container Platform Anti-collision Function.4.Can Connect Production Line Linkage or Single Use.5. Adopt Touch Screen And PLC Computer Control.6. Lifting Table Adopt Stepper And Ball Screw Table.7. Stacking Table Use PLC Control Quantity.8. Air Operated Control Table Cut Off.Waste metal collector:
Name
Parameter
Rotate speed
1450 Rpm
Power
4 Kw
Delivery Lift
1.5 M
Max Thickness of Alu-foil
<1 MM
Waste metal collector Product feature:
1.Use vacuum adsorb collect system , easier to collect the Al-foil .2.Low Coise , More Greener.3.Reduce Noise Pollution.4.Use Round knife And Flat Cutter. To Cut The Materials.Punching Mould:
Long Life Container Making Mould
Mold Material: Mold Carrier And Mold Core DC-53 ,SKD11 etc.Pruning Wound DC-53 , SKD11 From Japan
Mold Life Time: 20000000 Times.In Short, we can provide you both products and molds in Best
Quality.All of our products and molds are 100% designed and made in our factory.We are confident to satisfy our customers with best value of mold
making workmanship.About The Ingredients For The Container
Model: 8011 Aluminum Foil
Thickness: 0.04-0.06mm
IWidth: According Container Size

We are currently reviewing our product packaging from the angles of waste-reduction and resource-saving. We are also working on improving transportation efficiency from the design phase of product development.
1.Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.
2.All the spare parts of the machine were covered by the some soft materials mainly using pearl wool.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack, convenient to handing and transport.
After Sales Service
Can contact us by MSN, Skype, Email and Telephone at any timeOur factory also will make DVD to show the operation steps for the
customer.
2.We can send the component by DHL, TNT freely
The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to
our factory to learn the operation and maintains freely.

1.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis /Conformance;
Insurance;
Origin, and other export documents where required.
2.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance before delivery
3.Guaranty covers?
Main parts of the machine , wearing parts not included .PARTS DELIVERY.
Within 5 days by DHL / Fexed .
4.About our after-sale service:Customer service 24 hours online, you can send technicians to your country to repair the machine.
Buyer shall bear all costs including visa, round trip airfare and suitable accommodation and buyer shall pay usd 100 / day salary.
5.How to replace machine parts?Parts adopt international brands, good quality, no need to replace within 3-5 years, convenient to buy suitable parts locally.6.Installation&Commissioning:Usually solved by video conference, if necessary, can be dispatched to the door installation debugging and maintenance of technical personnel.
