基本信息产品详情证书
基本信息

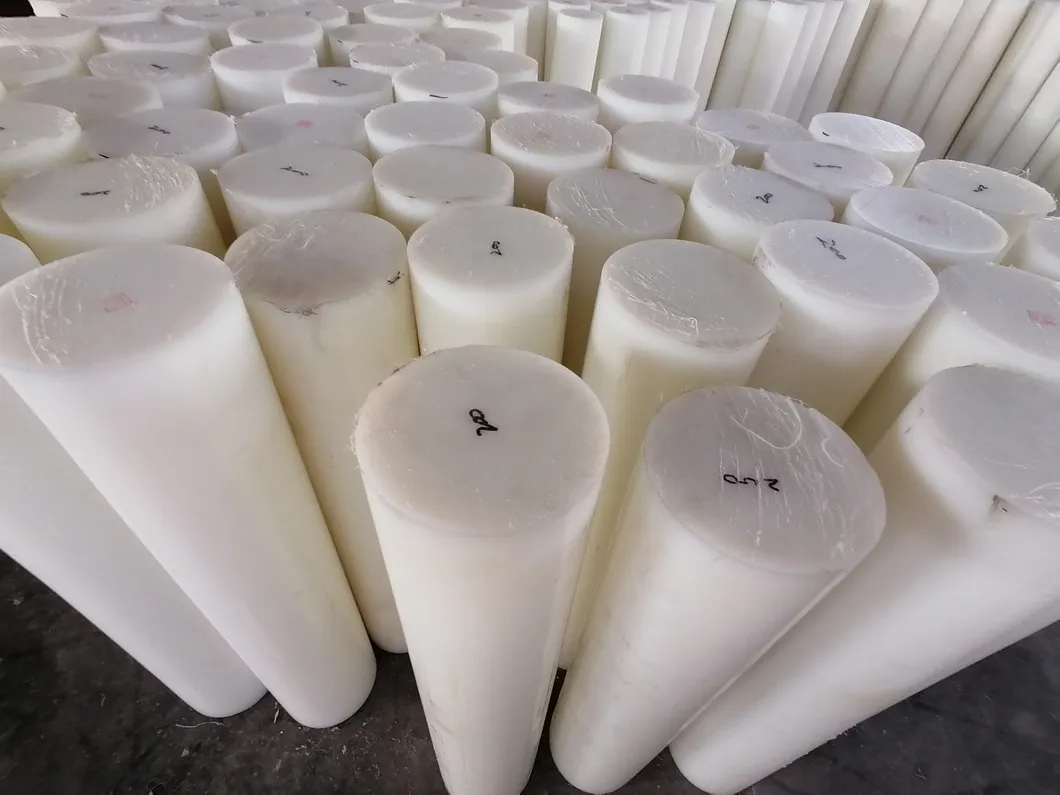

型号编号 | 尼龙圆棒 |
吸水性 | 小于千分之一 |
收缩百分比 | 小于百分之零点四 |
抗拉强度 | 51至80兆帕 |
抗弯强度 | 101MPa |
夏比缺口冲击强度 | 8.9千焦每平方米 |
拉伸模量 | 2820兆帕 |
IZOD 缺口冲击强度 | 7.6千焦/平方米 |

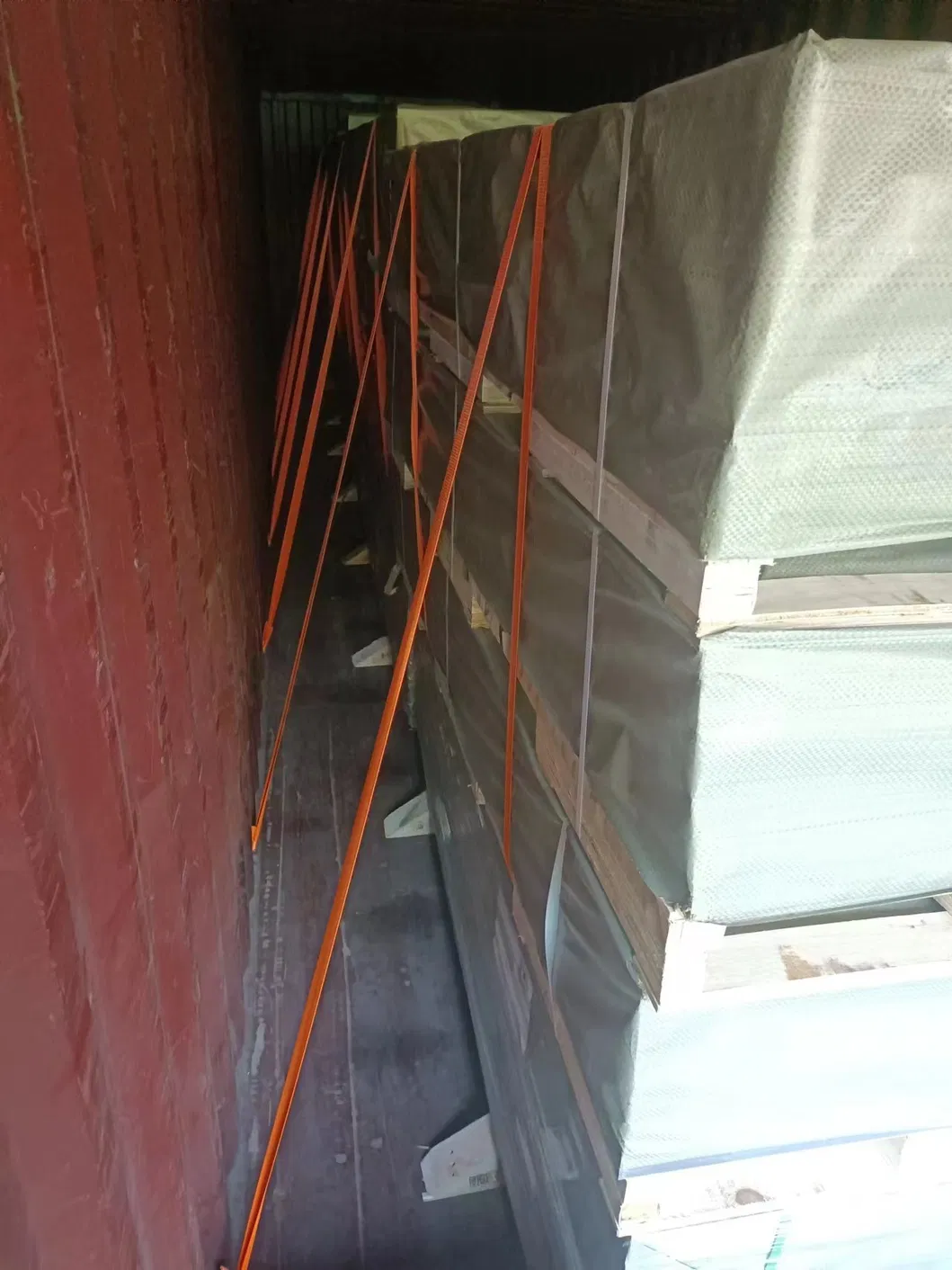

运输包 | 每托盘1000公斤 |
规格 | 1000毫米至3000毫米 |
商标 | 原始设备制造商 |
起源 | 中国 |
商品编码 | 3920920000 |
生产能力 | 每月50万公斤 |
包装尺寸 | 100.00厘米*100.00厘米*80.00厘米 |
包装总重量 | 80万公斤 |
包装尺寸 | 100.00厘米 * 100.00厘米 * 80.00厘米 |
包总重 | 800千克 |
产品详情
Product Description
Preview

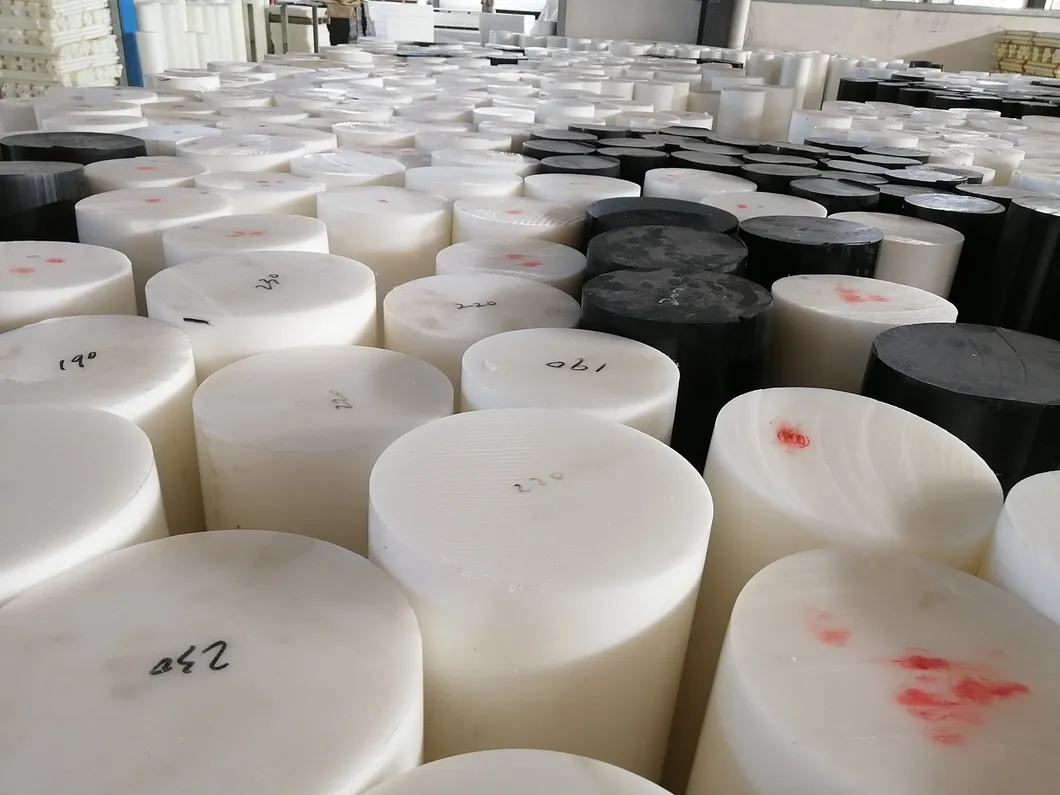

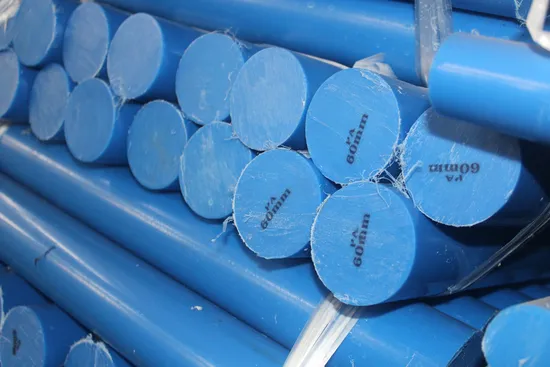

Nylon Products:

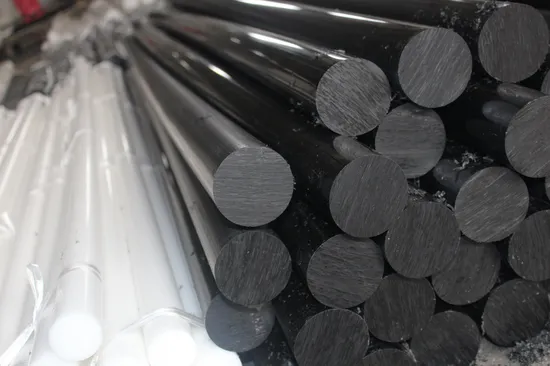

Extruded Nylon 6 (PA 6) - natural (white) / black:
Offers an optimal combination of mechanical strength, stiffness, toughness, mechanical damping properties and wear resistance. These properties, together with a favourable electrical insulating ability and a good chemical resistance make extruded nylon 6 a "general purpose" grade for mechanical construction and maintenance.MC Nylon 6 (PA 6) - natural (ivory) / black:
Unmodified cast nylon 6 grade exhibiting characteristics which come very close to those of nylon 66. It combines high strength, stiffness and hardness with good creep and wear resistance, heat ageing properties and machinability.MC Nylon 6 + oil filled (PA6 + oil) - green:
This internally lubricated cast nylon 6 is self-lubricating in the real meaning of the word. Oil filled MC nylon 6, especially developed for unlubricated, highly loaded and slowly moving parts applications, yields a considerable enlargement of the application possibilities of nylons. This because of its reduced coefficient of friction (up to -50%) and improved wear resistance (up to x 10).Nylon 6 + MOS2 (PA6 + MoS²) - grey black:
The addition of MoS² renders this material somewhat stiffer, harder and dimensionally more stable than nylon 66, but results in some loss of impact strength. The nucleating effect of the molybdenum disulphide results into an improved crystalline structure enhancing bearing and wear properties.Nylon 6+ GF30 (PA 6-GF30) - black:
when compared with virgin nylon 6, this 30% glass fibre reinforced and heat stabilised nylon grade offers increased strength, stiffness, creep resistance and dimensional stability whilst retaining an excellent wear resistance. It also allows higher max. service temperatures.Nylon 66: this material with a higher mechanical strength, stiffness, heat and wear resistance than extruded nylon 6. It also has a better creep resistance but its impact strength and mechanical damping ability are reduced. Well suited for machining on automatic lathes.
Density
g/cm3
Extruded Nylon 6 (PA 6) - natural (white) / black:
Offers an optimal combination of mechanical strength, stiffness, toughness, mechanical damping properties and wear resistance. These properties, together with a favourable electrical insulating ability and a good chemical resistance make extruded nylon 6 a "general purpose" grade for mechanical construction and maintenance.MC Nylon 6 (PA 6) - natural (ivory) / black:
Unmodified cast nylon 6 grade exhibiting characteristics which come very close to those of nylon 66. It combines high strength, stiffness and hardness with good creep and wear resistance, heat ageing properties and machinability.MC Nylon 6 + oil filled (PA6 + oil) - green:
This internally lubricated cast nylon 6 is self-lubricating in the real meaning of the word. Oil filled MC nylon 6, especially developed for unlubricated, highly loaded and slowly moving parts applications, yields a considerable enlargement of the application possibilities of nylons. This because of its reduced coefficient of friction (up to -50%) and improved wear resistance (up to x 10).Nylon 6 + MOS2 (PA6 + MoS²) - grey black:
The addition of MoS² renders this material somewhat stiffer, harder and dimensionally more stable than nylon 66, but results in some loss of impact strength. The nucleating effect of the molybdenum disulphide results into an improved crystalline structure enhancing bearing and wear properties.Nylon 6+ GF30 (PA 6-GF30) - black:
when compared with virgin nylon 6, this 30% glass fibre reinforced and heat stabilised nylon grade offers increased strength, stiffness, creep resistance and dimensional stability whilst retaining an excellent wear resistance. It also allows higher max. service temperatures.Nylon 66: this material with a higher mechanical strength, stiffness, heat and wear resistance than extruded nylon 6. It also has a better creep resistance but its impact strength and mechanical damping ability are reduced. Well suited for machining on automatic lathes.
Density
g/cm3
Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

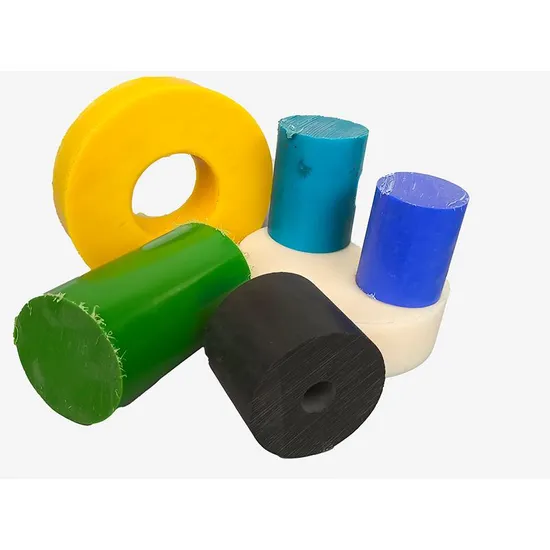

1. Q: What color can you make?
A: Usually we can make the regular color, like
green,
blue,
black, yellow, grey and so on. Or you can offer the pantone color number for reference to produce.
2.Q: What is your MOQ?
A: It depends on the drawing.
3. Q: What is your delivery time?
A: It depends on the volume, usually it is about 7 days.
4. Q: How can I get a sample?
A: Small size of sample are free, you only need to pay for the shipping cost, or you can provide your UPS, DHL, Fedex, TNT courier account to us. Customized size of sample should be charged.
5. Q: What is your payment ?
A:30% T/T in advance,
balance before shipment. Other terms negotiable.
A: Usually we can make the regular color, like
green,
blue,
black, yellow, grey and so on. Or you can offer the pantone color number for reference to produce.
2.Q: What is your MOQ?
A: It depends on the drawing.
3. Q: What is your delivery time?
A: It depends on the volume, usually it is about 7 days.
4. Q: How can I get a sample?
A: Small size of sample are free, you only need to pay for the shipping cost, or you can provide your UPS, DHL, Fedex, TNT courier account to us. Customized size of sample should be charged.
5. Q: What is your payment ?
A:30% T/T in advance,
balance before shipment. Other terms negotiable.
