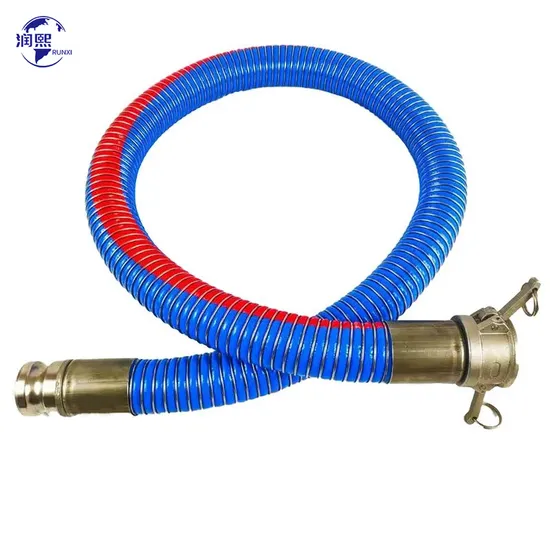

化学抗性柔性聚氯乙烯不锈钢复合燃油输送软管

Preview

基本信息产品详情证书

基本信息

型号编号	油品输送复合软管
材料	聚氯乙烯
种类	热塑性塑料管
抗拉强度	1.6兆帕（压力单位）
产品名称	组合软管
内部钢丝	热浸镀锌钢、304不锈钢、316不锈钢等
层间	聚丙烯纺织品，聚丙烯薄膜
中等	柴油、汽油、煤油、润滑油等
工作温度	零下30摄氏度至正80摄氏度
软管类型	Gg/GS/Sg/Ss/Pgg/Psg/Pss
特性	灵活、轻便、耐用、高安全等
外层	PVC涂层织物
交通包	根据客户需求
规格	DN1“-12”
商标	OEM
起源	中国
生产能力	每月150万

产品详情

Product Description

Preview

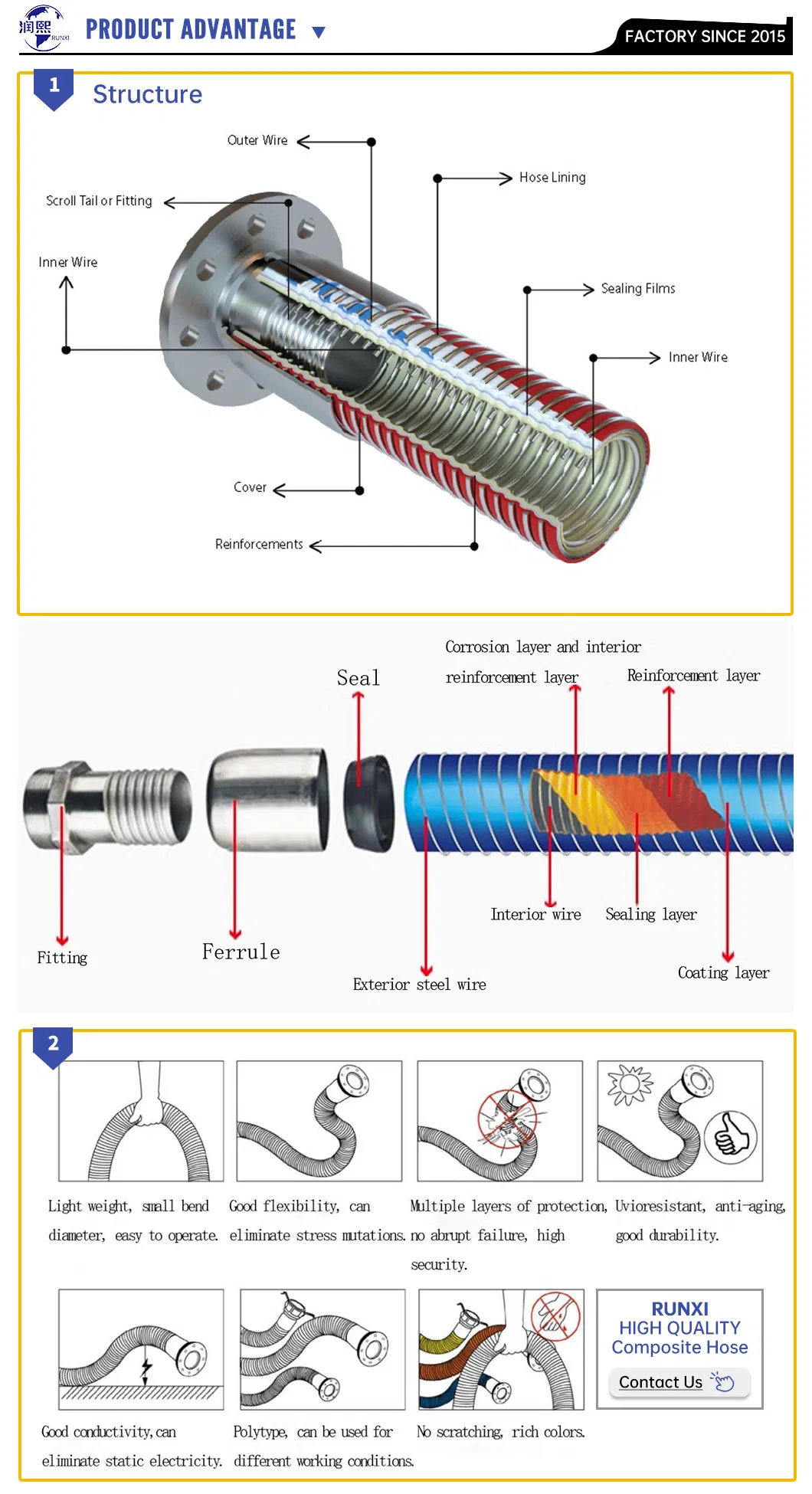

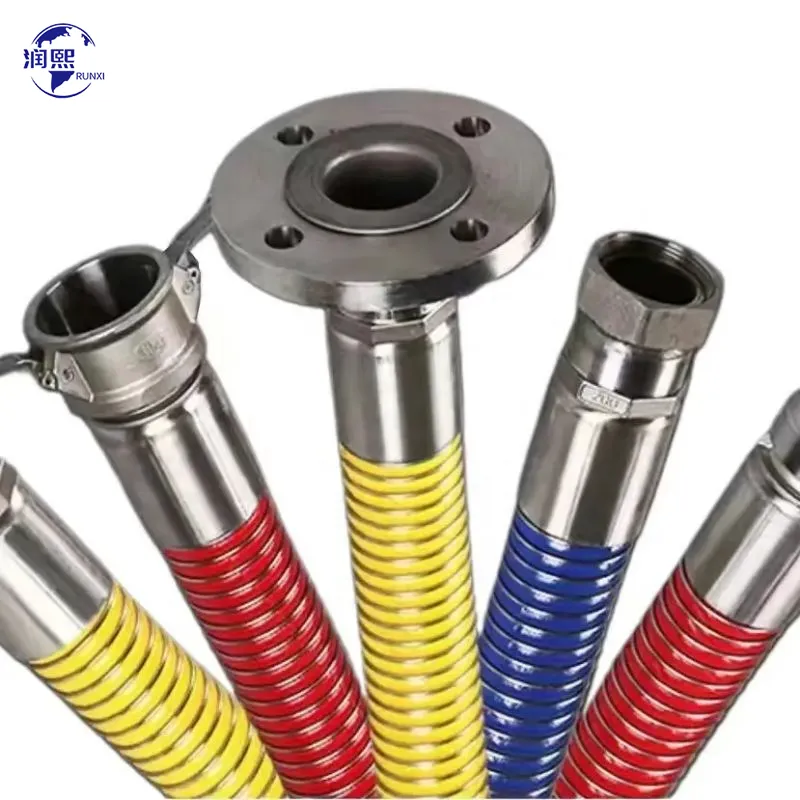

Flexible Composite Hose:
The composite hose is a hose composed of a variety of polymer materials reinforced layer, a sealing layer and an external anti-wear and anti-aging layer. It is wound by a computer-assisted "labyrinth" seal and fastened by internal and external spiral wire support. And it is originated from Europe and is the latest generation of safe petrochemical hose.
Characteristics:
√ Oil, Chemical, Corrosion Resistance
√ Colorful
√ High/Low Temperature Resistant
√
Wide Application
√ Light Weight
√ Durable, Anti-aging, Weather Resistance
√ Good Flexibility

Preview

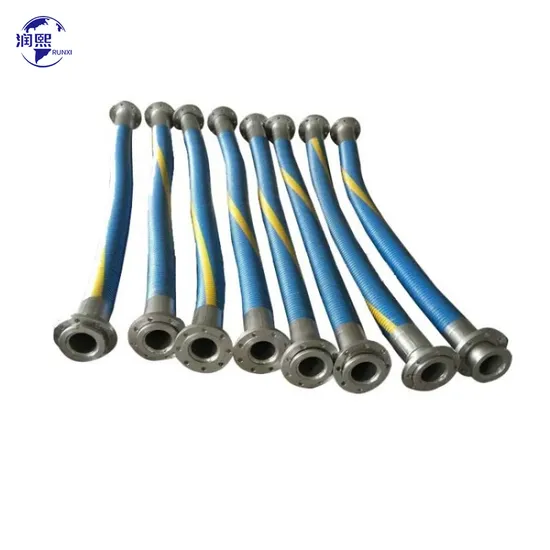

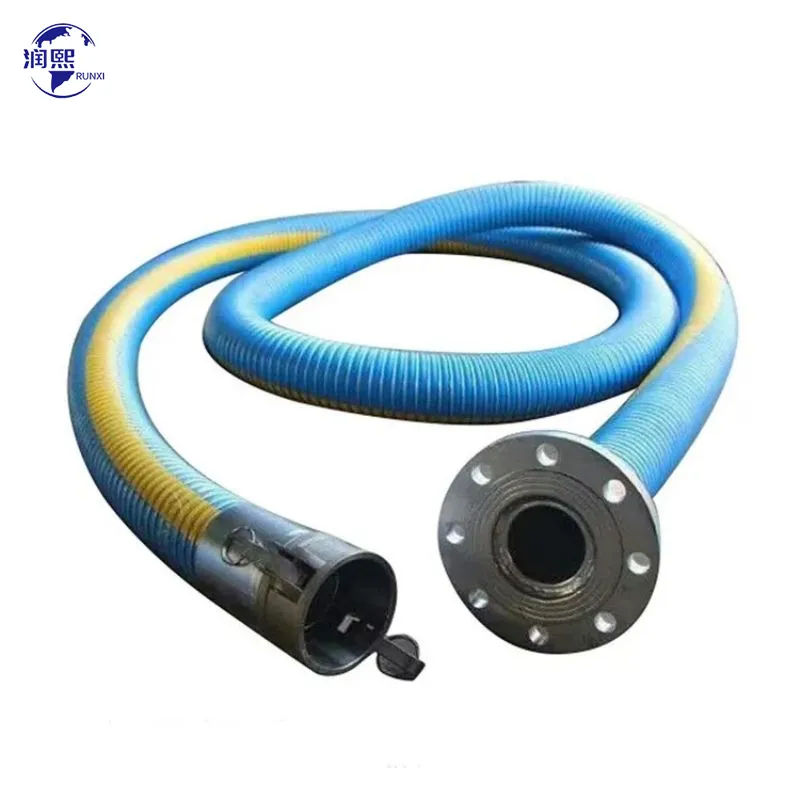

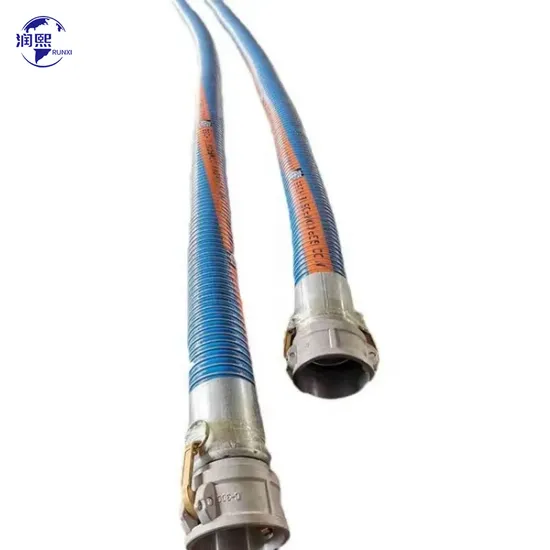

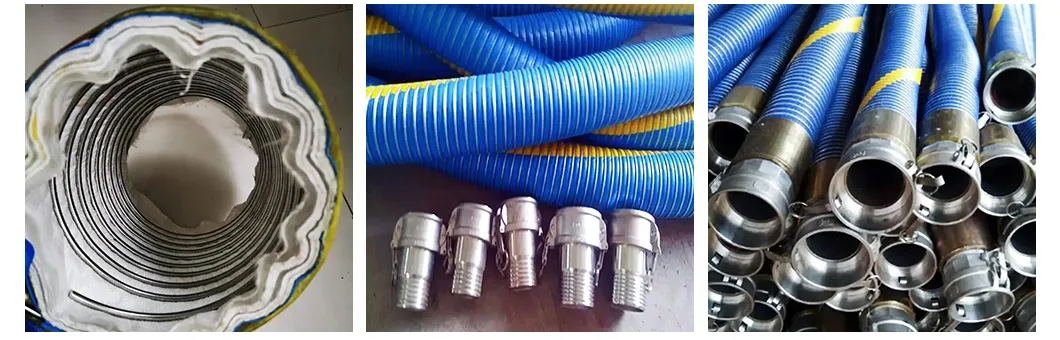

Detailed Photos

Preview

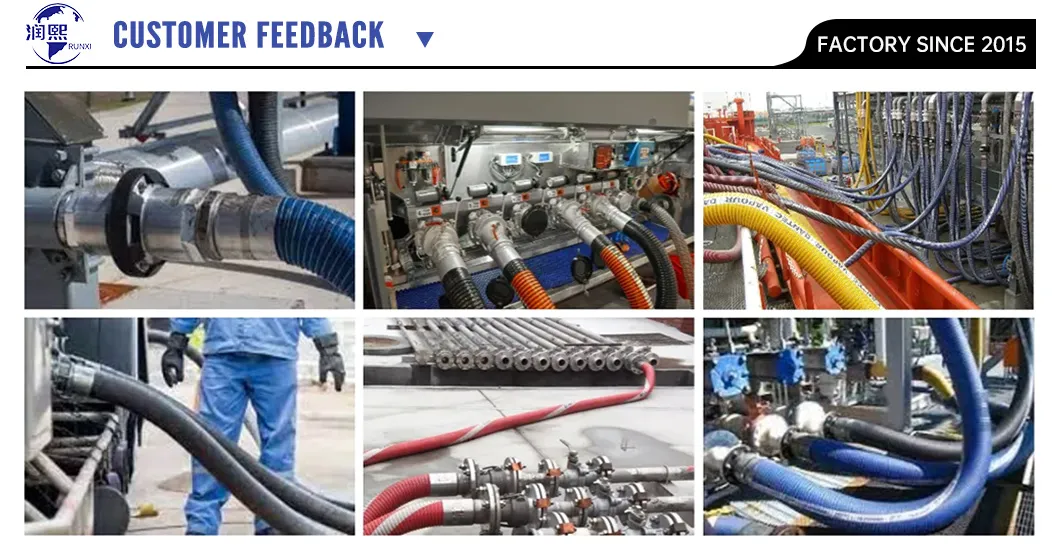

On-site use photos from customers:

Preview

Product Parameters
Inner Diameter
inch-mm
Max Working Pressure
Mpa
Min Bend Radius
mm
Weight
kg/m
1"-25
1.6
200
1.35
1 1/2"-40
1.80
2"-50
225
2.45
2 1/2"-65
3.20
3"-80
350
4.20
4"-100
400
4.90
6"-150
575
12.9
8"-200
800
20.1
10"-250
1000
26.5
12"-300
1200
31.8
