基本信息
| 制造工艺 | 数控铣床 |
| 操作压力 | 大气压 |
| 材料 | 铸钢 |
| 维度 | 950mm*1100mm*1700mm（长*宽*高） |
| 额定压力 | 2.5MPa |
| 工作电压 | DC24V（可充电电源） |
| 保护等级 | IP55 |
| 测量精度 | 液体体积小于百分之五 |
| 气体体积 | 小于或等于5% |
| 二氧化碳含量 | 百分之五 |
| 二氧化碳含量检测范围 | 百分之百 |
| 液体测量范围 | 额定容量为10至120吨/日，最大为10至200吨/日 |
| 气体测量范围 | 0~720立方米/天（工作条件） |
| 交通政策包 | 导出包 |
| 规格 | 950毫米乘以1100毫米乘以1700毫米 |
| 商标 | 通博 |
| 起源 | 山东 |
| 生产能力 | 十万 |
产品详情
Product Description
Preview

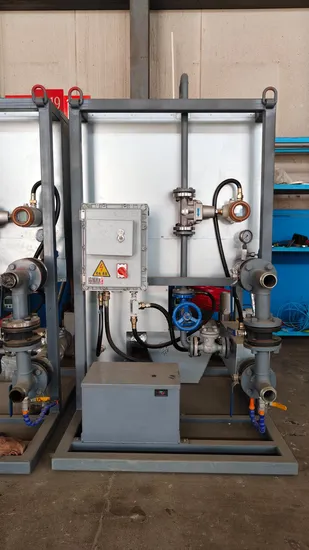

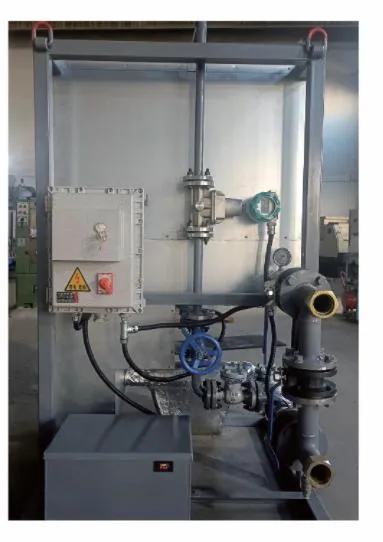

Skid-mounted working condition data monitor single well metering device
Overview:
The working condition data monitor (integrated C02 detection function) is a device used to measure the daily fluid volume, gas production and C02 content in oil producing Wells (gas Wells). The equipment can continuously measure the production of production Wells. Through the continuous measurement and recording data and curves by the upper computer, the production capacity of the measured production Wells can be intuitively understood during the measurement period.
Functional features:

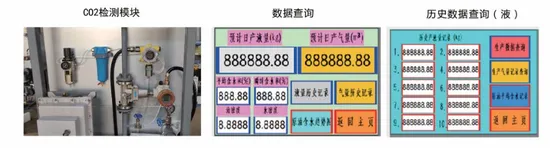

The multi-stage gradient separation tank and the combination of dispersion separation and swirl separation technology make the gas-liquid separation more thorough and accurate.External C02 detection module can directly observe the working condition of C02 analyzer and gas filter, convenient maintenance and replacement of filter element
All electrical systems are explosion-proof design, pipeline material and welding according to the standard configuration of the petroleum industry, are tested by pressure and flaw detection, fully meet the safety requirements of the petroleum industry;
Realize real-time measurement of single phase or multiphase parameters of oil well output;
Realize real-time collection, calculation and analysis of field data, and generate gas and liquid metering curves and various production reports.
Technical Parameter:
Overview:
The working condition data monitor (integrated C02 detection function) is a device used to measure the daily fluid volume, gas production and C02 content in oil producing Wells (gas Wells). The equipment can continuously measure the production of production Wells. Through the continuous measurement and recording data and curves by the upper computer, the production capacity of the measured production Wells can be intuitively understood during the measurement period.
Functional features:
The multi-stage gradient separation tank and the combination of dispersion separation and swirl separation technology make the gas-liquid separation more thorough and accurate.External C02 detection module can directly observe the working condition of C02 analyzer and gas filter, convenient maintenance and replacement of filter element
All electrical systems are explosion-proof design, pipeline material and welding according to the standard configuration of the petroleum industry, are tested by pressure and flaw detection, fully meet the safety requirements of the petroleum industry;
Realize real-time measurement of single phase or multiphase parameters of oil well output;
Realize real-time collection, calculation and analysis of field data, and generate gas and liquid metering curves and various production reports.
Technical Parameter:
