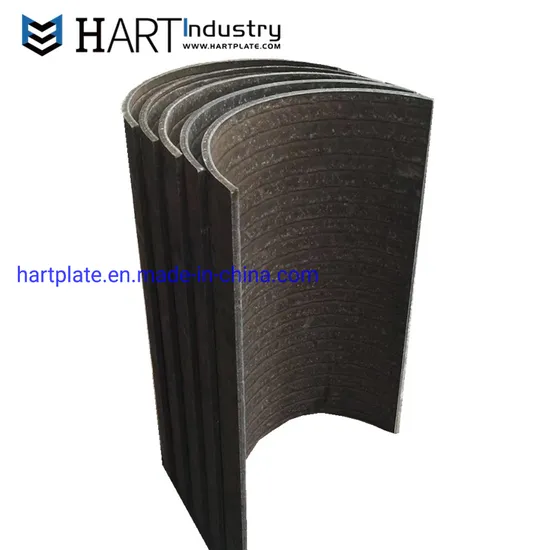

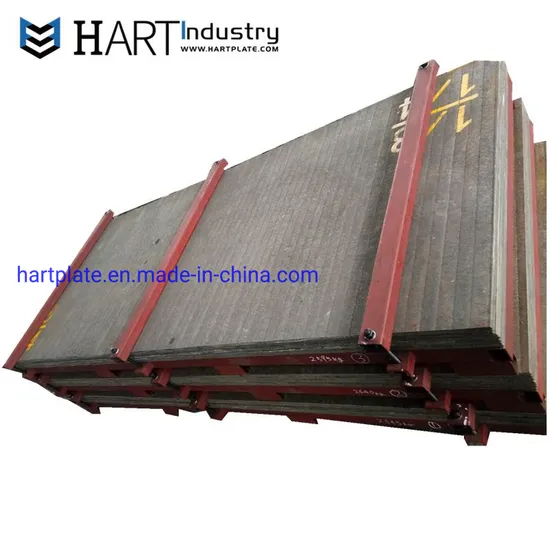

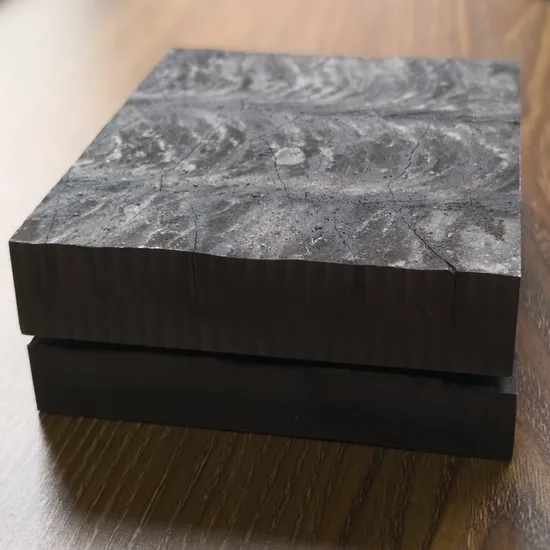

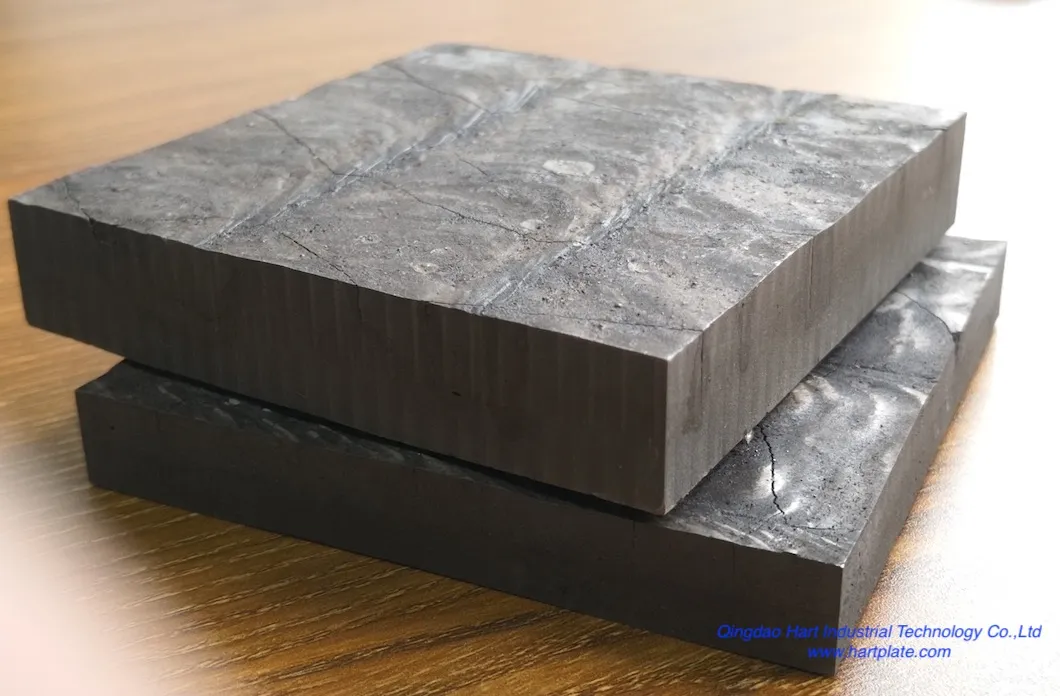

Chromium Carbide Overlay Wear Abrasion Resistant Hard Facing Bimetal Steel Plate

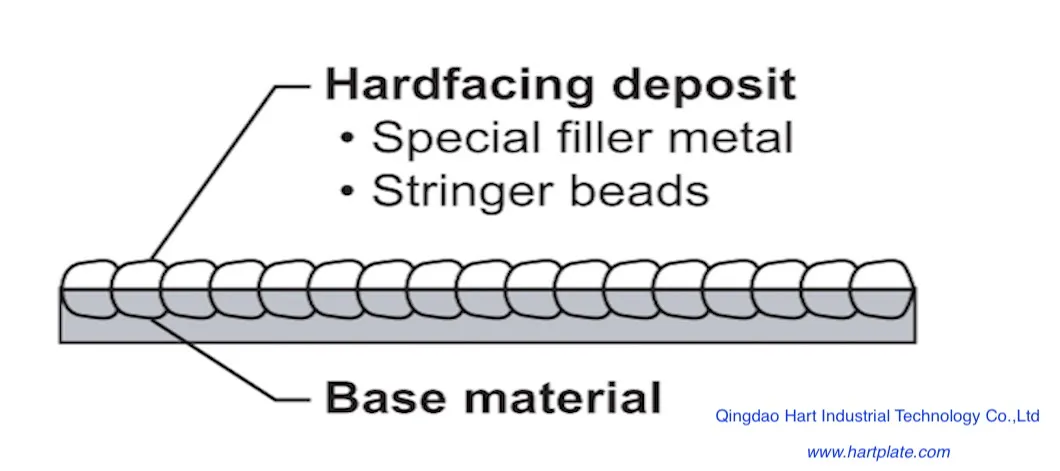

HART Plate is manufactured by depositing chromium-rich, abrasion-resistant materials on mild steel base plate using a
traditional arc welding process. This product is usually referred to as chromium carbide overlay (CCO) plate on the market. The hardfacing overlay is suitable for severe abrasive wear and impact applications. Qingdao HART Industrial Technology Co., Ltd was established in 2003, it had a
long history of providing innovative wear solution and world class wear products.The ultimate hardfaced product for your application depends on the material--whether rock, sand, gravel or other substance--striking or sliding along the surface of your wear part. It also depends on the angle and speed of impact as well as the operating temperature.

[Technical Specification Of HART-P-100 ]
1. Base Material:
ASTM A36(Q235B), ASTM A529A(Q345B), other weldable steel is optional;
Base thickness: 3
to 30 mm

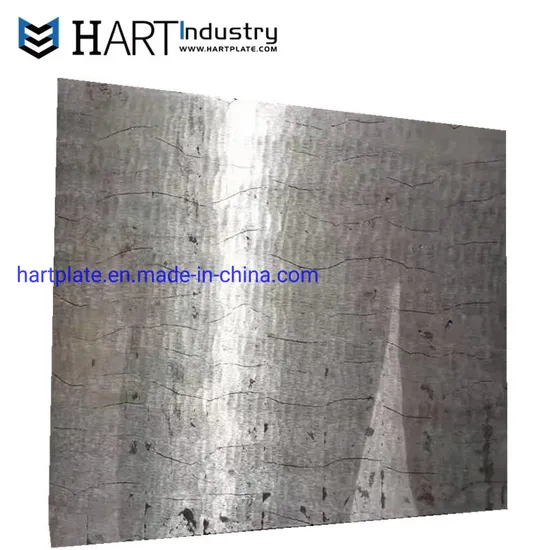

2. Hardfacing Layer:
Chromium carbon alloy on Fe basis(austenite)
Bulk hardness: >630HV
Mean hardness: >55HRC
Layer thickness: 3
to 30 mm
3. Welding Processes:
Advanced open arc welding and submerged arc welding
4. Alloy Description:
Austenitic chrome carbide iron(Chromium white iron)
5. Carbide Hardness:
>1500HV
6. Volume Fraction of Carbide:
>30%
7. Chemical Composition:
Carbon: 3-6%
Chromium: 18-34%
*Various alloys to be used depend on different operating condition and applications.

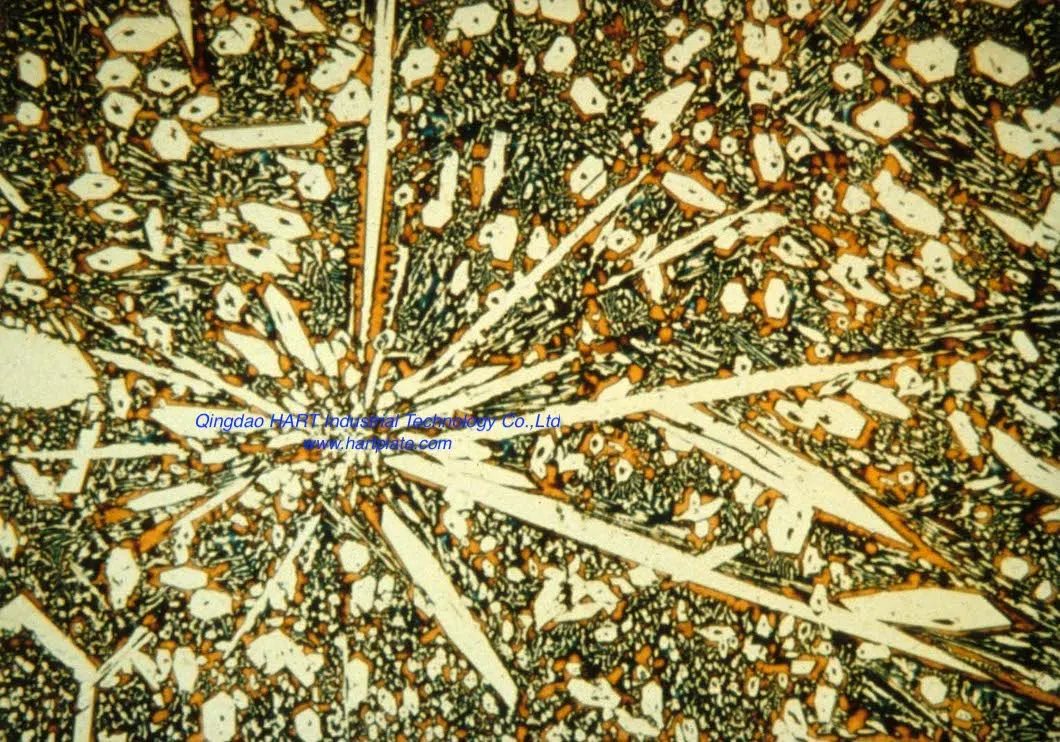

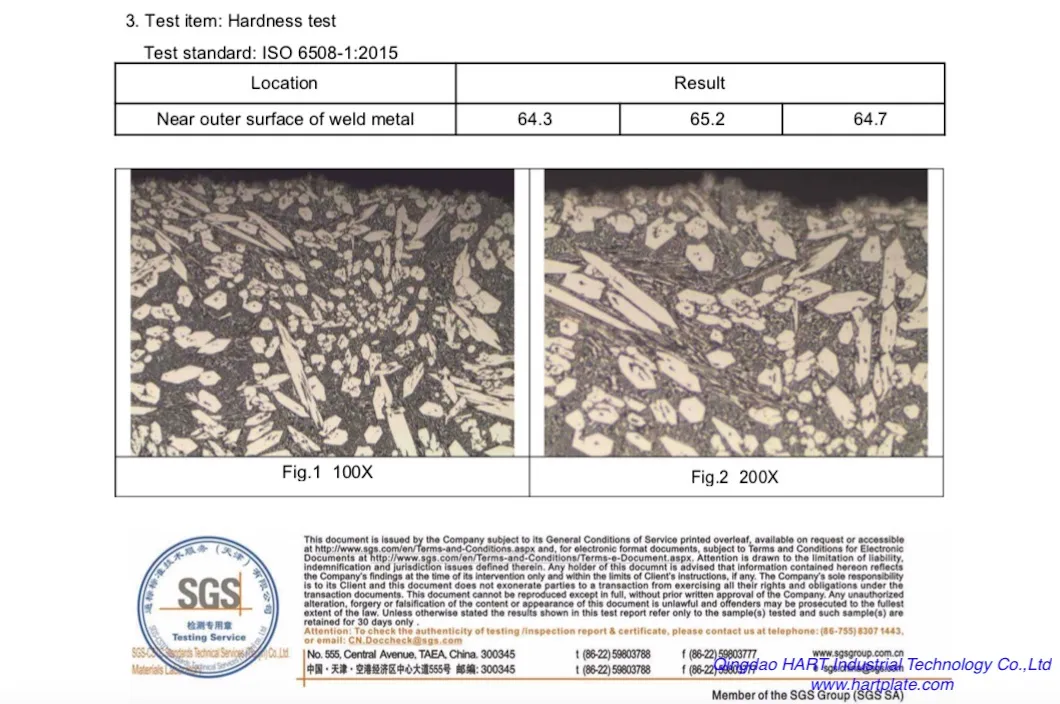

8. Microstructure:
Composed of a
high proportion of extremely hard primary M7C3 chromium rich carbides dispersed in a
ductile eutectic austenite matrix.Maintains 30% to 50% of primary carbides to provide a
good wear resistance and homogenous bonding.9. Typical Applications:
HART-P-100 Plate is widely used in the mining, power generation(Coal), cement, dredging, steel production, waste handling, glass production, and pulp and paper industries. Some specific applications include:

10. Wear properties of HART-P-100 (ASTM G65 and SGS test report)
*ASTM G65 is a
standard test measuring sliding abrasion resistance using a
dry sand/rubber wheel apparatus.

11. Service

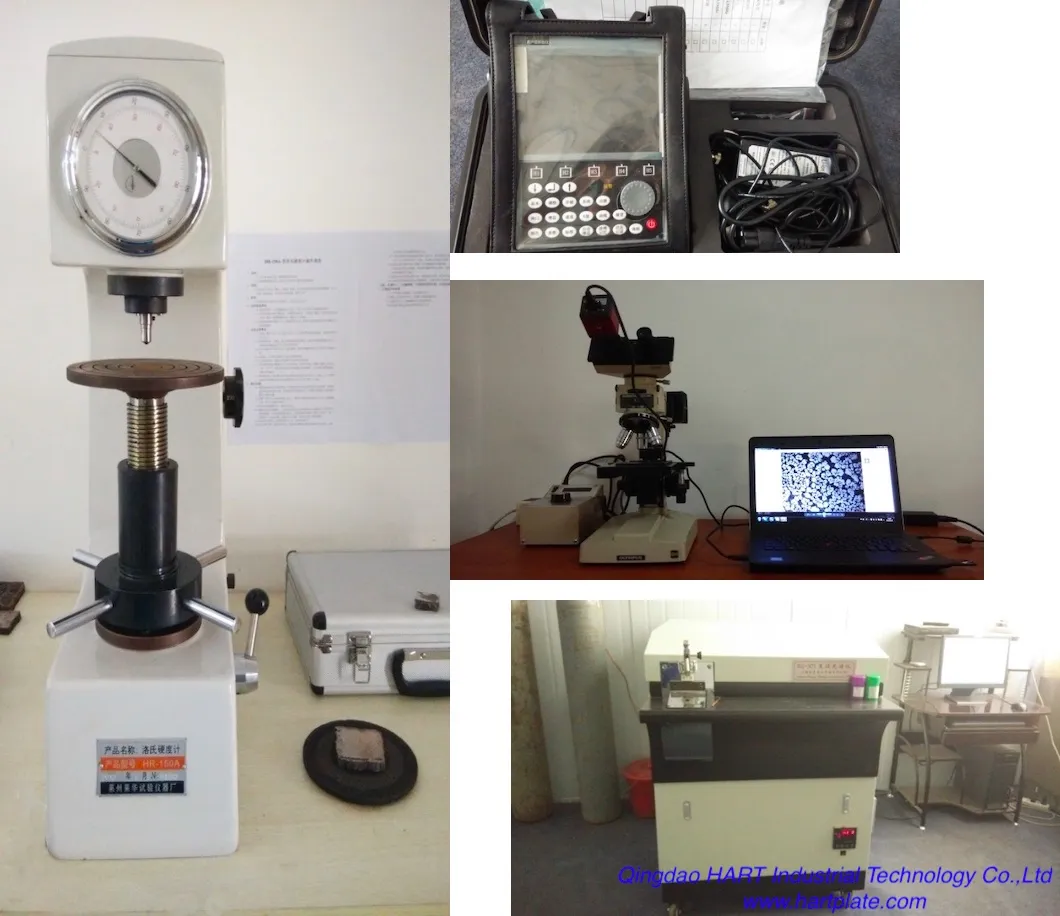

12. Testing and quality control

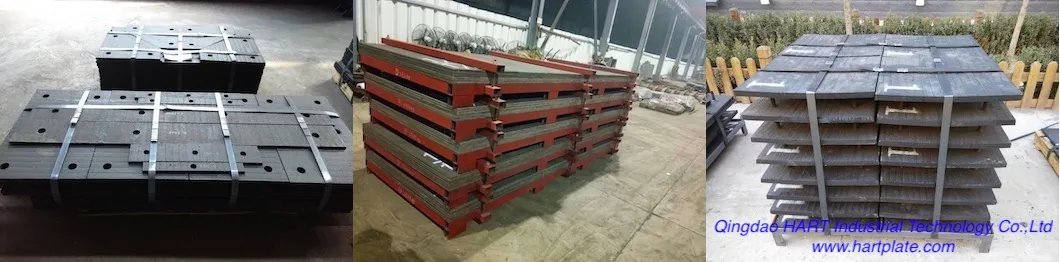

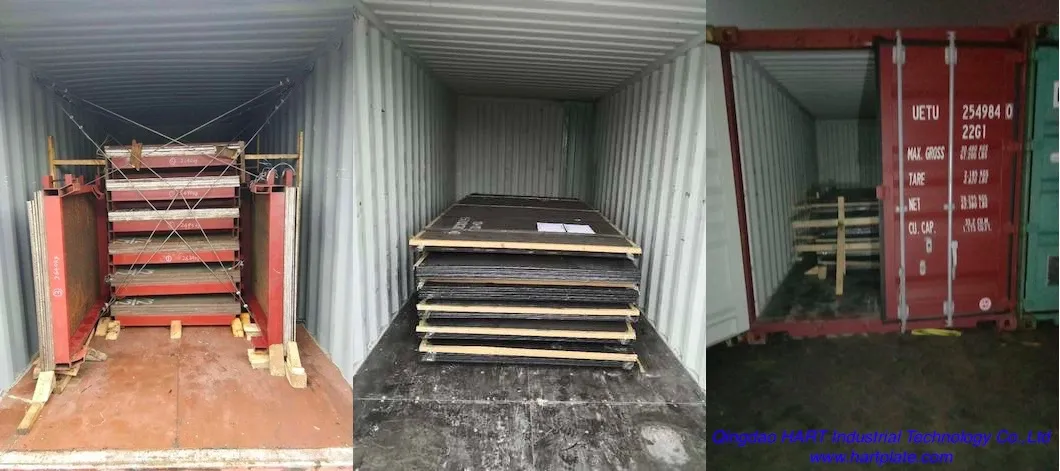

We documented how the product properties are tested in order to make sure the overlay plates fulfil the specified product properties. Including documentation on 3D party's quality system if calibration and testing is performed by 3D party.13. Packing and loading
