基本信息产品详情证书
基本信息
| 型号编号 | 旋转式钻井 |
| 认证 | ISO 9001:2000 |
| 条件 | 新 |
| 电机 | 交流电动机 |
| 钻井直径 | 六十四至七十五 |
| 钻井深度 | 超过 300 米 |
| 比特类型 | 钻石钻头 |
| 钻井法 | 化合物 |
| 重量 | 最大值55t |
| 额定负载 | 4500千牛 |
| 颜色 | 黄色或必填项 |
| 工作压力 | 2000~20000psi |
| 直径 | 3 3/4 英寸至 26 英寸 |
| 尺寸 | 3 3/4 英寸（95.3 毫米）到 26 英寸（660.4 毫米） |
| 交通总包 | 出口包装 |
| 规格 | 钻井万向节 |
| 商标 | 丁恩普 |
| 起源 | 中国 |
| 商品编码 | 84314310 |
| 生产能力 | 一千 |
产品详情
Product Description
Preview

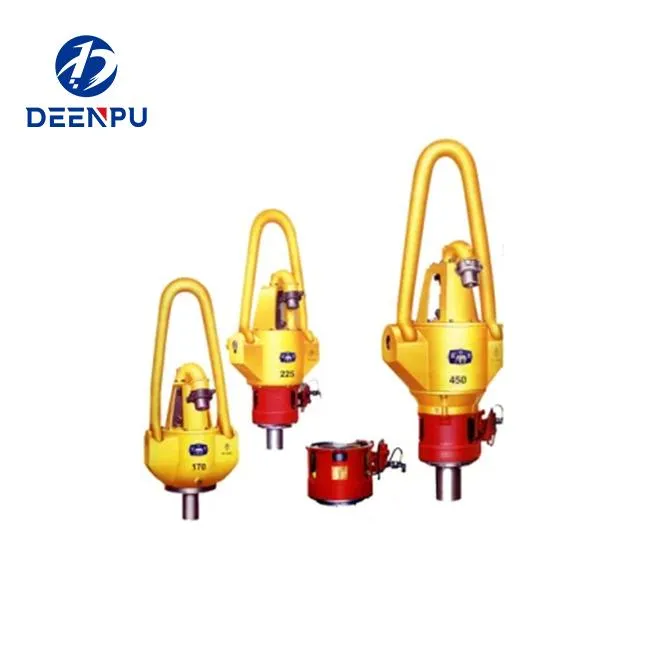

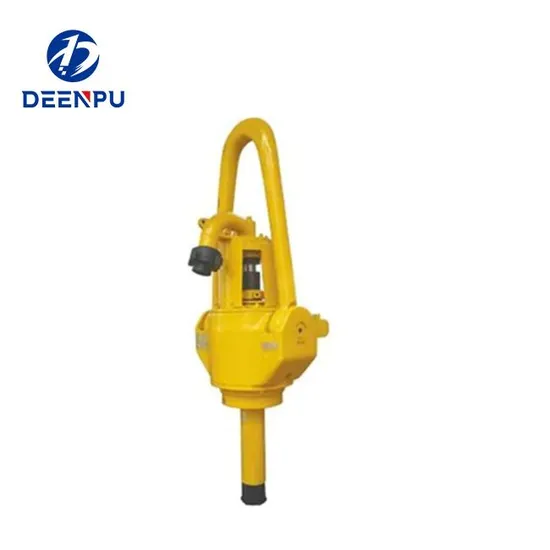

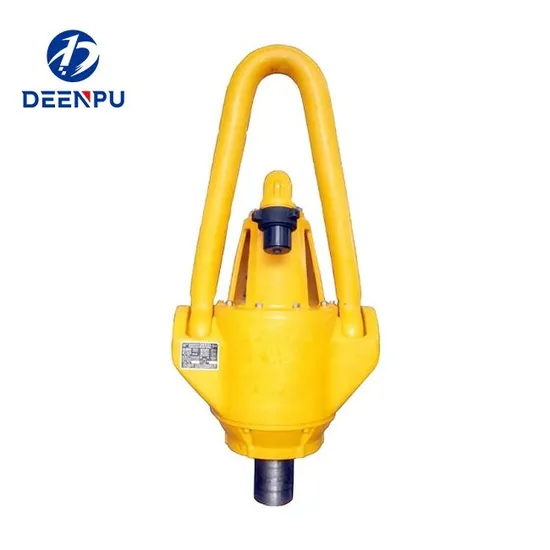

Drilling Swivel
Preview
Preview
Swivels has two categories,common swivel and double duty swivels.double duty swivels is common swivels combined with spinner, driven by air motor or hydraulic motor, with keyless connection adopted between spinner and central pipe of swivel. It is designed and manufactured according to API Spec 8C "Spec ific ation for Drilling and Product ion Hoisting Equipment" .Product Details:

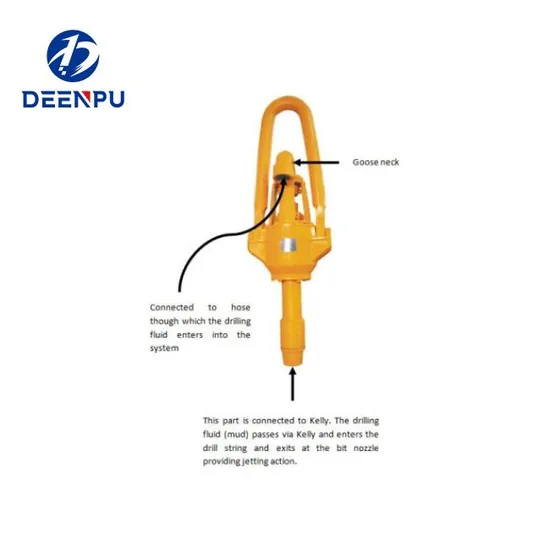

The swivels complies with API 8C standard .With standard bails and double pin alloy steel sub.The wash pipe and the packing assymbly are cartridge type and can be replaced on the floor without disconnecting the rotary hose and/or gooseneck.The gooseneck is procvided with an outlet for wire line logging.With standard gooseneck joints,Threads are in compliance with API 5B
Specifications:
The swivels complies with API 8C standard .With standard bails and double pin alloy steel sub.The wash pipe and the packing assymbly are cartridge type and can be replaced on the floor without disconnecting the rotary hose and/or gooseneck.The gooseneck is procvided with an outlet for wire line logging.With standard gooseneck joints,Threads are in compliance with API 5B
Specifications:
Preview
Preview
证书
标题：ISO 9001
Preview
油井用API 8A/8c SL35 SL 135 SL 450 旋转钻井万向头
￥724 ~ ￥7240
