基本信息
| 型号（NO.） | XJ450 |
| 条件 | 新（的） |
| 马达 | 交流电动机 |
| 钻井直径 | 大于300毫米 |
| 钻井深度 | 大于300米 |
| 位类型 | 钻石钻头 |
| 钻孔方式 | 旋转的 |
| 电压 | 24伏特/220伏特/380伏特 |
| 尺寸（长×宽×高） | 1850乘以3030乘以4200 |
| 重量 | 51500千克 |
| 认证级别 | API |
| 引擎功率 | 475马力 |
| 钻井深度 | 1200米 |
| 额定钩负荷 | 800千牛 |
| 最大钩载 | 1125千牛 |
| 底盘驾驶 | 10X8 |
| 进近/离场 | 25 |
| 最低离地间隙 | 310 |
| 德里克·海特 | 31.7米 |
| 起吊绳直径 | 26毫米 |
| 鼓 | 单鼓/双鼓 |
| 运输方案 | 裸体 |
| 规格 | 155立方米 |
| 商标 | 东海 |
| 起源 | 中国 |
| 商品编码 | 84295212 |
| 生产能力 | 200单位 |
产品详情
Product Description
Preview

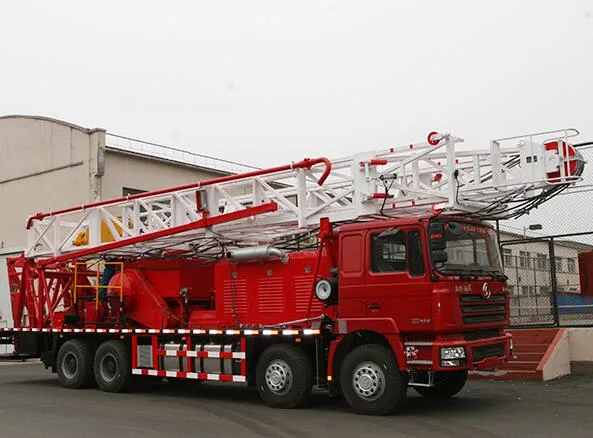

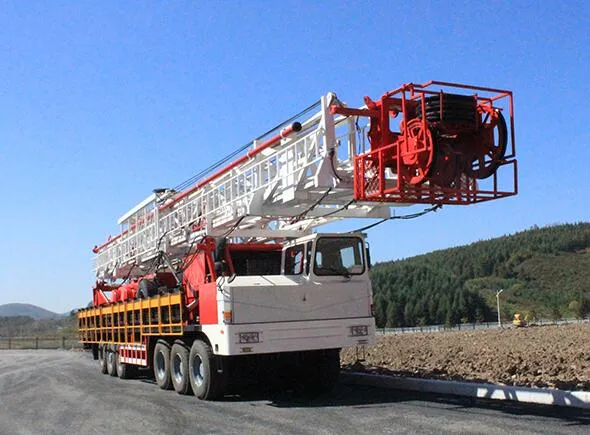

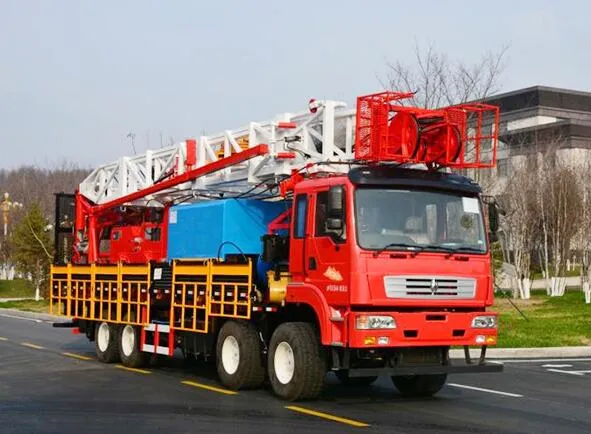

Chinese factory direct sell 80t workover drilling rig
>>MAIN FEATURES:
XJ450 (80t)workover& drilling rig is dedicated equipments for oilfield. The rig adopts 10x8 driven type chassis, Caterpillar engine and Allission transmission (can use China brand also),
and double drum draw-works. Max. hook load is 1125KN. The mast height is 31.7m. The rig equipped with rotary table, platform, and swivel etc.
Adopts double section hydraulic lifting, flexible mast, the height is 31.7m.
Equipped with double CAT C15 engine and Allission M5620AR transmission. The performance is stable and reliable.
The driven model of chassis is 10x8. Single cab. With heater.
The main drum adopts ATD224 disc brake, and assis brake is air control disk type brake.
Anti-collision crown block.
Fingerboard of monkey board is longitudinal arrangement, the beam space can be adjusted. Equipped with aid climbing implement and escape device.
All pneumatic pipelines adopt quick-coupling and pipeline.
Meter system adopts 24V DC, and lighting system supplied power by external AC power.
>>MAIN CONFIGURATION:
>> SPECIFICATIONS:
>>MAIN FEATURES:
XJ450 (80t)workover& drilling rig is dedicated equipments for oilfield. The rig adopts 10x8 driven type chassis, Caterpillar engine and Allission transmission (can use China brand also),
and double drum draw-works. Max. hook load is 1125KN. The mast height is 31.7m. The rig equipped with rotary table, platform, and swivel etc.
Adopts double section hydraulic lifting, flexible mast, the height is 31.7m.
Equipped with double CAT C15 engine and Allission M5620AR transmission. The performance is stable and reliable.
The driven model of chassis is 10x8. Single cab. With heater.
The main drum adopts ATD224 disc brake, and assis brake is air control disk type brake.
Anti-collision crown block.
Fingerboard of monkey board is longitudinal arrangement, the beam space can be adjusted. Equipped with aid climbing implement and escape device.
All pneumatic pipelines adopt quick-coupling and pipeline.
Meter system adopts 24V DC, and lighting system supplied power by external AC power.
>>MAIN CONFIGURATION:
>> SPECIFICATIONS:
Preview
Preview
Photos:
Preview
Preview
Preview
Preview
Preview
Preview
