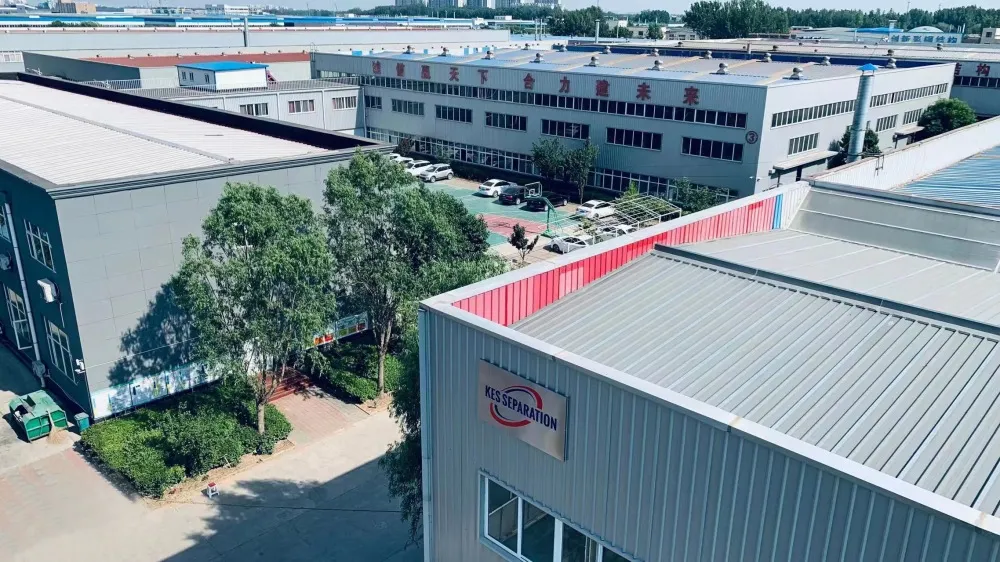

We are registered in an area with preferential tax policies in Tianjin to save costs and better benefit customers. Our company factory is located in Chaobai River Industry Zone, Langfang City, about 40km from Beijing Capital Airport and about 100km from Beijing Daxing International Airport. We are close to Tianjin Seaport, about 200km. Normally we can cover the inland transportation cost to benefit more to customers.Main Products of KES Separation:Shale Shaker, Vacuum Shale Shaker, High G Drying Shaker, Shaker Screen, Vacuum Degasser, Mud Cleaner, Desander, Desilter, Decanter Centrifuges, Disc Centrifuges or Disc separators, Mud Agitator, Centrifugal Pump, Shear Pump, Submersible Slurry Pump, Screw Pump, Mud Gas Separator, Flare Ignition Device, Jet Mud Mixer, Vertical Cuttings Dryer, Vacuum Solids Convey Pump, Screw Conveyor, Mud Tanks, Water Tanks, Oil Tanks etc.Turnkey Solutions provided by KES Separation:Oil gas drilling solids control mud system, drilling waste management system, oil sludge treatment system, HDD mud recycling mud system, municipal mud recovery system, CBM drilling mud system, TBM and bored piling mud cleaning mud system, mining drilling mud recovery mud system, river dredging system.

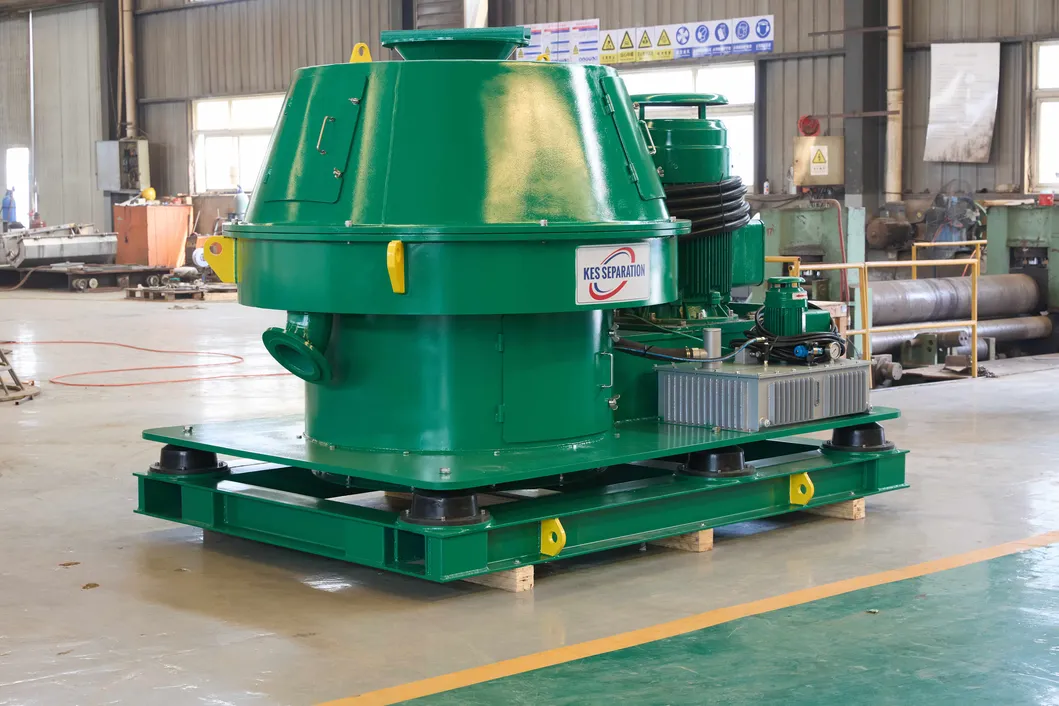

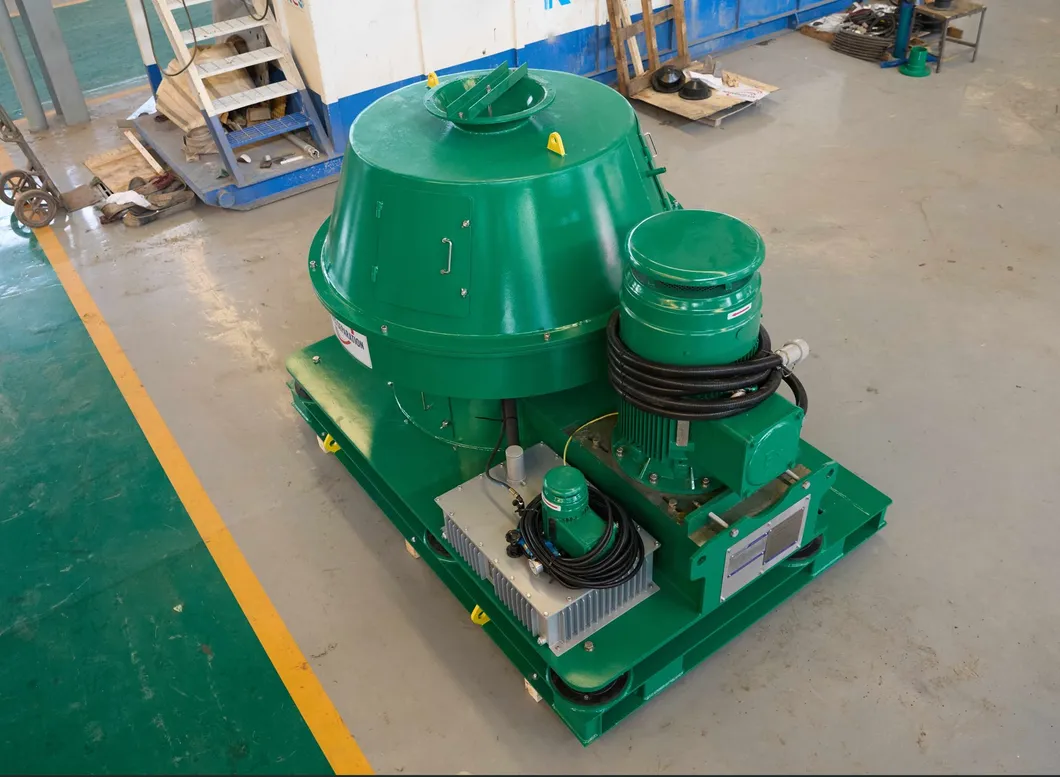

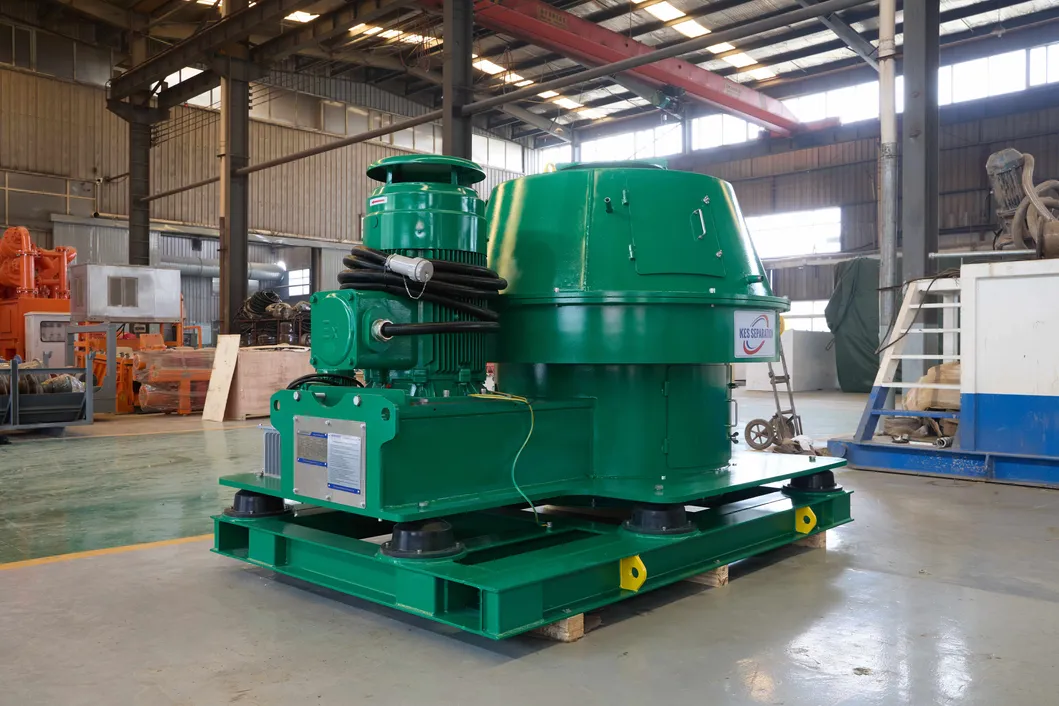

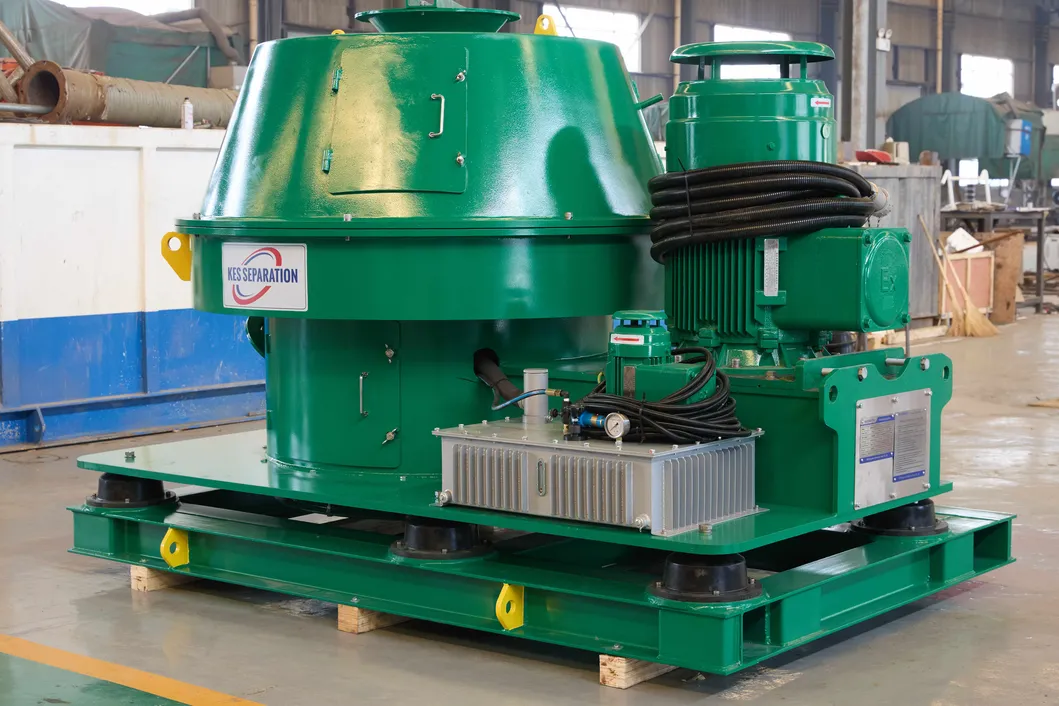

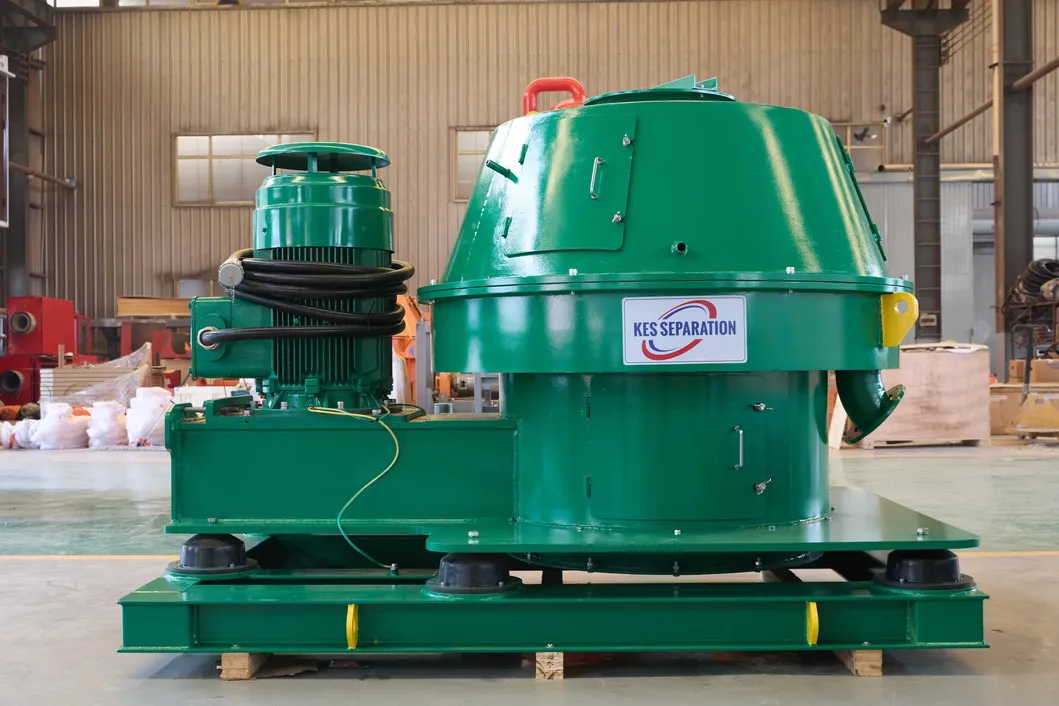

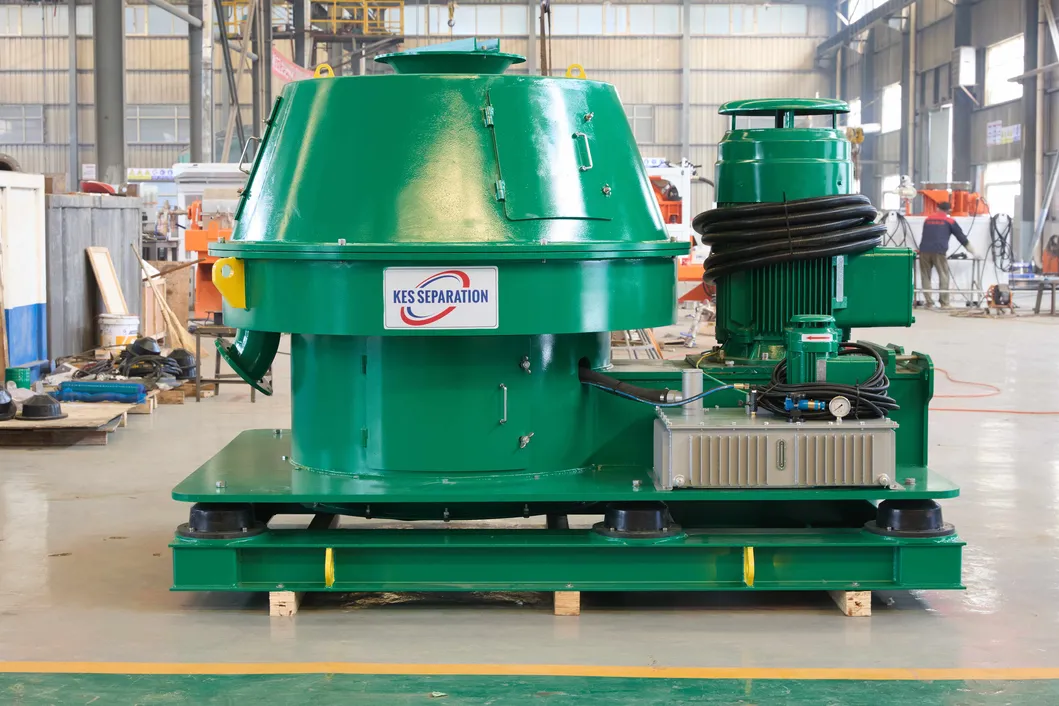

On-line Drilling Cuttings is generated from the whole drilling process. The cuttings will be carried out by drilling fluids, and then separated by solids control / waste management systems. The first stage separating equipment is shale shaker.After shaker separation, the fine cuttings will drop down to under tank with drilling fluids, and the coarse cuttings will be separated and treated by vertical cutting dryer.
The main function of vertical dryer is to recover the useful oil based mud, reduce the oil content on cuttings (OOC) and reduce the total volume of cuttings which will be finally treated by Thermal Desorption Unit. The recovered oil based mud will be returned to active mud system. Some conditions, the operator will adopt High G dryer or high G shaker to replace the Vertical dryer to achieve same functions. Even, the performance of High G dryer is not as good as Vertical Cutting Dryer, the oil on cuttings will be around 10% after high G dryer, but all choices is depends on the owner's requirements.
Product Parameters
Technical Features
1. 420G High G force under 900 rpm regular operation speed;
2. 750G High G force under 1200 rpm higher operation speed for option.3. Vertical Cutting Dryer can be started with fixed speed control or VFD control;
4. Main electrical components sourced from international brand: SIEMENS, Schneider or ABB;

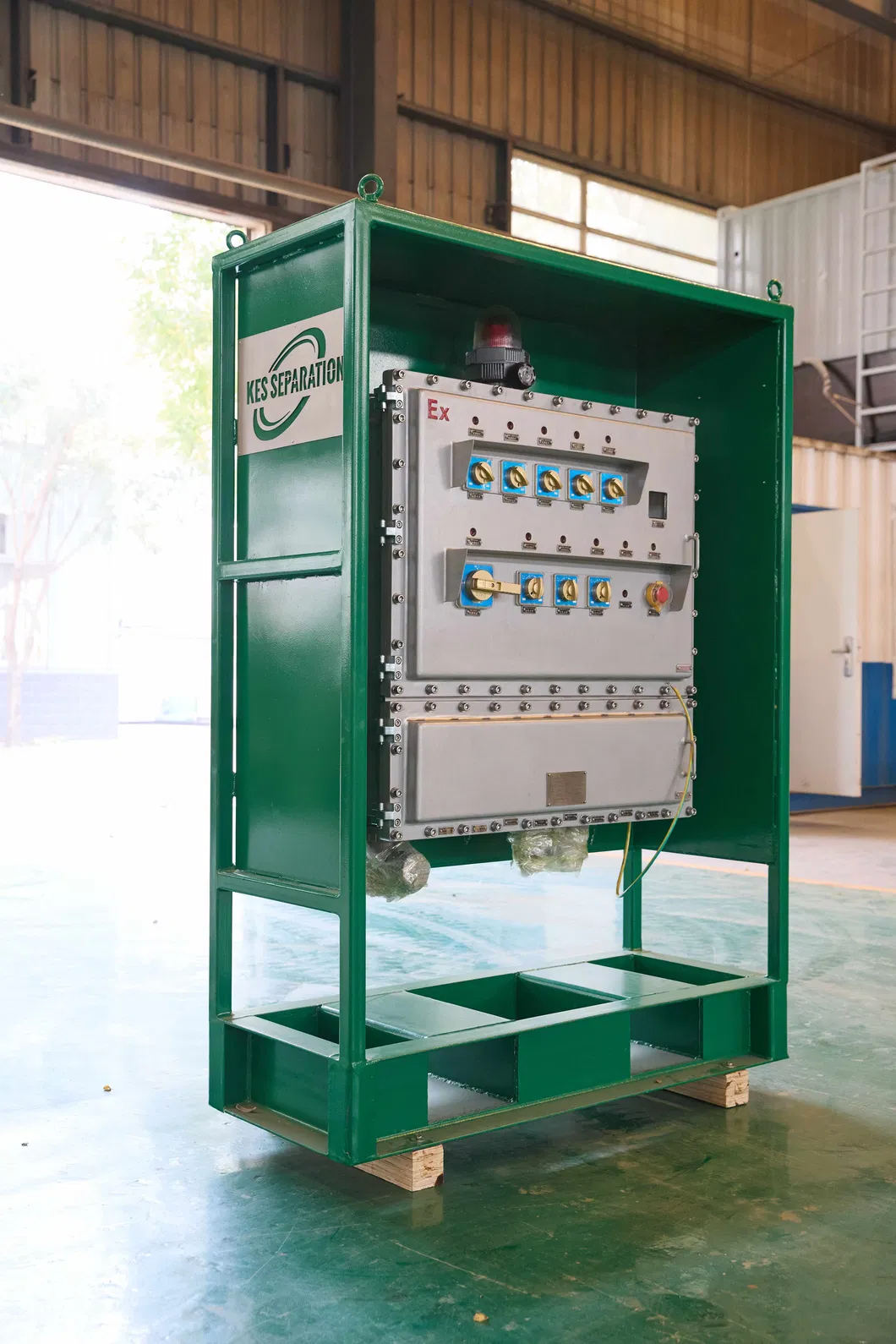

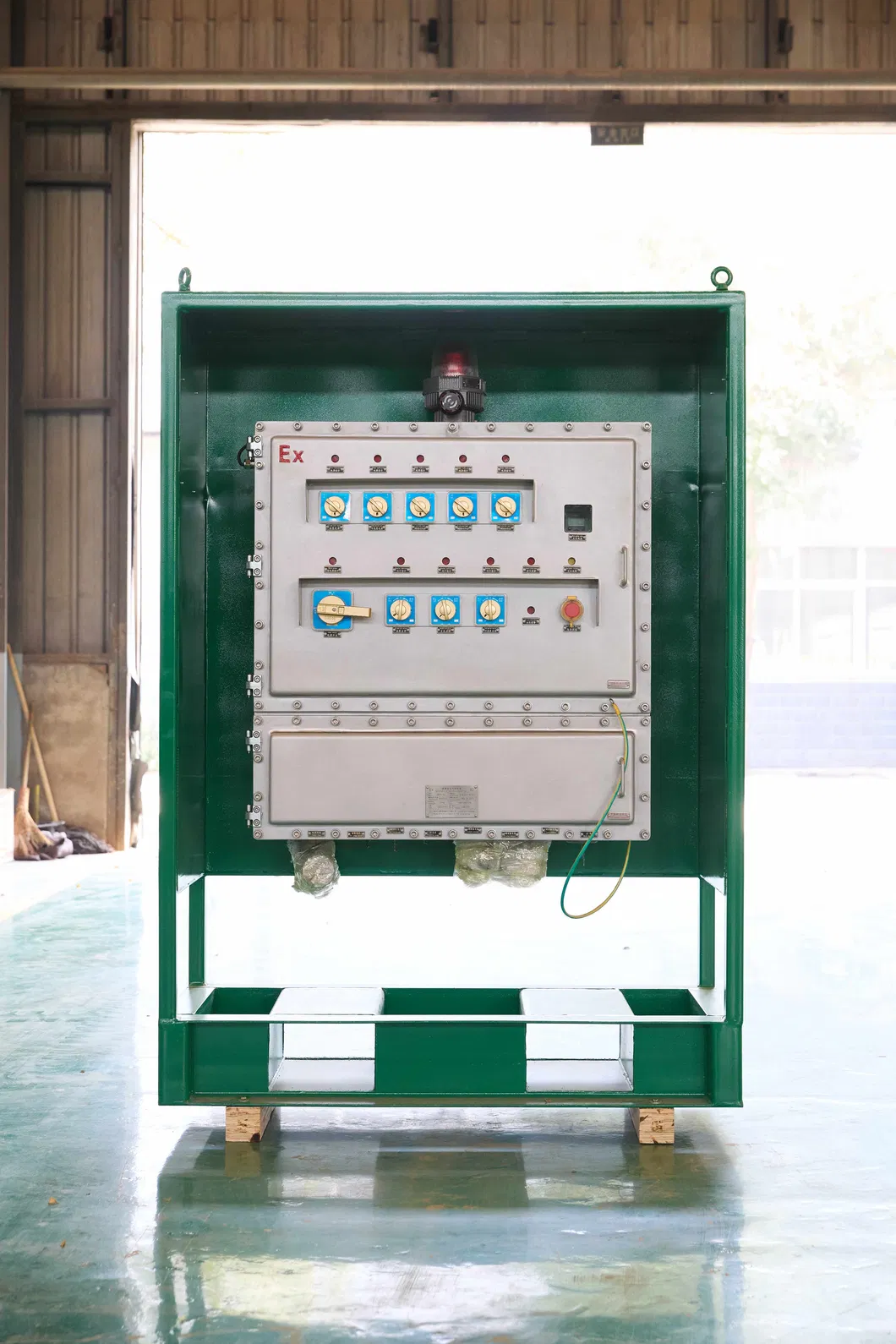

5. The Ex-proof standard normally comply with China Standard EXDIIBT4, IEC/ATEX for option;
6. The main bearings are Spherical Roller Bearings, source from FAG Brand;
7. The Flights on the rotor is hard facing to HRC 65, with longer lifetime;
8. The Flights and the rotor assembly are individually balanced for easy replacement;
9. The screen basket material is Stainless Steel 316L, better performance in ani-corrosion;
10. The screen basket is processed in high precision and dynamic balance to ensure better balance and easy replacement;
11. Equipped with high pressure air cutter to clean the high viscosity mud sticking on the screen basket;
12. Equipped with water jetting system to work together with air cutter, to avoid screen block;
13. Individual oil lubrication system with low pressure automatic alarm;
14. Dryer motor and oil system motor is interlocked, the dryer can be started only after starting the oil pump.
