Casing Head Spool Well Control Equipment

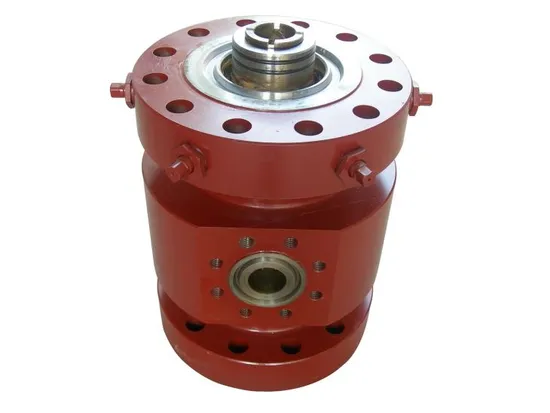

The casing head is a wellhead device component installed at the upper end of the surface casing string, used to suspend the interlayer casing outside the surface casing and seal the annular space of the casing. Its main functions are as follows: 1. Suspend some or all of the weight of each layer of casing except for the surface casing through a hanger; 2. Connect wellhead devices such as blowout preventers; 3. Establish a pressure seal between the inner and outer casing columns; 4. Provide an outlet to release pressure that may accumulate between the two layers of casing strings; 5. In emergency situations, fluid such as well killing fluid or fire extinguishing agent can be pumped into the well from the side hole of the casing head; 6. Special assignments:
a If the cementing quality is poor, additional cement can be injected from the side hole;
b. During acid fracturing, pressure balancing fluid can be injected from the side hole. Designed and manufactured according to API Spec 6A.

1.Can accept various slips and spindle sleeve hangers.2.Three different types of outlets: pipeline pipe, flange (double ended) extension flange outlet.3. Multiple bottom connections, such as sliding welding, sliding welding with O-rings, threaded connections, and reliable locking.4. Locking screws in the top flange.
