基本信息产品详情
基本信息
型号编号 | HTDFR |
表面处理 | 加聚氯乙烯涂层的 |
玻璃纤维类型 | 玻璃布 |
定制 | OEM工厂 |
轧制重量 | 18公斤至23公斤 |
bobbin的直径 | 32 厘米 |
类型 | 直管加捻丝,喷射加捻丝 |
兼容性树脂 | 向上、Ve、环氧树脂、酚醛树脂 |
服务 | 巨石集团、CPIC、泰山 |
交货时间 | 3-7天 |
样本 | 免费 |
20尺货柜集装箱中的数量 | 19550千克 |
运输包 | 塑料薄膜和托盘 |
规格 | 140特克斯 300特克斯 1200特克斯 2400特克斯 4800特克斯 9600特克斯 |
商标 | 亨特德 |
起源 | 中国 |
商品编码 | 70191200 |
生产能力 | 每月3万吨 |
包装尺寸 | 30.00cm乘以30.00cm乘以30.00cm |
包装总重量 | 1.000千克 |
包装大小 | 30.00cm乘以30.00cm乘以30.00cm |
包总重 | 1千克 |
产品详情
Product Description
Preview

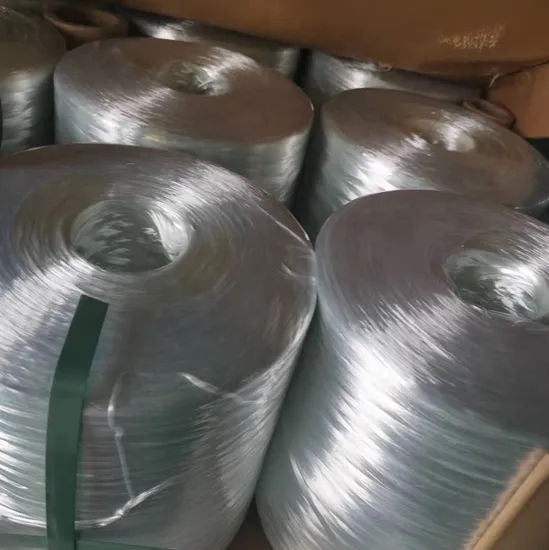

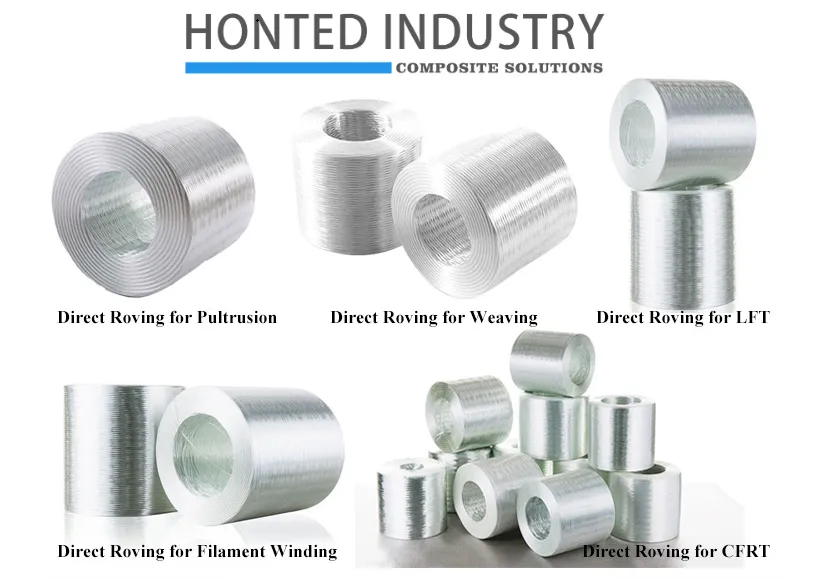

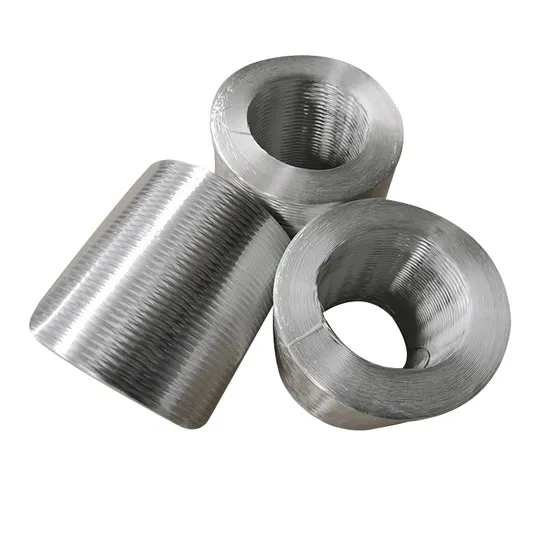

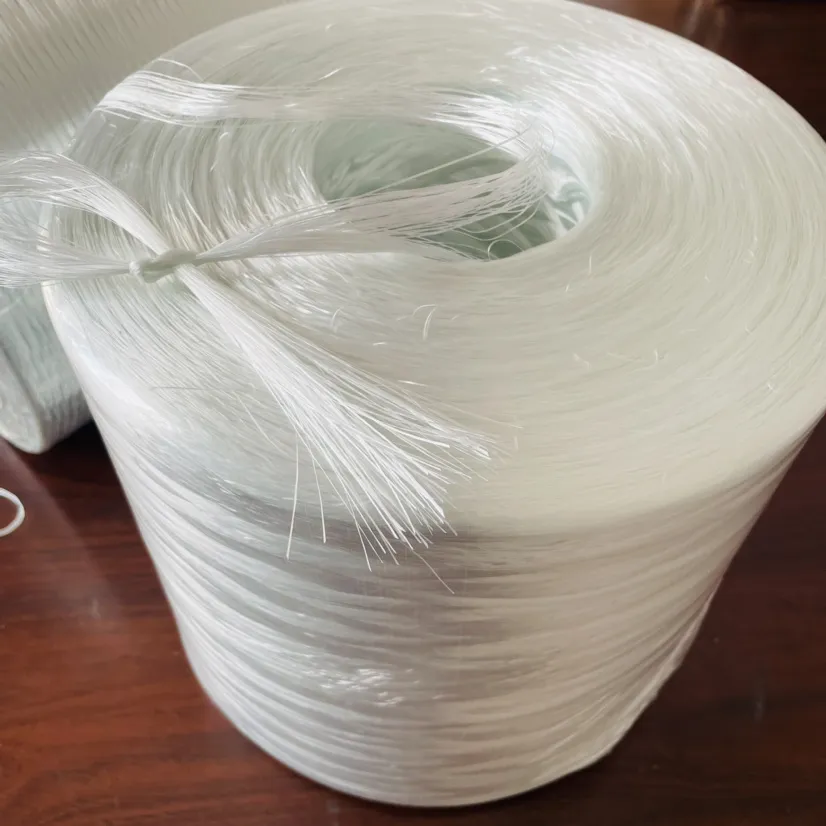

→Fiberglass Direct Roving:
Which
is coated with a silane-based sizing and compatible with unsaturated resin, vinyl resin, and epoxy resin. It used to produce gratings, various rods and profiles. Main uses include manufacture of FRP pipes of various diameters, high-pressure pipes for petroleum transitions, pressure vessels, storage tanks, and, insulation materials such as utility rods and insulation tube.
It's also called Single-end roving is the primary reinforcement for filament winding and pultrusion applications and is the input fiber used to produce woven roving and knitted fabrics.
The Roving range 140Tex, 200Tex, 300Tex, 600Tex, 1000Tex, 1200Tex, 2000Tex, 2400Tex, 4000Tex, 4800Tex, 8800Tex, 9600Tex
OEM facotry, we can customize the roving as your requirements.
Which
is coated with a silane-based sizing and compatible with unsaturated resin, vinyl resin, and epoxy resin. It used to produce gratings, various rods and profiles. Main uses include manufacture of FRP pipes of various diameters, high-pressure pipes for petroleum transitions, pressure vessels, storage tanks, and, insulation materials such as utility rods and insulation tube.
It's also called Single-end roving is the primary reinforcement for filament winding and pultrusion applications and is the input fiber used to produce woven roving and knitted fabrics.
The Roving range 140Tex, 200Tex, 300Tex, 600Tex, 1000Tex, 1200Tex, 2000Tex, 2400Tex, 4000Tex, 4800Tex, 8800Tex, 9600Tex
OEM facotry, we can customize the roving as your requirements.
Preview

Preview
Single-end continuous rovings are produced by pulling glass fibers directly from the furnace bushing, applying sizing to the cooling fibers, and winding them into a roving package or doff. Because of its excellent dry tensile strength, single-end rovings are ideal for high glass content applications like pultrusion and
filament winding. Because the fiber is used as input for woven roving and knitted fabrics, single-end rovings are also widely use in open mold and infusion applications when configured into fabrics.
filament winding. Because the fiber is used as input for woven roving and knitted fabrics, single-end rovings are also widely use in open mold and infusion applications when configured into fabrics.
Preview

Preview
FeaturesExcellent process
Low fuzz
Low frequency in machine clean-up
Low sizing migration and good roller compacted performance
Suitable for high speed process
Various resins compatible

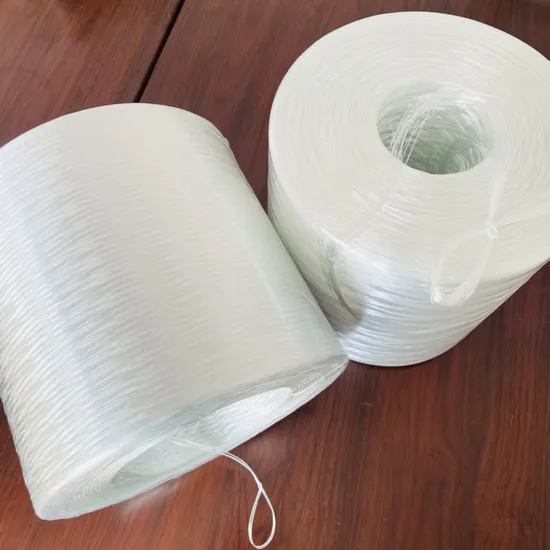

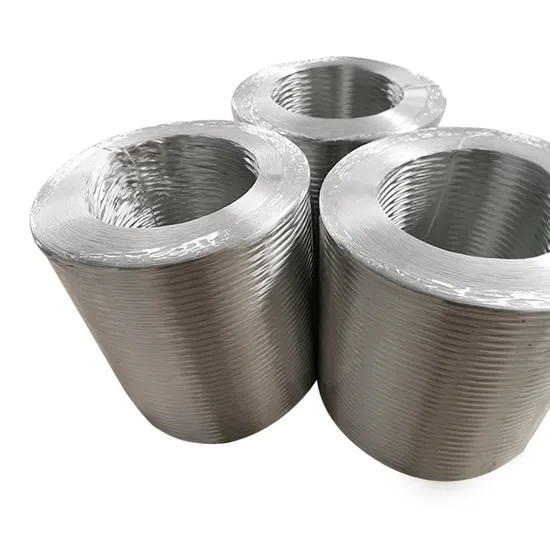

→Assembled Fiberglass Roving:
Which is compatible with unsaturated polyester resin.It delivers properties of low static,excellent dispersion and good wet out in resins.It is mainly used in bathroom,vessels and etc.
It's also called Gun Roving / Spray up roving
/ Multi ends Roving which
is used in the spray-up (chopping) molding process and is the reinforcement of choice for high production open mold manufacturing.
Low fuzz
Low frequency in machine clean-up
Low sizing migration and good roller compacted performance
Suitable for high speed process
Various resins compatible
→Assembled Fiberglass Roving:
Which is compatible with unsaturated polyester resin.It delivers properties of low static,excellent dispersion and good wet out in resins.It is mainly used in bathroom,vessels and etc.
It's also called Gun Roving / Spray up roving
/ Multi ends Roving which
is used in the spray-up (chopping) molding process and is the reinforcement of choice for high production open mold manufacturing.
Preview

Preview
Gun Roving (also known as continuous strand roving) is comprised of many small diameter fiberglass filaments that are combined to form a roving fiber bundle that is wound into a doff or a creel. In the spray-up process, the continuous roving strand is fed into a chopper gun that chops the strands into short lengths and deposits the fiber into a resin spray pattern for application on the mold surface. In this way, the wet-out glass laminate is created from the spray gun. The laminate is then rolled to remove entrapped air and the laminate cures. Gun Roving used in the chopping process provides fast production of larger parts like boat hulls, RV parts, and swimming pools and is the most common reinforcement used in
open mold manufacturing.
Gun Roving (also known as continuous strand roving) is comprised of many small diameter fiberglass filaments that are combined to form a roving fiber bundle that is wound into a doff or a creel. In the spray-up process, the continuous roving strand is fed into a chopper gun that chops the strands into short lengths and deposits the fiber into a resin spray pattern for application on the mold surface. In this way, the wet-out glass laminate is created from the spray gun. The laminate is then rolled to remove entrapped air and the laminate cures. Gun Roving used in the chopping process provides fast production of larger parts like boat hulls, RV parts, and swimming pools and is the most common reinforcement used in
open mold manufacturing.FeaturesEven tensionFast and sufficient wet outHigh mechanical propertiesNo fuzzExcellent dispersibility
Even tension
Fast and sufficient wet out
High mechanical properties
No fuzz
Excellent dispersibility
open mold manufacturing.
Gun Roving (also known as continuous strand roving) is comprised of many small diameter fiberglass filaments that are combined to form a roving fiber bundle that is wound into a doff or a creel. In the spray-up process, the continuous roving strand is fed into a chopper gun that chops the strands into short lengths and deposits the fiber into a resin spray pattern for application on the mold surface. In this way, the wet-out glass laminate is created from the spray gun. The laminate is then rolled to remove entrapped air and the laminate cures. Gun Roving used in the chopping process provides fast production of larger parts like boat hulls, RV parts, and swimming pools and is the most common reinforcement used in
open mold manufacturing.FeaturesEven tensionFast and sufficient wet outHigh mechanical propertiesNo fuzzExcellent dispersibility
Even tension
Fast and sufficient wet out
High mechanical properties
No fuzz
Excellent dispersibility
Preview

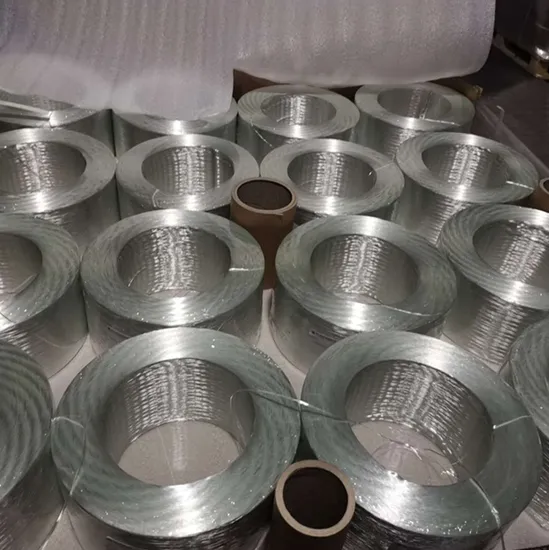

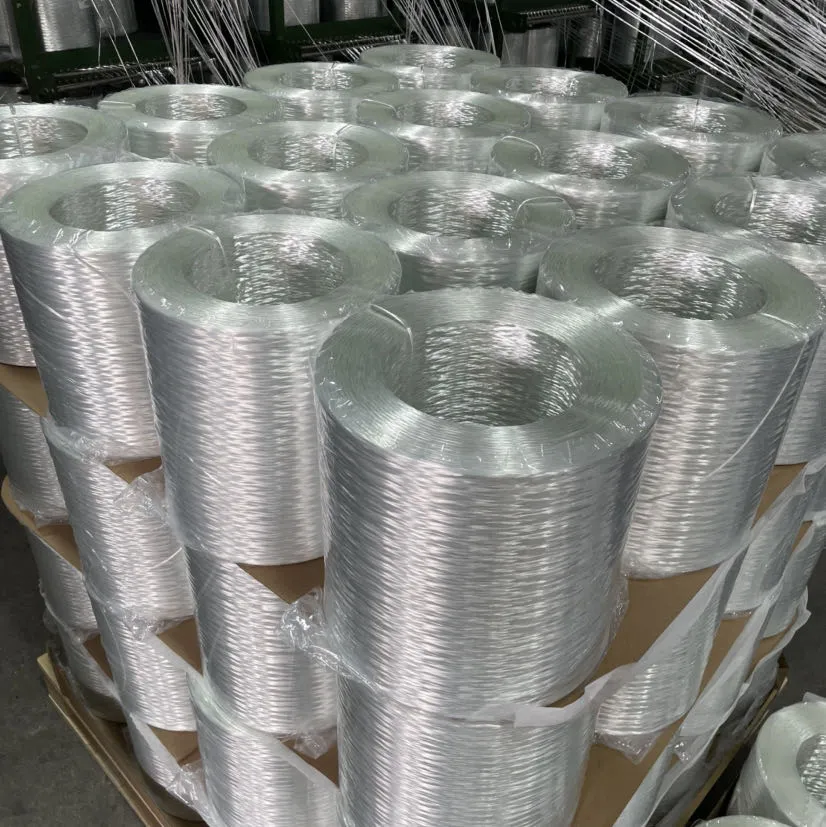

Packaging & Shipping
Preview
The product can be packed on pallet or in small cardboard boxes.
Related Products
Woven Roving
Stitched Mat
WR Combo Mat
Surface Tissue
Fiberglass Cloth
Multiaxial Fabric Mat
Related Products
Woven Roving
Stitched Mat
WR Combo Mat
Surface Tissue
Fiberglass Cloth
Multiaxial Fabric Mat
Storage
Unless otherwise specified, the fiberglass products should be in dry, cool and moisture-proof area. The room temperature and humidity should be always maintained at 15ºC~35ºC and 35%~65%. It is best if the price is used within 12 months after production date. The fiberglass products should remain in their original packaging until just prior to user.
To ensure safety and avoid damage to the product, the pallets not be stacked more than three layers high. When the pallets are stacked in 2 or 3 layers, special care should be taken to correctly and smoothly move the top pallet.
Application
Related Products
Woven Roving
Stitched Mat
WR Combo Mat
Surface Tissue
Fiberglass Cloth
Multiaxial Fabric Mat
Related Products
Woven Roving
Stitched Mat
WR Combo Mat
Surface Tissue
Fiberglass Cloth
Multiaxial Fabric Mat
Storage
Unless otherwise specified, the fiberglass products should be in dry, cool and moisture-proof area. The room temperature and humidity should be always maintained at 15ºC~35ºC and 35%~65%. It is best if the price is used within 12 months after production date. The fiberglass products should remain in their original packaging until just prior to user.
To ensure safety and avoid damage to the product, the pallets not be stacked more than three layers high. When the pallets are stacked in 2 or 3 layers, special care should be taken to correctly and smoothly move the top pallet.
Application
Preview

Preview

Preview
FAQ
Preview
1. What is your terms of packing?
Generally, we pack our goods in carton with pallet
1. What is your terms of packing?
Generally, we pack our goods in carton with pallet2. What is your tems of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.3. What is your terms of delivery?
EXW, FOB, CFR, CIF,L/C at sight4. How about your delivery time?
Generally, it will take 21 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.5. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.6. What is your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.3. What is your terms of delivery?
EXW, FOB, CFR, CIF,L/C at sight4. How about your delivery time?
Generally, it will take 21 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.5. Can you produce according to the samples?
6. What is your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
7. Do you test all your good before delivery?
Generally, we pack our goods in carton with pallet
1. What is your terms of packing?
Generally, we pack our goods in carton with pallet2. What is your tems of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.3. What is your terms of delivery?
EXW, FOB, CFR, CIF,L/C at sight4. How about your delivery time?
Generally, it will take 21 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.5. Can you produce according to the samples?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.6. What is your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.3. What is your terms of delivery?
EXW, FOB, CFR, CIF,L/C at sight4. How about your delivery time?
Generally, it will take 21 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.5. Can you produce according to the samples?
6. What is your sample policy?
We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
7. Do you test all your good before delivery?
