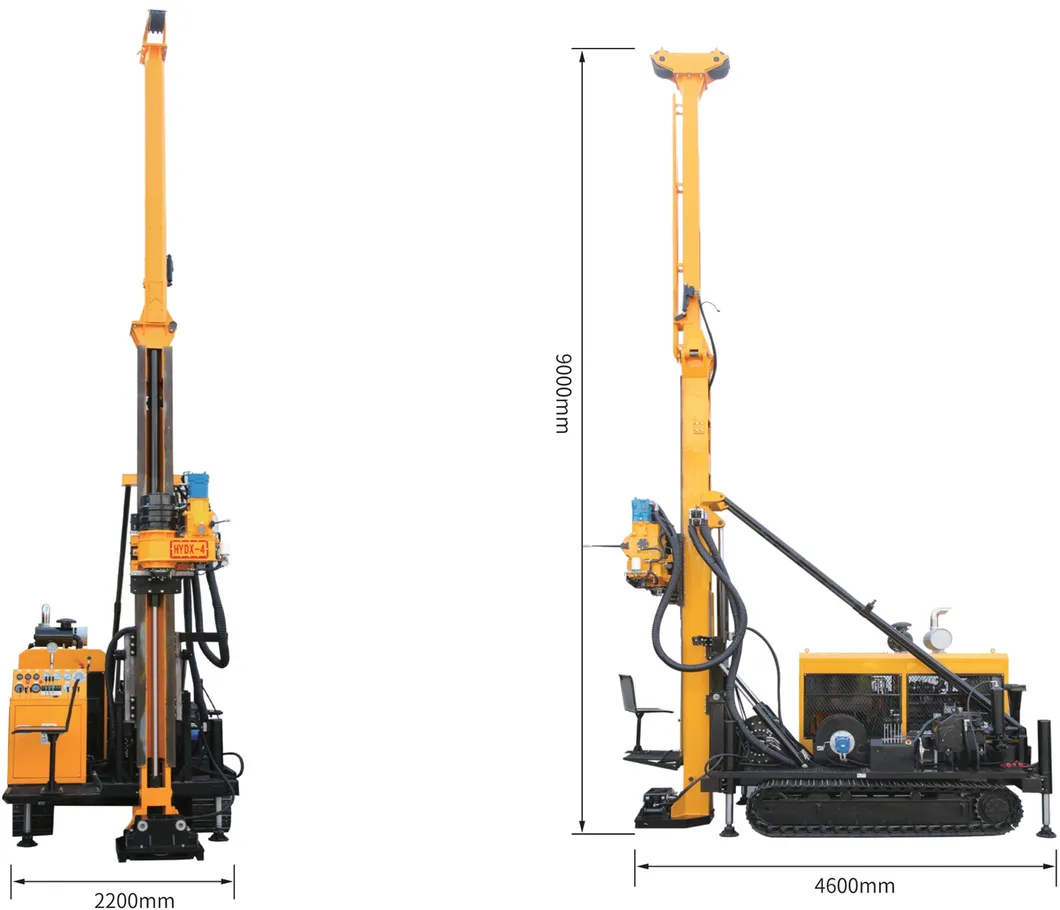

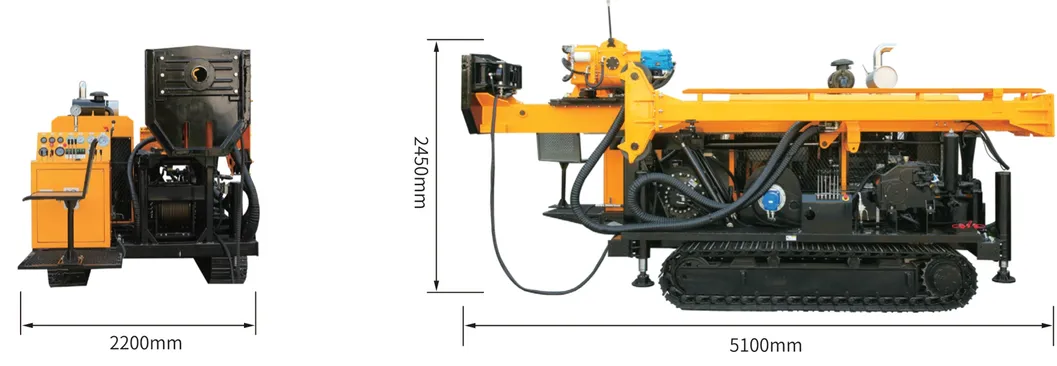

Transport DimensionsWorking DimensionsMain Components

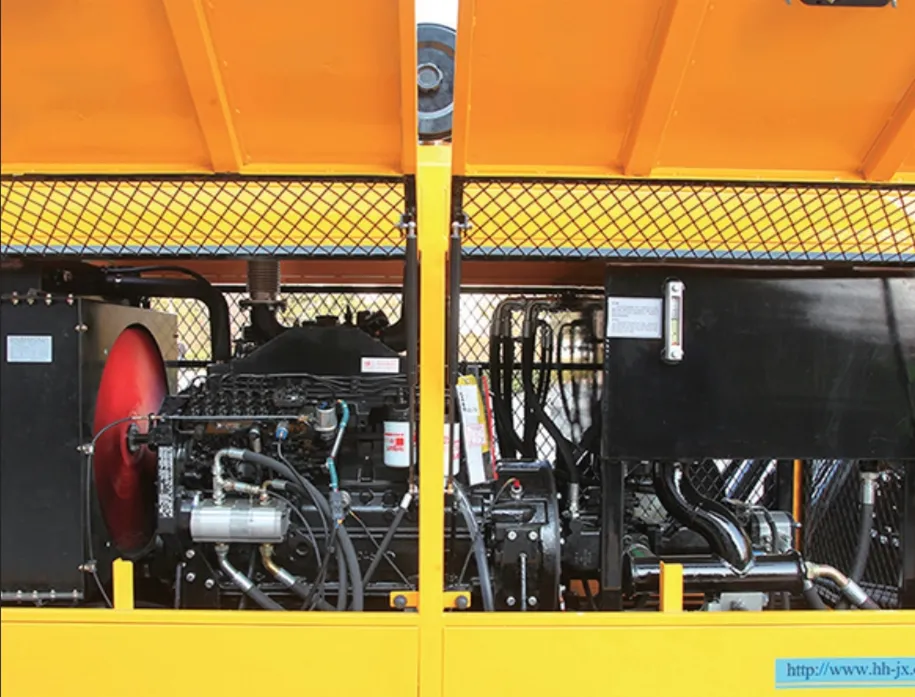

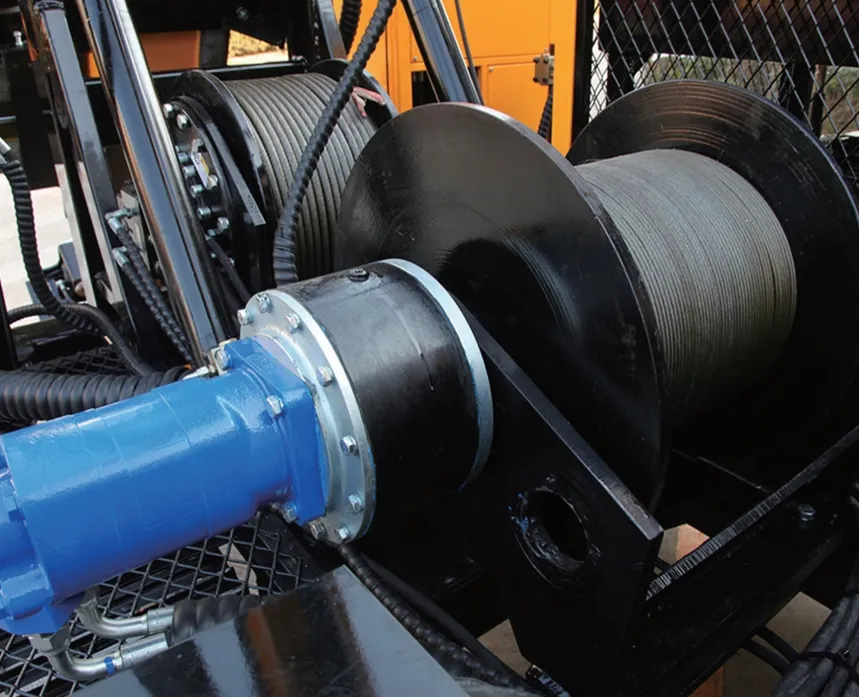

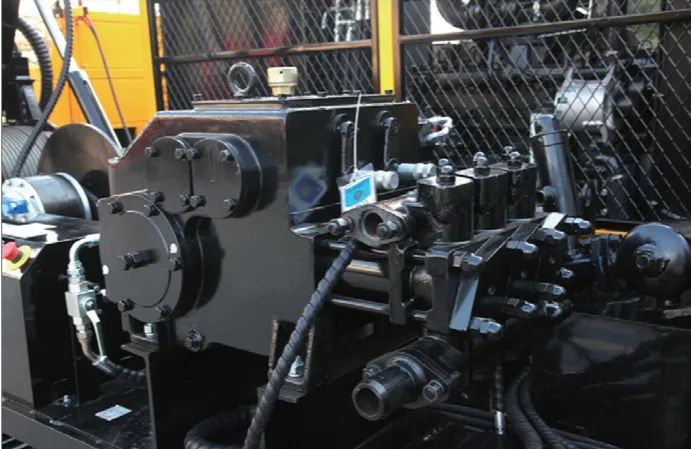

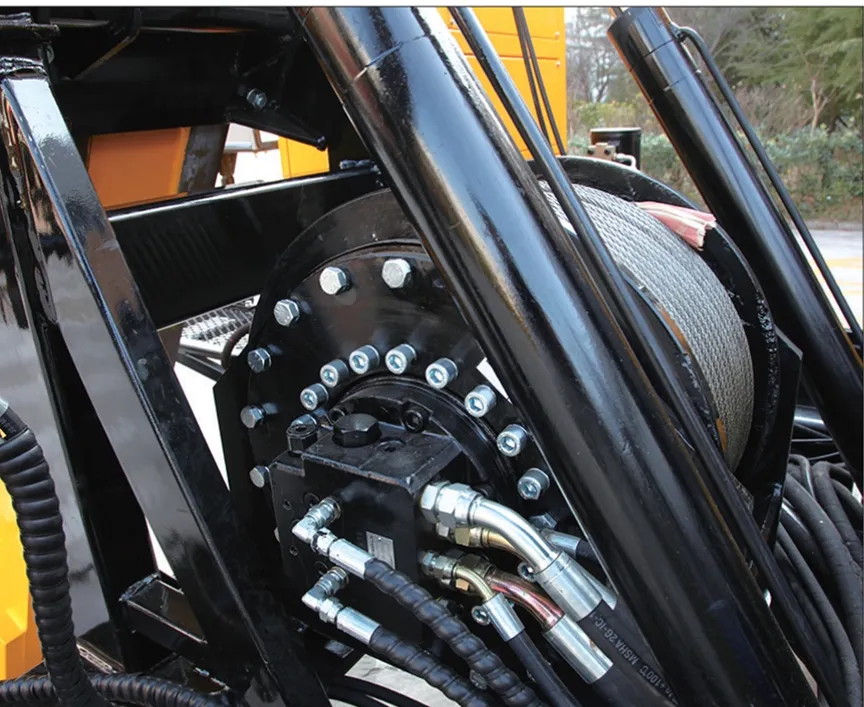

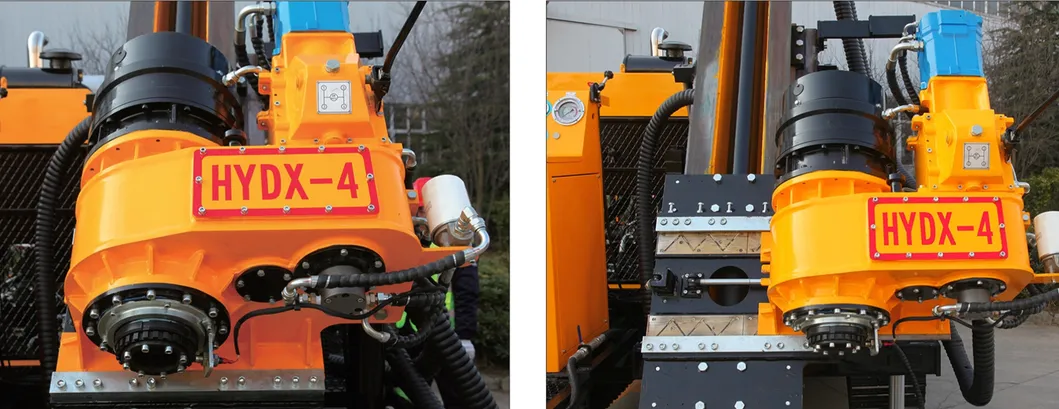

1. Main Hoist2. Auxiliary Winch3.Mud Pump4. Drill Head5. Diesel Engine+Radiator+Triplex Pump
Main Features
1.Reliable Quality
Diesel engine, hydraulic pumps, main valves, hydraulic motors, travel drives are all adopted from well-known brands at home and abroad.2. High Efficiency
Powerful driving force, reasonable and practical design, easy controlling mode can guarantee high operation efficiency of the rig.3. Energy Saving
The advanced load-sensor-controlling technology makes the rig reduce its consumption of driving force and heat discharge to the minimum extent.4. Environmental Protection
The diesel engine is professionally designed with low emission of noise and pollutants.5. Safety
There are warning marks and safety guards on the rig. Drill head set with lateral translation mechanism to reduce the working height.Functional Advantages
1.The rig adopts full hydraulic driving system, which is easy in operation and maintenance. The hydraulic system adopts load sensitive control, and the rotation of the spindle is driven by single motor with closed loop circuit, with high operation efficiency and big torque.2. The diesel engine is directly connected with the hydraulic pump through the coupling, with low capacity loss and easy maintenance.3. Hydraulic chuck adopts disc spring clamping hydraulic opening structure, which is safe and reliable.4. The rotation of drill head is driven by variable hydraulic pump and motor, set with 4
gear stepless speed adjustment. Drill head is driven by cylinder directly,
the actions are smooth reliabe. Drill head set with lateral translation mechanism to reduce the working height. Drill head set with self-lubricating system.5.The mast is foldable. It is easy for transportation and with touchdown function. The rig is equipped with centering guide in its upper and lower part. The hydraulic clamp is adopted to the top of drilling hole.Technical Parameters
