基本信息
型号 | JDL-350 |
条件 | 新 |
马达 | 柴油机 |
钻井直径 | 76-300毫米 |
钻井深度 | 350-800米 |
比特类型 | 钻石钻头 |
德拉灵路 | 旋转的 |
特征 | 泥浆和空气钻井 |
用法 | 地质/矿产勘探 |
旋转式头 | 机械顶驱 |
正向旋转速度 | 每分钟27至906转 |
最大扭矩 | 9500n.M |
交通包 | 裸装包装、塑料薄膜包装或根据客户要求 |
规格 | 350 美元 |
商标 | JDL |
起源 | 中国湖南省长沙市 |
商品编码 | 8430412900 |
生产能力 | 每月十套 |
产品详情
Product Description
Preview
JDL-350 water and gas dual-use series drilling rig is a multi-functional drilling machine integrating water drill and air drill. It is the first in China. The rig adopts the 525 gearbox for automobile, the transmission efficiency is doubled compared with the hydraulic transmission, and the power consumption is reduced by 35%, which is more efficient and energy-saving. The drilling rig has a high speed and can be drilled with a mud pump to solve the difficulty of drilling the soil air DTH hammer. The boring machine has a large torque and can slide up and down. DTH can be used when working with hard rock layers, gravel and pebble layers under deep wells. DTH hammer drilled. The drilling rig can be specialized in drilling, monitoring wells, geothermal air conditioning drilling, diamond bit wireline core drilling, engineering geological investigation operations.
Product Features
1. The rotate speed of the drilling rig can reach 27-906r/min, and the maximum output torque is 9500N.m, which can be used for diamond core drilling.
2. The drilling rig is equipped with a hydraulic drill tower, hydraulic supporting legs, winch, and the power head can slide up and down. The hard rock can be used for DTH hammer drilling.
3. The rig adopts long-stroke double-speed mechanism and mechanical power head, and the power head stroke is 3500mm, which is used to improve drilling efficiency and reduce the occurrence of blockage and burning drill accidents.
4. The drilling rig adopts double oil pump for oil supply. When drilling, it uses single pump, and when lifting drill rods, it uses double pump to merge; the power loss is small and the auxiliary time is short.
5. The drilling rig adapts crawler chassis, the stroke of the outrigger cylinder is 1.5m, the hydraulic high supporing legs can stretch flexiable and load into the truck freely, which is convenient for relocation and transportation.
1. The rotate speed of the drilling rig can reach 27-906r/min, and the maximum output torque is 9500N.m, which can be used for diamond core drilling.2. The drilling rig is equipped with a hydraulic drill tower, hydraulic supporting legs, winch, and the power head can slide up and down. The hard rock can be used for DTH hammer drilling.3. The rig adopts long-stroke double-speed mechanism and mechanical power head, and the power head stroke is 3500mm, which is used to improve drilling efficiency and reduce the occurrence of blockage and burning drill accidents.4. The drilling rig adopts double oil pump for oil supply. When drilling, it uses single pump, and when lifting drill rods, it uses double pump to merge; the power loss is small and the auxiliary time is short.5. The drilling rig adapts crawler chassis, the stroke of the outrigger cylinder is 1.5m, the hydraulic high supporing legs can stretch flexiable and load into the truck freely, which is convenient for relocation and transportation.
Product Parameters
Related Photos
Product Features
1. The rotate speed of the drilling rig can reach 27-906r/min, and the maximum output torque is 9500N.m, which can be used for diamond core drilling.
2. The drilling rig is equipped with a hydraulic drill tower, hydraulic supporting legs, winch, and the power head can slide up and down. The hard rock can be used for DTH hammer drilling.
3. The rig adopts long-stroke double-speed mechanism and mechanical power head, and the power head stroke is 3500mm, which is used to improve drilling efficiency and reduce the occurrence of blockage and burning drill accidents.
4. The drilling rig adopts double oil pump for oil supply. When drilling, it uses single pump, and when lifting drill rods, it uses double pump to merge; the power loss is small and the auxiliary time is short.
5. The drilling rig adapts crawler chassis, the stroke of the outrigger cylinder is 1.5m, the hydraulic high supporing legs can stretch flexiable and load into the truck freely, which is convenient for relocation and transportation.
1. The rotate speed of the drilling rig can reach 27-906r/min, and the maximum output torque is 9500N.m, which can be used for diamond core drilling.2. The drilling rig is equipped with a hydraulic drill tower, hydraulic supporting legs, winch, and the power head can slide up and down. The hard rock can be used for DTH hammer drilling.3. The rig adopts long-stroke double-speed mechanism and mechanical power head, and the power head stroke is 3500mm, which is used to improve drilling efficiency and reduce the occurrence of blockage and burning drill accidents.4. The drilling rig adopts double oil pump for oil supply. When drilling, it uses single pump, and when lifting drill rods, it uses double pump to merge; the power loss is small and the auxiliary time is short.5. The drilling rig adapts crawler chassis, the stroke of the outrigger cylinder is 1.5m, the hydraulic high supporing legs can stretch flexiable and load into the truck freely, which is convenient for relocation and transportation.
Product Parameters
Related Photos
Preview

Preview

Preview

Preview

Preview

Preview

Preview

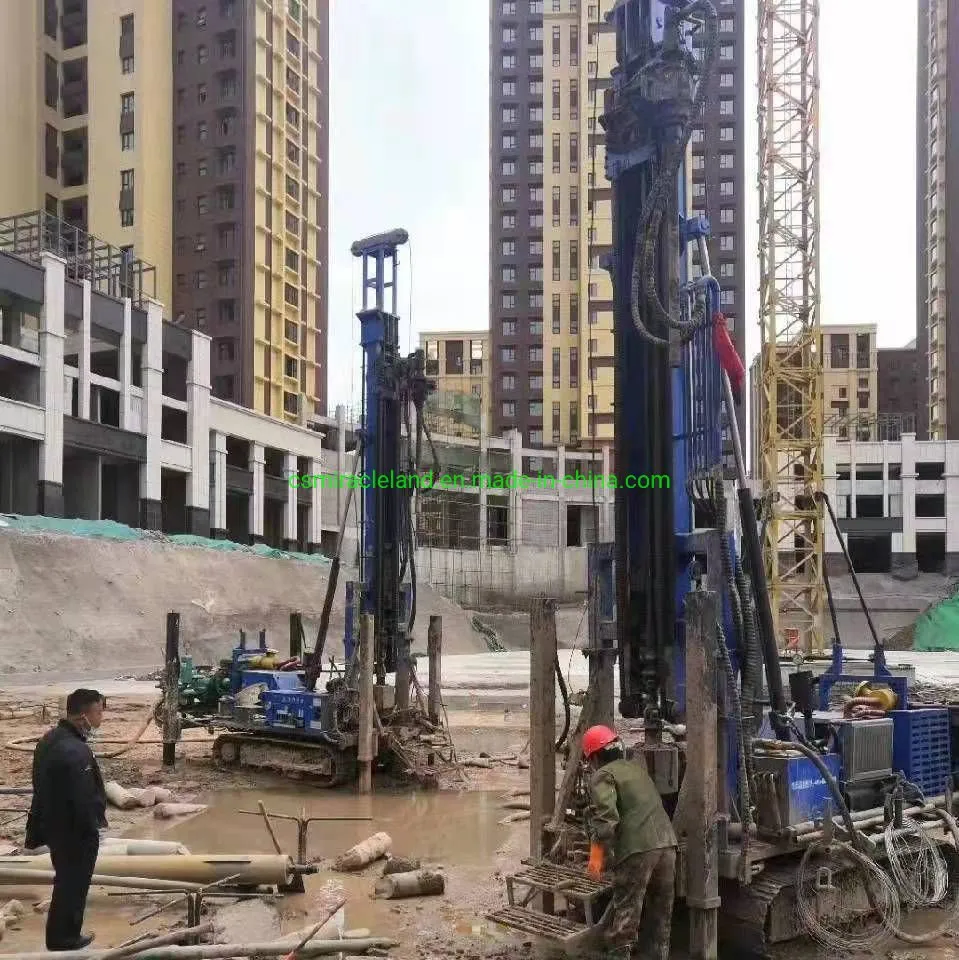

Buyers Show
Preview

Preview

Preview
证书
标题:十年金质勋章



Preview
用于岩土勘察、采矿钻石钻井电缆探查、井下钻探井下空气锤及泥浆泵的Jdl-350履带式顶驱式旋心钻机
¥181000 ~ ¥217200
化工产业链 · 钻机 · 地质钻机
型号JDL-350
产地中国湖南省长沙市
