The appearance of silica gel products is transparent or translucent, odorless and tasteless spherical particles, in which individual heterochromatic particles are allowed to mix, insoluble in water, with microporous structure. The average pore diameter is 4.5-7nm, the specific surface area is 450-720m2 / g, and the pore volume is 0.60-0.90ml/g. The main component is amorphous silica, the content is not less than 98%. It has stable chemical properties and does not react with any other organic or inorganic substances , hot strong base and molten sodium carbonate. It can be used for moisture-proof packaging and humidity regulation, and as carrier material for producing fragrant silica gel. It is used to remove high molecular protein from fermented products. It is used as catalyst and catalyst carrier. Deodorant: used in pet breeding and other environment deodorization.

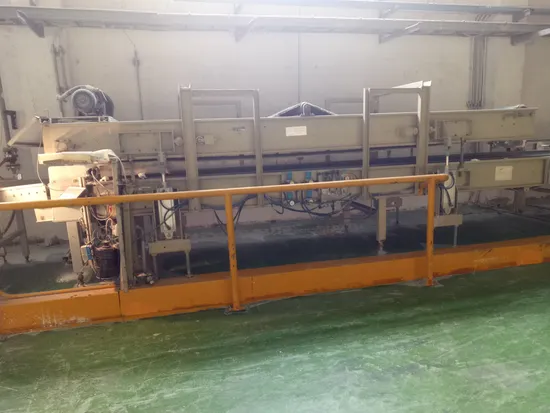

The equipment process adopts industrial sulfuric acid and sodium silicate of appropriate concentration as raw materials, through intensified reaction molding, aging, acid treatment, water washing, surfactant treatment, primary drying, screening and secondary drying to the finished product packaging process. Production process: raw material configuration → rubber preparation → aging → acid bubble → water washing → glue fishing → primary drying → screening → secondary drying → packaging → inspection → warehousing. Equipment used: acid and alkali metering tank, air compressor, water pump, receiver, gearbox, aging belt, nozzle.
List of main equipment
Serial number equipment name specification model unit quantity process
1 alkali distribution tank and four alkali distribution tanks
2 acid distribution tanks 1 acid distribution
2.-1 Acid matching
3 alkali metering tanks and two glue making
4 acid metering Tanks 2 glue making
5 acid condensers 1 glue making
Six alkali condensers and one glue making
7 concentrated acid storage tanks 1 acid distribution
8. High level tank of concentrated acid 1. Water washing and acid preparation
8-1. Gum preparation and acid preparation
9. Glue making circulating pump 2. Glue making
10 alkali circulating pumps
11. Aging strip 1. Glue making
12. Air compressor 2. Glue making and water washing
13. Self made nozzle and 3 glue making

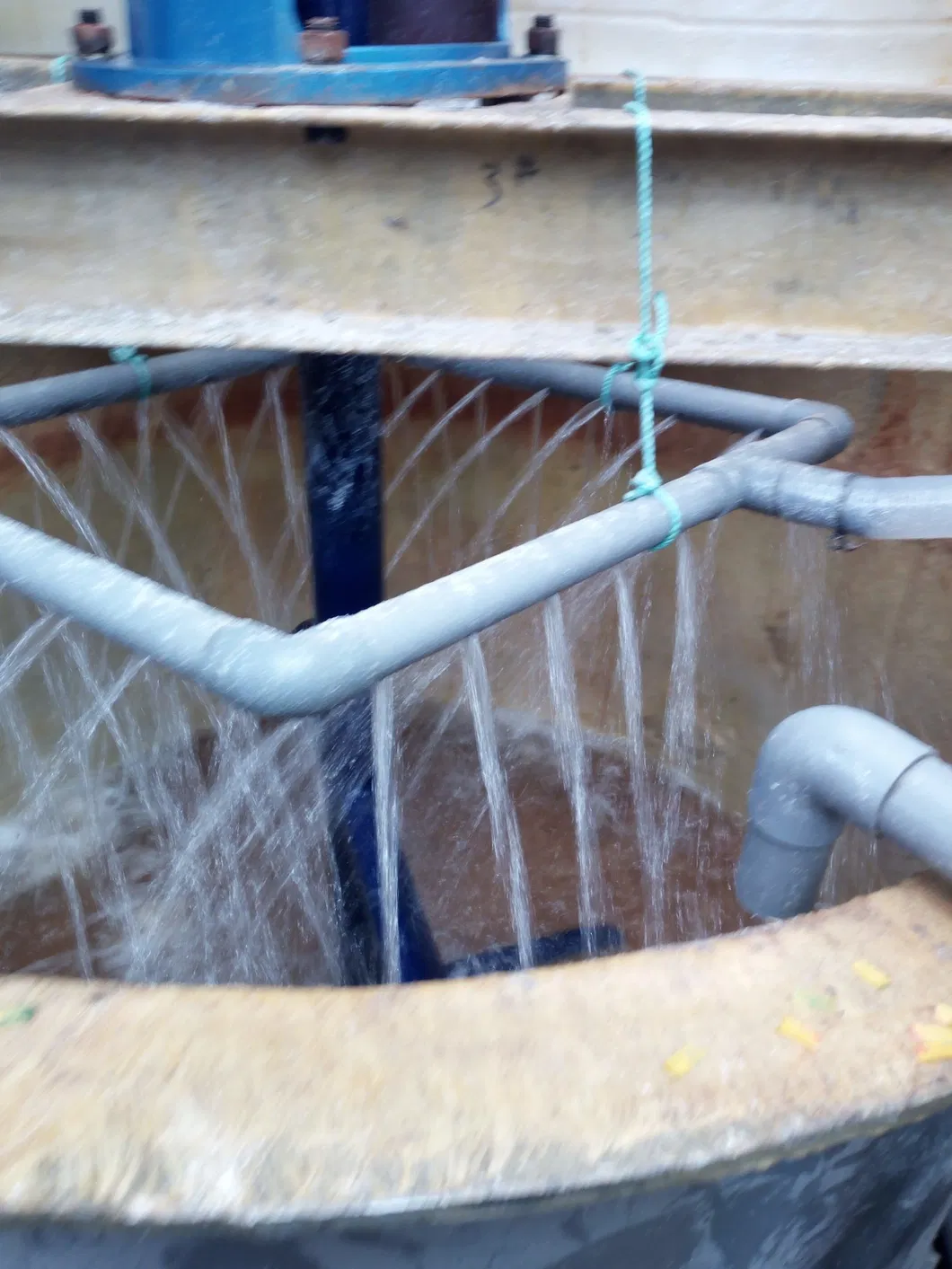

14 water washing tanks 16 water washing
15 circulating water pumps 16 water washing
16 circulating water pump motors 16 water washing
17. Hot water pump 2. Water washing
18. Pull out the tape and 2. Pull out the glue
19. Two rubber bailing bins
20 drying mesh belt 2 drying
21 axial fan motors 48 drying
22 screening machines and 2 screening machines
23 ball sorting machines 6 screening
24. Secondary drying tunnel 2 drying
One
25 drying truck, non-standard equipment, 22 drying
