Product Parameters

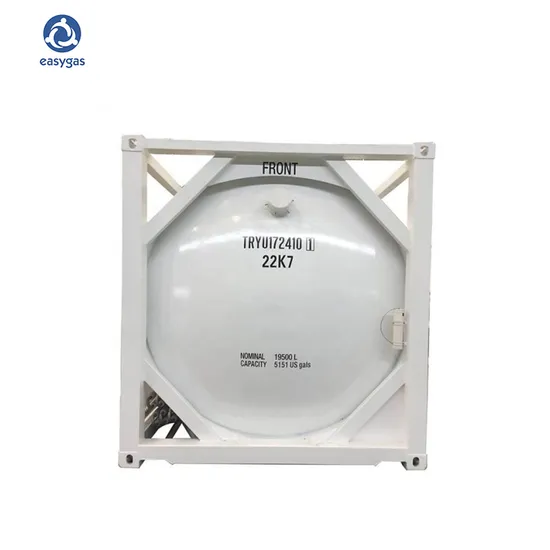

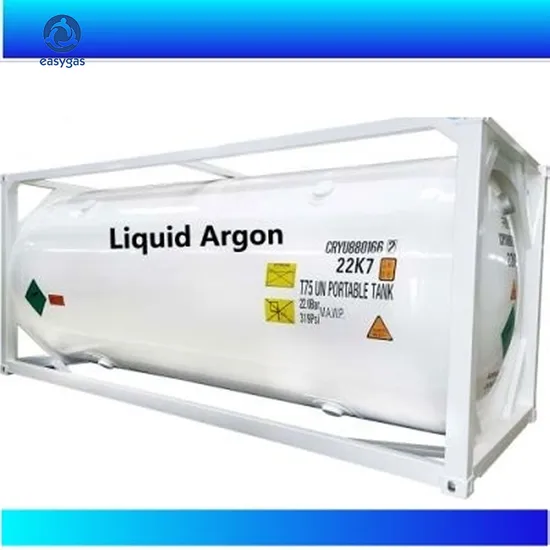

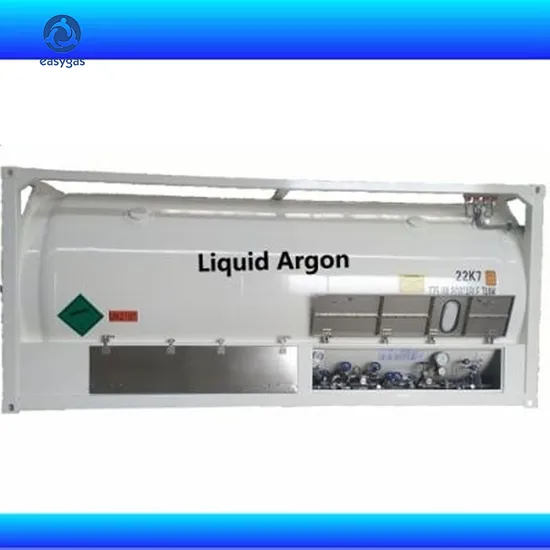

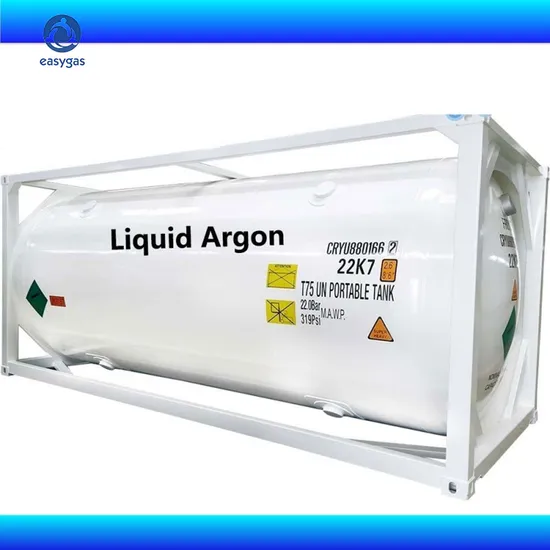

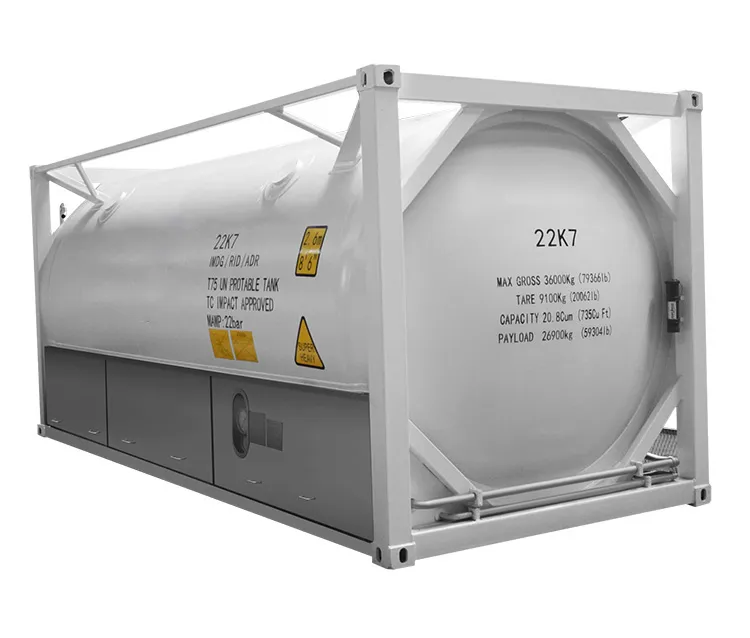

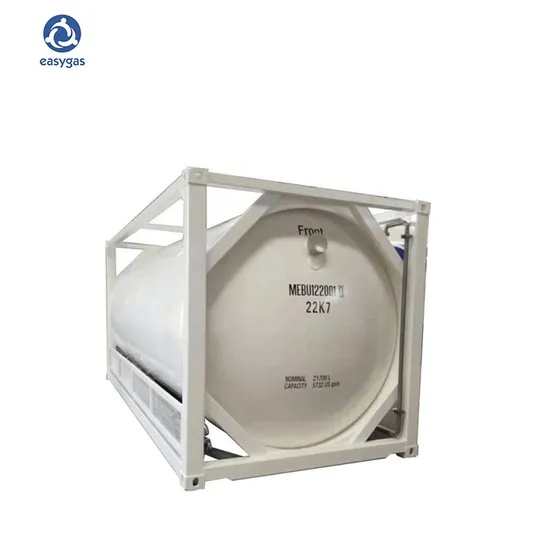

LOX, LN2, LAR ISO tank 20ft
Description
Parameters
Model
1CC-TC-18400/17
Total volume
20m3
Effective volume
18.4m3
Loading medium
LOX,LIN,LAr
Design code
ASME Section Vll DIV 1-2023+IMDG/ADR/RIDTIR/ CSC/ UIC/ TC/ US DOT(CFR49)
Main material
inner vessel
SA-240M 304(ASME Section II PART A )
outer vessel
Q345R (GB/T 713)
Working temp.
≥ -196 ºC
Working pressure
2.2 MPa
Design pressure
Test pressure
2.9 MPa
Static evaporation per day
LIN ≤ 0.338%
LAr ≤ 0.25%
LO2 ≤ 0.225%
Corrosion allowance
0 mm
1 mm
Welding joint coefficient
Class a
1.0
0.85
Class b
Filling ratio
0.92(LIN/LOX) 0.80(LAr)
Insulating type
high vacuum multilayer
Total net weight
11360 kg
Max loading weight
14823 kg (LN2)
Total weight with full loading
26183 kg
Dimension
6058×2438×2591 mm
LCO2 ISO tank 20ft
1CC-TCC-20/2.4
20.11m3
18.5m3
LCO2
Level gauge
Chinese maker
≥ -40 ºC
/
0.92
12210 kg
21790 kg
34000 kg

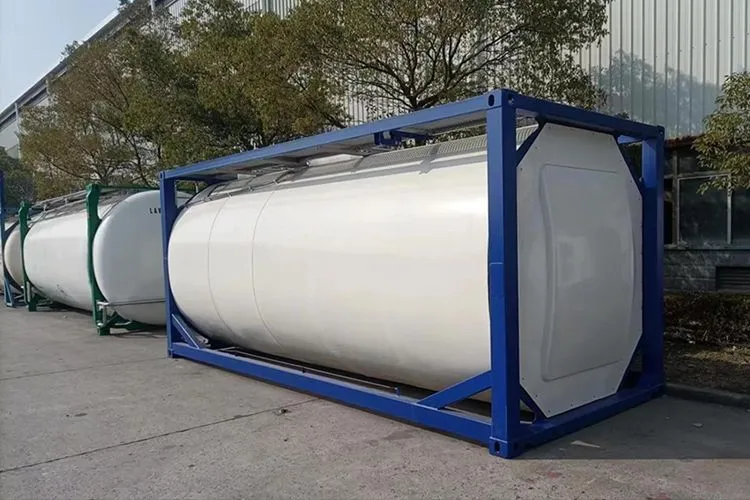

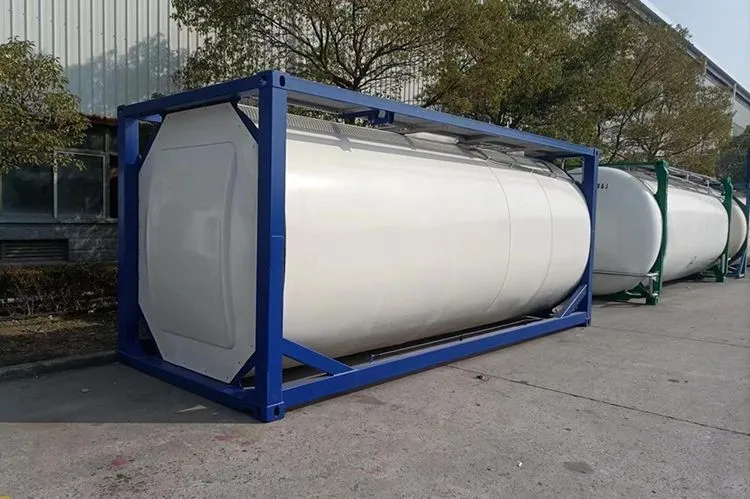

Good Quality ISO Tank
can be used for a wide range of applications. They are standardised to ensure smooth distribution logistics and cost-efficient series production.
Each tank is vacuum-insulated and can be delivered as a vertical or horizontal installation. The inner vessels and piping are made of stainless steel to ensure high-grade cleanliness - particularly important for the food and electronics industry. The outside shell is specially coated and a vacuum-perlite system with a molecular sieve adsorbent is applied to ensure outstanding insulation.

Other Products

Shandong Yizhong Industrial Co., Ltd.stands as a leading force, providing a full spectrum of essential industrial gases, state-of-the-art equipment, and unparalleled applications expertise. Our products serve a multitude of sectors, including
refining, chemical,
metals, electronics, manufacturing,
food preservation as well as beverage industry.With a relentless focus on research, development, and production, Yizhong Industrial epitomizes excellence in the realm of industrial gases and equipment. Our unwavering commitment to a safety-first ethos ensures that we deliver unparalleled service quality, propelled by a desire to exceed our customers' expectations.

Cooperation

Q1: What products can I
order from your company?
A1: We specialize in industrial gas and relevant equiment, such as
cryogenic liquid storage nitrogen tank, liquid nitrogen doser, liquid nitrogen freezer, respirator ect. We can also
provide cryogenic storage technology.
Q2: What is your production standard?
A2: GB/ISO 9001 Quality Certificate.
Q3: Can you do custom-made?
A3: OEM,ODM welcome.
(1) Silk print your logo on your box
(2) Customized color box3) Design and produce based on your idea and draft
