基本信息
型号(编号) | AK,AR |
应用 | 加热器、冷却器、蒸发器、冷凝器、生物技术和制药 |
原则 | 再生式热交换器 |
风格 | 盘型 |
材料 | 不锈钢 |

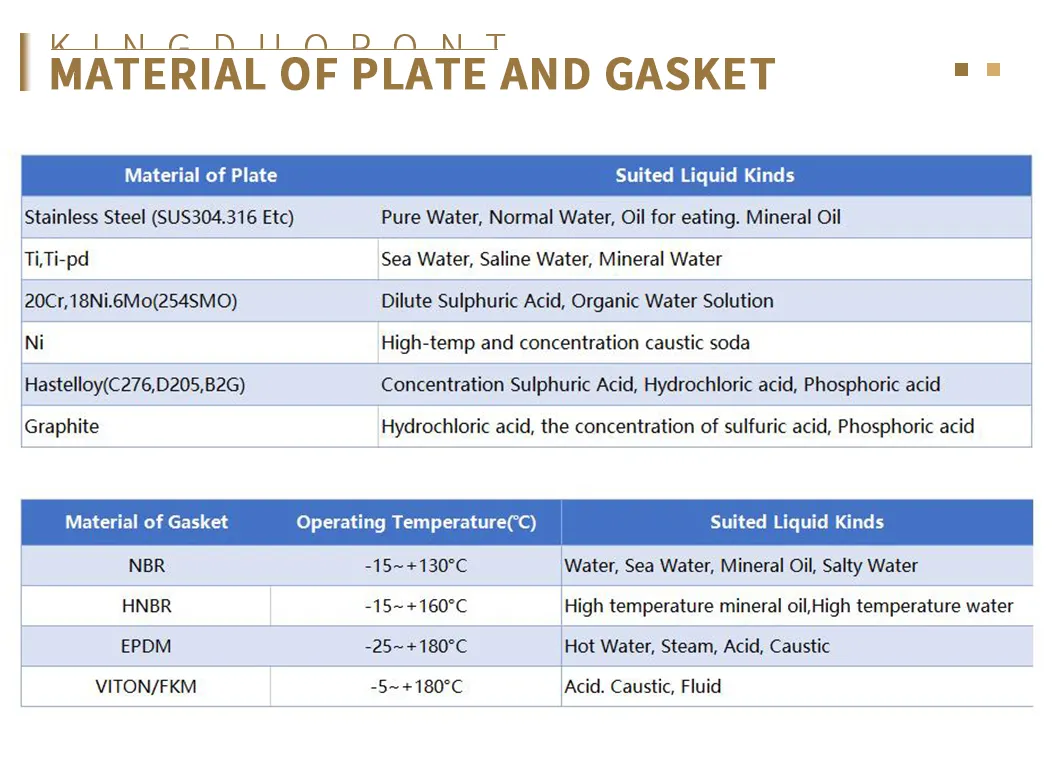

板料材质 | 316/316L、316ti、904L、254 C-22、C-276、C-2000、D- |
定制的 | 定制的 |
框架材料 | 碳钢、不锈钢等 |
法兰连接 | 碳钢金属内衬:不锈钢、钛钢 |
适合的流体 | 水、海水、油、盐水、酸、苏打水 |
交货时间 | 七个工作日 |
工作温度 | -25摄氏度至+200摄氏度 |
场气垫 | NBR, EPDM, FKM, Q |
框架和压板 | 碳钢环氧漆 |
最大设计压力 | 10巴压强,16巴压强 |
运输包 | 胶合板箱 |
规格 | 5平方米,10平方米,20平方米,40平方米,50平方米 |
商标 | 金杜邦 |
起源 | 中国江苏 |
商品编码 | 8419500090 |
生产能力 | 年产量3000-5000件 |
产品详情
Product Description
Preview

Preview

Preview

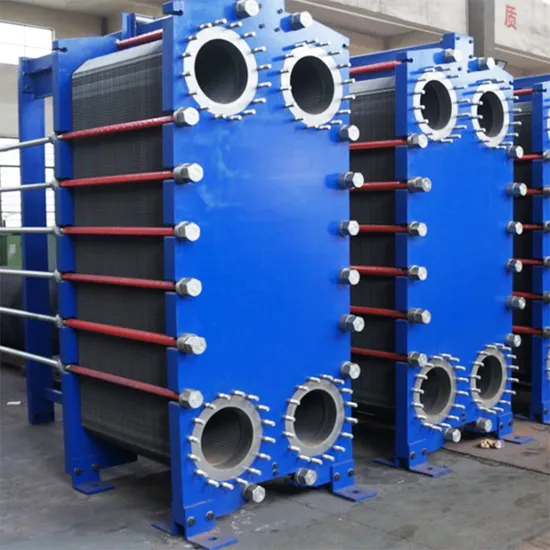

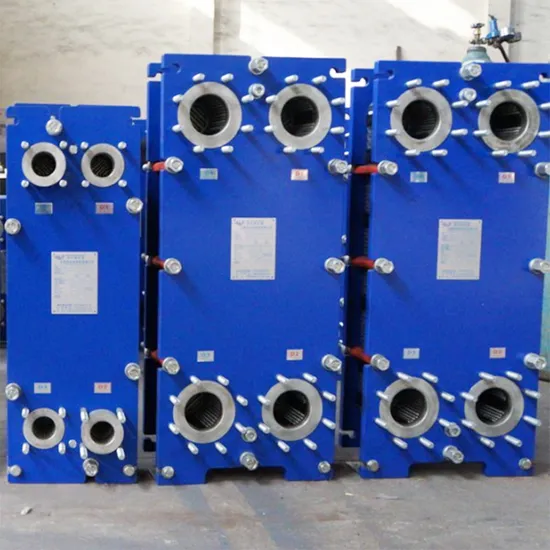

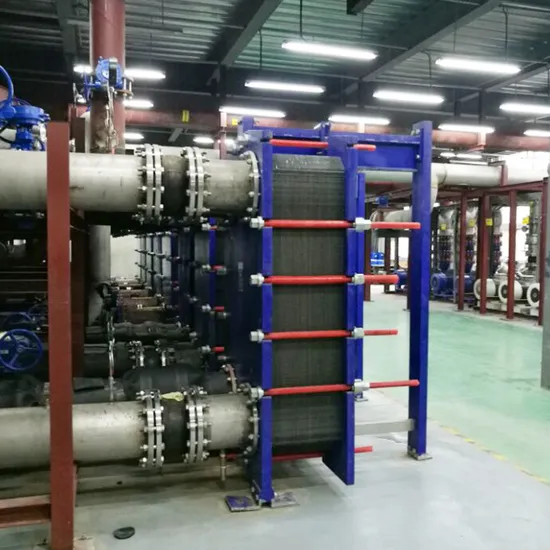

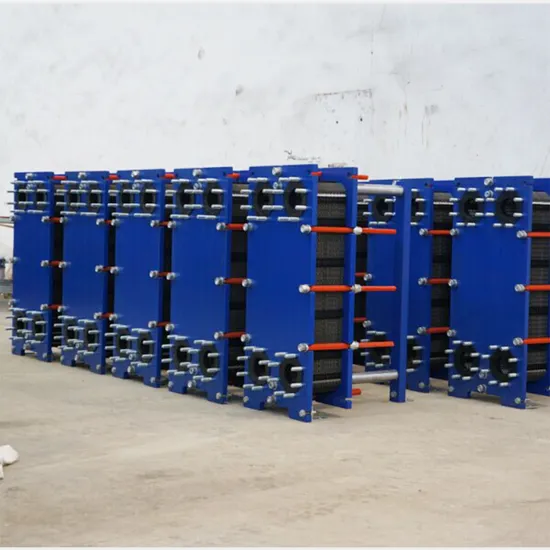

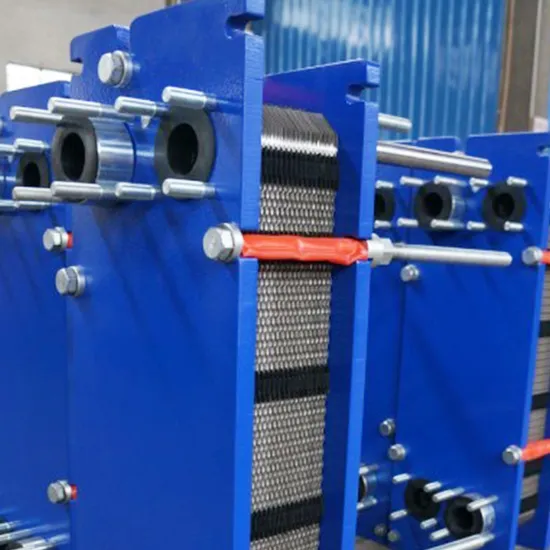

The Plate heat exchanger consists of a pack of corrugated metal plates, The corrugation of the plates provides the passage between the plates, the two fluids transfer the heat between the channels. The plate pack is assembled between a fixed frame plate and a movable pressure plate and compressed by tightening bolts. The gasket between the plates seals the interplate channel and directs the fluids into alternate channels. The number of plates is determined by the design: the temperature program, flow rate, pressure drop and physical properties of the fluids.
Preview

Preview

Preview

Preview

Preview

Preview

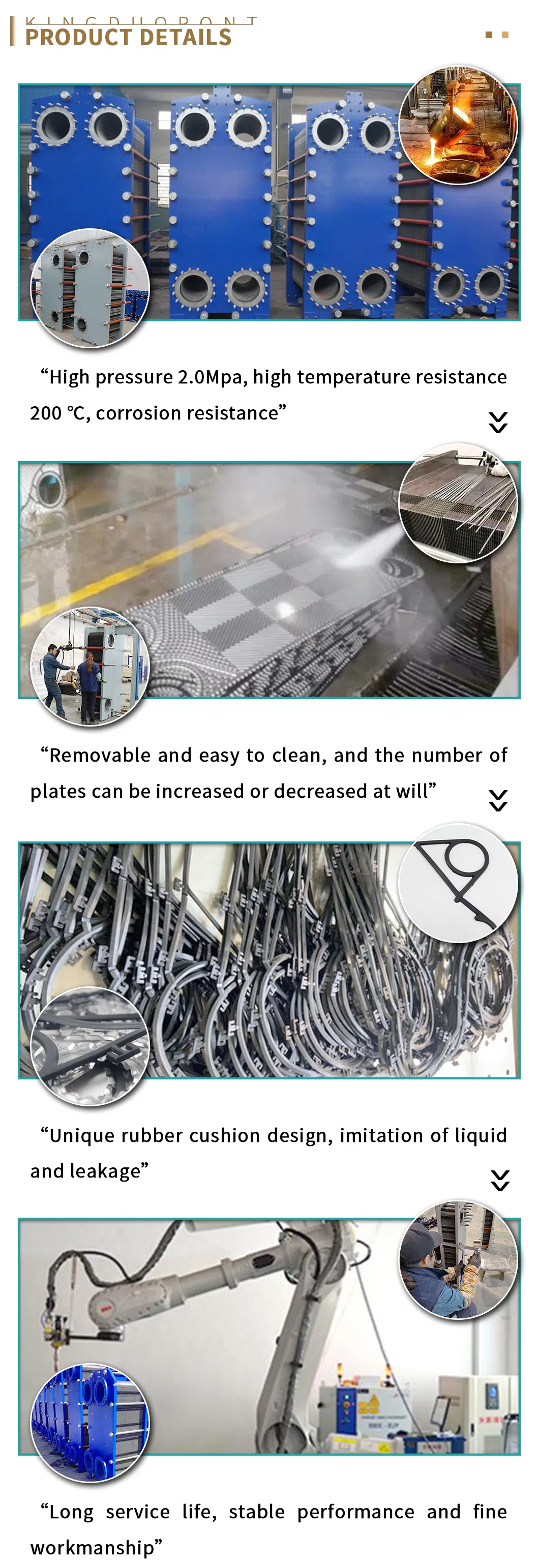

High heat transfer efficiency : Plate heat exchanger has a very high heat transfer coefficient, usually between4000-12000W/m2C. Since the medium flowing in the plate group can form a strongturbulence at a low Reynolds number (Re).Low scaling rate : Dirty scale is difficult to deposit. Because the fluid turbulent inside the plate and theflow rateevenly spreads the entire plate, the surface of the plate is relatively smooth.Great flexibility : The plate heat exchangers can be combined optimally and adapt changes in thermaload flexibly, since the plates can be combined into various processes. You only needto increase or decrease the number of plates, and it can adapt to the new changeswithout having to change the frame.Low retention : The plate heat exchanger can be very good at controlling the temperature of thesecondary side medium, since the flow path and volume is small, and the amount offluid residing inside the heat exchanger is small. Especially in the treatment of heatsensitive materials,plate heat exchangers are better.Compact structure : Under the same heat transfer conditions, the plate heat exchanger covers only about1/3 area of the shell-and-tube heat exchanger for saving a precious space. Besidesthere is no need to take up extra space when disassembling and repairing.Easy maintenance : The plate is designed with no dead space, so it can be chemically cleaned on sitewithout disassembly. Even though it needs disassembly, a worker usually cancomplete the replacement cleaning.
Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview

Preview
证书
标题:ISO 9001
