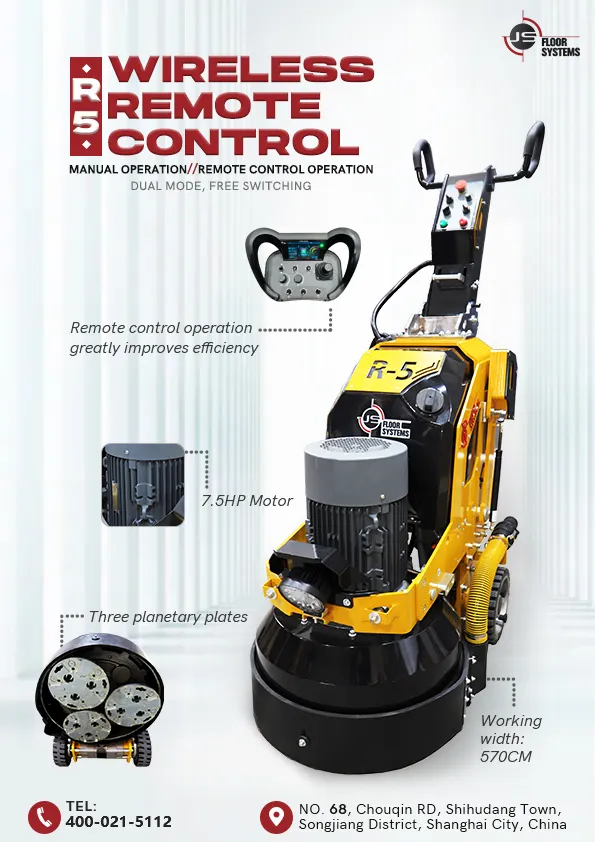

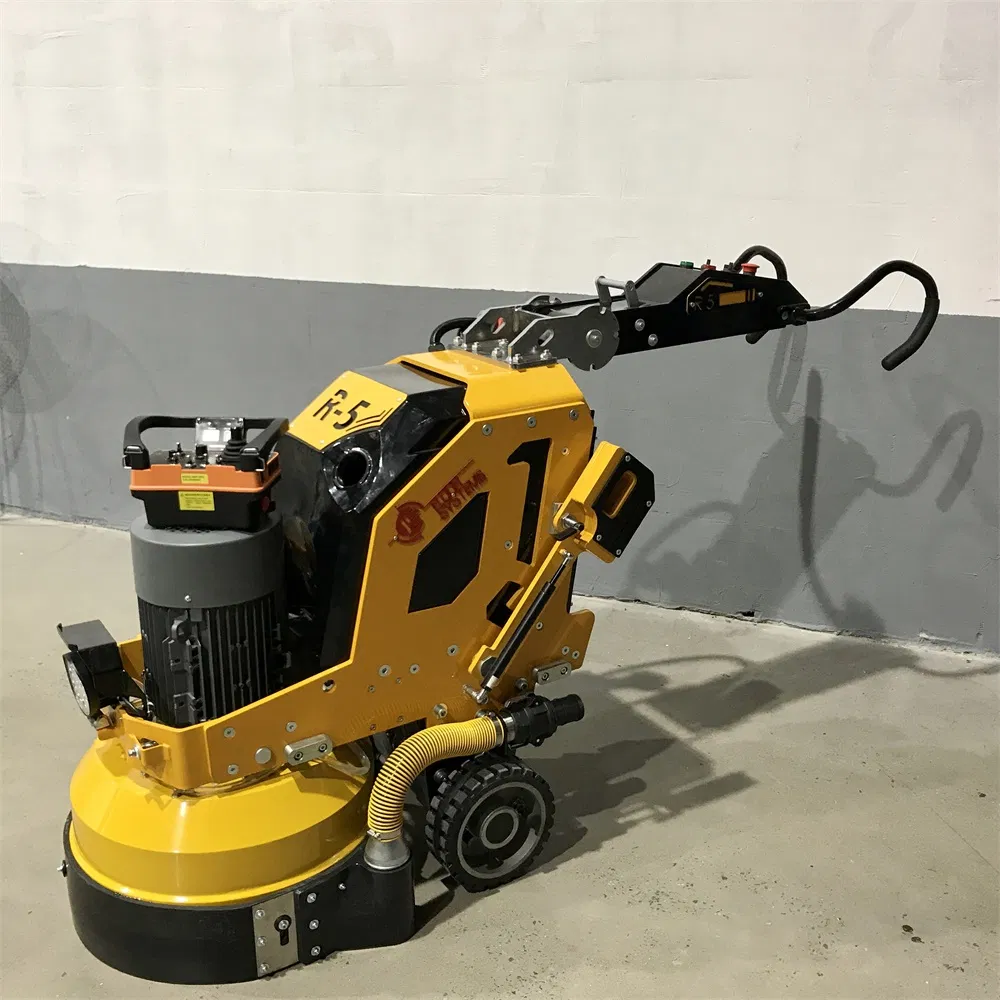

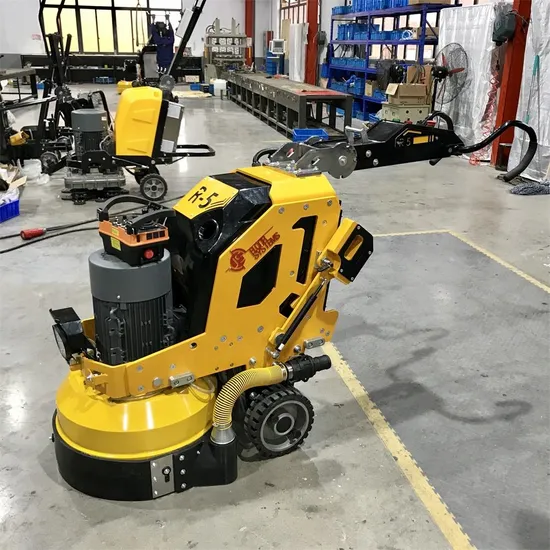

R5 Automatic RC Marble Floor Grinding And Polishing Machine
R5 is auto radio controlled planetary concrete grinder. Machine can auto polish and grind at a constant speed and minimizes the risk of operators' mistakes going too slow or too fast.
Most important, it's single phase 570mm!
Basic function:
1, both grinding and polishing
2, both wet and dry working
3, customized plate as per request
4, variable speed 0-1800 RPMHighlights compare to counterparts:
1, Single phase and 570mm is suitable for most projects.
2, High precision planetary gear box (no belt), don't need to always replace the belt!
3, Very short turning radius because each wheel is controlled by independent motor.
4, 50-100 meters wireless radio controlled.
5, Automatic water system.

12 years experience
machine design and manufacturing
Own 2 factories
in Shanghai and Suzhou
More than 70 machines
one-stop service

Field of Applications

Renovation of old floors,
Fine grinding and polishing,
Leveling of uneven spots and surfaces,
Polishing and Grinding of concrete surfaces,
Removing of adhesive residues, painting, coatings, putty, epoxy and cement slurry.
Technical Data
3 Head
R5
Width
570mm
Disk size
254mm
Weight
320KG
Speed
0-1800 rpm
Motor
7.5HP
AMPS
35
Phase
Single Phase

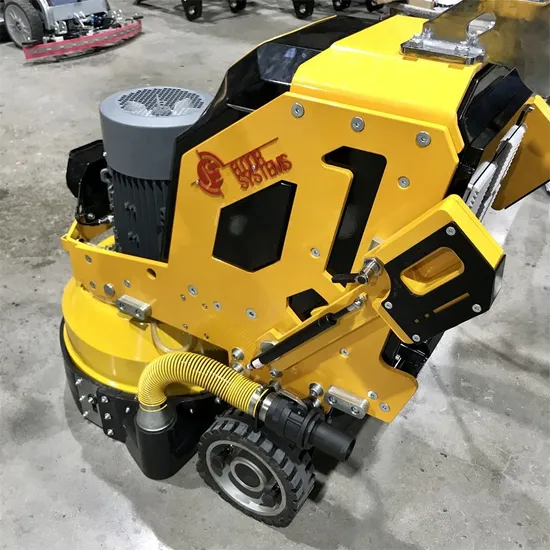

Features / Construction

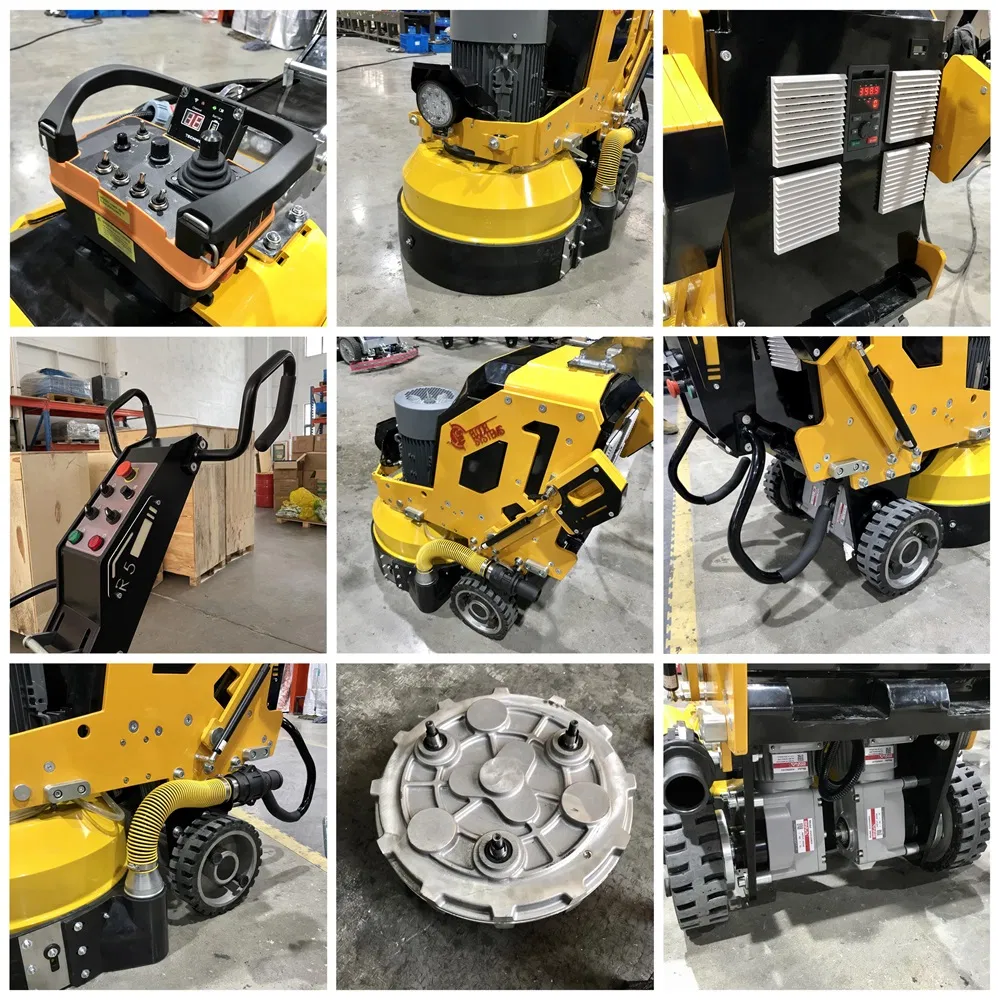

Machine Construction

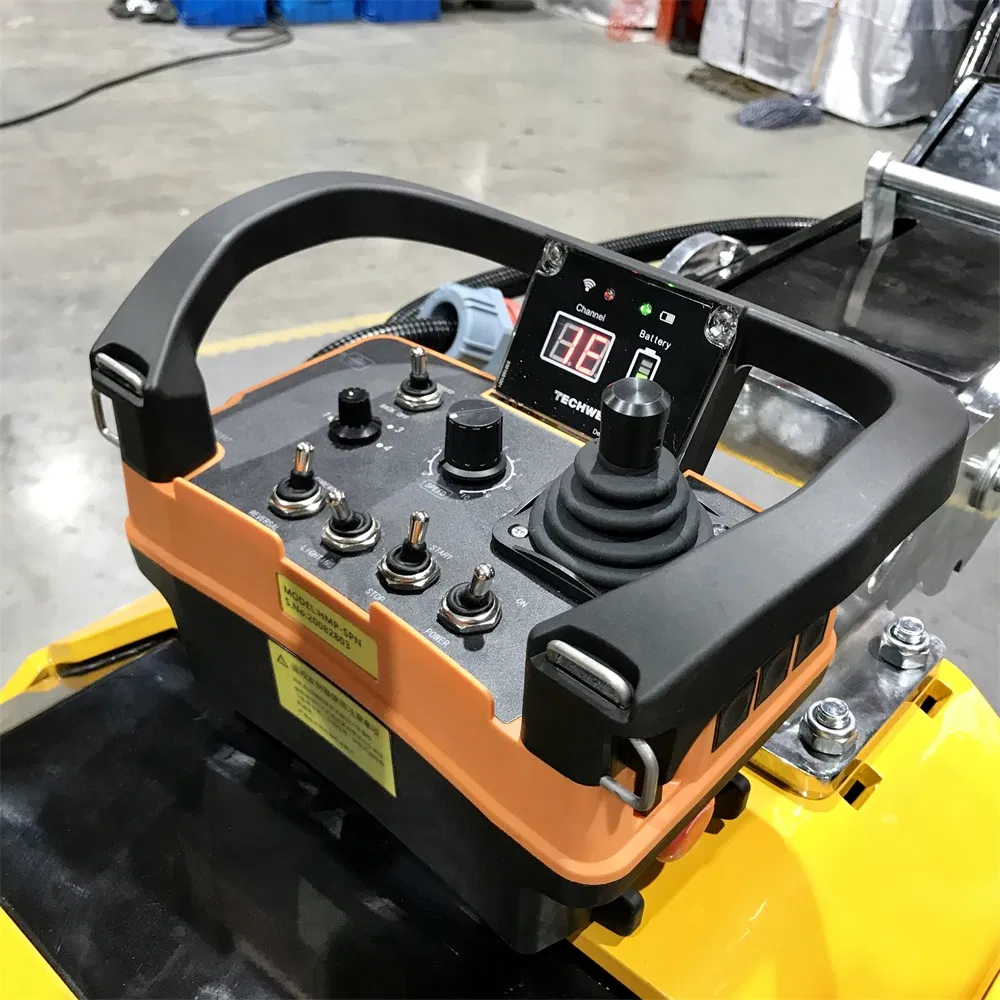

1, Remote control box

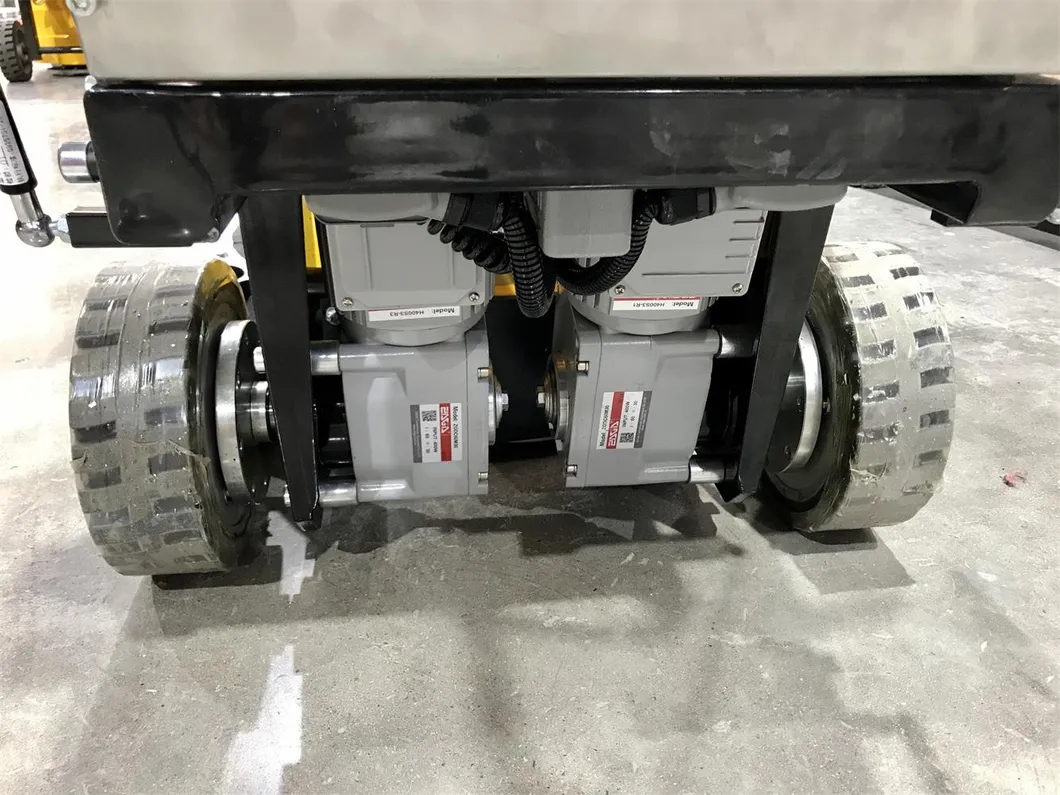

2, Auto walking motors
3, Wheels
4, LED light
5, Handle with adjustable height
6, Inverter
7, Extra weight to increase grinding pressure

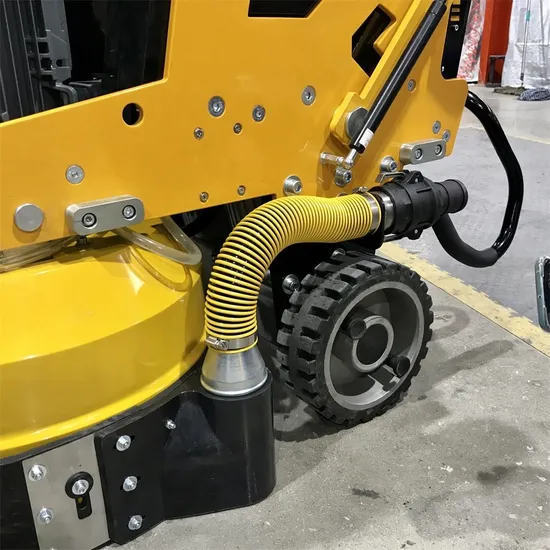

8, Rubber dust skirt. Suction pipe for industrial VAC
9, Gear box
Features
1, Single phase 570mm remote control grinder
2, Aluminum integral casting gear box

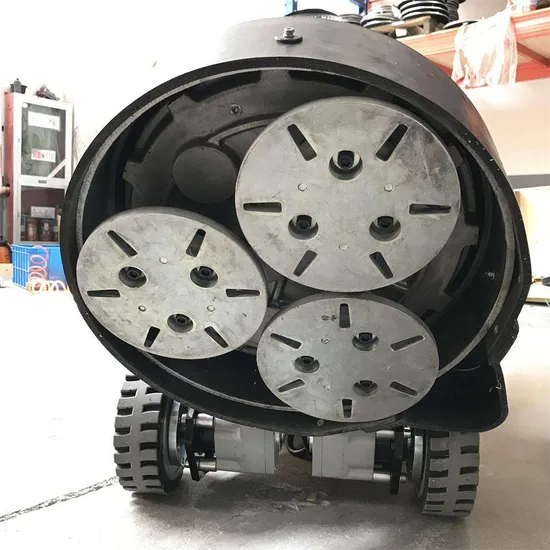

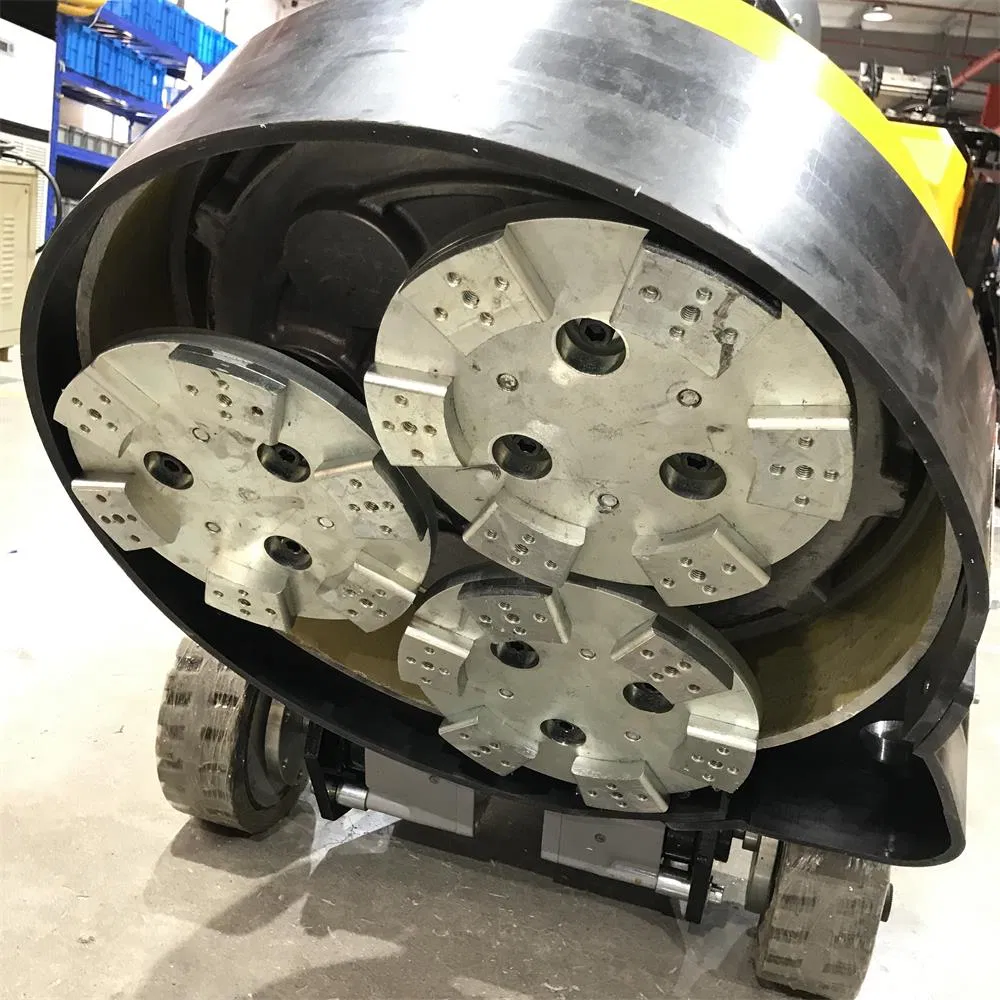

3, Quick-change magnetic tooling systems
4, Variable-speed soft start
5, Both grinding and polishing
6, Big water tank for wet polishing
7, 50mm dust port and thick rubber dust skirt for dry polishing dust control
8, Be good at high gloss and smooth surface polishing

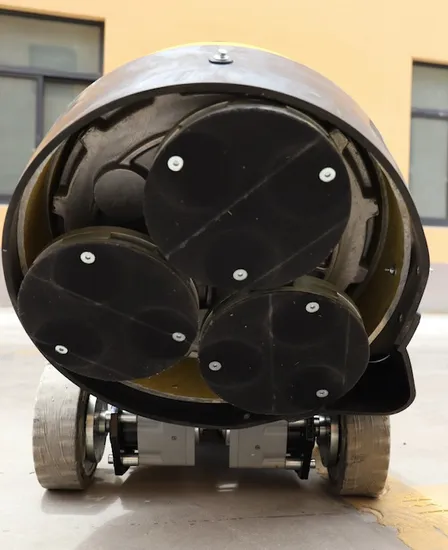

This machine can use metal grinding diamond pad, resin polishing pad and 10 inches burnishing pad, one machine with multi function.
Grinding plate can be customized base on your diamond types, then you can use just one type diamond tooling for all your machines.
Gear Box

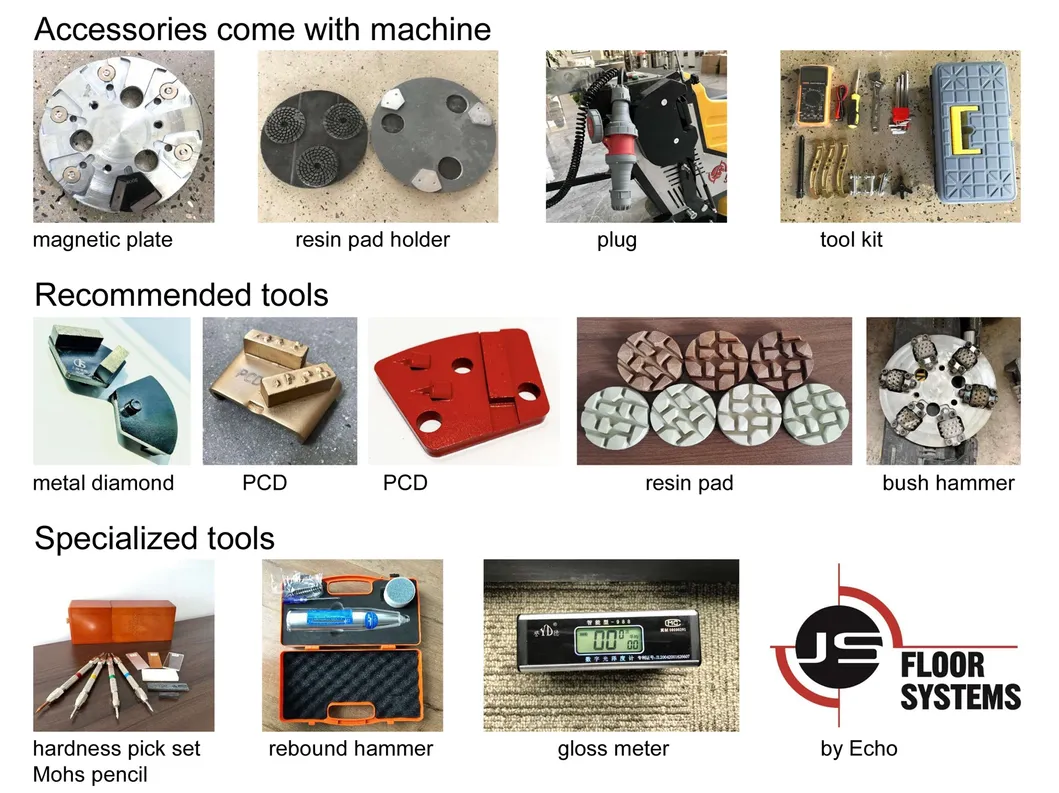

Tools / Accessories

About JS Floor Systems

JS Floor Systems has been established in 2009. Specializing in floor grinders, polishers, burnishers, scrubbers, vacuum cleaners and diamond tools. Our factory locates in Shanghai & Suzhou, China with professional R&D, technical support, production and sales team. Our service and products are appreciated by customers all over the world.
Our advantage
1, More than 11 years of experience of machine design and produce.
2, Own two factories and one software office, in Shanghai and Suzhou.

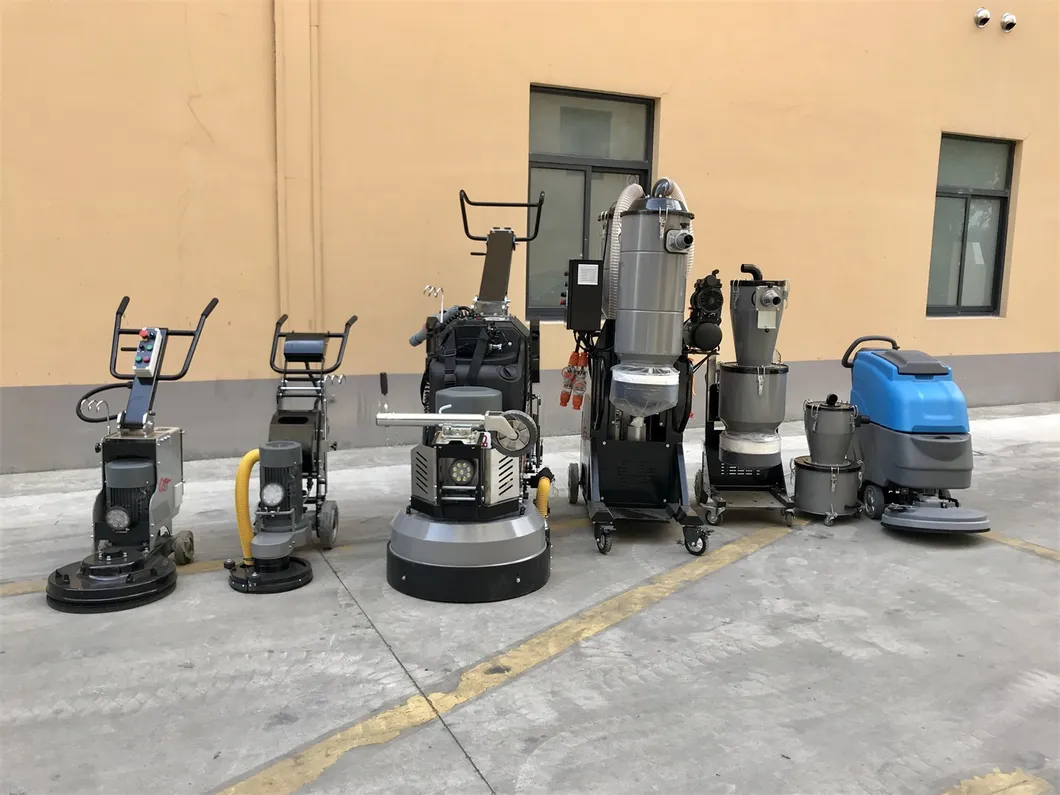

3, Product range include concrete grinder, vacuum cleaner, floor scrubber, diamond tooling and many related machines.
4, More than 70 machine models, one stop buying service.
5, Own CNC machines, welding robot, laser cutting machine, spinning lathe etc. The high precision and quality is controlled by these high tech equipment and professional R&D staff.

Certificates
Trade Shows
CNC High Precision Process
Laser Cutting Machine
Welding Robot
Suzhou Factory

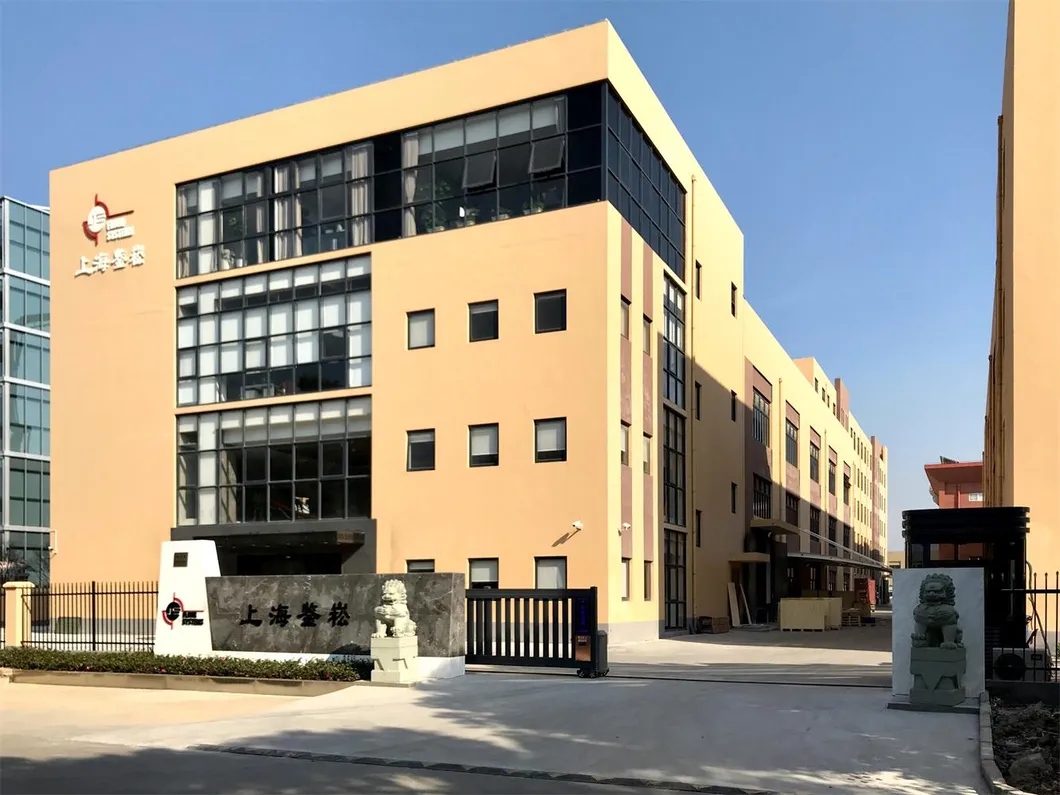

Shanghai Factory
