DESCRIPTION

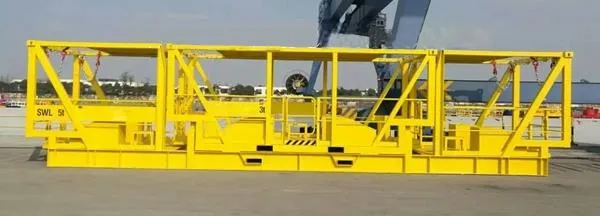

COMBINED SPREADER LASHING CAGE 40FT/20FT

Lashing cages allows personnel work safe for lashing and maintenance operations.Designed to suit ISO dimensions for containers, allowing standard twistlock connection to a 20 ft or 40 ft spreaders.We manufacture different kinds of
lashing cages
for ports. From those that allow operators secure lashing and unlashing of stacked containers from the ship deck that transports them. These
port baskets
have a central extensible body from 20" to 45" and two working cages at the edges. Up to those others such as
platform, recue type and personnel transport cages.

ALLPICATION

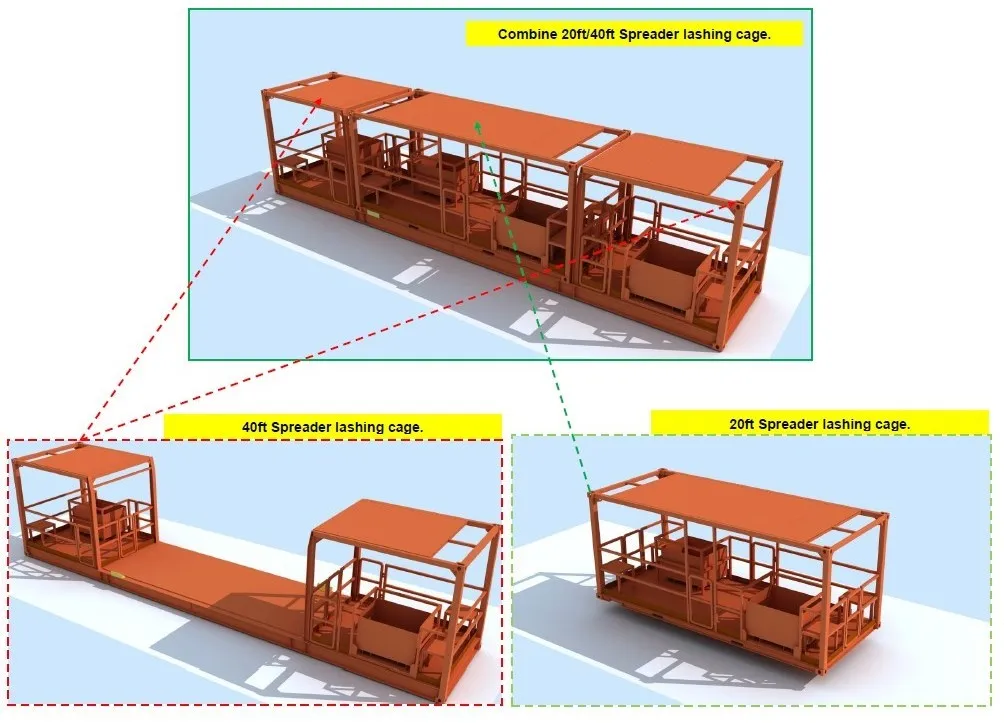

Designed to safely carry lashing personnel from ground level to container vessel allowing them to work safely from within the confines of the cage.The cages are designed to be lifted by crane spreaders at ISO-standard 20ft and 40ft Twistlock centers and are thus compatible with almost all types of crane and vessels.With the modular lift design, the easily detachable 20ft cage enables individual use of the 20ft, or 40ft cages based on operational requirements.Robust spring-loaded self-closing gates are installed in each cage. Safety notice signs on aluminum plates are installed on each access gate with SWL and relevant safety information.Sturdy and stable construction, designed for rough quayside operating conditions.
PARAMETER
FEATURE

Secure locking mechanism: The cage have a reliable locking mechanism to prevent accidental opening or tampering, ensuring that the load remains securely contained.Non-slip flooring: The floor of the lashing cage have a non-slip surface to prevent workers from slipping and falling while loading or unloading the cargo.Guardrails and handrails: The cage is equipped with guardrails and handrails to provide a safe working environment and prevent workers from falling off the cage.Safety harness attachment points: The lashing cage have designated attachment points for safety harnesses, allowing workers to secure themselves while working at heights.Adequate lighting: Proper lighting inside the lashing cage is essential to ensure good visibility and prevent accidents caused by poor lighting conditions.Emergency exits: The lashing cage have clearly marked emergency exits, allowing workers to quickly evacuate in case of an emergency.Load securing points: The lashing cage have designated points and hooks for securing the load, preventing it from shifting or falling during transportation.Fire safety measures: The lashing cage is equipped with fire extinguishers and fire suppression systems to quickly respond to any potential fire hazards.Training and safety guidelines: Proper training is provided to workers on how to safely operate and use the lashing cage, including guidelines on load capacity, weight distribution, and safe working practices.Regular maintenance and inspections: Regular inspections and maintenance should be conducted to ensure that all safety features of the lashing cage are in good working condition and meet safety standards.Safety railing in the complete perimeter
Safety railing in the complete perimeter
Internal handhold at 150mm from outside to cage
150mm high toe recess along the complete perimeter
All doors for stevedores are robust and open inwards with autoclose & autolock system
Double safety system
Automatic: Using the twist locks of the spreader
Non sliding floor with drain spots
100% Continuous welds
Designed with Safety factor = 10
Rubber buffers to prevent from feet injuries and dangerous impacts when the cage lands on the ground.Alveolar floor to protect from ice
Standard forklift pockets to handle the lashing cage for transport purposes
Certified Life Line for fall protection along the whole cage
Box secured to the ceiling for storage of safety harnesses
Neoprene-lined hooks for storage of actuator poles
The bottom of the cage is recessed for easy access to the twistlocks from below the cage
Cage is fully roofed (except at the corners to ease the connection to the spreader)
Quality Assurance and Service
1. Have a
complete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., and double check is a
must.
4. Advanced factory facility ensure
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. on time delivery, as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service
Welcome to your inquiry!
