12V/24V DC

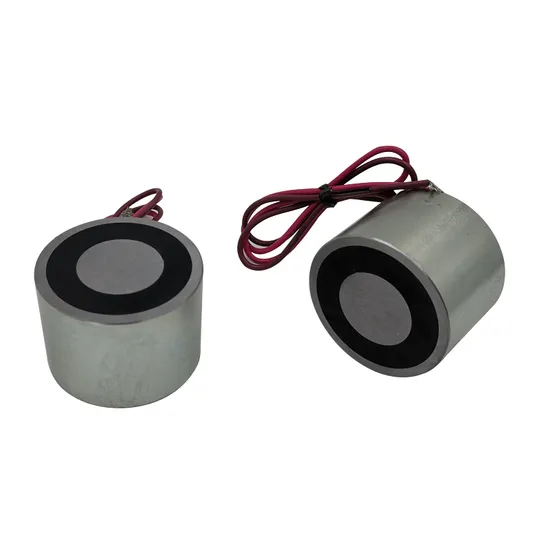

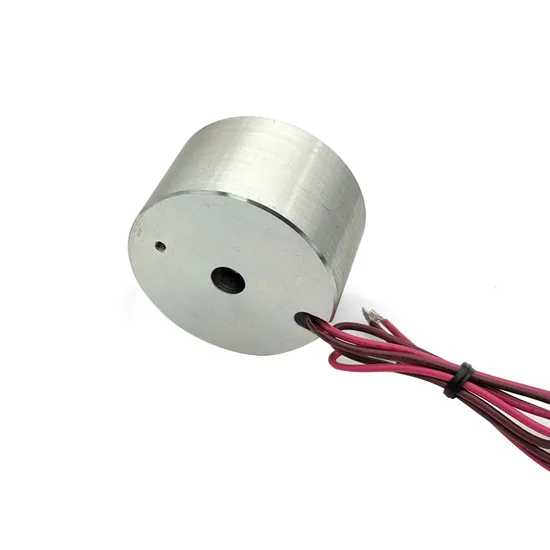

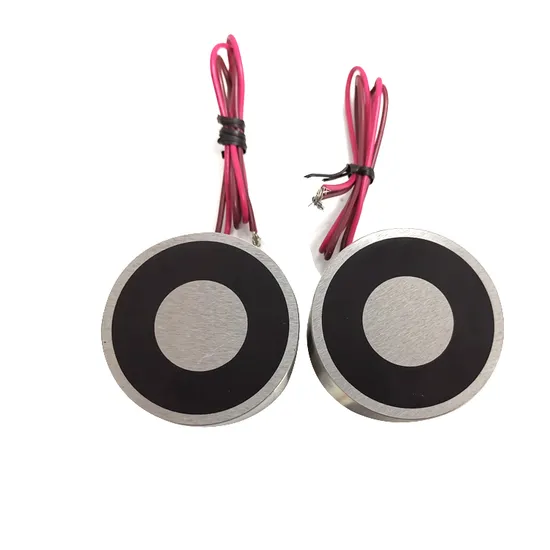

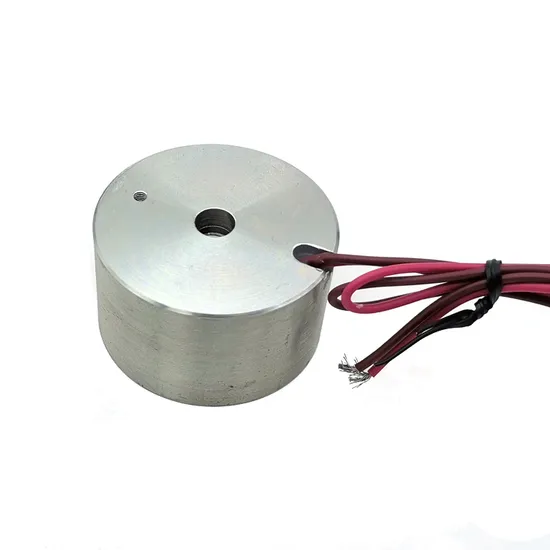

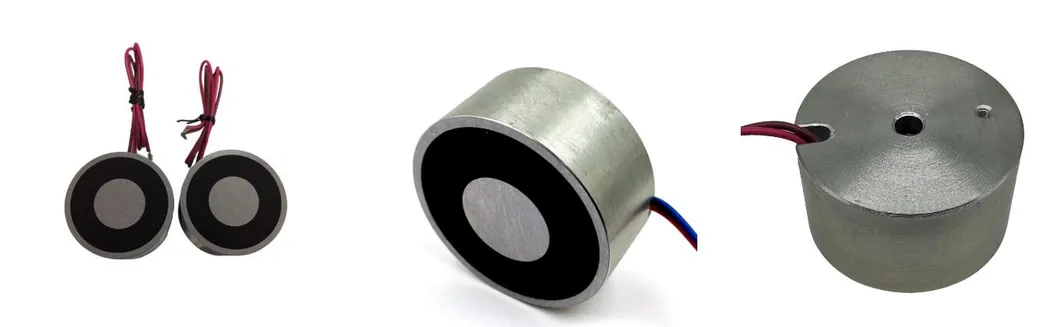

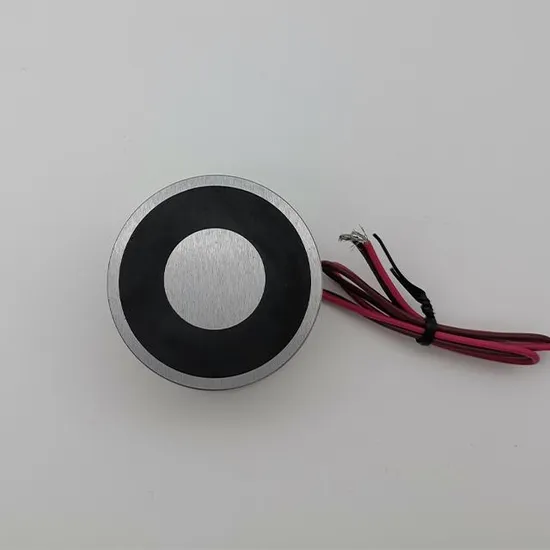

JSP-5029K-12V 50kgs Reverse Permanent Lifting Electromagnet

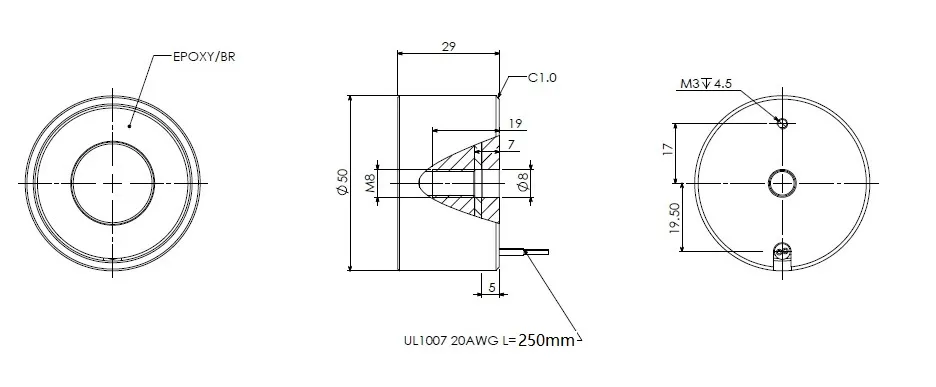

- Size: D50 x 29mm
- Power: 12V or 24VDC, 11W
- Holding force> 50kgs,
- Duty cycle: 10%
- Engerize to release and holding when power off
- Electroplating anti-corrosive
- Epoxy filled Waterproof

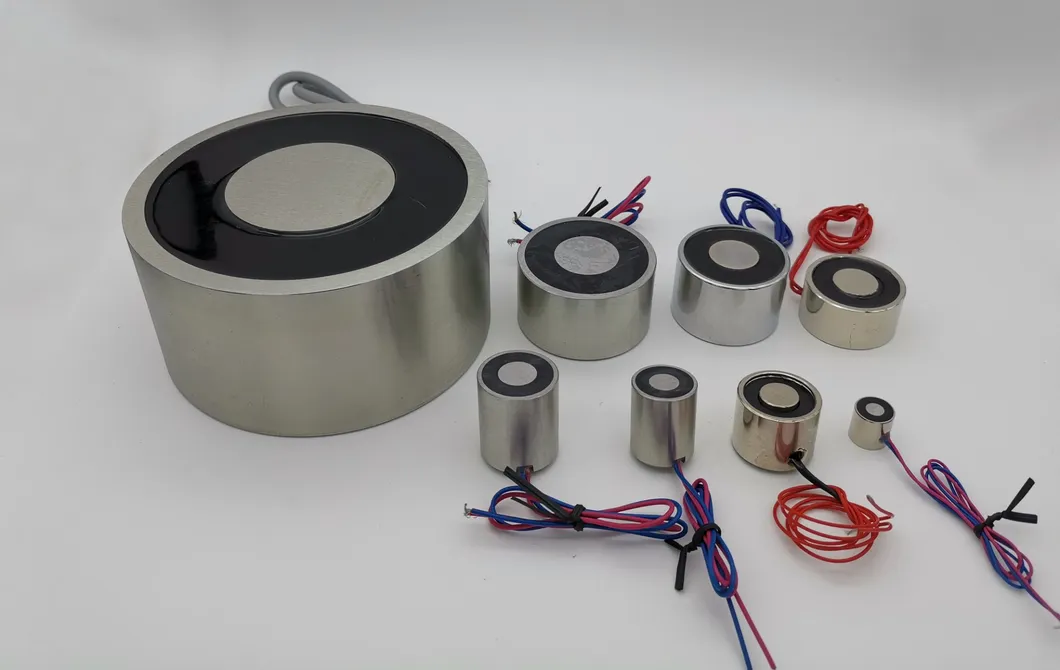

- Different models are available, holding force: 1kgs - 200kgs.- Application: electronic machine, package machines, mechanical hands.- 20 years of design and produce experience
- OEM/ODM is welcomed

Customized design is welcomed.

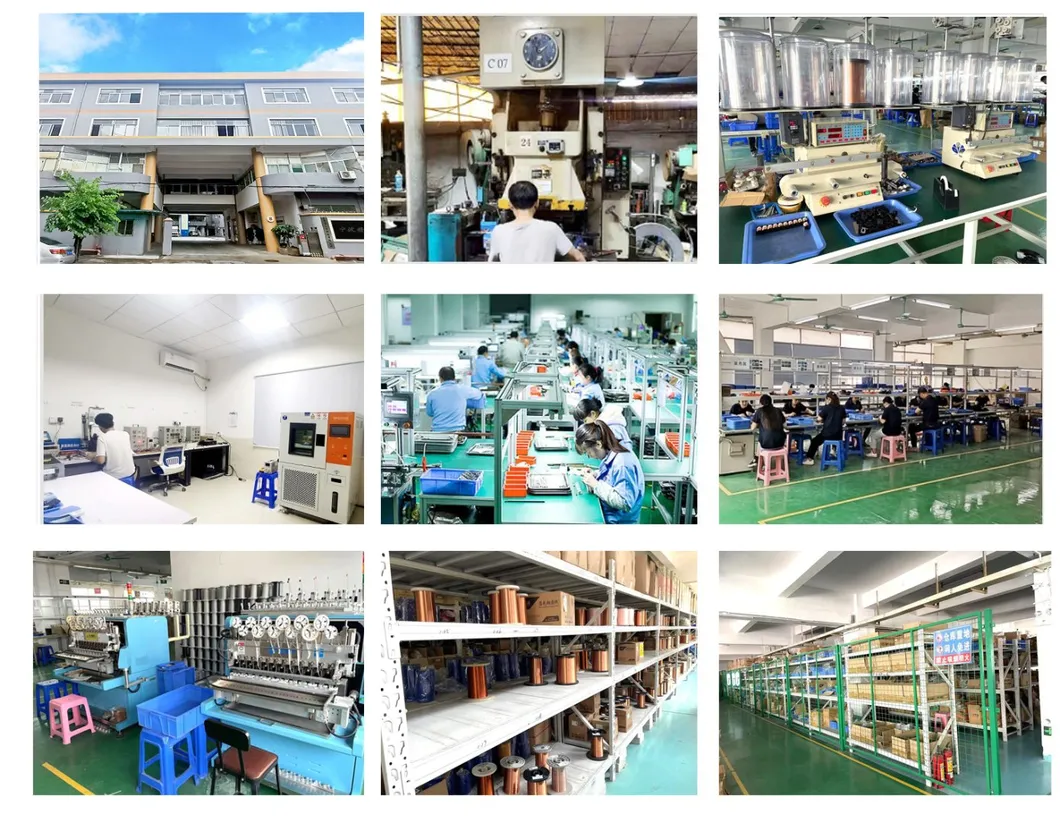

FAQ:Q: Are you trading company or manufacturer? And where is your factory located?A: We are factory. Our factory is located in Ningbo City, 2 hours from Shanghai Airport by car.Q: Do you have CE approved?A: Yes, we have CE and ROHS certificateQ: How to choose a suitable electromagnet quickly?A: Please provided us following parameters:
Act form: energized to hold or energized to release?
Holding force(Kg/N)?
Shape (circular or rectangular),
Dimension limited (diameter and height).Duty cycle,
Cable length and connector,
Waterproof? Yes/No need
Residual force(Kg/N)? -------------------------------For example: You can say I want purchase electromagnet as below:
Circular Permanent Electromagnet,
Action Form: Energized to release
Force:
40Kg/400N
Size:
Ø40 x H29
Voltage:
DC 12V
Power:
16 W
Duty Cycle:
10%(For each cycle: Max. Energized time 3s, de-energize time 60s)
Lead Wire:
Bottom edge out 25cm with XH2.54 male connector.Waterproof: Yes.Install Thread size: M6---------------------------------------Q: How long is your delivery time?A: Samples ready for delivery in 3 days if the goods are in stock, or in 7-10 days for for customized product. It is according to quantity.Normally, you will get our samples in 7-10 days after payment.Q: Can you customized electromagnet?A: Yes, you are welcome.Q: Can I print my Brand/Logo on the product?A: Yes, free of charge.We are looking forward to your inquiry.https://nbjinsun.en.made-in-china.com/contact-info.html
