基本信息产品详情
基本信息
| 型号编号 | SR602L-16英尺 |
| 类型 | 干墙起重机 |
| 滑轨类型 | 钢丝绳 |
| 提升速度 | 举板器 |
| 最大提升高度 | 4.8米 |
| 连锁瀑布 | 手册 |
| 认证 | CE, ISO9001:2000, BSCI |
| 条件 | 新 |
| 颜色 | 黄色 |
| 最大加载 | 68公斤 |
| 名字 | 干墙升降机 |
| 功能 | 抬起面板 |
| 最小订单量 | 五十 |
| 交通总包 | 在海边 |
| 规格 | 3.35百万或4.65百万 |
| 商标 | 干墙升降机 |
| 起源 | 浙江 |
| 商品编码 | 8428909090 |
| 生产能力 | 每月5000件 |
产品详情
Product Description
Preview

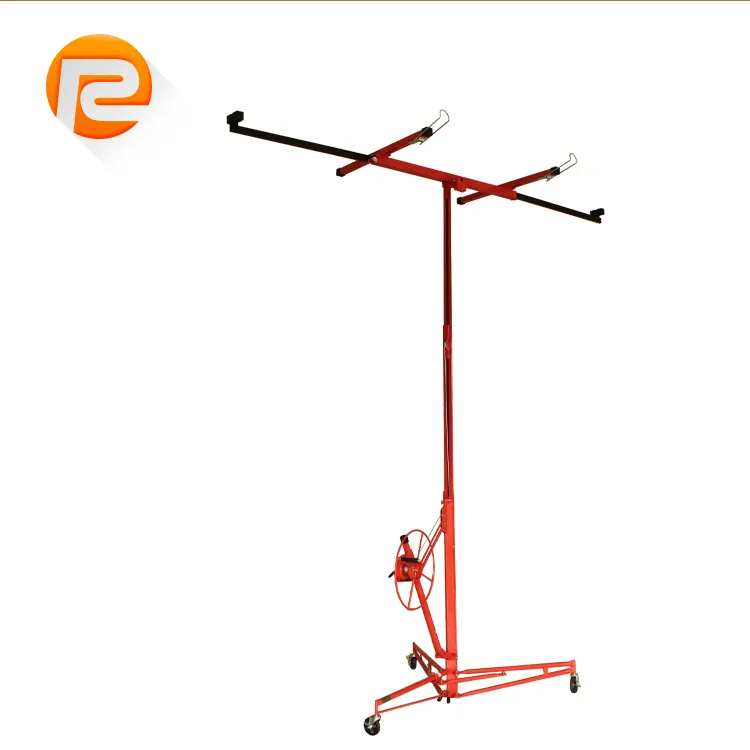

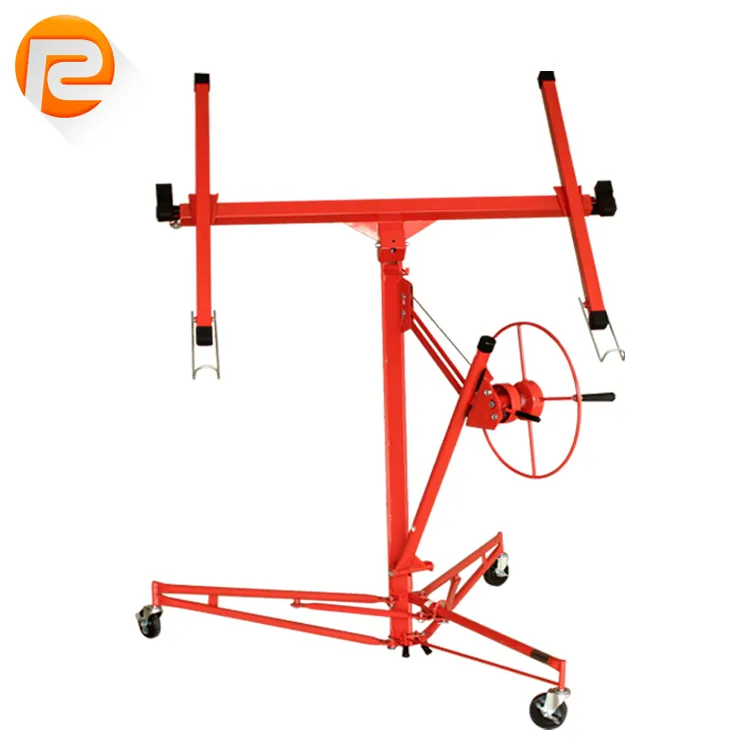

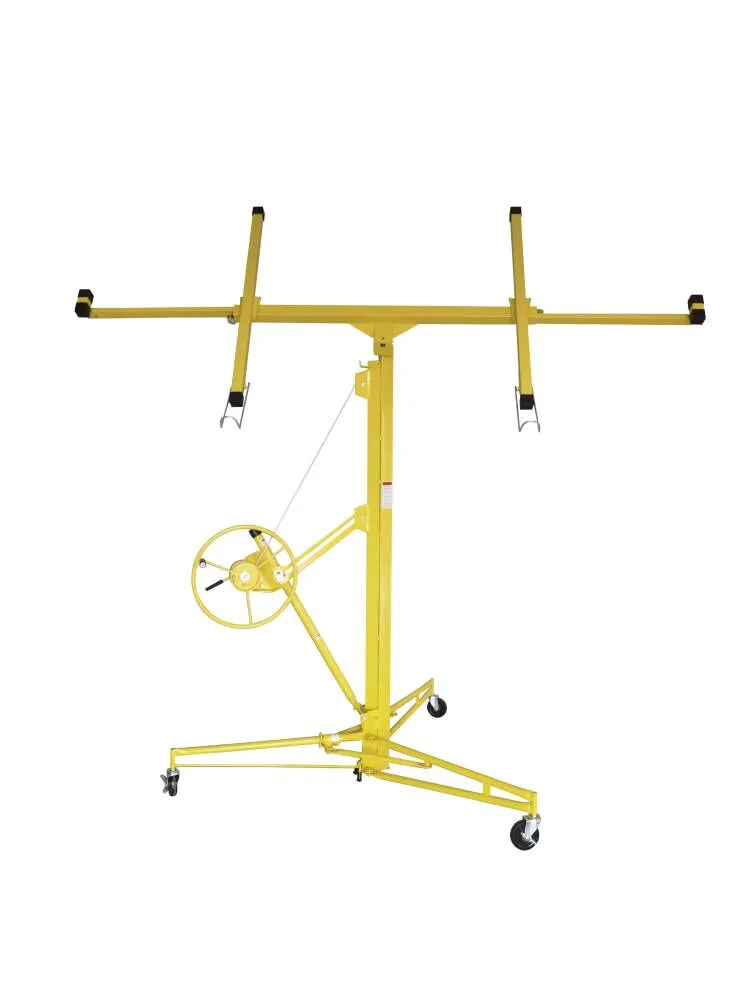

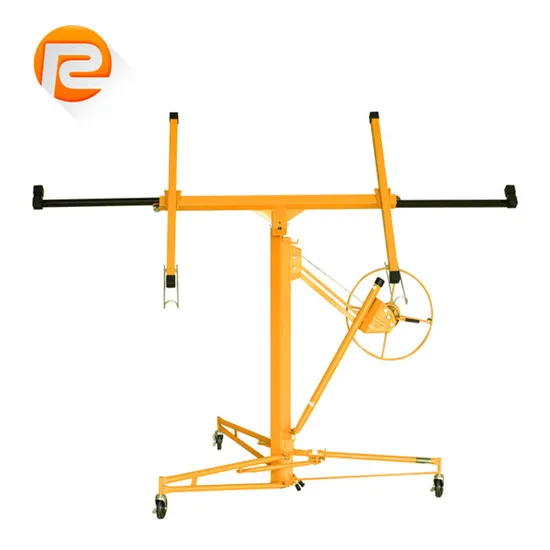

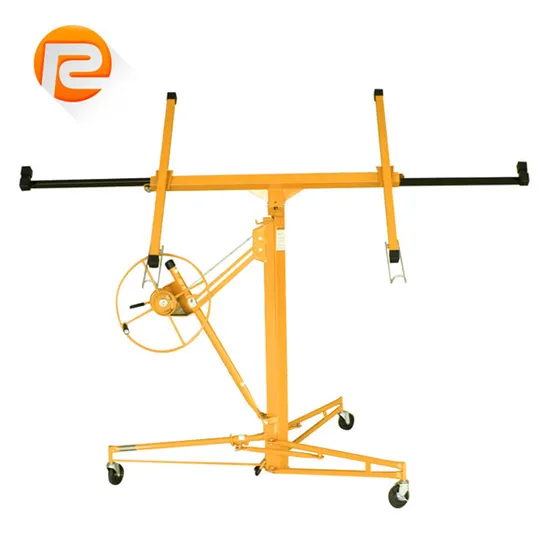

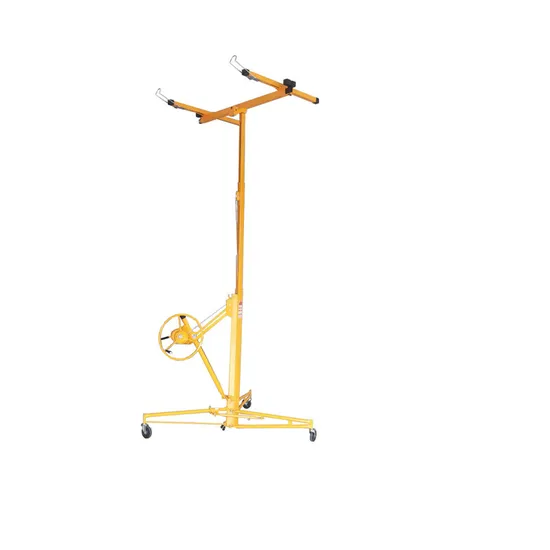

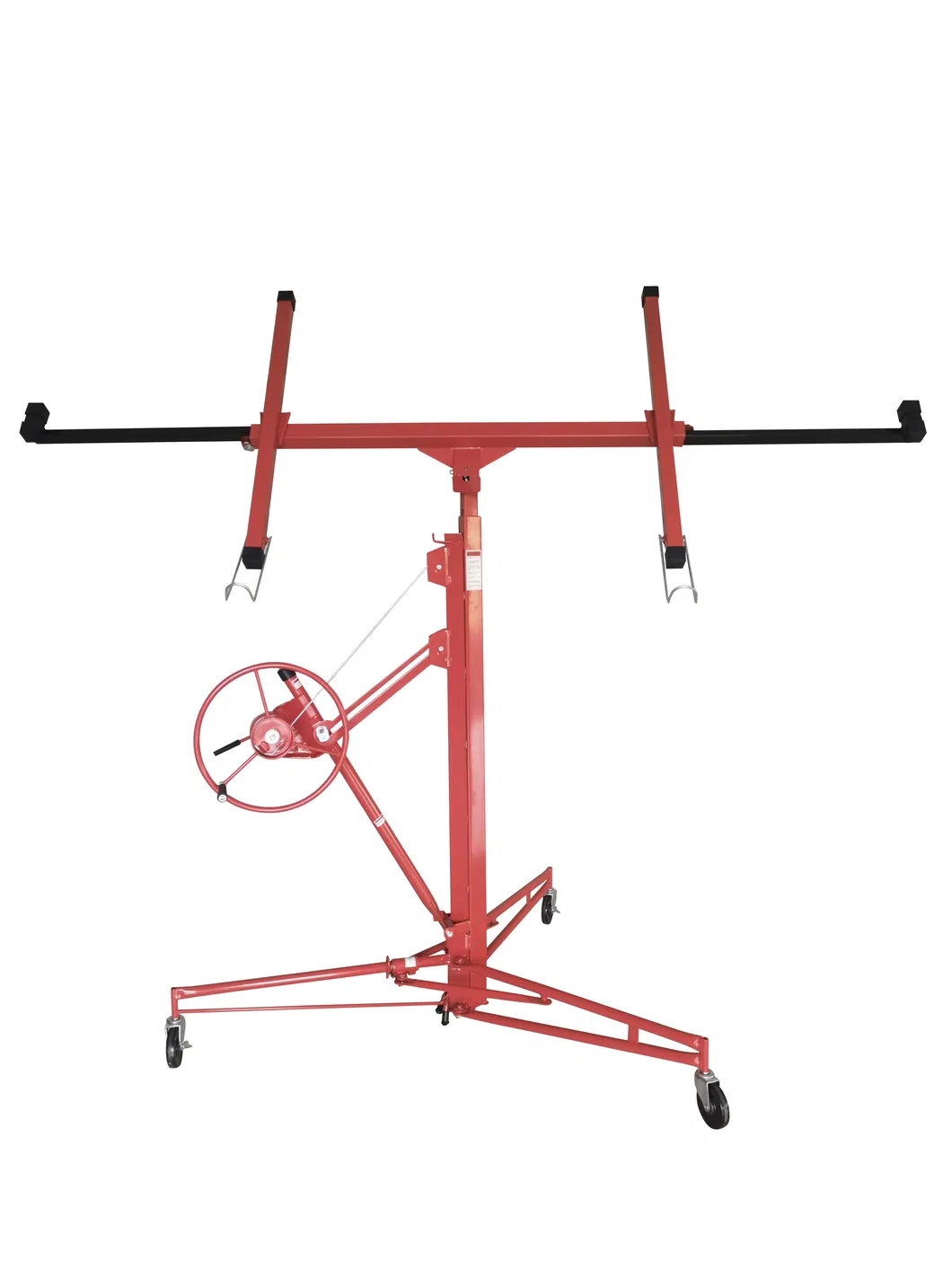

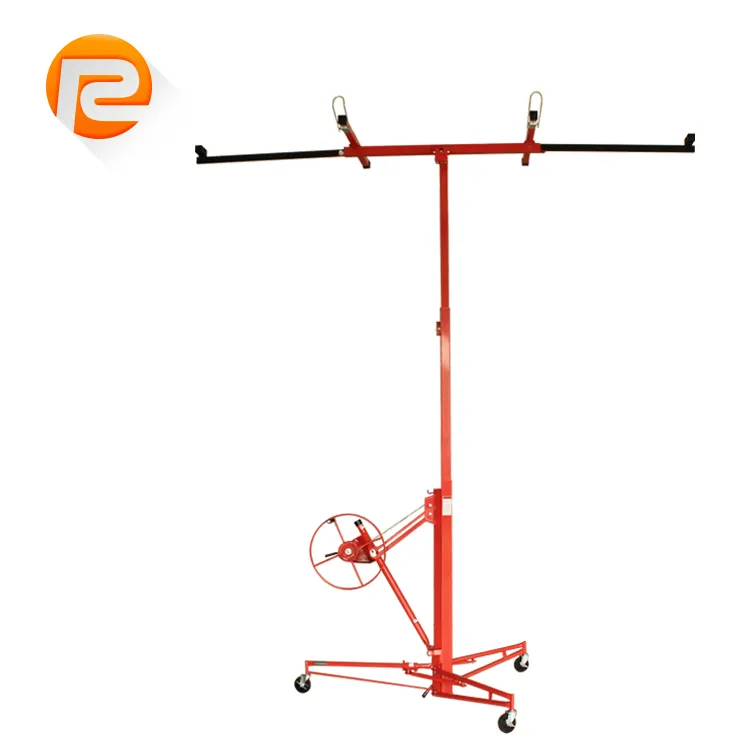

Board lifter
Drywall lift can be assembled or disassembled in seconds with not tools required
Tilting cradle brings loading height down to 34 inches for easy installation of drywall to walls. sloped or level ceilings up to 11-Feet tall
Integral cradle outriggers extend to handle up to 4-by-16-foot sheets
Disassembled unit fits into car trunk
Maximum load rating of 150 pounds ensures plenty of support for lifting all standard drywall sheets
Maximum load : 68kg
Plate support tilt 60 and swivel360 horizontally; automatic brake
Plate support
expandable with3
positions
Extensions
retracted
spacing of 54 CM
spacing of 84 CM
Max working height: 3.35 M (11FT), when you want to get 4.6M, you can use one 6ft bar to replace the 4ft bar in the body of 11ft
Minimum working height: 1.38m
Arm length: 90CM + support hook
Maximum opening of extensions: 2.94M
Minimum opening of
extensions: 1.25 M
3 wheels for steering 10CM (4")in diameter with
brake
winch with tube
Drywall lift can be assembled or disassembled in seconds with not tools required
Tilting cradle brings loading height down to 34 inches for easy installation of drywall to walls. sloped or level ceilings up to 11-Feet tall
Integral cradle outriggers extend to handle up to 4-by-16-foot sheets
Disassembled unit fits into car trunk
Maximum load rating of 150 pounds ensures plenty of support for lifting all standard drywall sheets
Maximum load : 68kg
Plate support tilt 60 and swivel360 horizontally; automatic brake
Plate support
expandable with3
positions
Extensions
retracted
spacing of 54 CM
spacing of 84 CM
Max working height: 3.35 M (11FT), when you want to get 4.6M, you can use one 6ft bar to replace the 4ft bar in the body of 11ft
Minimum working height: 1.38m
Arm length: 90CM + support hook
Maximum opening of extensions: 2.94M
Minimum opening of
extensions: 1.25 M
3 wheels for steering 10CM (4")in diameter with
brake
winch with tube
Preview
Preview
Preview
Packing : each pc/ctn
bonnieliu999-wt
sR602: net weight:39kgs
150lbs Load CapacitySturdy welded steel construction with powder coating for longevity and durability. It can attach to level ceilings and walls with a maximum load of 150 pounds
4ft - 11ft Adjustable Height,Lifts 11ft ceiling & 11ft wall. Apply various drywall panels up to 4ft*11ft
3 Wheels and Built-In Winch with Brake. The drywall lift features 3pcs of 4" caster wheels for easy rolling, foot stops to keep the lift in place and built-in winch with brake to guarantee safety
One Person Operation
,This Sturdy and stable drywall panel lift lets you lift drywall and sheet rock without assistance
Easy to Assemble & Disassemble, Quick tool-free setup and dis-assembly for storage, no tools required. Ideal for both home and commercial use
bonnieliu999-wt
sR602: net weight:39kgs
150lbs Load CapacitySturdy welded steel construction with powder coating for longevity and durability. It can attach to level ceilings and walls with a maximum load of 150 pounds
4ft - 11ft Adjustable Height,Lifts 11ft ceiling & 11ft wall. Apply various drywall panels up to 4ft*11ft
3 Wheels and Built-In Winch with Brake. The drywall lift features 3pcs of 4" caster wheels for easy rolling, foot stops to keep the lift in place and built-in winch with brake to guarantee safety
One Person Operation
,This Sturdy and stable drywall panel lift lets you lift drywall and sheet rock without assistance
Easy to Assemble & Disassemble, Quick tool-free setup and dis-assembly for storage, no tools required. Ideal for both home and commercial use
