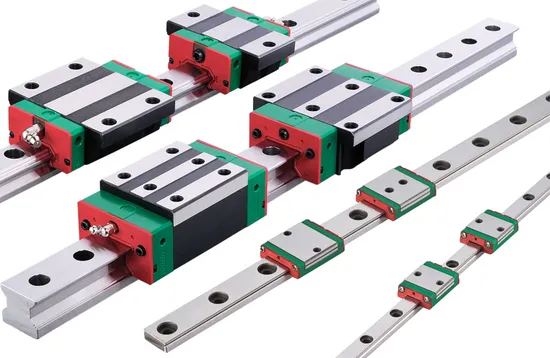

Linear guideways provides linear motion by re-circulating rolling elements between a profiled rail and a bearing block. The coefficient of friction on a linear guideway is only 1/50 compared to a traditional slide and they are able to take loads in all directions. With these features, a linear guideway can achieve high precision and greatly enhanced moving accuracy. Ucani
Corporation
offers multiple linear guideway series, each featuring different options for sizes, loading capabilities, accuracies, and more.
Other attributes
Applicable Industries
Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Retail, Food Shop, Printing Shops, Construction works
, Energy & Mining, Food & Beverage Shops, Other, Advertising Company, 3D printer, Dispenser, Machine tool equipment
Weight (KG)
0.2
Video outgoing-inspection
Provided
Machinery Test Report
Not Available
Marketing Type
New Product 2022
Warranty of core components
1 Year
Core Components
Bearing, steel ball
Place of Origin
taiawn
Condition
New
Warranty
1.5 years
Model Number
MGN12
Brand Name
HIWIN
Material
bearing steel
Product name
Linear Guideway Rail
Feature
Hiwin Original
Application
Cnc Machining Parts
Performance
Precise and wear-resistant
Block Type
MGN
Model

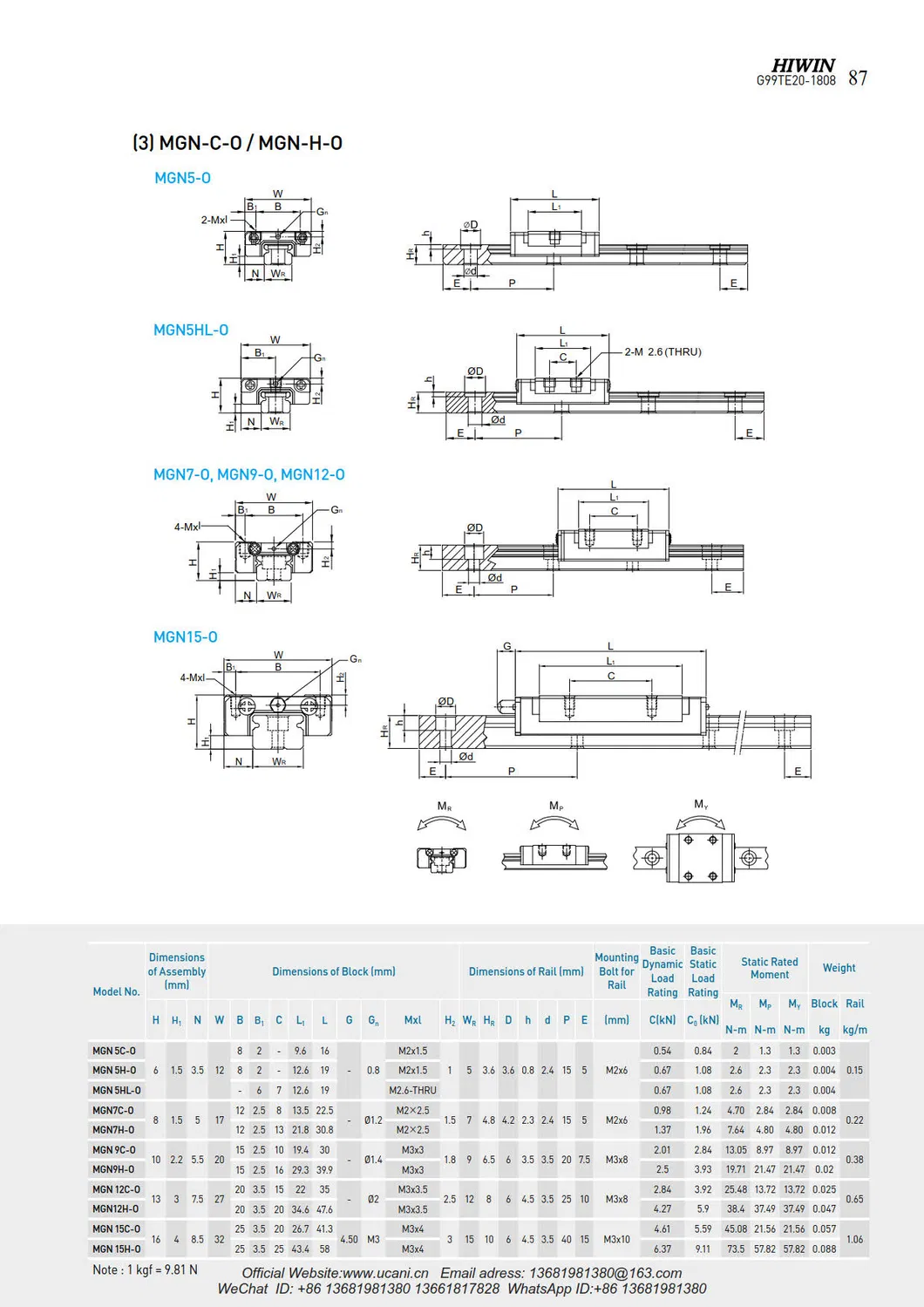

MGN5C MGN7C MGN9C MGN12C
MOQ
1pcs
Packaging and delivery
Packaging Details
Carton sealed packaging
Selling Units:
Single item
Single package size:
30X10X8 cm
Single gross weight:
1.000 kg
Basic Dynamic Load Range:
11.38 kN - 208.36 kN

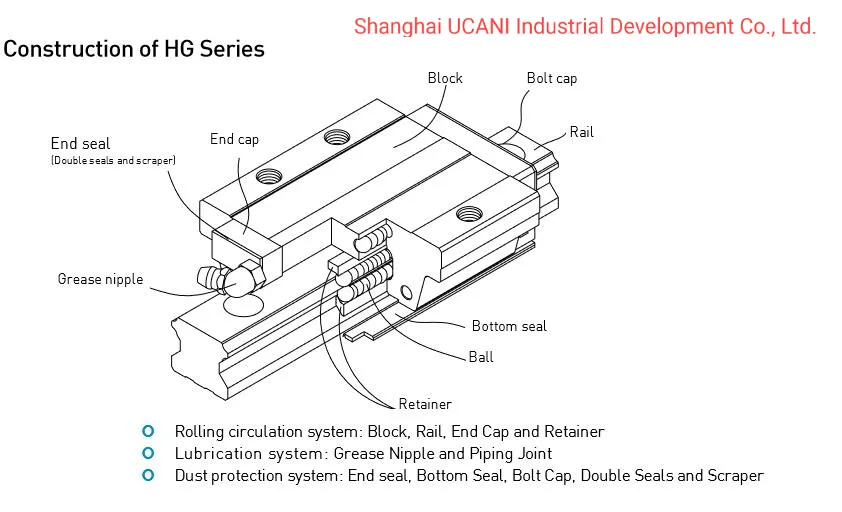

The HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error. Thus, the HG series linear guideways can achieve a long life with high speed, high accuracy and smooth linear motion.

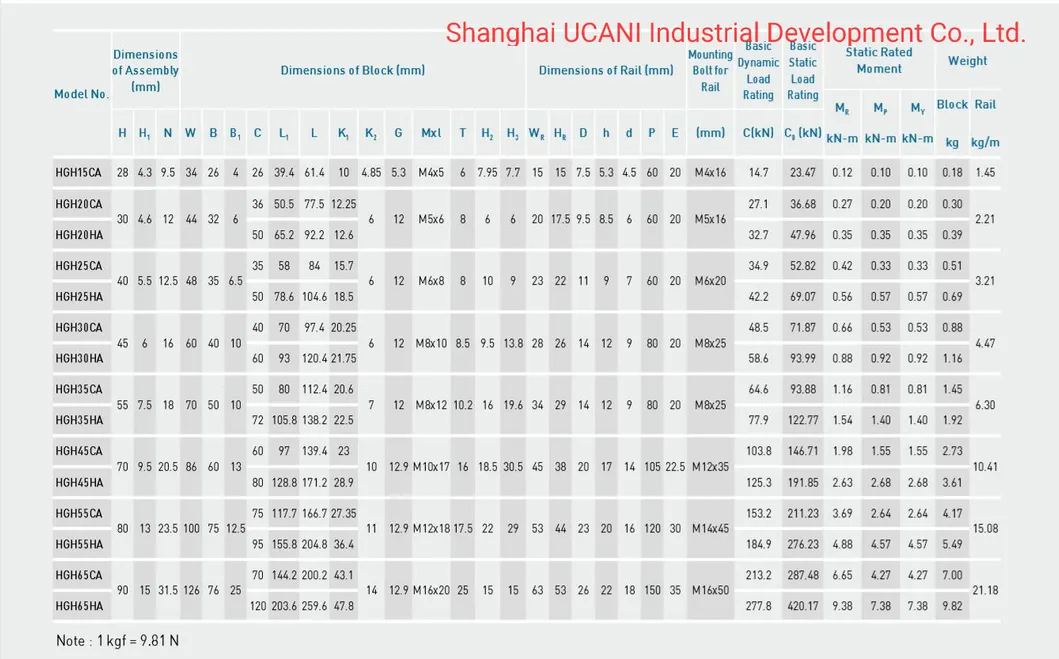

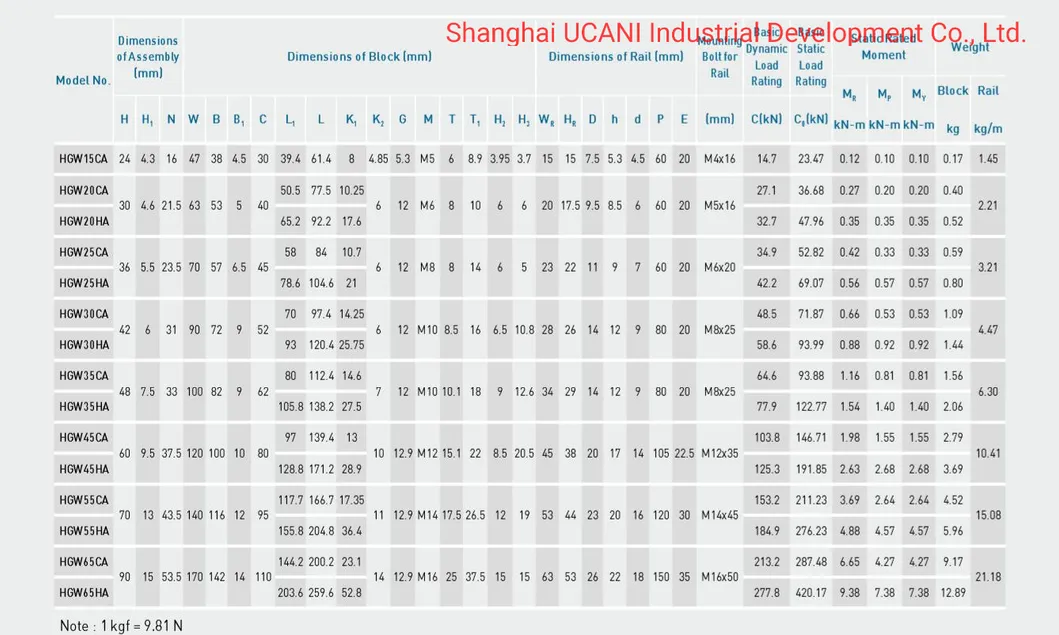

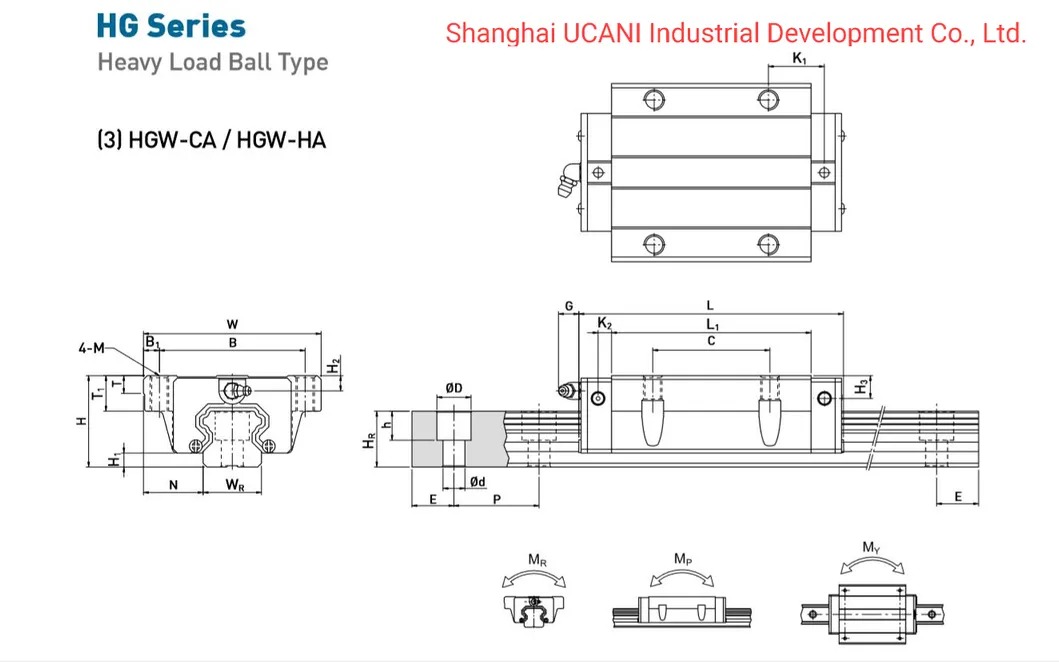

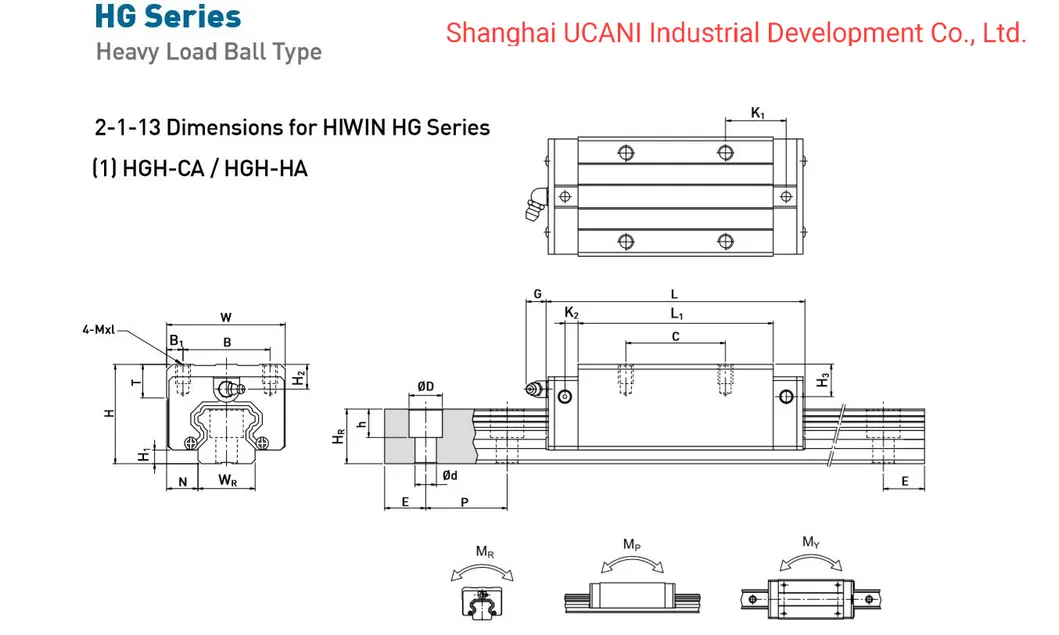

HG Series - Block
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error. Thus, UCNAI
HG series linear guideways can achieve a long life with high speed, high accuracy and smooth linear motion.Block types
UCANI offers two types of linear guideway which are flange and square types. Because of the low assembly height and larger mounting surface, the flange type is suitable for heavy moment load application.
HG Series - Rail
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error. Thus, UCANI HG series linear guideways can achieve a long life with high speed, high accuracy and smooth linear motion.Rail types
Besides the standard top mounting type, UCANI
also
HG Series - Assembly
HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. It features equal load ratings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error. Thus, UCANI
HG series linear guideways can achieve a long life with high speed, high accuracy and smooth linear motion.
