UL FM认证带凹槽管路配件刚性柔性耦合器红色

Preview

基本信息产品详情证书

基本信息

型号/编号	XGQT1
结构	普遍的
灵活或刚硬	刚性的
材料	铁
标准	标准
涂层	环氧漆、油漆、镀锌达克罗涂层
颜色	红色、橙色、白色、黑色
压力	300psi
交货时间	15-30天
格栅式塑料排气箱	EPDM、硅胶、丁腈橡胶
螺栓与螺母	8.8级
交通政策包	带有胶合板托盘的纸箱，木箱
规格	1到12英寸
商标	SDSX
起源	中国
商品编码	73071100
生产能力	一百万吨
包装大小	34.50厘米×34.50厘米×15.00厘米
包装总重量	15000公斤
包装尺寸	34.50厘米×34.50厘米×15.00厘米
包装总重量	15.000kg 千克

产品详情

Product Description

Preview

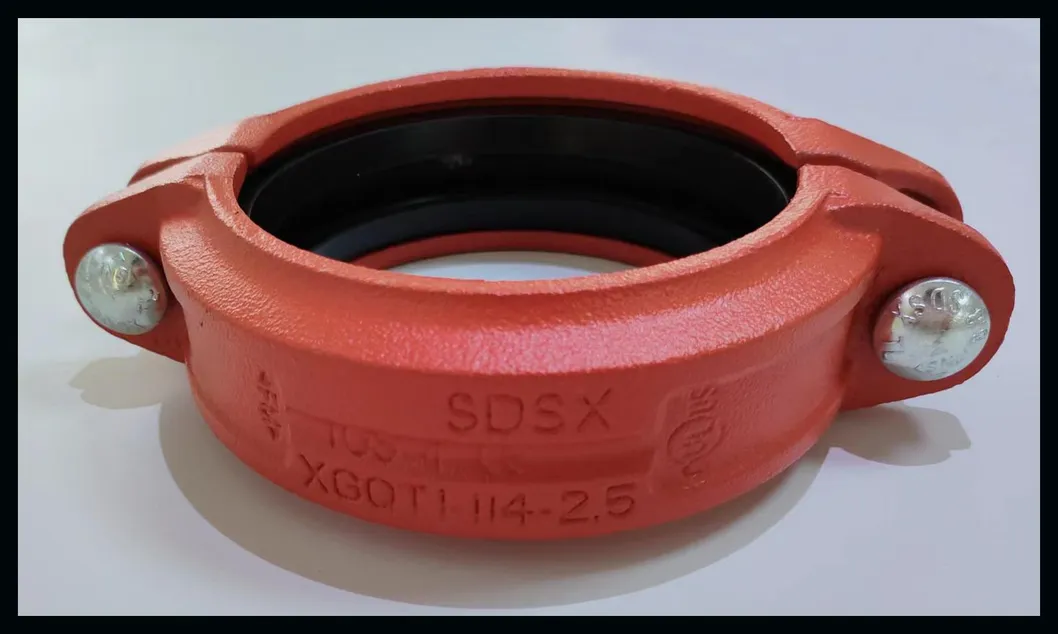

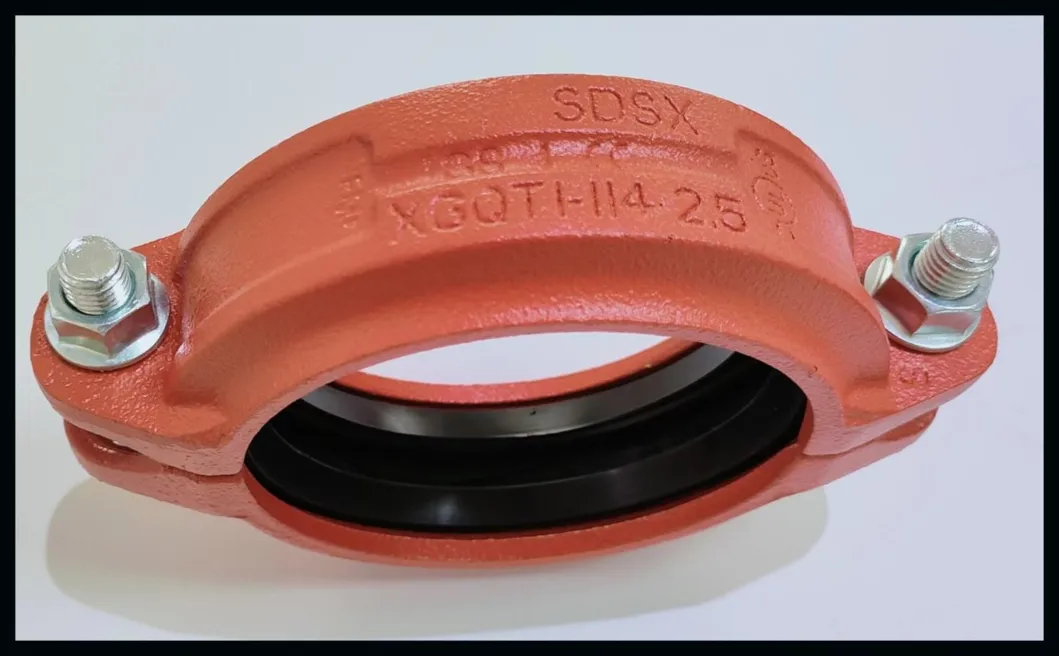

SDSX Grooved Rigid Coupling

Preview

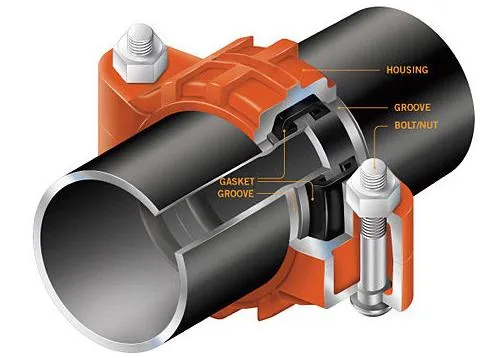

System
s & Performance

Preview

SDSX Grooved mechanical couplings(GMC) are available in both rigid and flexible models.A rigid coupling is used in applications where a rigid joint is desired,similar to that of a traditional flanged,welded ,or threaded connection.To be considered rigid,a coupling would allow less than one degree of deflection or angular movement

Preview

Description

Preview

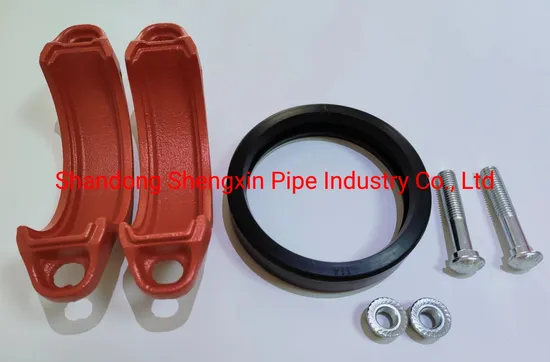

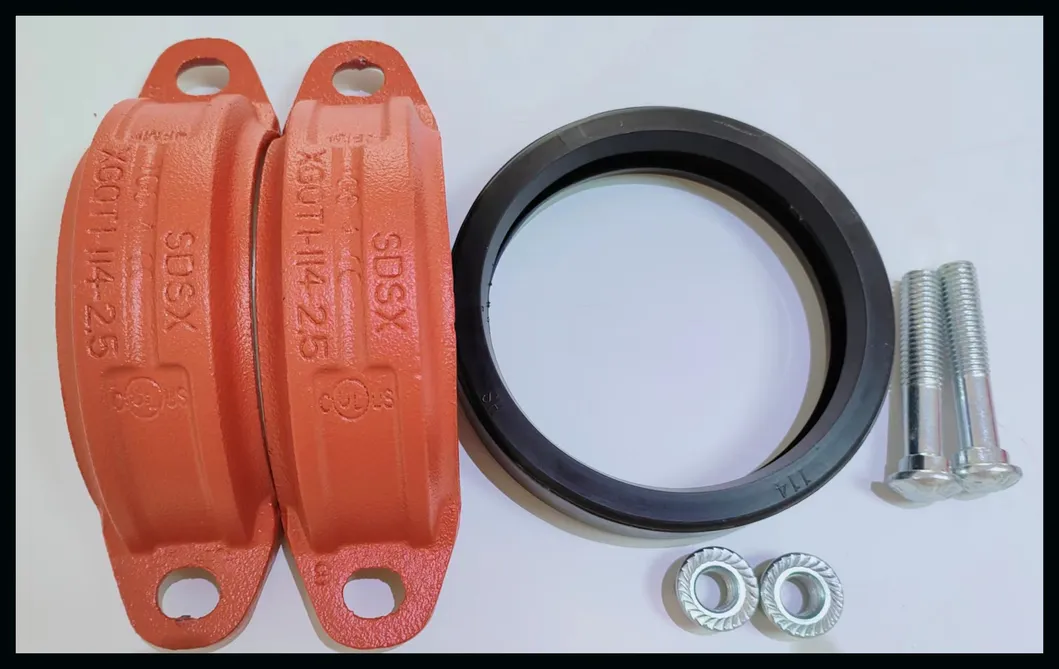

SDSX rigid coupling is designed from 1"-12", and pressure is 300psi/2070 kPa.Bolts/Nuts: Heat-treated plated carbon steel, meeting its mechanical properties Grade 8.8.Gaskets: EPDM, silicon rubber and Nitrile rubber.

Preview

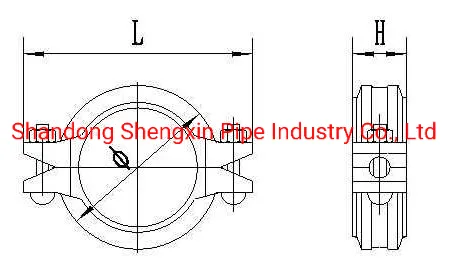

Dimensions
Material Specification
Housing: Ductile iron conforming to ASTM A-536, grade 65-45-12.

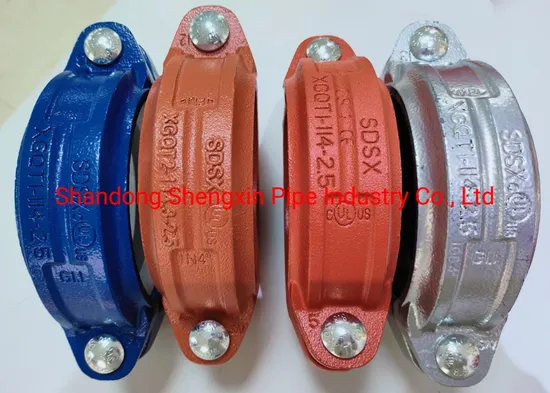

Housing Coating: Paint red and orange

Preview

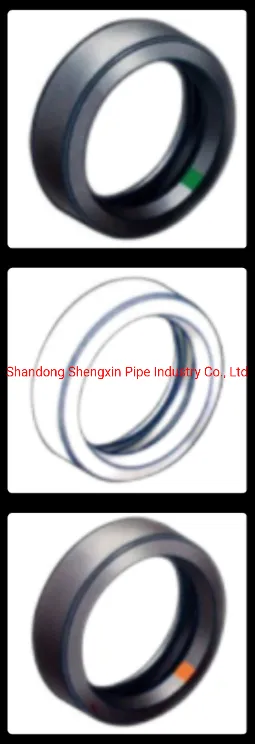

• Optional: Hot dipped galvanized, electro galvanized.Gaskets
• EPDM: Temperature range -34ºC to +150ºC. Recommended for hot water service within
the specified temperature range plus a variety of dilute acids,oil-free air and many
chemical services.NOT RECOMMENDED FOR PETROLEUM SERVICES.• Silicon Rubber: Temperature range -40ºC to +177ºC. Recommended for drinking water,
hot water, high-temperature air and some high-temperature chemicals.NOT RECOMMENDED FOR PETROLEUM SERVICES.• Nitrile Rubber: Temperature range -29ºC to +82ºC. Recommended for petroleum products,
air with oil vapors, vegetable and mineral oils within the specified temperature range.NOT
RECOMMENDED FOR HOT WATER
SERVICES OVER +150°F/+66ºC OR FOR HOT

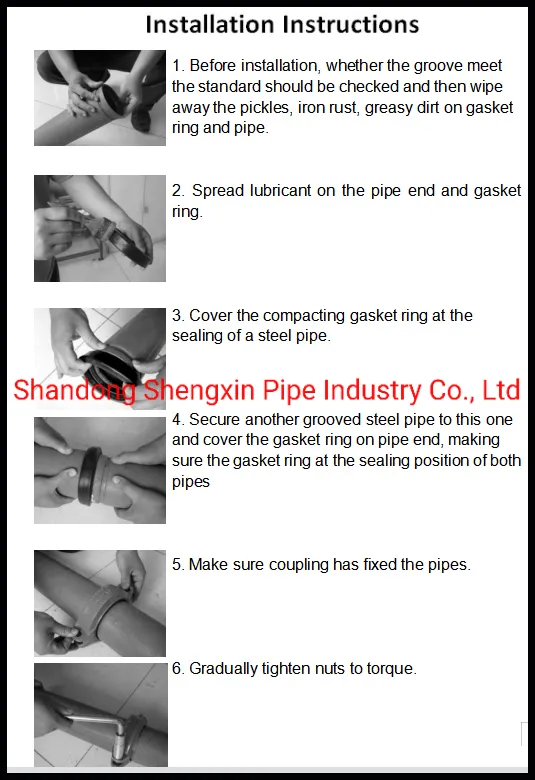

DRY AIR OVER +140°F/+60ºC.Installation

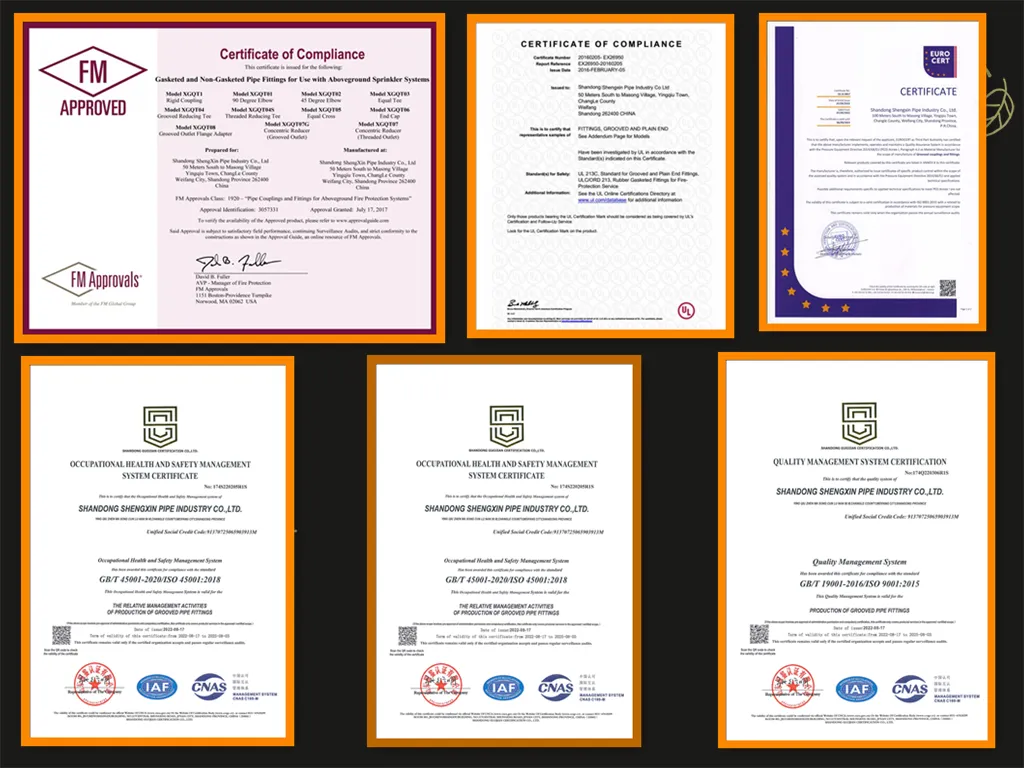

Certification

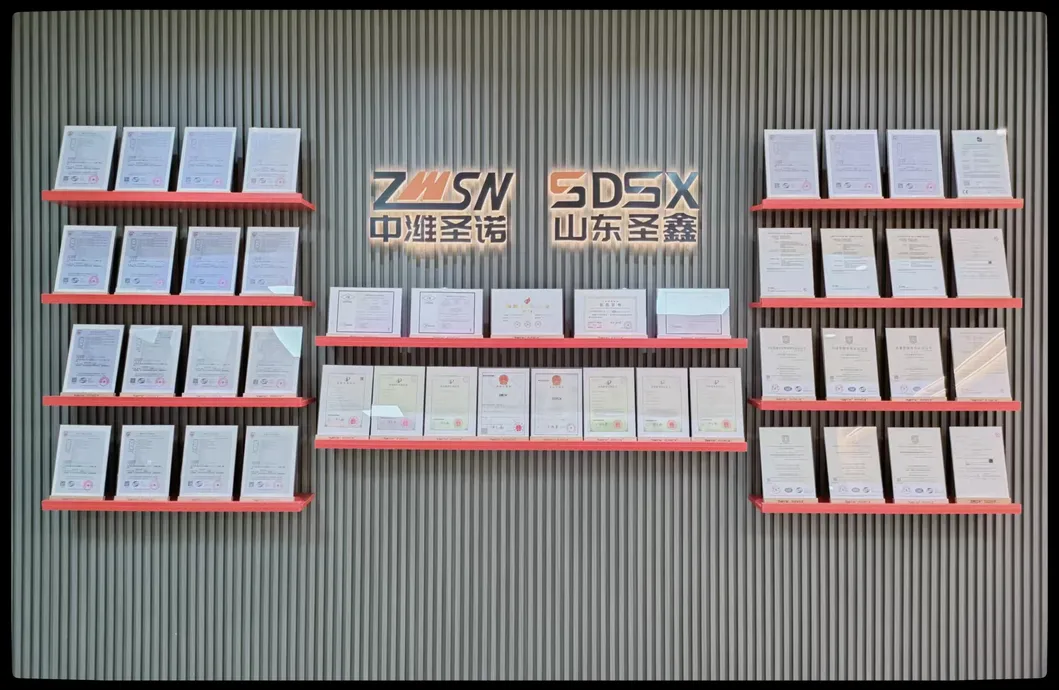

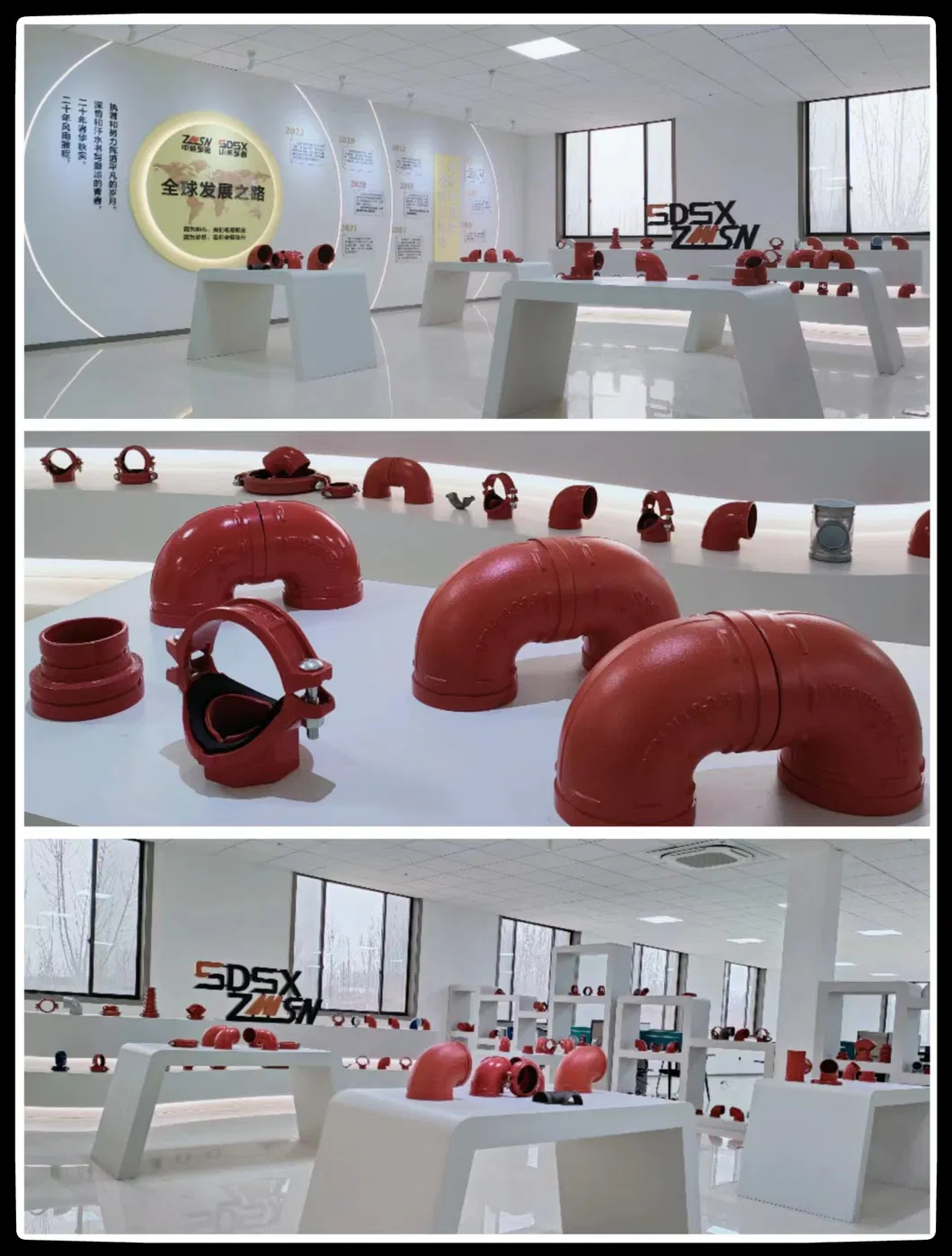

Showroom

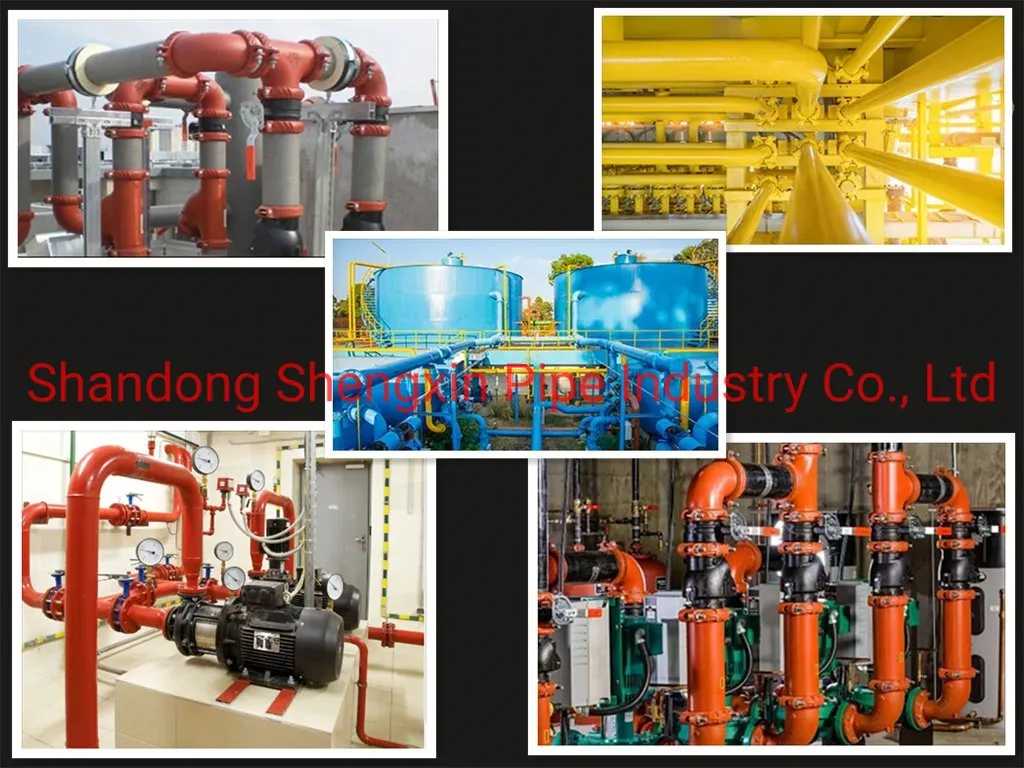

Application
Package and shipment

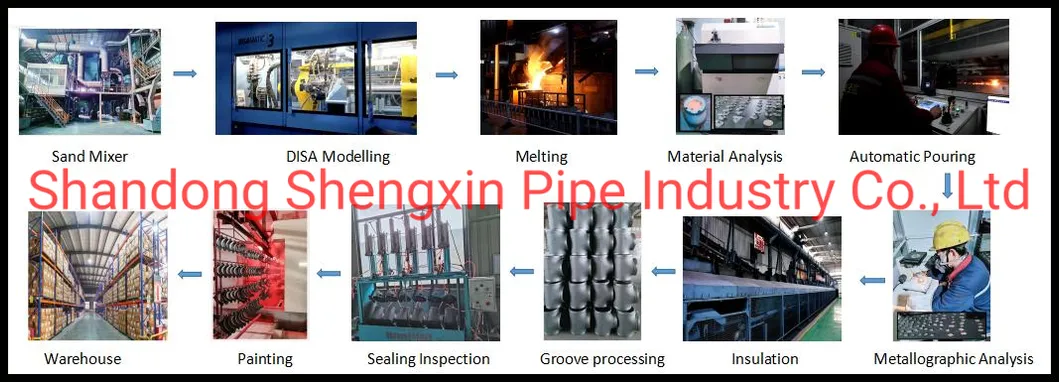

Production and quality control
