基本信息产品详情证书
基本信息
型号 | HK-04G-1AZ-018 |
尺寸 | 小型 |
环境 | 低于250摄氏度 |
耐压值 | 高电流 |
打破表格 | 单一类型 |
应用程序 | 微波炉 |
品牌 | 未偃(名) |
认证 | ISO9001, CE, CCC, VDE,ENEC |
功能 | Spdt/常闭/常开 |
经营力 | 2.0 无需杠杆,但可定制) |
运营旅行 | 0.4-0.7毫米(无杠杆,但可定制) |
杠杆 | 定制的 |
当前汇率 | 0.1安培/1安培/3安培/5安培/10安培 |
速率电压 | 125伏特/250伏特 |
引脚 | 2pin/3pin |
终点站 | 2.8乘以0.5除以3.2乘以0.5再除以1.2乘以0.5毫米 |
运输包 | Box |
规格 | 纸箱 |
商标 | 伟朋 |
起源 | 浙江温州 |
商品编码 | 8536500000 |
生产能力 | 每天五万件 |
产品详情
Product Description
Preview

Preview
Features :

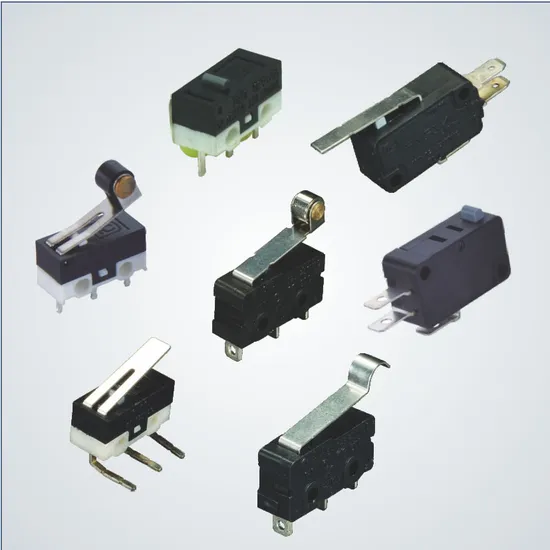

(1) Various levers and terminal types are available for choice.
(2) Compact design, assemble easily.
(3) Fast action, long life, which could decline cost.
(4) Quality is reliable, has got UL, CUL, ENEC, SGS, CQC, CE, CB, KC certificates.
(5) Strict inspection: automated machine and human double full-inspection.
(6) Widely used in home appliances, electronic devices, automobile industry automation machines.
(1) Various levers and terminal types are available for choice.
(2) Compact design, assemble easily.
(3) Fast action, long life, which could decline cost.
(4) Quality is reliable, has got UL, CUL, ENEC, SGS, CQC, CE, CB, KC certificates.
(5) Strict inspection: automated machine and human double full-inspection.
(6) Widely used in home appliances, electronic devices, automobile industry automation machines.
Preview

Preview

Preview
_________________
PRODUCT DETAILS
_________________
PRODUCT DETAILS
_________________
Preview

Preview

Preview

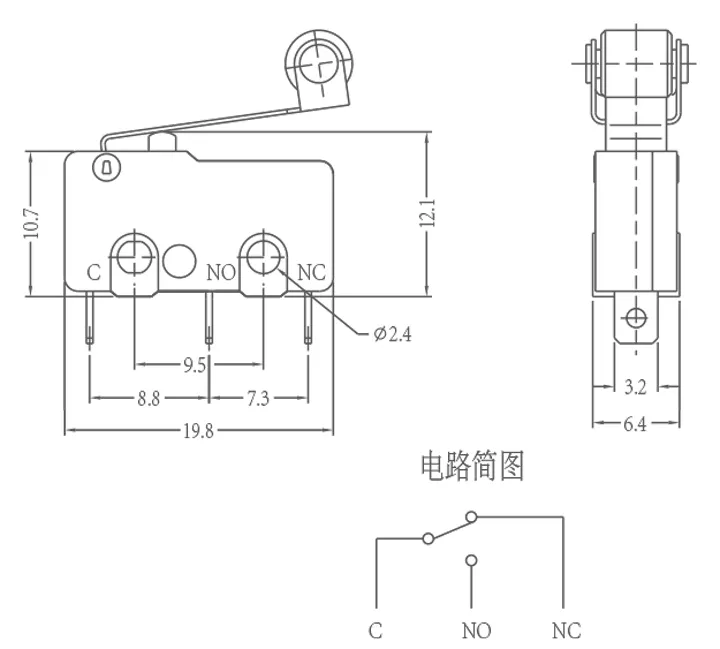

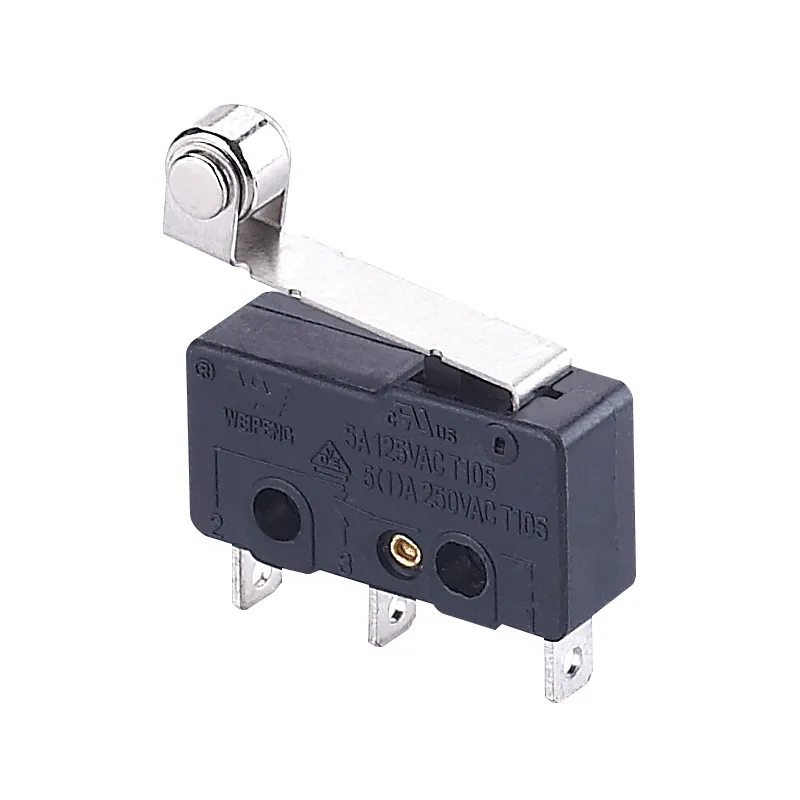

Details:
Color: Black
Diamension: 20 x 10 x 6mm (L X W X H)
Rated voltage: AC 125V-250V
Current rating: 5A
PCB Terminals Circuit Board
With Roller Lever Limit
Working principle:
By external mechanical force transmission elements (by pins, buttons, levers, rollers, etc.) will be used to force action on a reed, producing reed instantaneous action when action shifted to the critical point, so moving contact with the fixed contact spring at the end of the action point fast on or off.When the force is removed on the drive components, action reed produce reverse action force transmission element reverse stroke when the action reaches a critical point reed, instantaneous reverse action.Feature: contact spacing is small,short stroke action,according to the power of small,fast-break
Application:
Apply in A computer mouse, car mouse, automobile electronic products, communications equipment, military products, test instrument, gas water heater, gas burner, small home appliance, microwave oven, electric rice cooker, floating ball supporting equipment, medical equipment, building automation, electric tools, ect.
Color: Black
Diamension: 20 x 10 x 6mm (L X W X H)
Rated voltage: AC 125V-250V
Current rating: 5A
PCB Terminals Circuit Board
With Roller Lever Limit
Working principle:
By external mechanical force transmission elements (by pins, buttons, levers, rollers, etc.) will be used to force action on a reed, producing reed instantaneous action when action shifted to the critical point, so moving contact with the fixed contact spring at the end of the action point fast on or off.When the force is removed on the drive components, action reed produce reverse action force transmission element reverse stroke when the action reaches a critical point reed, instantaneous reverse action.Feature: contact spacing is small,short stroke action,according to the power of small,fast-break
Application:
Apply in A computer mouse, car mouse, automobile electronic products, communications equipment, military products, test instrument, gas water heater, gas burner, small home appliance, microwave oven, electric rice cooker, floating ball supporting equipment, medical equipment, building automation, electric tools, ect.
Preview

Preview

Preview

Preview

Preview
_________________OUR CUSTOMERS_________________

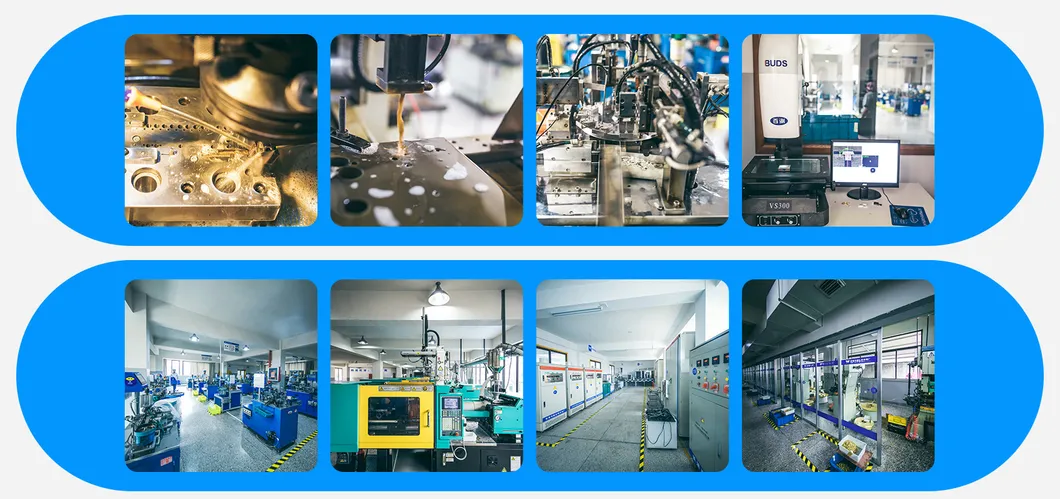

_________________OUR COMPANY_________________

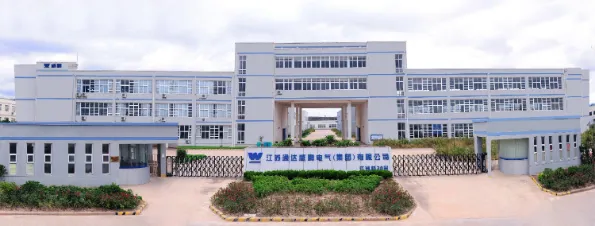

Founded in 1990, Yueqing Tongda Wire Electric Factory is located in Yueqing Economic Development Zone, Zhejiang Province, southeast coast of China. It is a professional switch manufacturer integrating product R & D, production, sales and after-sales service. Its products cover more than 10 countries and regions all over the country and internationally.The products are widely used in TV sets, soymilk machines, microwave ovens, rice cookers, fruit Juicers and other household appliances, automobiles, electric tools and electronic companies with 28000 square meters of factory buildings ; The existing leading products are: micro switch series, waterproof switch series, rotary switch series, push button switch series,
