基本信息产品详情证书
基本信息
型号 | DK4-BZ-002 |
尺寸 | 超小尺寸 |
环境 | 小于250℃ |
断线容量 | 微电流 |
破坏形态 | 单一类型 |
应用程序 | 家用电器 |
品牌 | 魏鹏 |
认证 | ISO9001, CE, CCC, ENEC, VDE |
功能 | Spdt/常闭/常开 |
经营力 | 1-3n无杠杆,但可定制 |
经营性旅行 | 无杠杆为0.4-1.2毫米(可定制) |

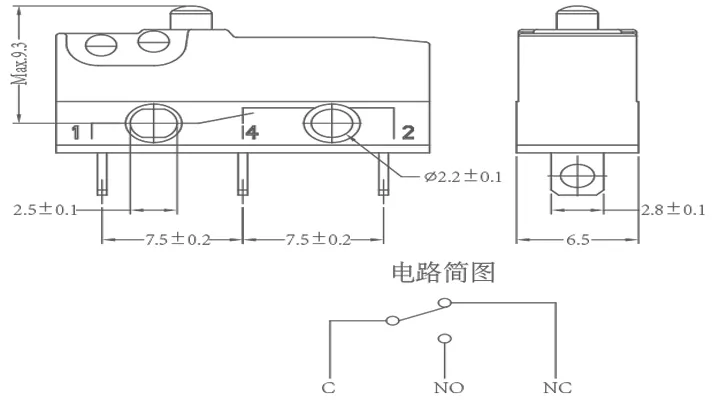

杠杆 | 辊杆/短杆/长杆/定制 |
引脚 | 2pin/3pin |
终点站 | 1.3*0.5毫米的PCB/3.2*0.5毫米/7*0.6毫米 |
评级 1 | 10.1A总成1/4HP 125/250V 25t105 |
评分2 | 10(1.5A) 250V T105 |
Pich | 7.5m |
颜色 | 定制的 |
运输方案 | 盒子 |
规格 | 纸箱 |
商标 | 未鹏 |
起源 | 浙江 |
商品编码 | 八十五亿三千六百五十万 |
生产能力 | 每天 5 万个/天 |
包装尺寸 | 55.00cm * 33.00cm * 36.00cm |
包装总重量 | 5.000公斤 |
包装尺寸 | 55.00厘米乘以33.00厘米乘以36.00厘米 |
包装总重量 | 五千克 |
产品详情
Product Description
Preview

Preview
Features
*Waterproof and dustproof
*Tight structure,small contact gap,snap action,highsensitivity
*Long life,high precision and reliablity
*Widely used in auto,agricultural equipment,applications,office equipment etc
_________________
PRODUCT DETAILS
_________________
*Waterproof and dustproof
*Tight structure,small contact gap,snap action,highsensitivity
*Long life,high precision and reliablity
*Widely used in auto,agricultural equipment,applications,office equipment etc
_________________
PRODUCT DETAILS
_________________
Preview

Preview

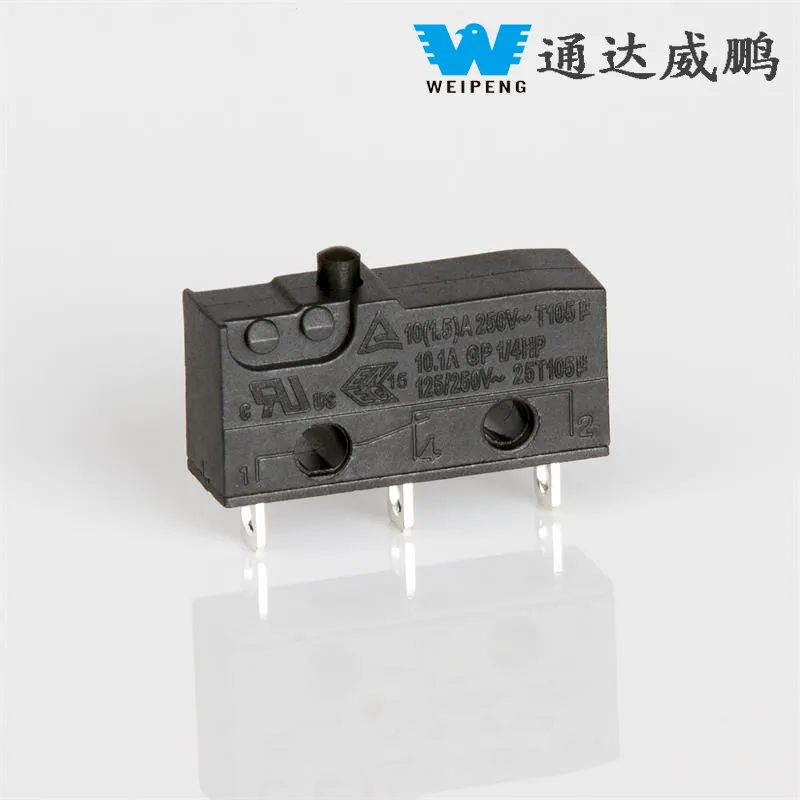

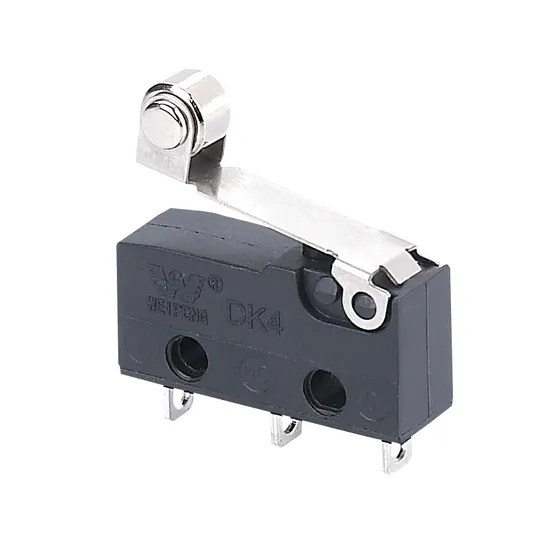

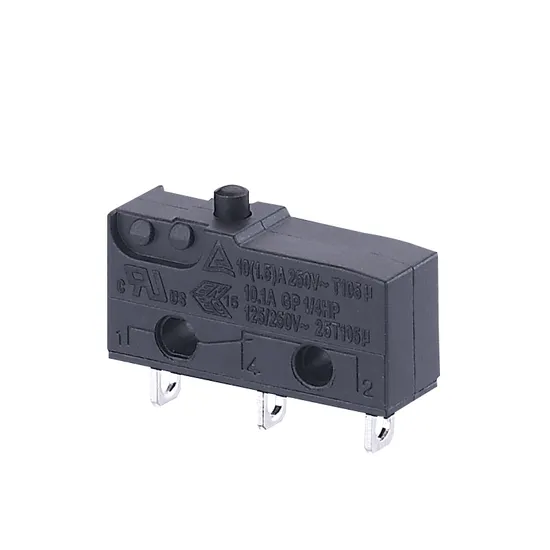

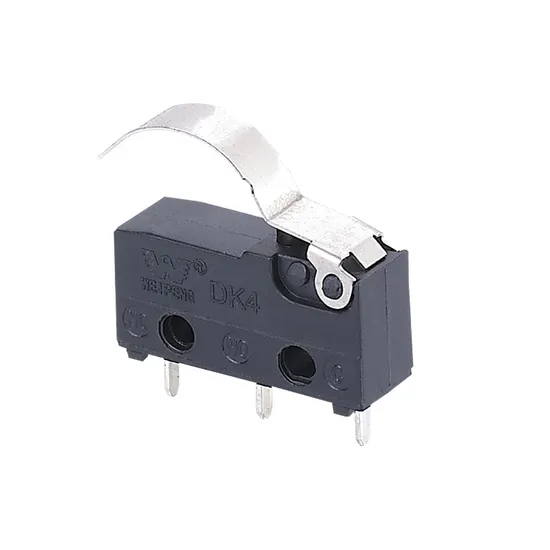

Micro switch

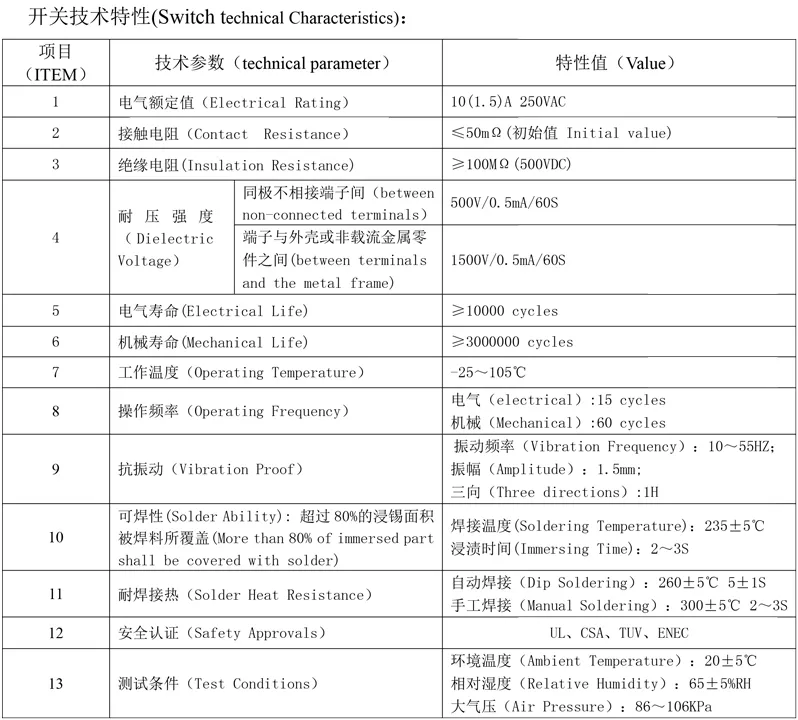

Ratings up to 10A 250V
With or without lever,Roller lever
Solder and PCB terminals
10A 250VAC 10A 125VAC
Safety Certification
Ratings up to 10A 250V
With or without lever,Roller lever
Solder and PCB terminals
10A 250VAC 10A 125VAC
Safety Certification
Preview

Preview

Preview

Preview

Preview

Preview

Preview
_________________OUR CUSTOMERS_________________

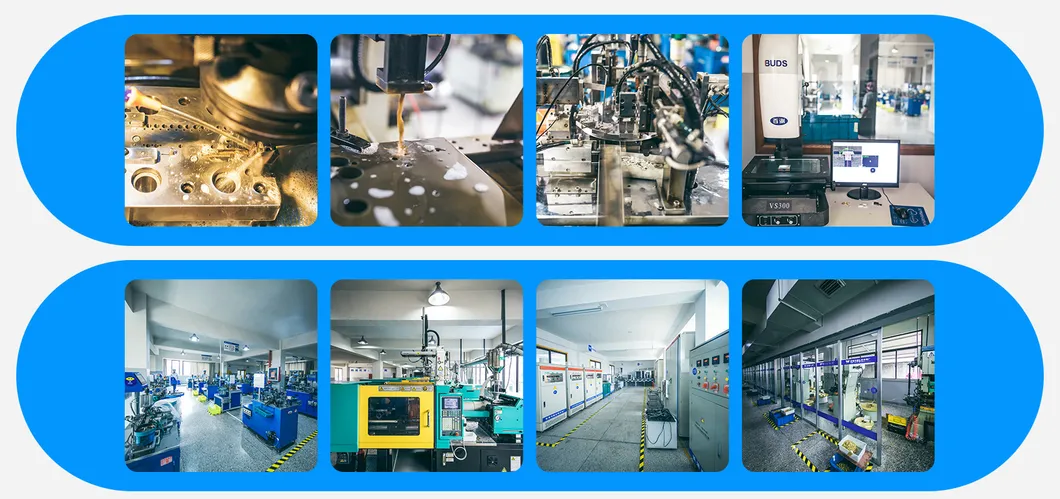

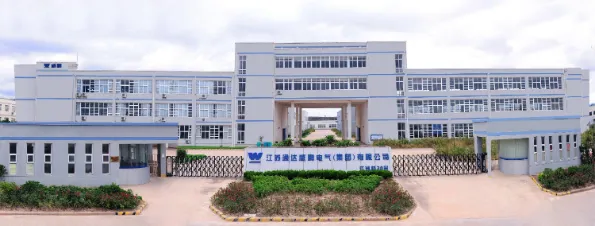

_________________OUR COMPANY_________________
Founded in 1990, Yueqing Tongda Wire Electric Factory is located in Yueqing Economic Development Zone, Zhejiang Province, southeast coast of China. It is a professional switch manufacturer integrating product R & D, production, sales and after-sales service. Its products cover more than 10 countries and regions all over the country and internationally.The products are widely used in TV sets, soymilk machines, microwave ovens, rice cookers, fruit Juicers and other household appliances, automobiles, electric tools and electronic companies with 28000 square meters of factory buildings ; The existing leading products are: micro switch series, waterproof switch series, rotary switch series, push button switch series,
rocker switch seies etc., all of which have obtained UL, cUL, ENEC, VDE, KC, CE, CB, TUV, CQC, EX(explosion-proof cert) etc.; the annual production capacity of the instrument is more than 300 million switches.
_________________OUR COMPANY_________________
Founded in 1990, Yueqing Tongda Wire Electric Factory is located in Yueqing Economic Development Zone, Zhejiang Province, southeast coast of China. It is a professional switch manufacturer integrating product R & D, production, sales and after-sales service. Its products cover more than 10 countries and regions all over the country and internationally.The products are widely used in TV sets, soymilk machines, microwave ovens, rice cookers, fruit Juicers and other household appliances, automobiles, electric tools and electronic companies with 28000 square meters of factory buildings ; The existing leading products are: micro switch series, waterproof switch series, rotary switch series, push button switch series,
rocker switch seies etc., all of which have obtained UL, cUL, ENEC, VDE, KC, CE, CB, TUV, CQC, EX(explosion-proof cert) etc.; the annual production capacity of the instrument is more than 300 million switches.
Preview

Preview

Preview

Preview

Preview

Preview

Preview
________________OUR CERTIFICATIONS________________
_________________FAQ_________________
Q1.:Do you have any certification about your factory or products?
A1:Of course,we have strong system certified,like IATF16949,ISO14001,UL,TUV,VDE,Rohs,Reach and related approvals.Q2.What is your sample policy?
A2:Free sample could be provided within 3days,but express charge should be paid by customer.Q3. What is your terms of packing?
A3: Generally, we pack goods in neutral boxes and brown cartons,or customized if qty reached.Q4. What is your terms of payment?
A4: In common,T/T 30% as deposit, and 70% before delivery.,if the amount >2000USD
Q5. How about your delivery time?
A5: Generally, it will take 3 to 15 days upon receipt of payment. The specific delivery time depends
on the items and the quantity of the order.Q6. Can you produce according to the samples?
A6: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.Q7. Do you test all your goods before delivery?
A7: Yes, we have 100% test before delivery.Q8: How do you make our business long-term and good relationship?
A8:1. We keep good quality and competitive price to ensure our customers benefit ;
2.Still take our customer's question be first,quick response and resolve ability if meet quality issue.
_________________FAQ_________________
Q1.:Do you have any certification about your factory or products?
A1:Of course,we have strong system certified,like IATF16949,ISO14001,UL,TUV,VDE,Rohs,Reach and related approvals.Q2.What is your sample policy?
A2:Free sample could be provided within 3days,but express charge should be paid by customer.Q3. What is your terms of packing?
A3: Generally, we pack goods in neutral boxes and brown cartons,or customized if qty reached.Q4. What is your terms of payment?
A4: In common,T/T 30% as deposit, and 70% before delivery.,if the amount >2000USD
Q5. How about your delivery time?
A5: Generally, it will take 3 to 15 days upon receipt of payment. The specific delivery time depends
on the items and the quantity of the order.Q6. Can you produce according to the samples?
A6: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.Q7. Do you test all your goods before delivery?
A7: Yes, we have 100% test before delivery.Q8: How do you make our business long-term and good relationship?
A8:1. We keep good quality and competitive price to ensure our customers benefit ;
2.Still take our customer's question be first,quick response and resolve ability if meet quality issue.
